off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

📋

Basic Specifications

Model:SUB-D Series

Source Flow:Active Inverter

Phase:Single Phase

Output Power:>1000W (Up to 11KW)

Certification:SAA, CE, ROHS, ISO9001, CCC

Type:DC/AC Inverters

Power Source:Solar Power

Waveform:Pure Sine Wave Inverter

HS Code:8504403090

Origin:China

⭐

Off Grid Hybrid Solar Inverter (3-11KW)

Key Features

High Frequency off-grid hybrid design, PF=1
3-in-1: Power Inverter + MPPT Controller + Grid Charger
Battery-free operation during daytime
Support lithium activation wake-up and cold start
Auto-restart while AC recovery
Intelligent power distribution (Solar/Mains/Battery)
Adjustable PV/AC charge voltage & current
Selectable Lead-acid or Lithium battery modes
RS232, BMS/RS485, and Dry Contact communication
Optional WiFi/GPRS for mobile monitoring
Parallel function available for 6.2KW/11KW (Up to 9 units)
Wide MPPT range: 40-500VDC / 120-500VDC
Comprehensive protection: Overload, Temp, Short-circuit

🖼️

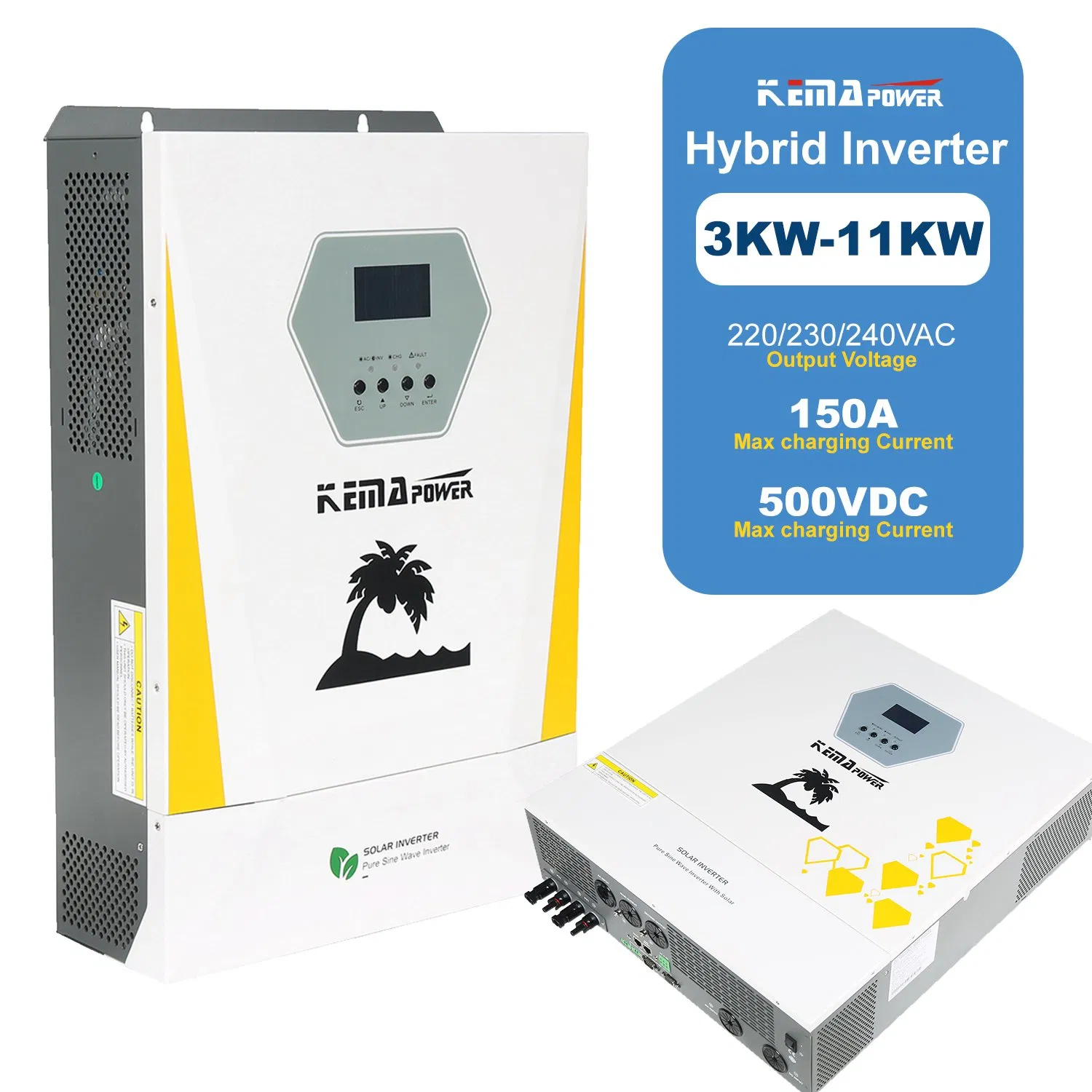

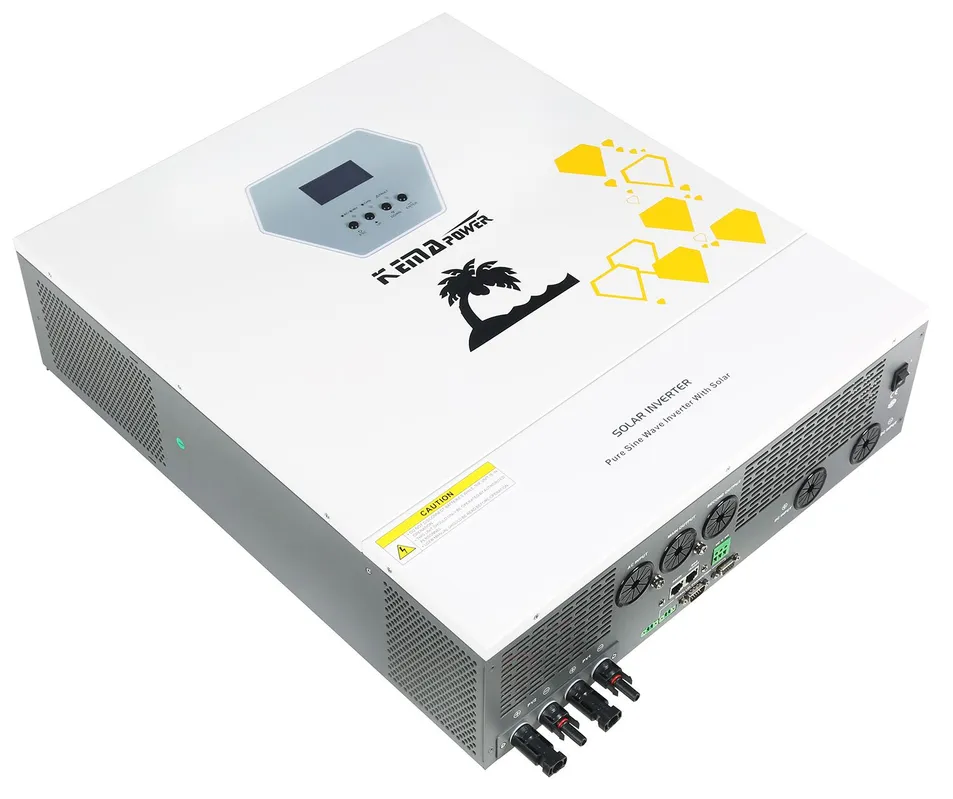

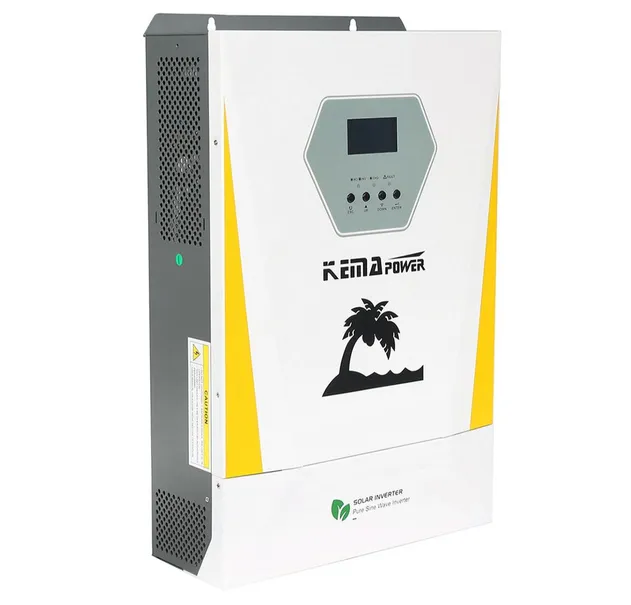

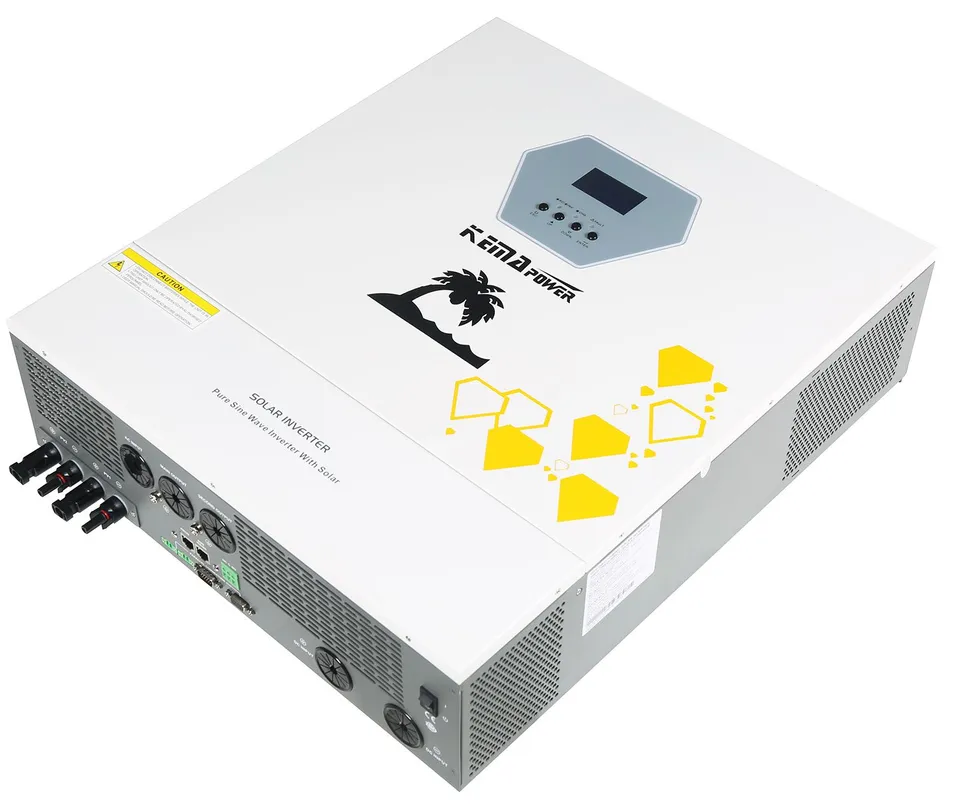

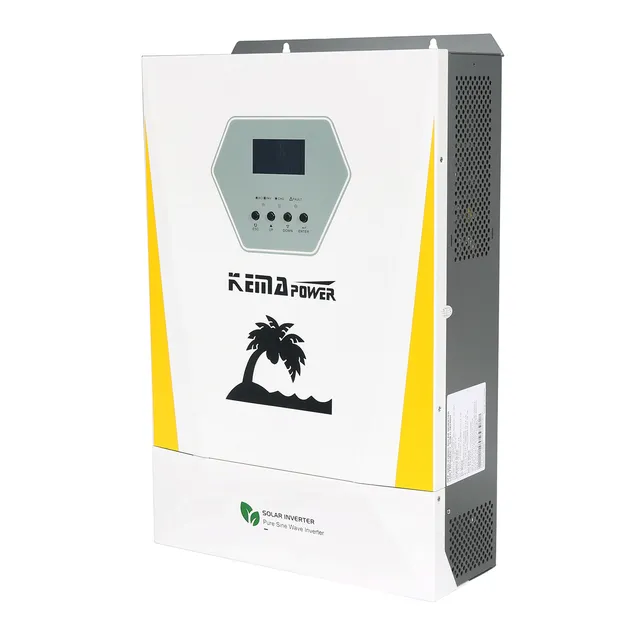

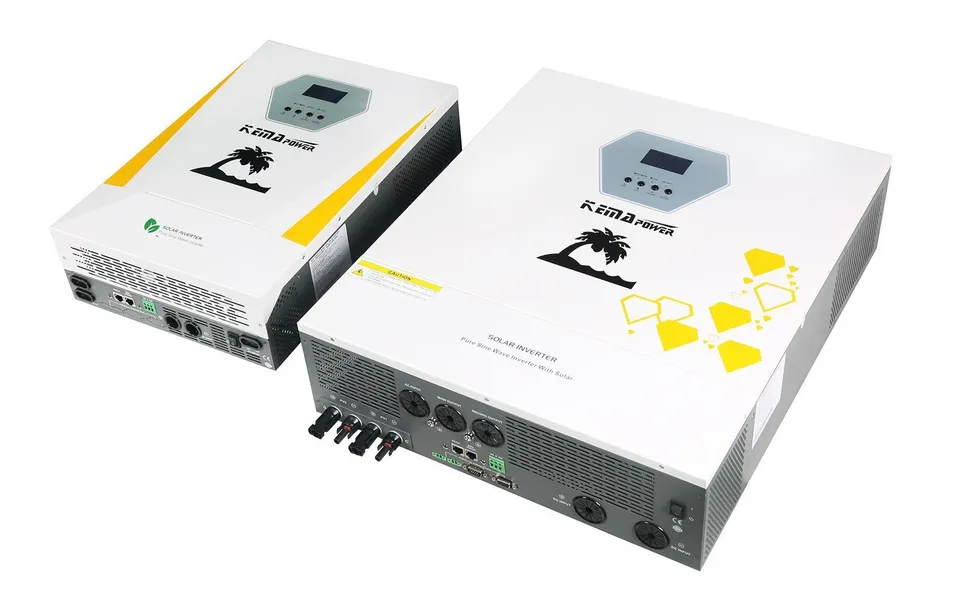

Product Display

📊

Technical Specifications

ITEM	Model	SUB-D-E3024	SUB-D-3624	SUB-D-6248	SUB-D-11048	SUB-D-6248GP	SUB-D-11048GP
INPUT	Rated Power	3KW	3.6KW	6.2KW	11KW	6.2KW	11KW
OUTPUT	Voltage	220/230/240VAC ± 5%(Bat Mode)
OUTPUT	Waveform	Pure sine wave
BATTERY	Voltage	24 VDC		48 VDC
SOLAR	PV Array Power	3KW	4.2KW	6.2KW	2*5.5KW	6.2KW	2*5.5KW
SOLAR	MPPT Range	50~500 VDC	150~500 VDC
PHYSICAL	Net Weight	9.13kg	10.52kg	10.79kg	18.99kg	10.79kg	18.99kg

🔌

Interface & Diagrams

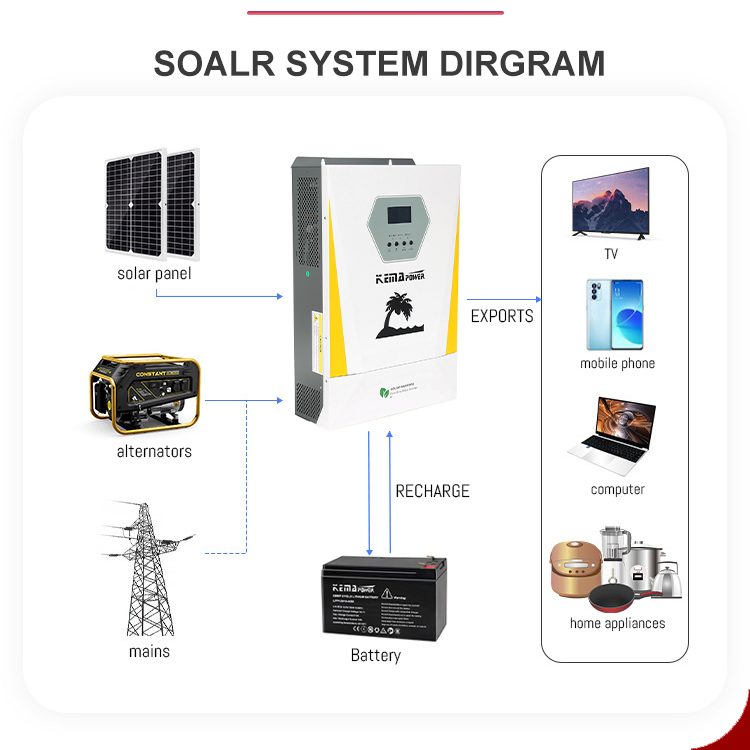

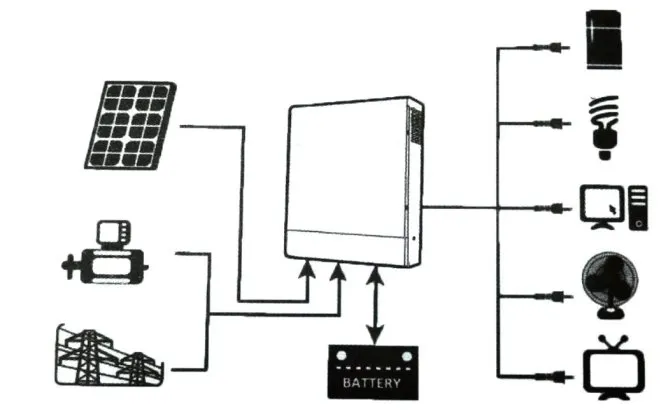

Working Mode Diagram

Design Layout

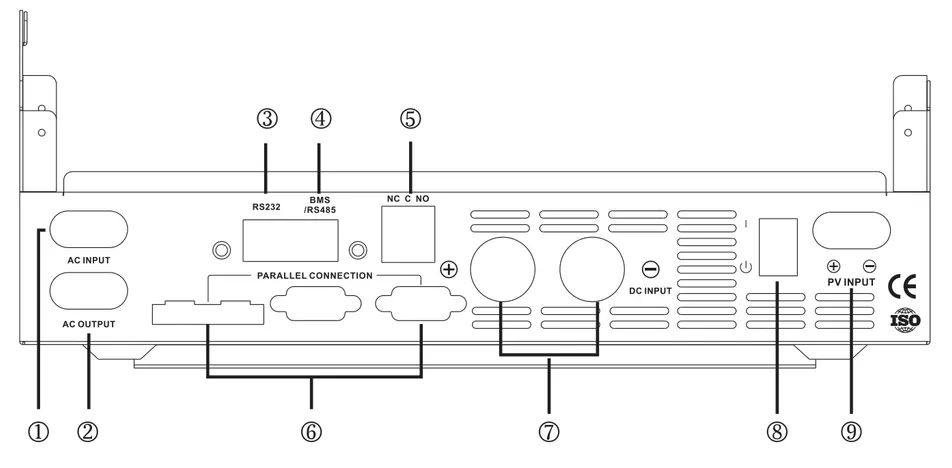

Outside Port (3KVA-6.2KVA)

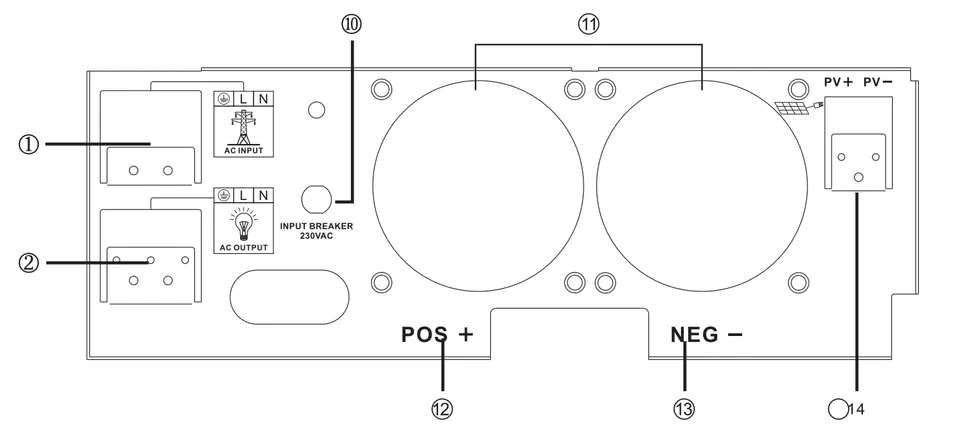

Inside Port (3KVA-6.2KVA)

❓

Frequently Asked Questions

What is the output power range of the SUB-D series?

The SUB-D series offers a wide power range from 3KW up to 11KW, suitable for various household and light industrial applications.

Can this hybrid inverter work without a battery?

Yes, the SUB-D series is designed to work without a battery during the daytime by utilizing solar energy directly to power the loads.

What type of batteries are compatible with this system?

The inverter features adjustable charging current and voltage, making it compatible with both Lead-acid and Lithium batteries. It also supports lithium activation wake-up.

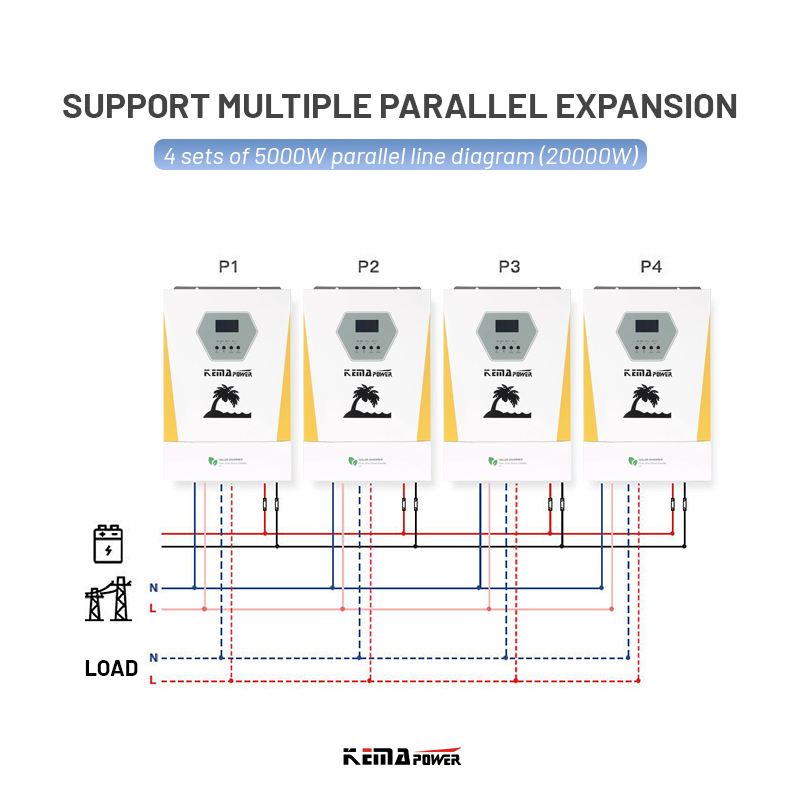

Is it possible to connect multiple units in parallel?

Yes, the 6.2KW and 11KW models support parallel operation, allowing you to connect up to 9 units for increased power capacity.

What kind of protection does the inverter provide?

The system includes comprehensive protection against overload, over-temperature, short-circuits, low battery voltage, and battery reverse connection.

Can I monitor the inverter remotely?

Yes, the inverter supports WiFi Plug or GPRS options, enabling you to monitor and manage the system via a mobile application.
