12V 220V 11kw off-Grid Solar Power Pure Sine Wave Inverter 3kw 3600W 6.2kw Hybrid Solar Inverter Working Without Battery During Daytime

1 / 5

12V 220V 11kw off-Grid Solar Power Pure Sine Wave Inverter 3kw 3600W 6.2kw Hybrid Solar Inverter Working Without Battery During Daytime

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info

Model NO.

SUB-D

Source Flow

Active Inverter

Phase

Single

Output Power

>1000W

Certification

CE, ISO9001

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Half-Bridge Type

Wave String

Sine Wave Inverter

Production Capacity

60,000 PCS/Year

Product Description

Off Grid Hybrid Solar Inverter
SUB-D 3-11KW Series

◈ KEY FEATURES

✓ High Frequency hybrid solar inverter, PF=1

✓ 3-in-1: Inverter + MPPT Controller + Grid Charger

✓ Working without battery during daytime

✓ Supports lithium activation and cold start

✓ Intelligent power distribution shares

✓ Parallel function up to 9 units (6.2KW/11KW)

✓ Wide MPPT range: 40-500VDC / 120-500VDC

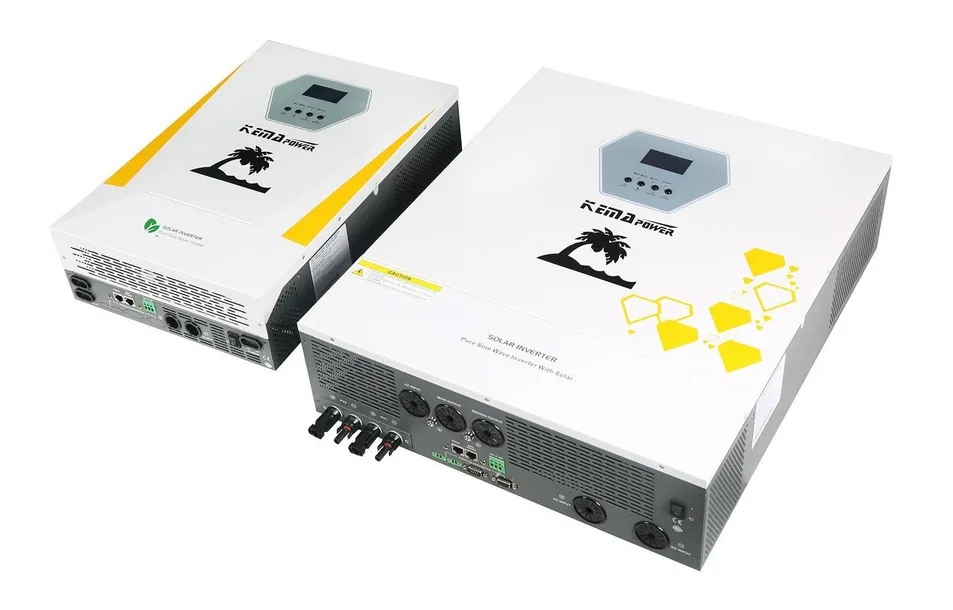

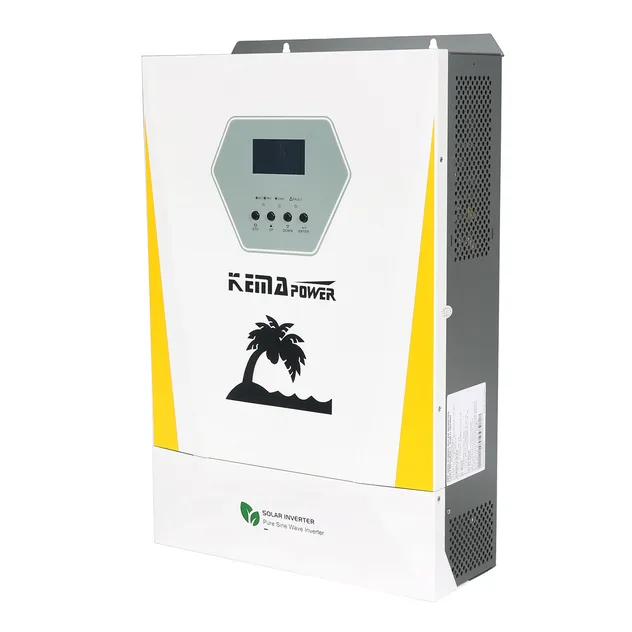

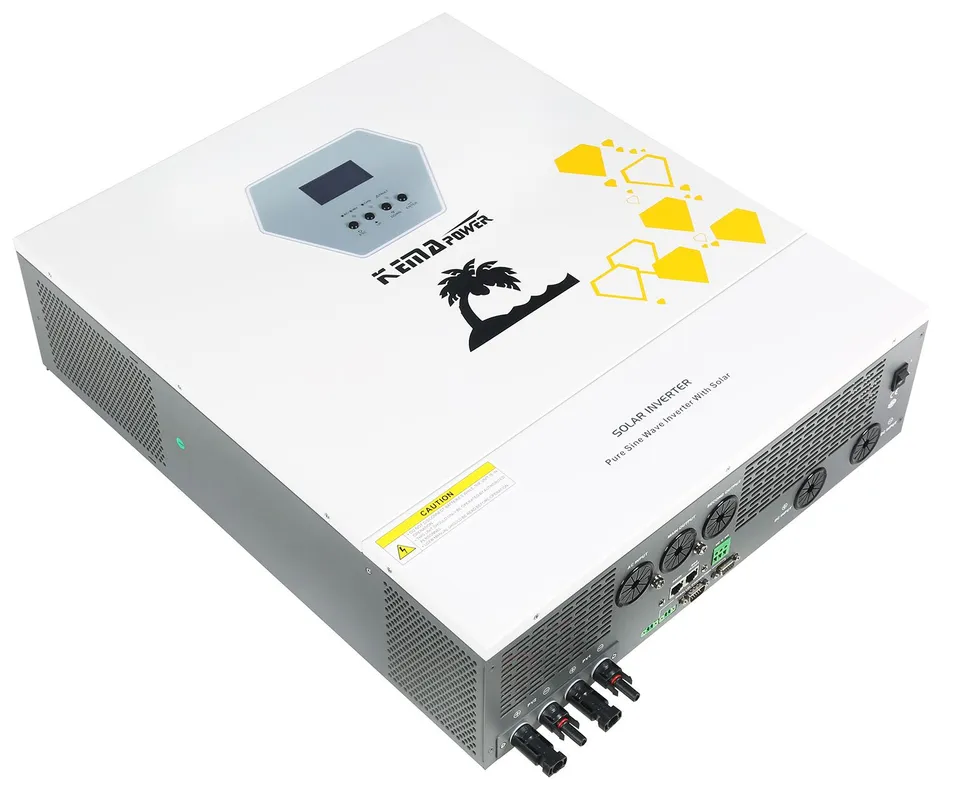

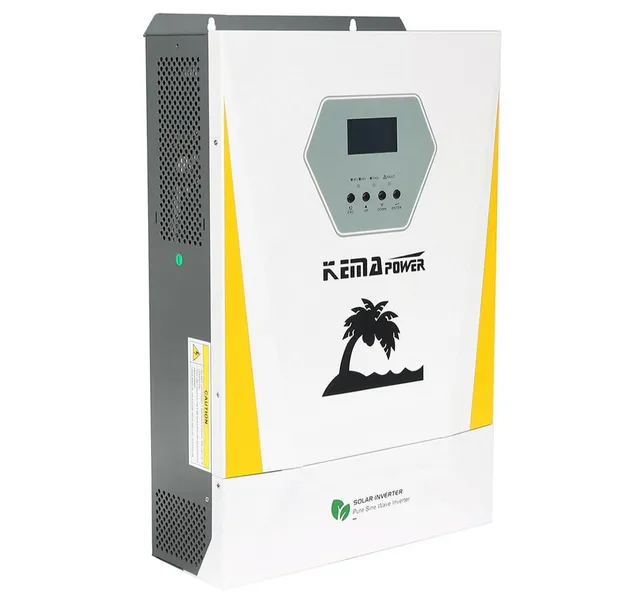

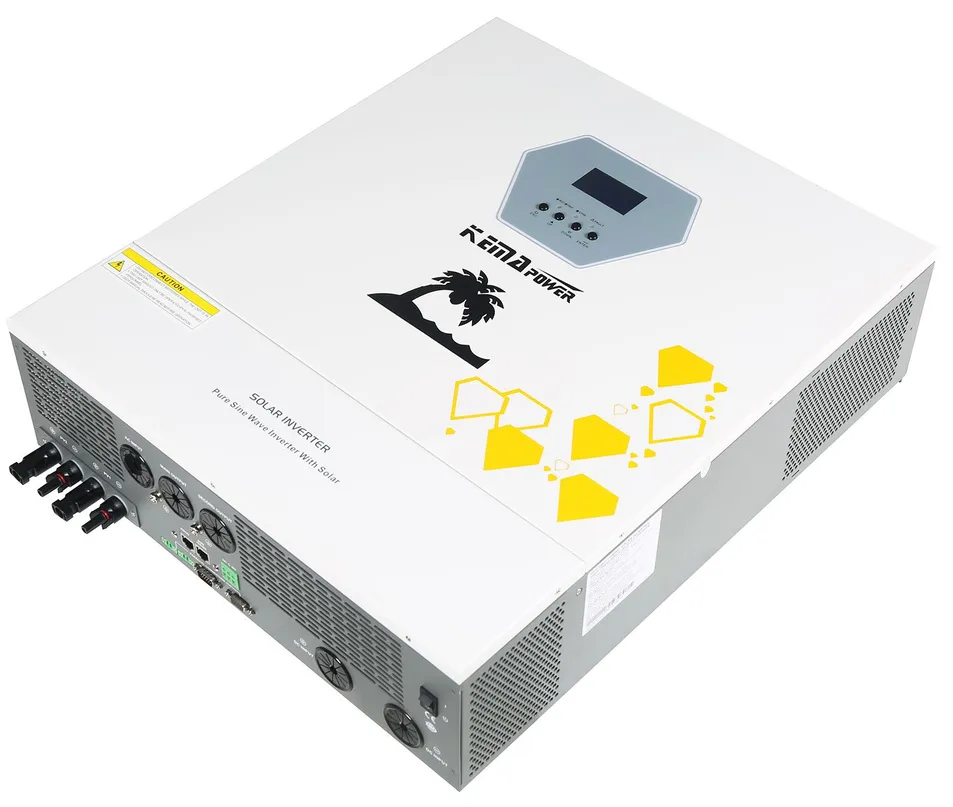

Product Display

Technical Specifications

ITEM	Model	SUB-D-E3024	SUB-D-3624	SUB-D-6248	SUB-D-11048	SUB-D-11048GP
INPUT	Rated Power	3KW	3.6KW	6.2KW	11KW	11KW
OUTPUT	Voltage	220/230/240VAC ± 5%(Bat Mode)
BATTERY	Voltage	24VDC	24VDC	48VDC	48VDC	48VDC
SOLAR	Max PV Array	3KW	4.2KW	6.2KW	2*5.5KW	2*5.5KW
EFFICIENCY	Peak	97% (PV to INV) / 94% (Battery to INV)

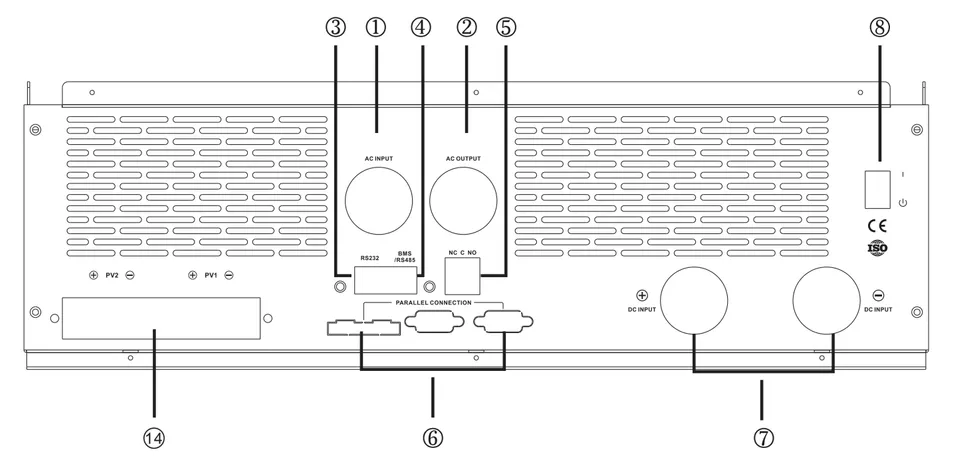

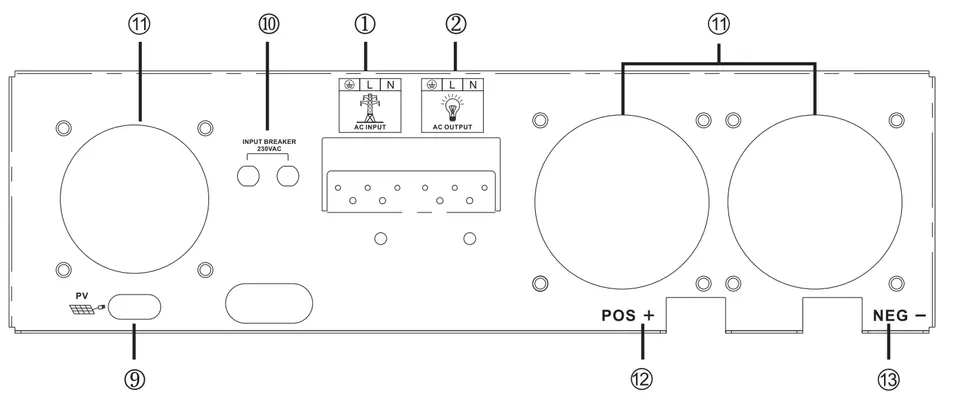

System Layout & Ports

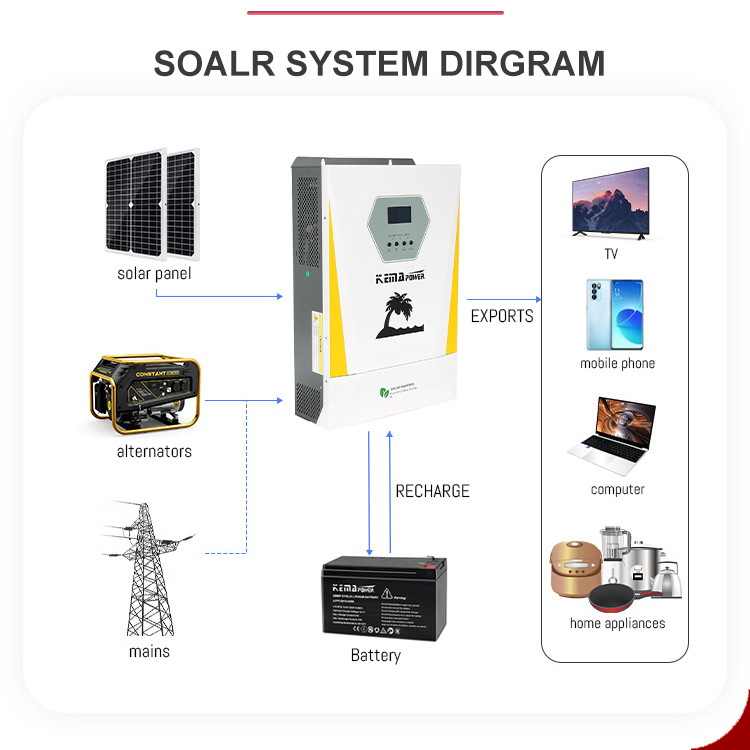

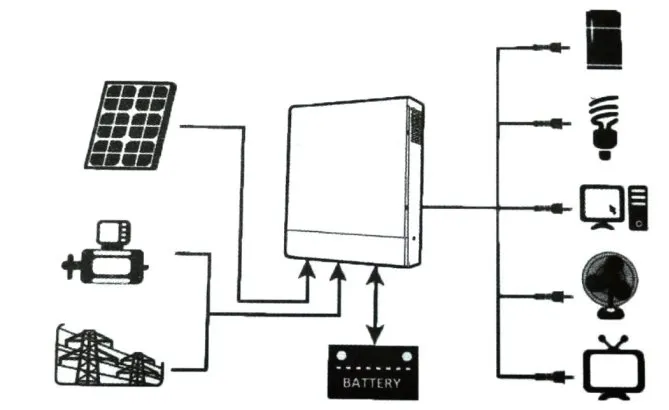

Working Mode Diagram

Design Layout

Frequently Asked Questions

1. Can the SUB-D series inverter operate without a battery?

Yes, this hybrid inverter is designed to work without a battery during the daytime by utilizing solar energy directly to power the loads.

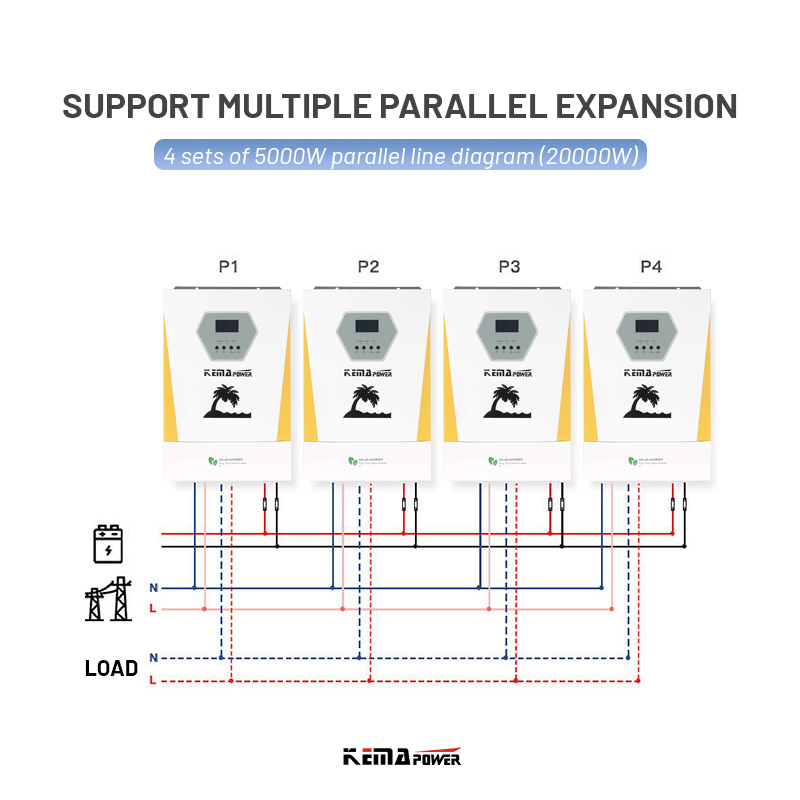

2. How many units can be connected in parallel?

For the 6.2KW and 11KW models, the system supports parallel expansion for up to 9 units to increase total capacity.

3. What types of batteries are compatible with this inverter?

The inverter features adjustable charging voltage and current, making it compatible with both Lead-acid and Lithium batteries. It also includes a lithium activation wake-up function.

4. What is the maximum MPPT range for the solar input?

The MPPT range varies by model, typically between 50-500VDC or 150-500VDC, allowing for high flexibility in solar panel configurations.

5. Does the inverter provide pure sine wave output?

Yes, it provides a pure sine wave output, which is suitable for sensitive electronic devices and various household appliances.

6. What protection features are built into the system?

It includes comprehensive protection against overload, over-temperature, short-circuit, battery low voltage, and battery reverse connection.
