Stock in Germany Warehouse Grid-tie 2250W Micro Inverter for Residential Solar Projects AC 230V 5.2KG Easy DIY Balcony or Rooftop IP67 Solar Micro Inverter

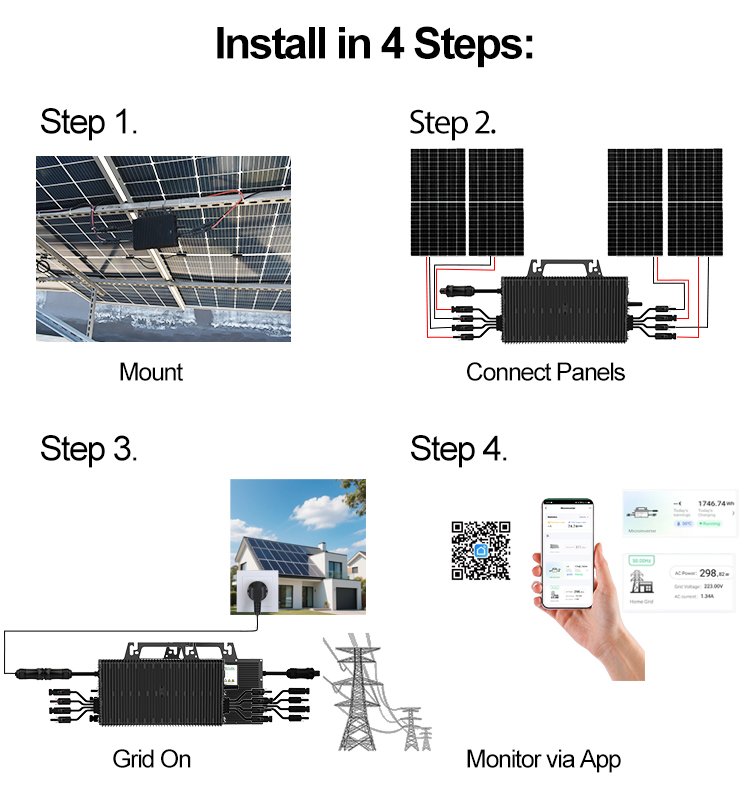

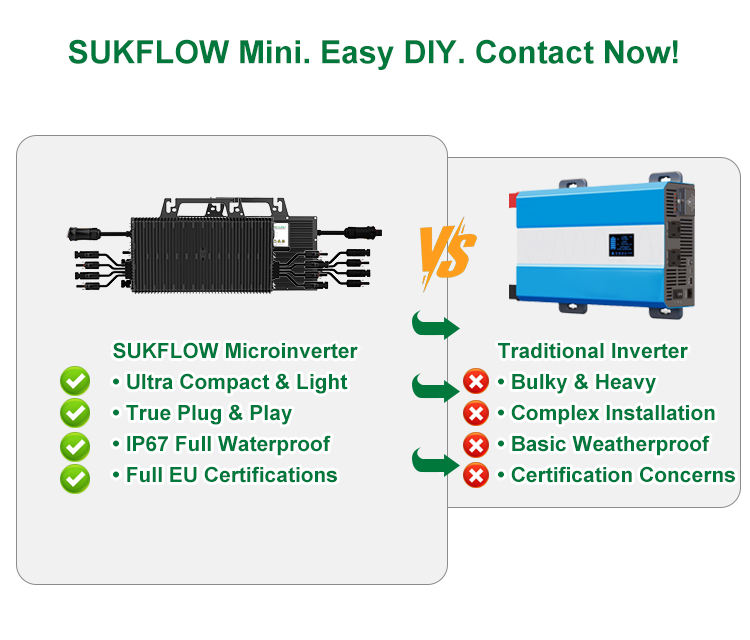

Simplify your solar installation. 2250W Micro Inverter enables true plug-and-play setup.

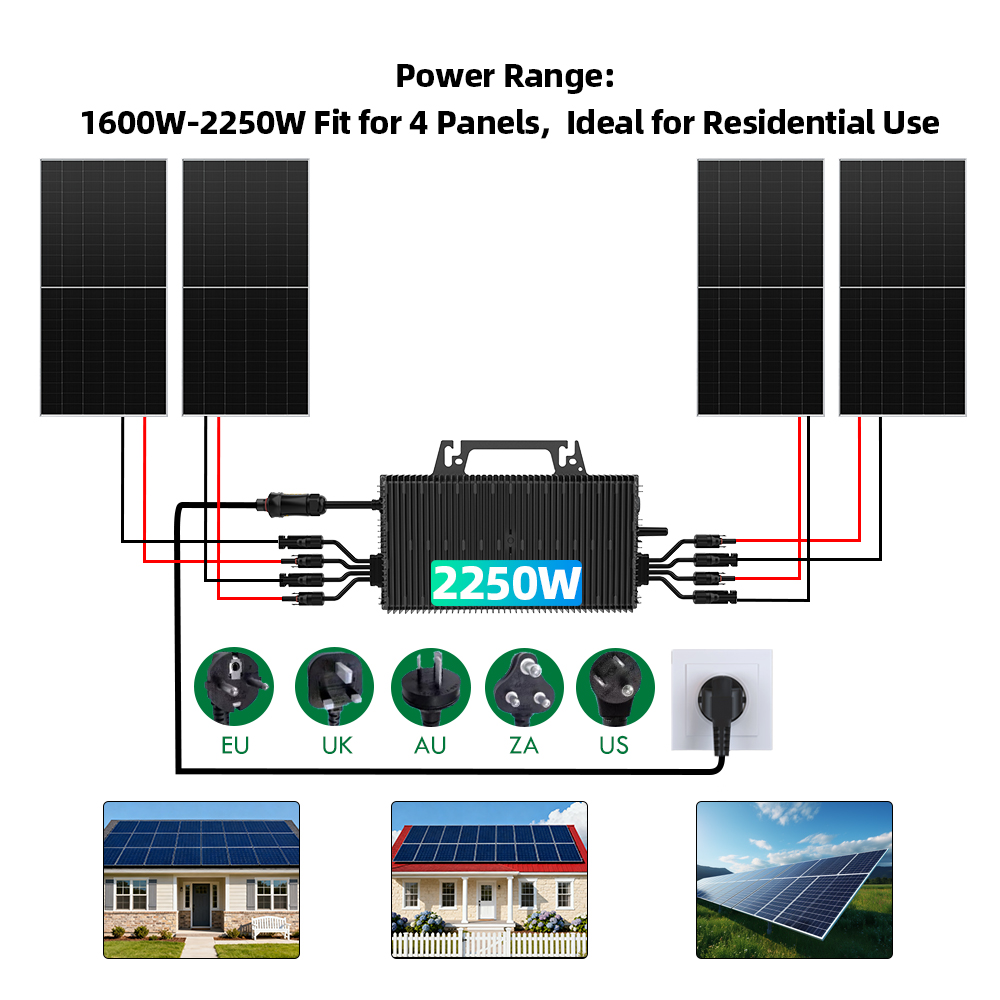

With independent MPPT tracking for each channel, we ensure four connected panels are always performing at their absolute best, increasing total system generation.
Monitor Your Energy in Real-Time, From Anywhere. Gain valuable insights into your system's performance and health through our smart platform. Maximize your savings and spot issues instantly.
| Max Output Power | 1600W | 2000W | 2250W |
| Max PV Input Voltage(DC) | 60V | 60V | 60V |
| Max Input Current(DC) | 14A X 4 | 16A X 4 | 18A X 4 |
| Start-up Voltage | 22V | 22V | 22V |
| Nominal Output Voltage(AC) | 230V | 230V | 230V |
| Operating Voltage Range | 190V-270V | 190V-270V | 190V-270V |
| Nominal Output Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Max AC Output Current | 6.95A | 8.69A | 9.78A |
| MPPT Tracking Accuracy | >99.5% | >99.5% | >99.5% |
| Peak Efficiency | 96.5% | 96.5% | 96.5% |
| THD | <5% | <5% | <5% |
| Inverter Topology | Grid-Tie Microinverter | ||
| Working environment | Indoor and Outdoor (IP67 Rating) | ||
| Operating Temperature | -40°C to +65°C | ||
| Safety Certifications | EN50549; VDE4105; EN62109; IEC62321 CE, FCC, ROHS | ||
| Monitoring | Remote Monitoring via Mobile APP | ||
| Weight | 5.2KG | ||

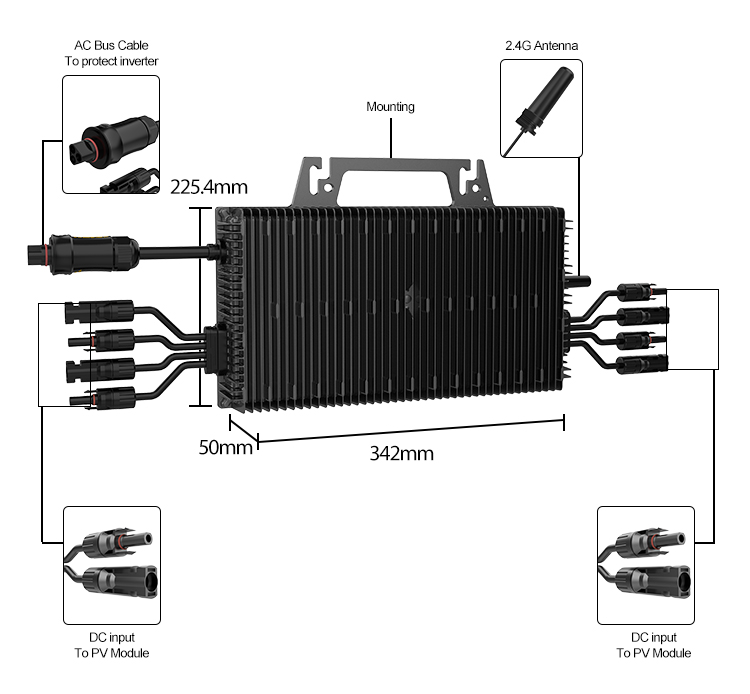

| Size (L*W*H) mm | 342*225.4*50mm (Easy DIY!) | ||
Guaranteed compliance with the strictest European safety and quality standards. Connect to the grid with complete confidence and peace of mind.

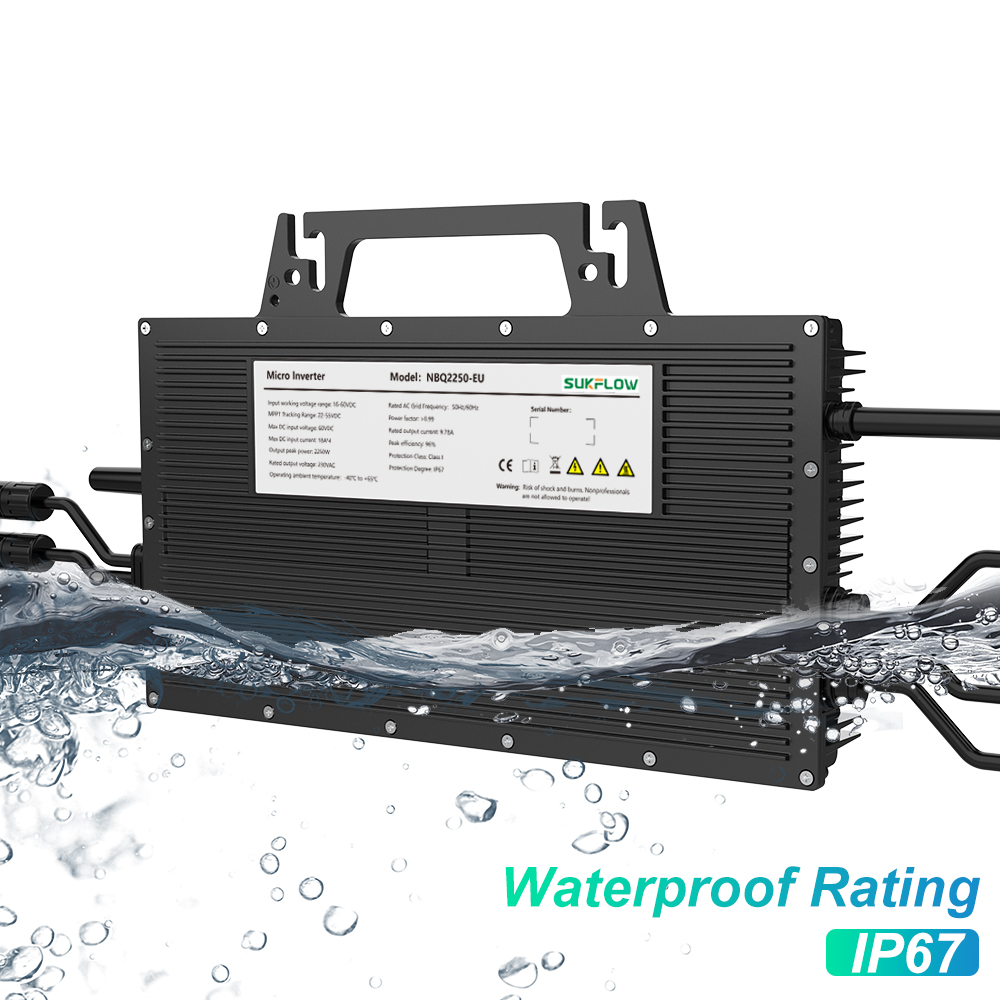

Built to withstand harsh outdoor elements—rain, dust, and extreme temperatures. Ensures reliable, year-round performance and long-term durability.
For samples and urgent needs, our EU warehouse in Germany enables 3-5 day delivery.
For bulk orders, efficient shipping from our factory ensures cost-effectiveness without compromising on reliability.
We offer custom Logo and packaging to strengthen your market presence.
The Professional's Choice for High Efficiency. Our micro inverters, with an efficiency rating of >96.5%, ensure optimal energy harvest for your projects. Partner with us to grow your business and capture a greater share of the expanding solar market.
