Products Description
Solar Inverter
An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.
The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.

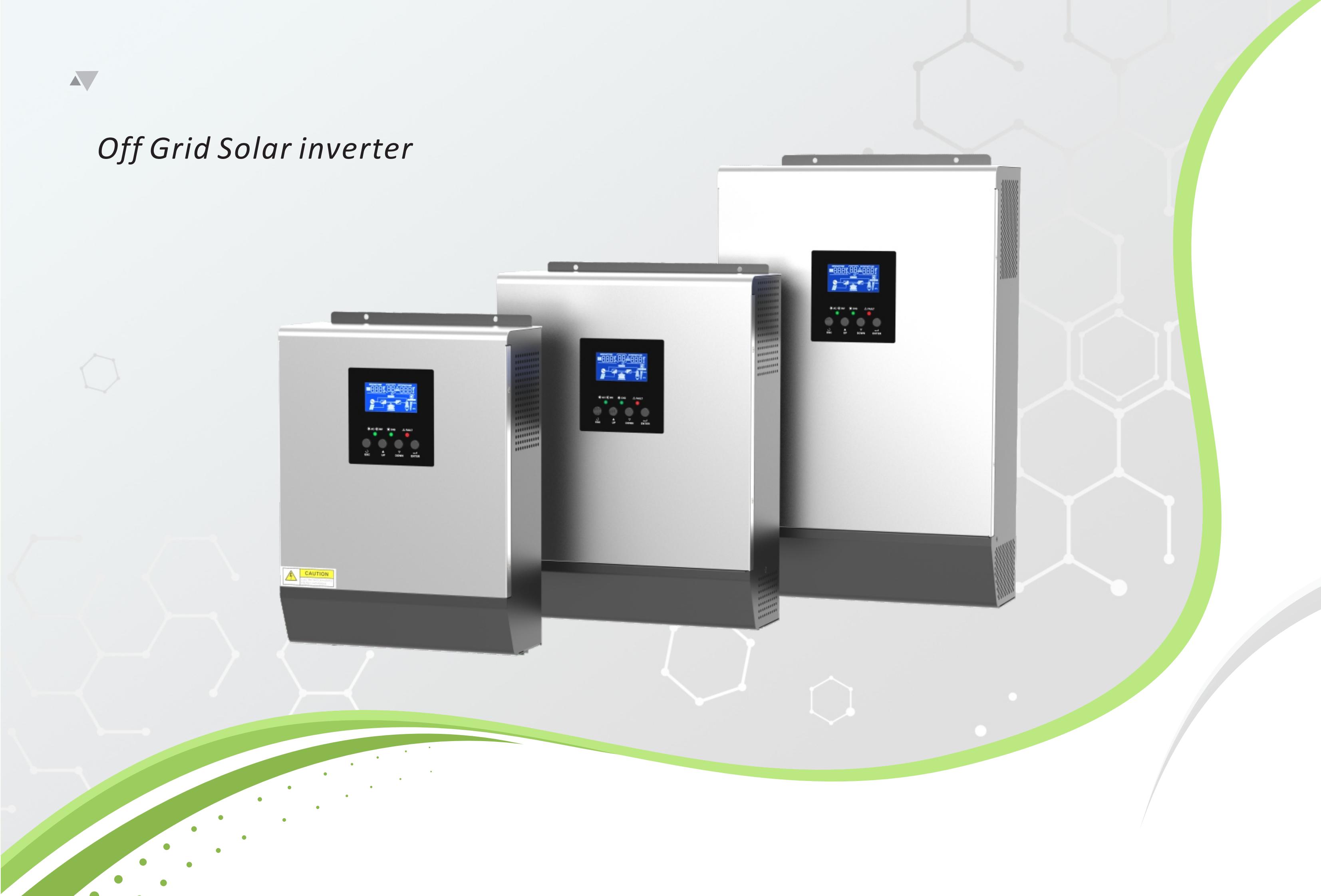

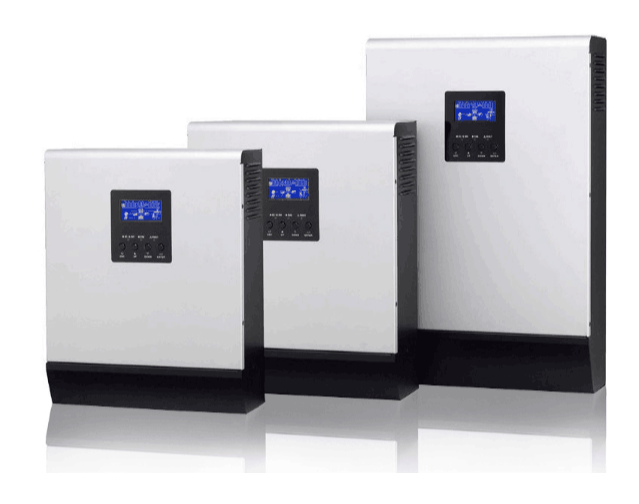

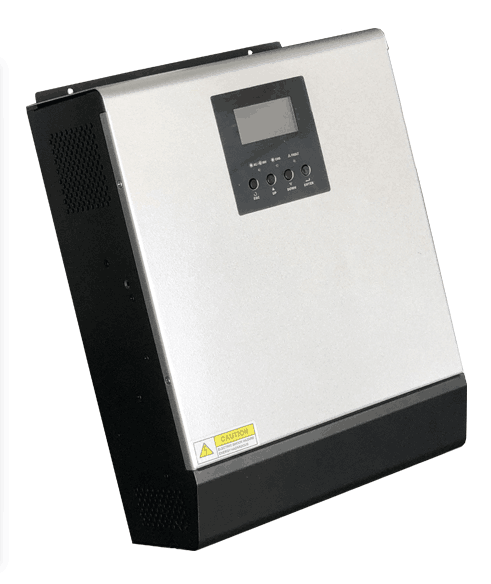

PS Series 1K / 3K / 5K
Higher yields / Safe & Reliable / Smart / User-friendly

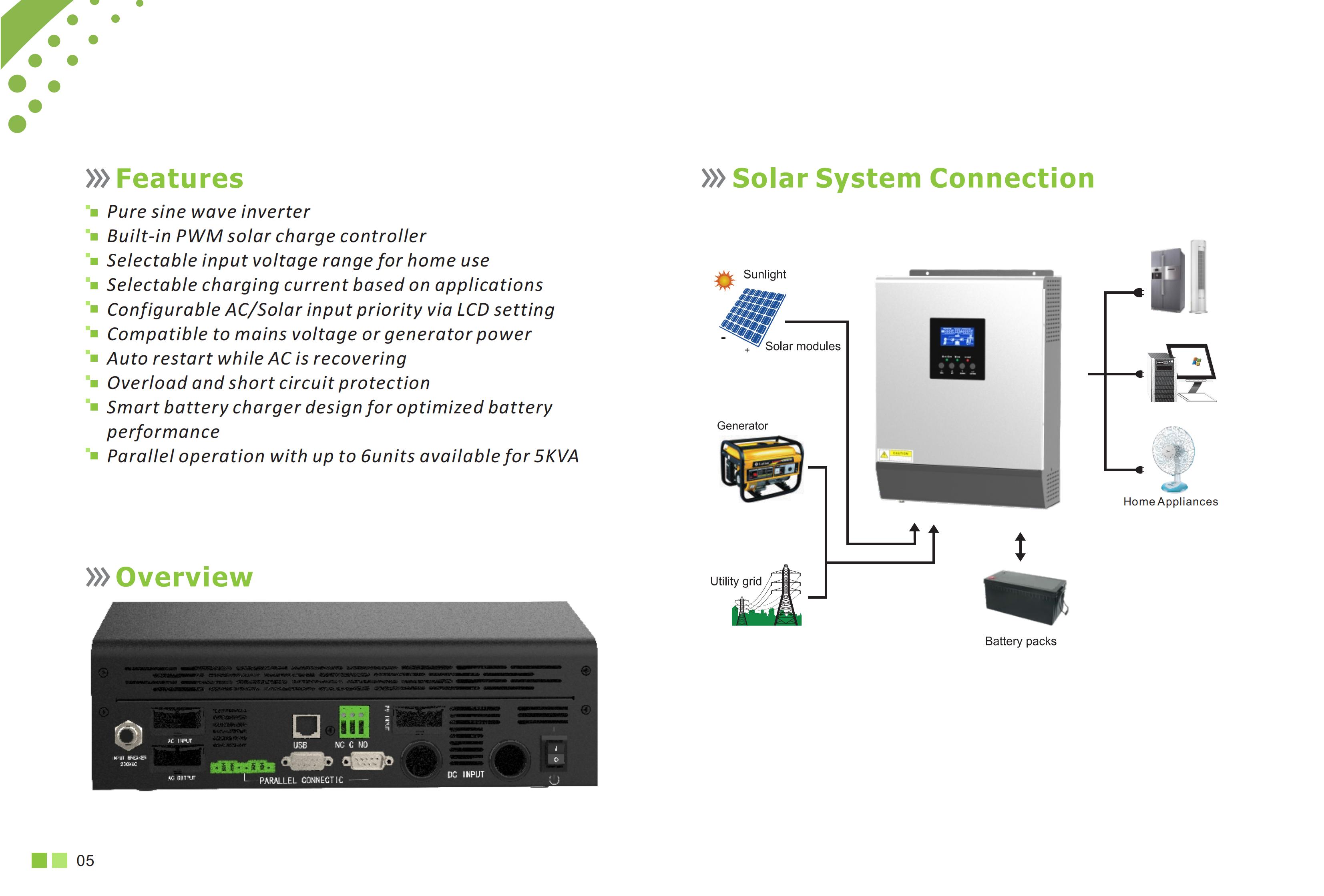

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
- Pure sine wave inverter
- Built-in PWM solar charge controller
- Selectable input voltage range and frequency
- Configurable AC/Solar input priority

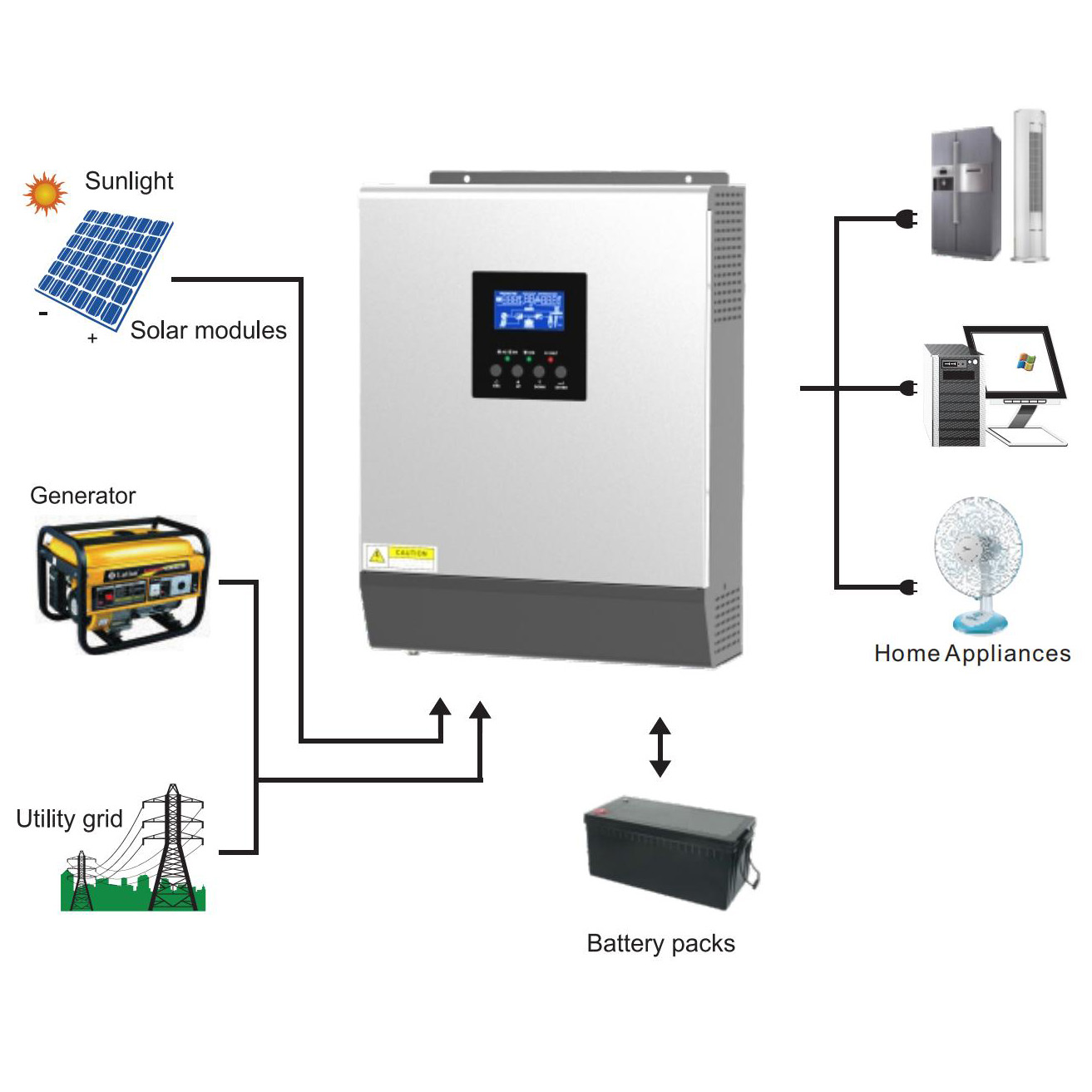

- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design
- Cold start function
| Model NO. |
1K |
3K |
5K |
| Rated Power |
1000VA/800W |
3000VA/2400W |
5000VA/4000W |
| INPUT |
Voltage |
230 VAC |
| Selectable Range (PC) |
170~280 VAC |
| Selectable Range (Appliance) |
90~280 VAC |
| Frequency Range |
50Hz/60Hz (Auto sensing) |
| OUTPUT |
AC Voltage Regulation |
230V AC ± 5% |
| Surge Power |
2000VA |
6000VA |
10000VA |
| Efficiency (Peak) |
90% |
93% |
93% |
| Transfer Time |
10ms (PC), 20ms (Home appliance) |
| BATTERY |
Battery Voltage |
12VDC |
24VDC |
48VDC |
| Floating Charge Voltage |
13.5VDC |
27VDC |
54VDC |
| Overcharge Protection |
15VDC |
30VDC |
60VDC |
| PV INPUT |
Charge Current |
50A |
| MPPT Range @ Operating |
50VDC |
60VDC |
105VDC |
| PHYSICAL |
Dimension (mm) |
305x300x110 |
305x272x100 |
413x295x120 |
| Net Weight (Kgs) |
4.5 |
6.9 |
9.8 |
Note: How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.

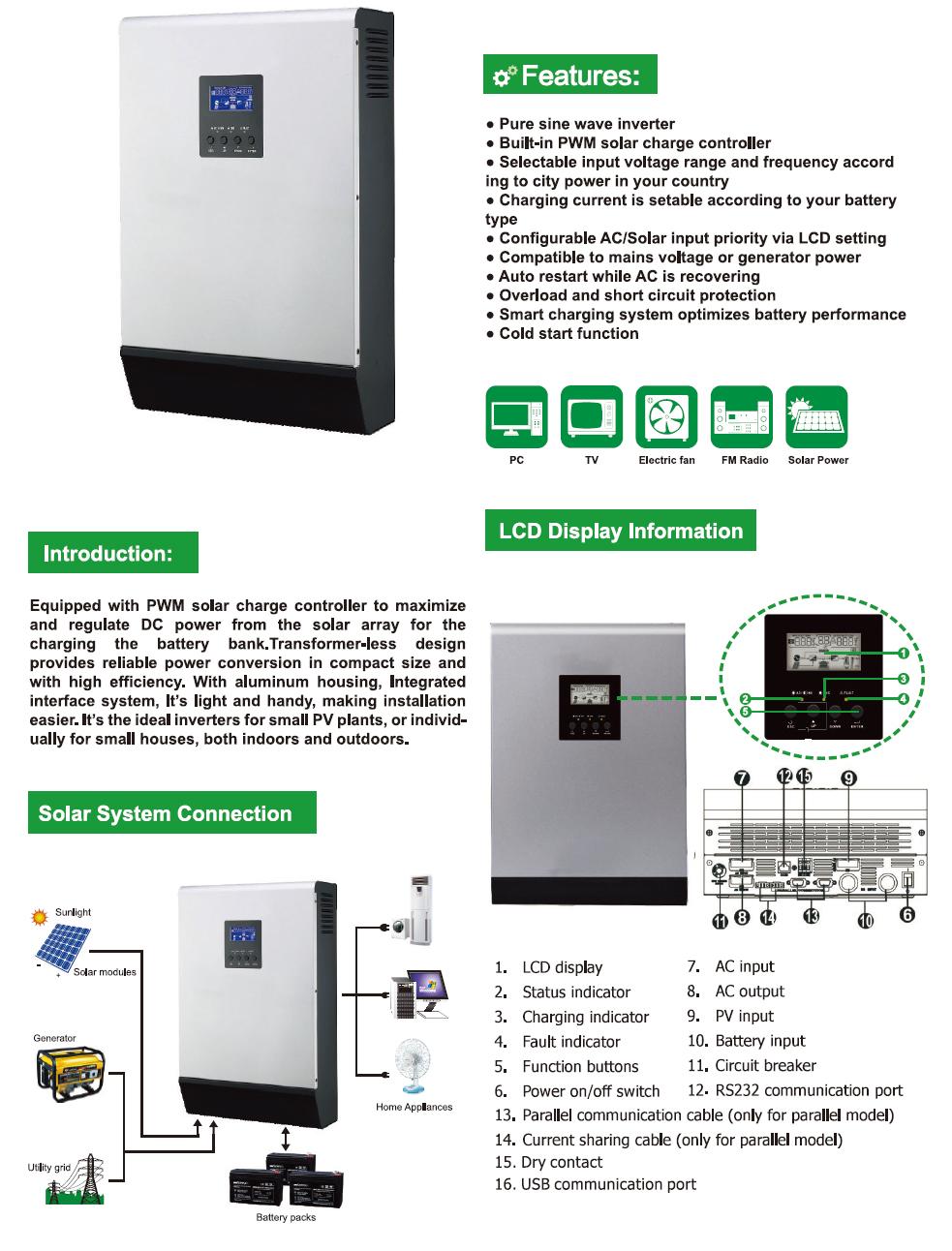

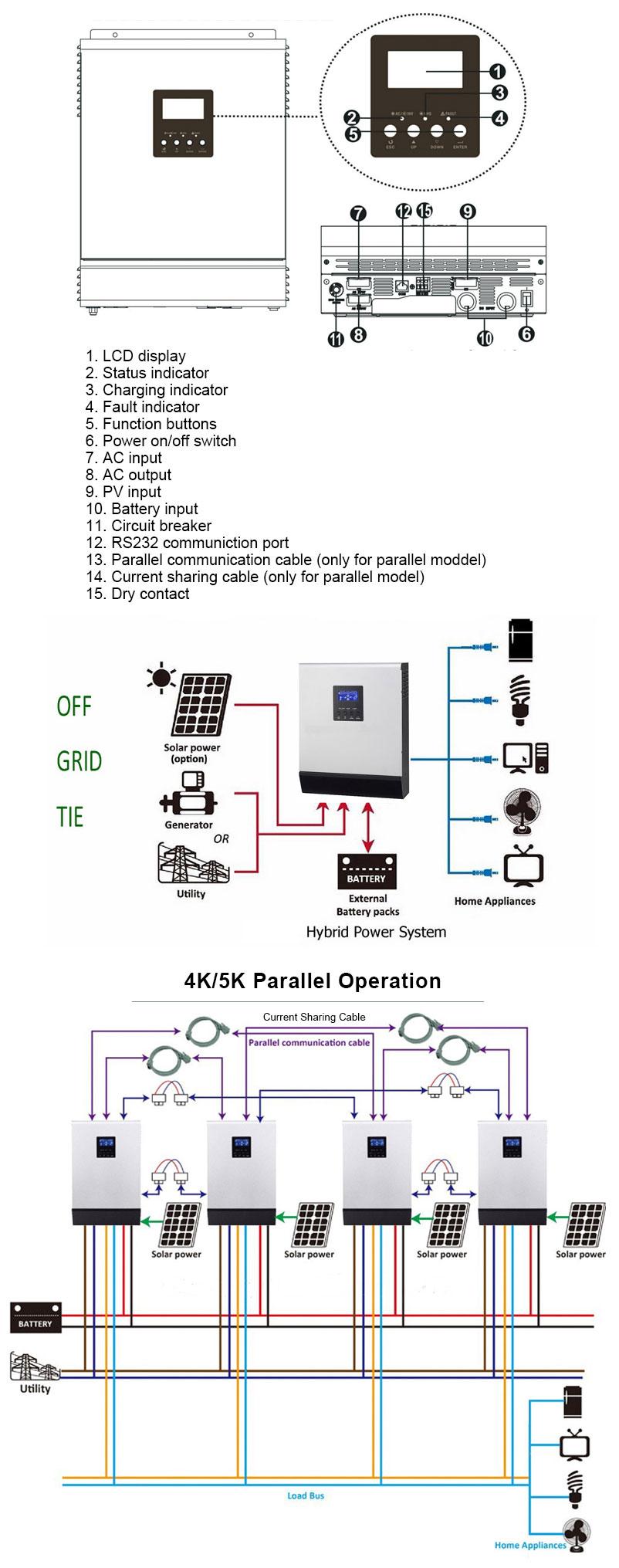

Product Details

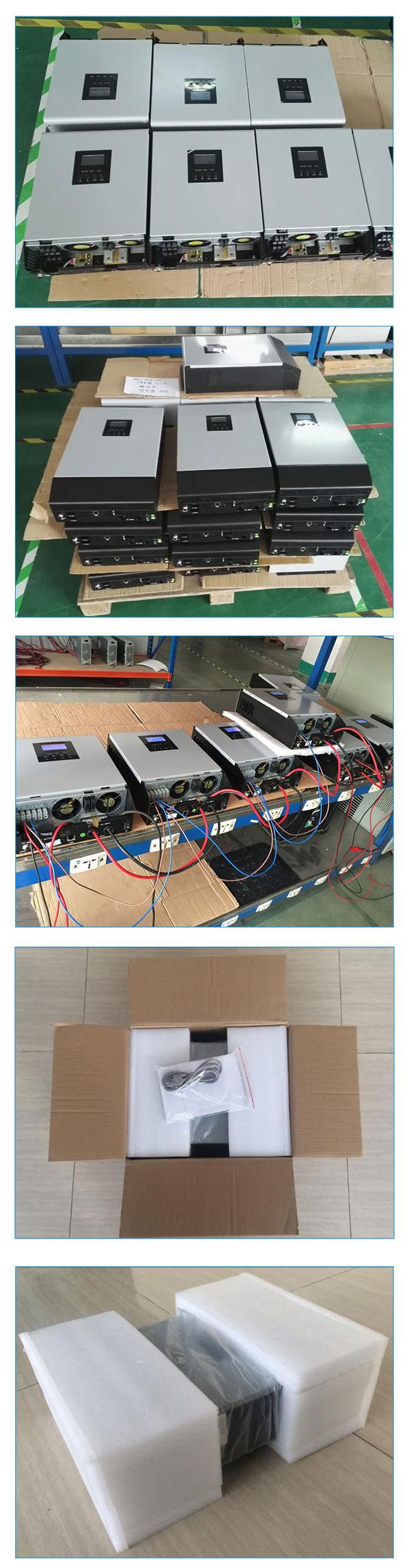

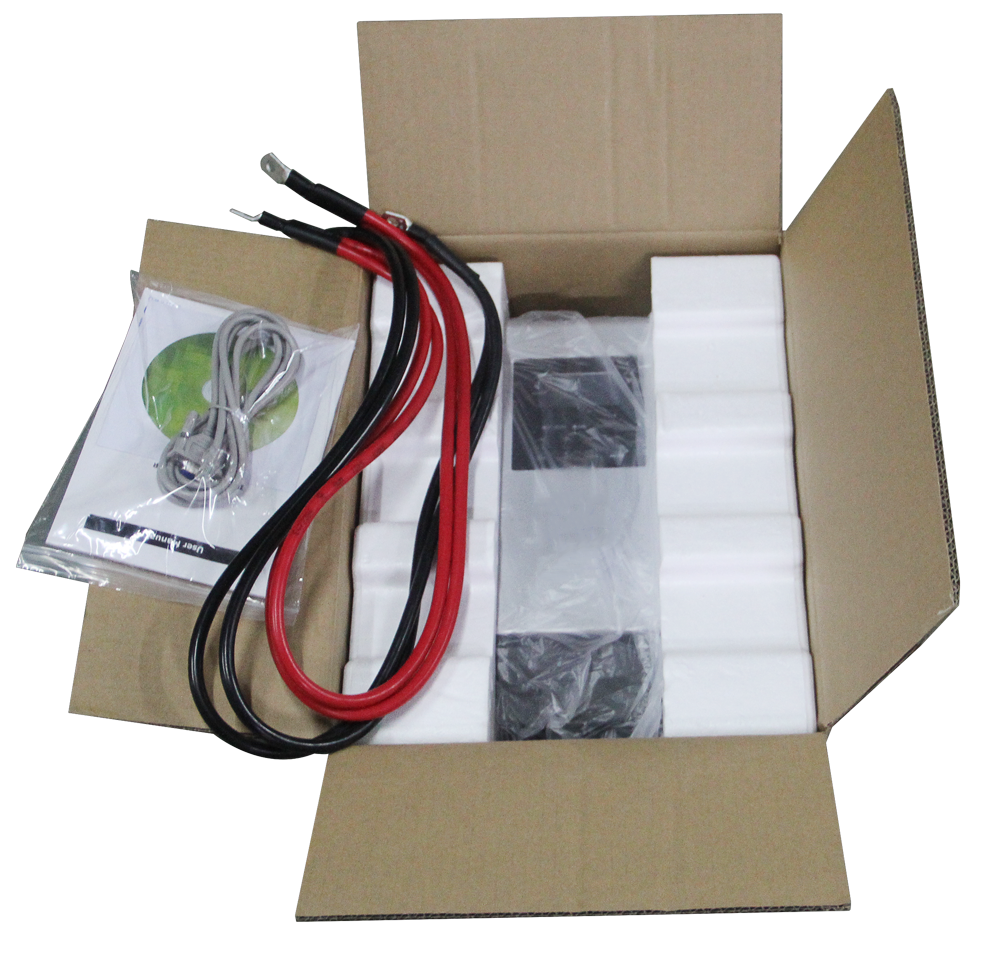

Packaging & Certifications

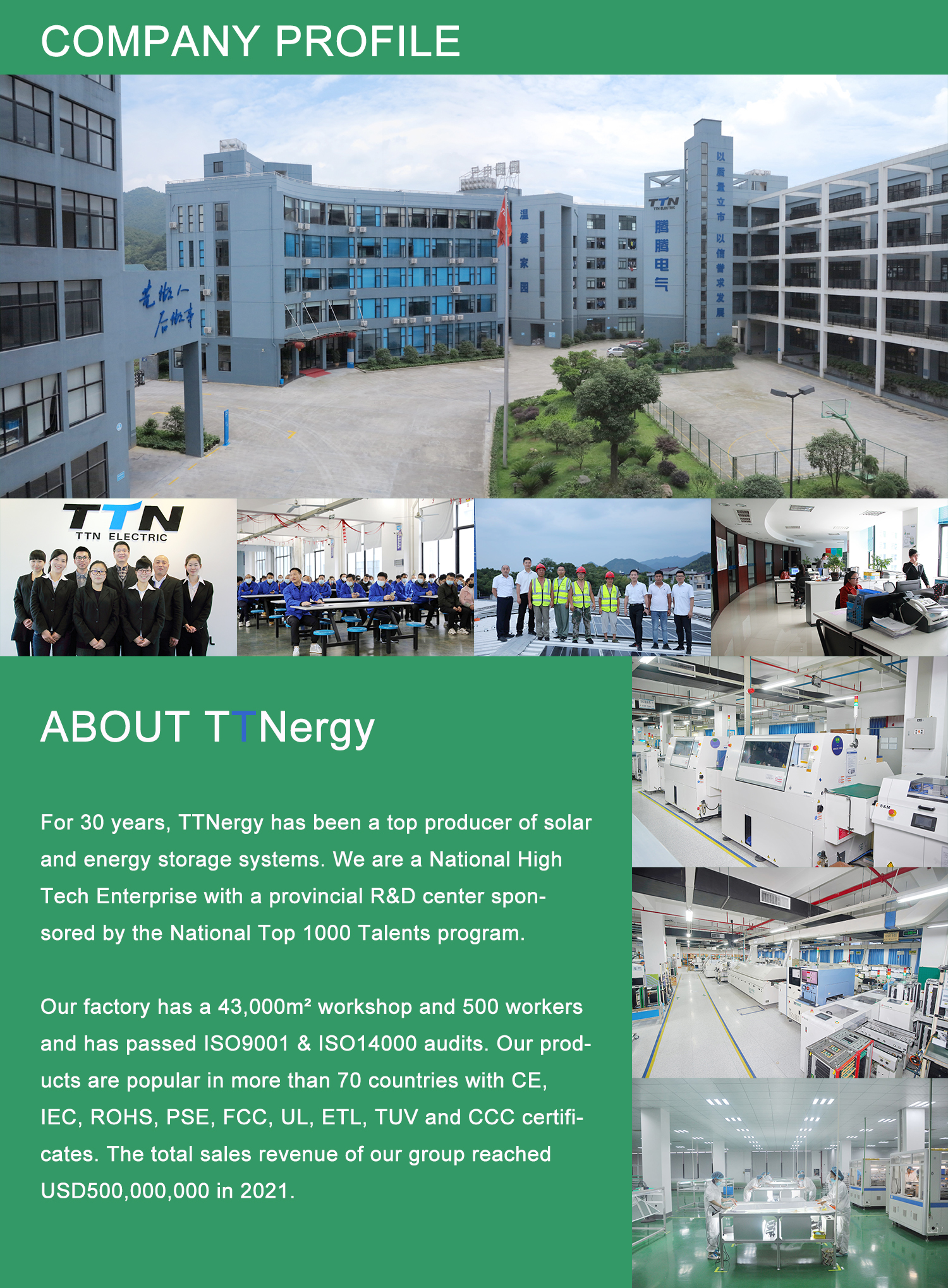

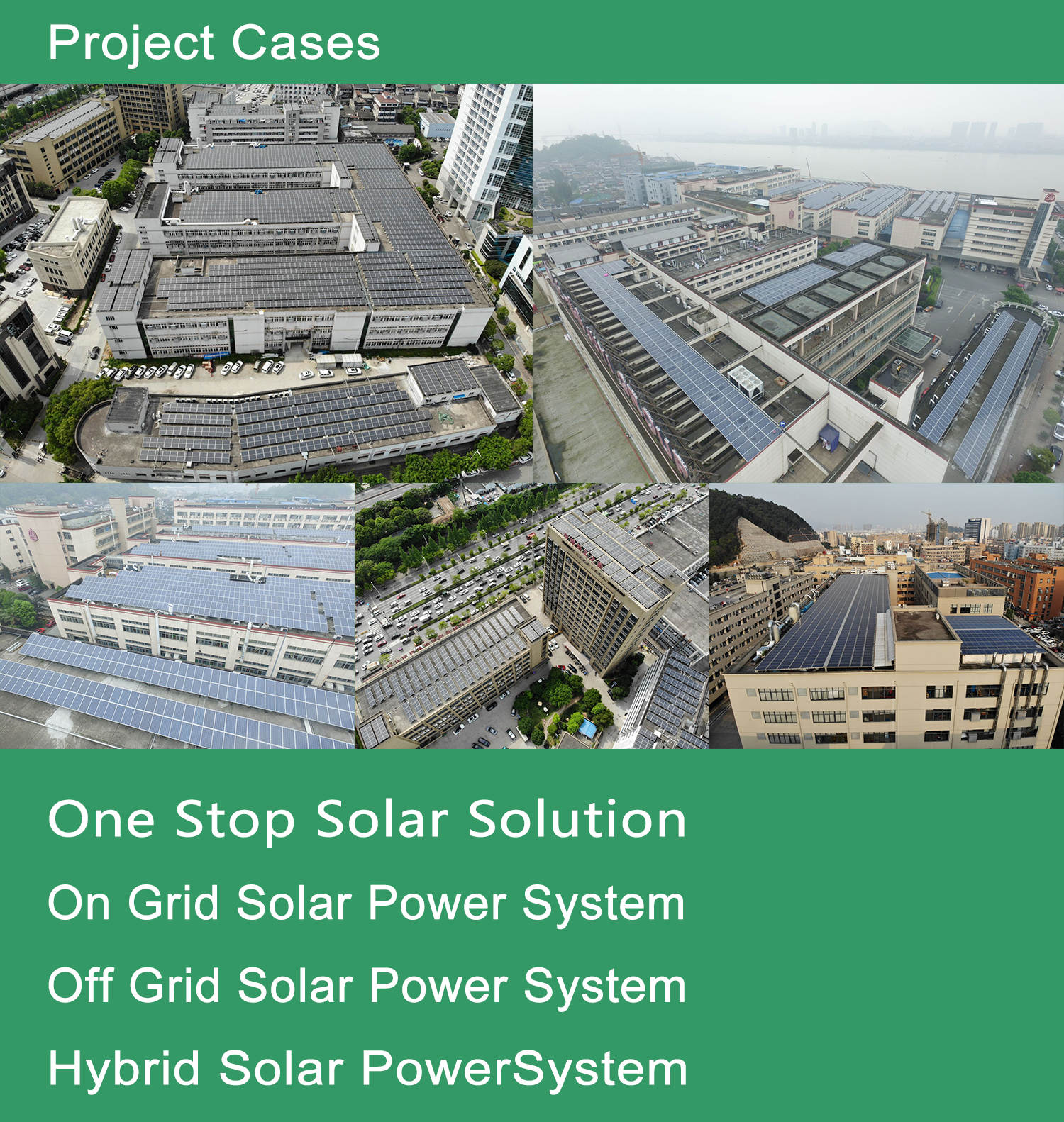

Production Profile
Frequently Asked Questions
What is the difference between an on-grid and a hybrid inverter?
An on-grid inverter converts solar DC power to AC for immediate use or grid export. A hybrid inverter goes further by integrating with battery systems to store excess energy for use during grid outages or nighttime.
Is the output of the PS series a pure sine wave?
Yes, all models in the PS series provide a pure sine wave output, which is essential for protecting sensitive electronics and ensuring the smooth operation of home appliances.
Can I set the priority for solar or utility charging?
Absolutely. Through the integrated LCD display, users can configure whether the AC (utility) or Solar input takes priority for charging batteries and powering loads.
Does the inverter support auto-restart?
Yes, the system is designed to automatically restart once AC power is recovered after a disruption, ensuring continuous operation without manual intervention.
How do I choose the correct battery capacity?
Battery capacity should be matched based on your specific load requirements and backup time needs. Consult our technical guidelines to avoid efficiency loss or insufficient power storage.
What protection features are included?
The inverters include comprehensive protection against overloads, short circuits, overcharging, and extreme environmental temperatures.
