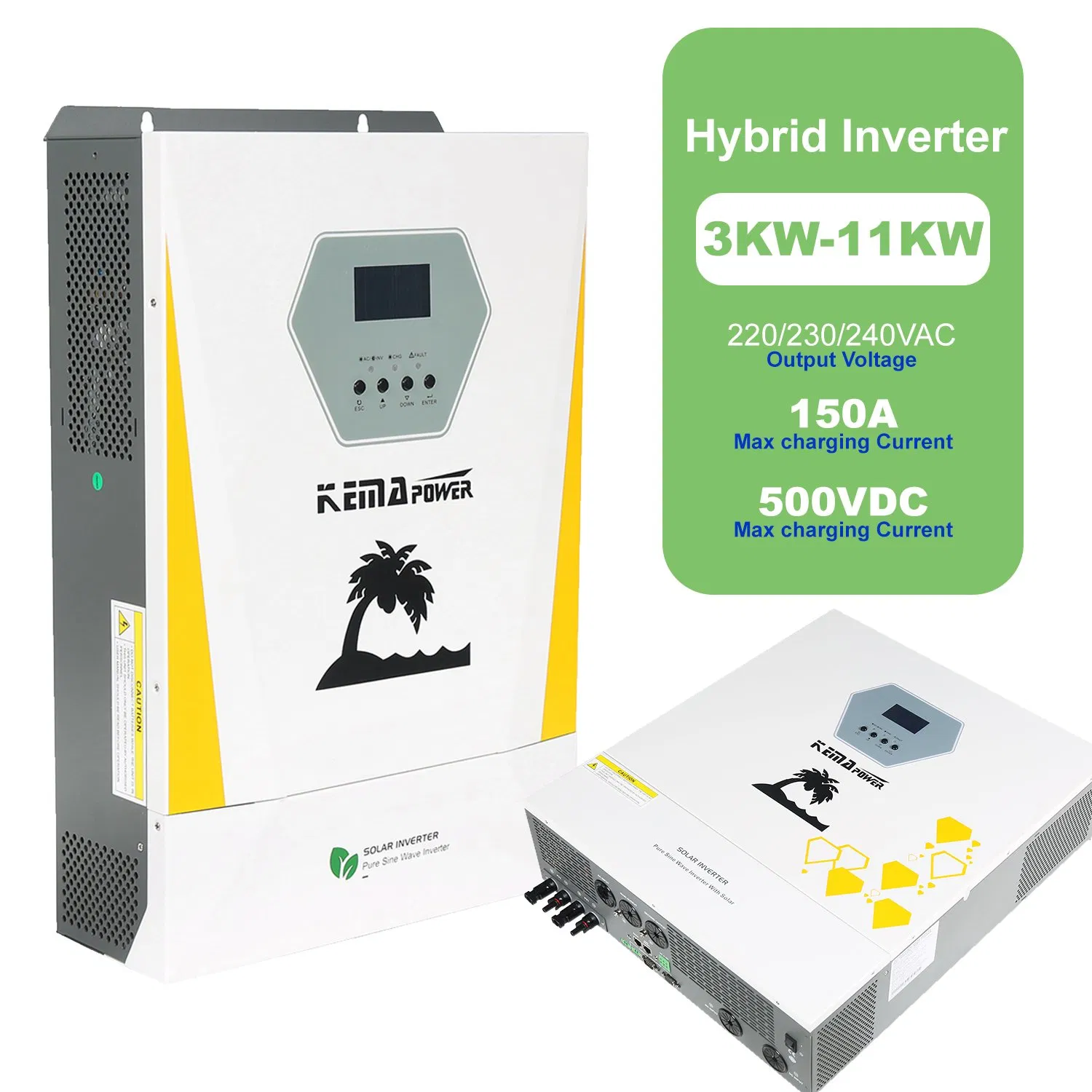

Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
1 / 5
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System

Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Product Basic Information
Model NO.:SUB-D
Nature of Source Flow:Active Inverter
Phase:Single
Output Power:>1000W
Certification:CE, ISO9001
Type:DC/AC Inverters
Power Source:Solar Power
Circuit Topologies:Half-Bridge Type
Nature of Wave String:Sine Wave Inverter
Product Name:Charge Controller Solar Hybrid off Inverter
Specification:1.5-5.5KW
Origin:China
HS Code:8504403090
Production Capacity:60,000PCS/Year
Packaging & Delivery
Package Size:708.00cm * 570.00cm * 241.00cm
Package Gross Weight:11.000kg
Off Grid Hybrid Solar Inverter (SUB-D 3-11KW)

KEY FEATURES

  • High Frequency off grid hybrid solar inverter SUB-D 3-11KW, PF=1
  • 3 in 1 design: Inverter + MPPT controller + Grid Charger
  • Working without battery during daytime
  • Support lithium activation wake-up and cold start function
  • Auto restart while AC is recovering
  • Intelligent power supply & distribution mode
  • Adjustable AC/PV charge voltage for various battery types

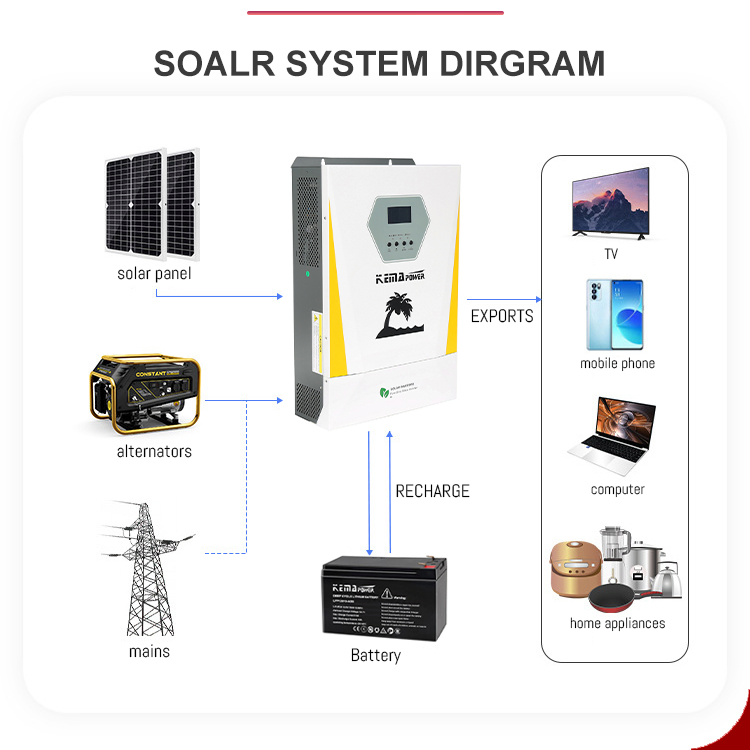

  • Solar, Grid and Battery energy complement each other
  • RS232, BMS/RS485, Dry Contact Communication
  • WiFi Plug or GPRS option for Mobile App

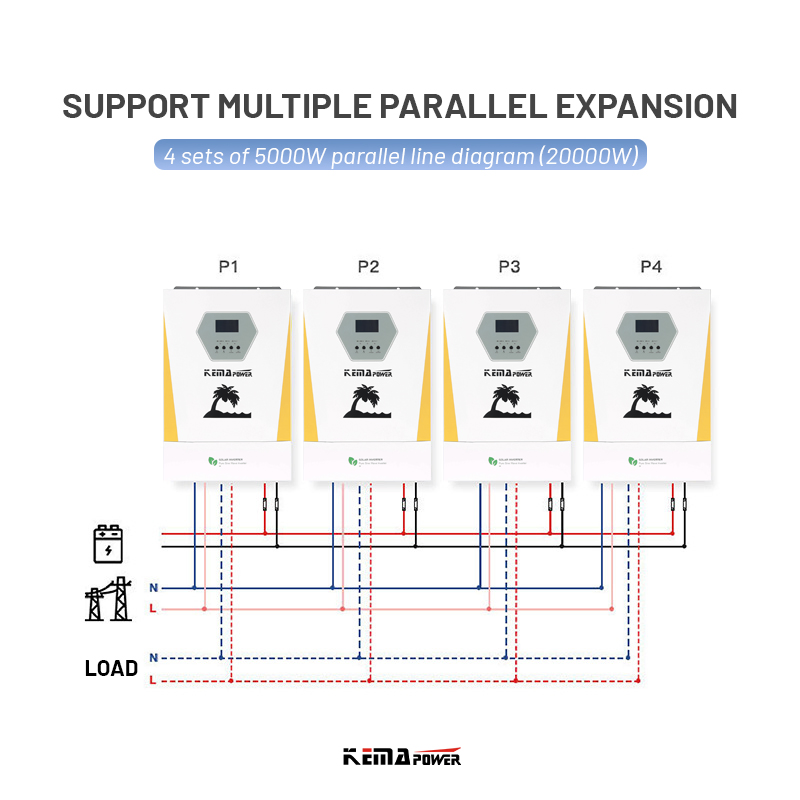

  • 6.2KW/11KW models support parallel function (up to 9 units)
  • Wide MPPT range: 40-500VDC / 120-500VDC
  • Intelligent 3 stage AC battery charger
  • Pure sine wave output suitable for all loads

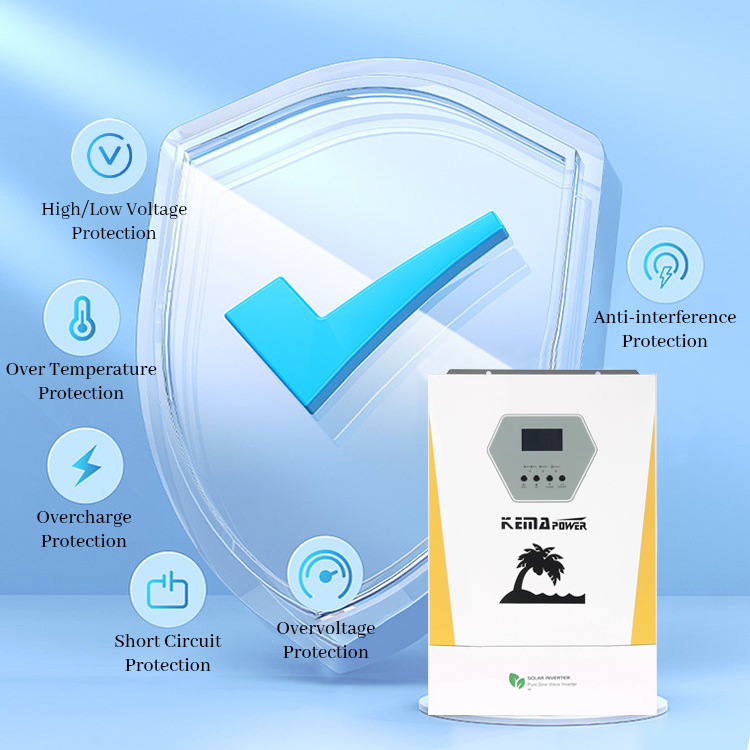

  • Full protection: Overload, Temp, Short-circuit, Reverse Connection
Technical Specifications
ITEM Model SUB-D-E3024 SUB-D-3624 SUB-D-6248 SUB-D-11048
INPUT RATED POWER 3KW 3.6KW 6.2KW 11KW
Voltage 220/230/240VAC
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT Surge Power 2 times Rated power for 5 seconds
Waveform Pure sine wave
Efficiency (Peak) 97% (PV to INV) / 94% (Battery to INV)
BATTERY Voltage 24 VDC 48 VDC
Max Charge Current 60A 80A 80A 150A
SOLAR PV Array Power 3KW 4.2KW 6.2KW 2*5.5KW
MPPT Range 50~500 VDC 150~500 VDC
Max PV Current 18A 18A 18A 18A/18A
Product Display

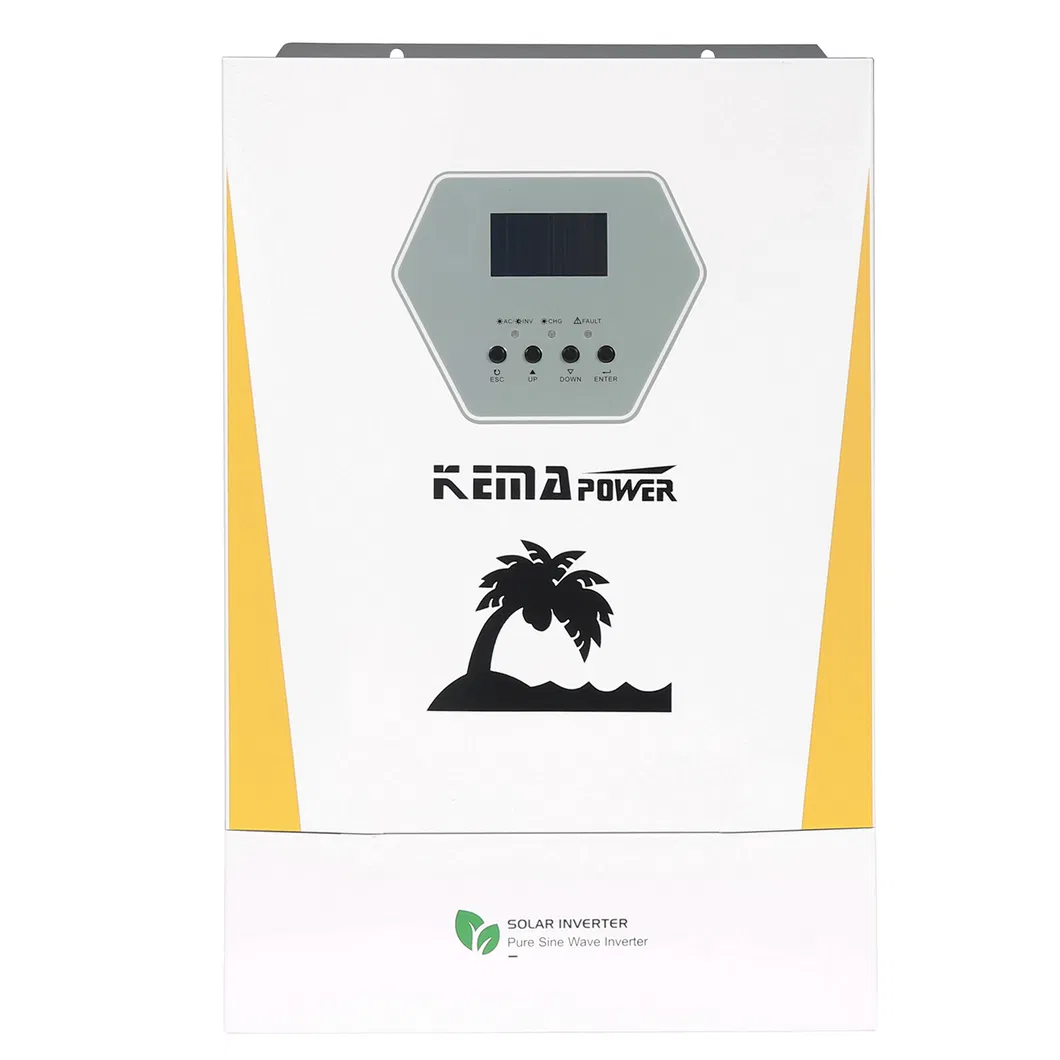

Hybrid Inverter Display 1

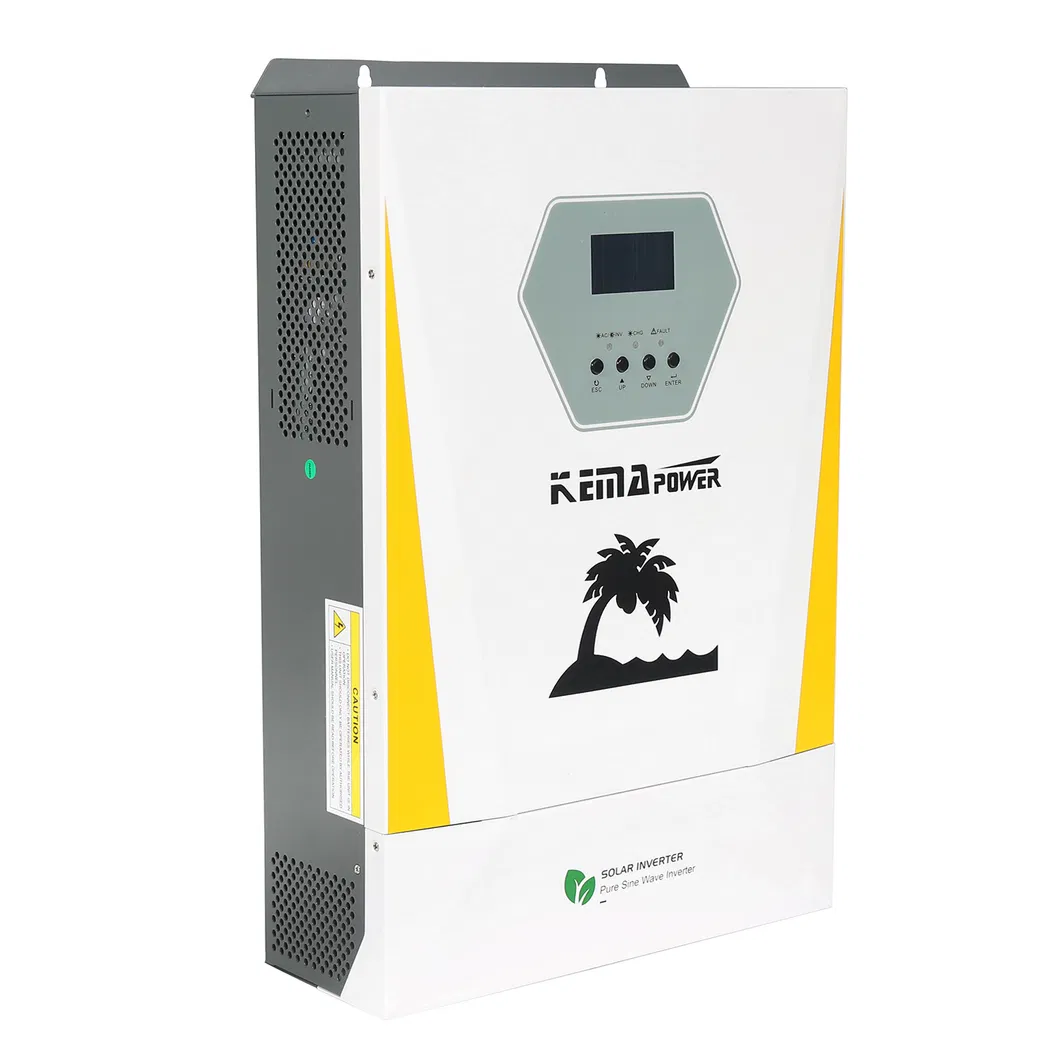

Hybrid Inverter Display 2

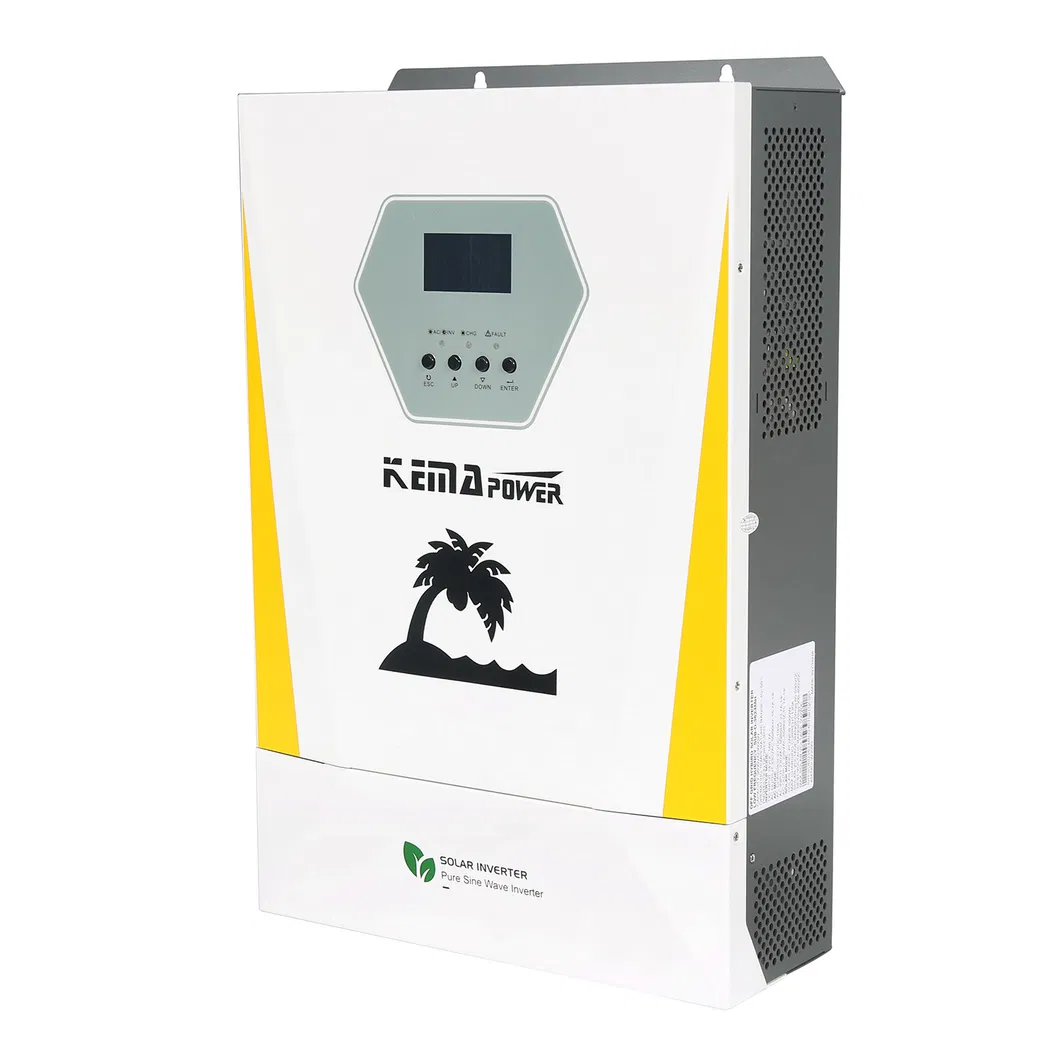

Hybrid Inverter Display 3

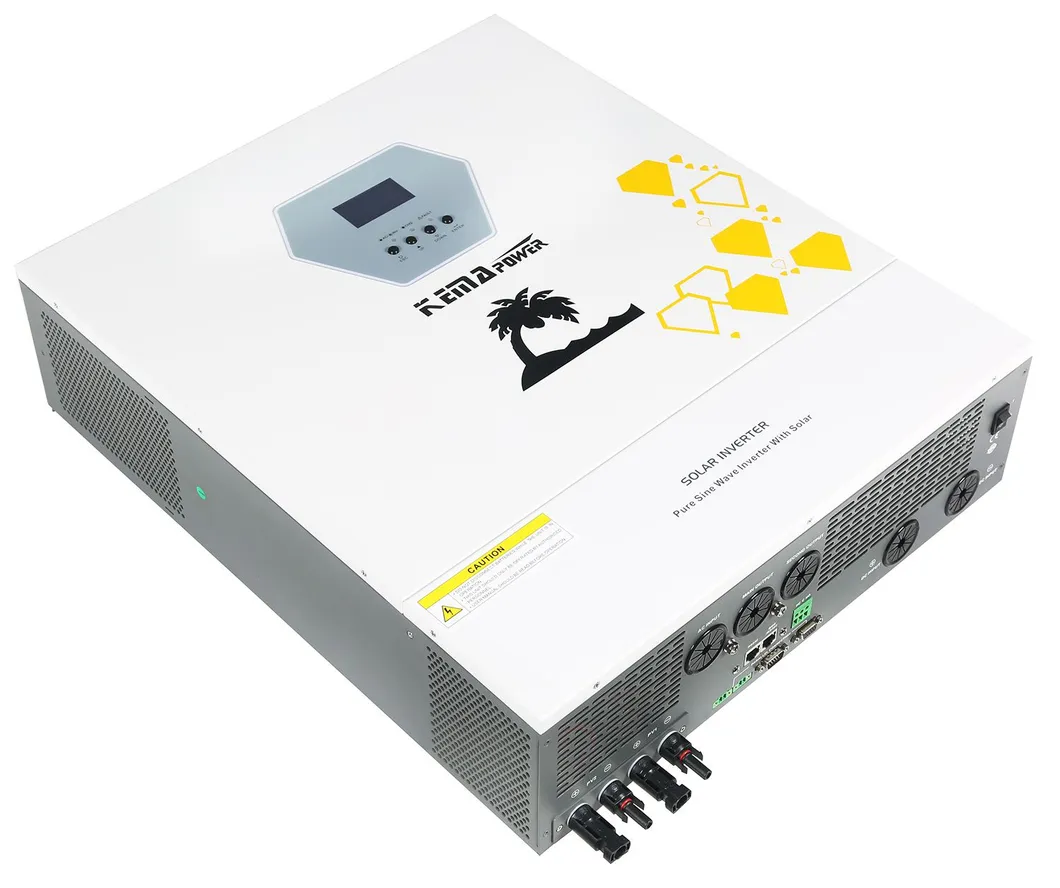

Solar Inverter Detail 1

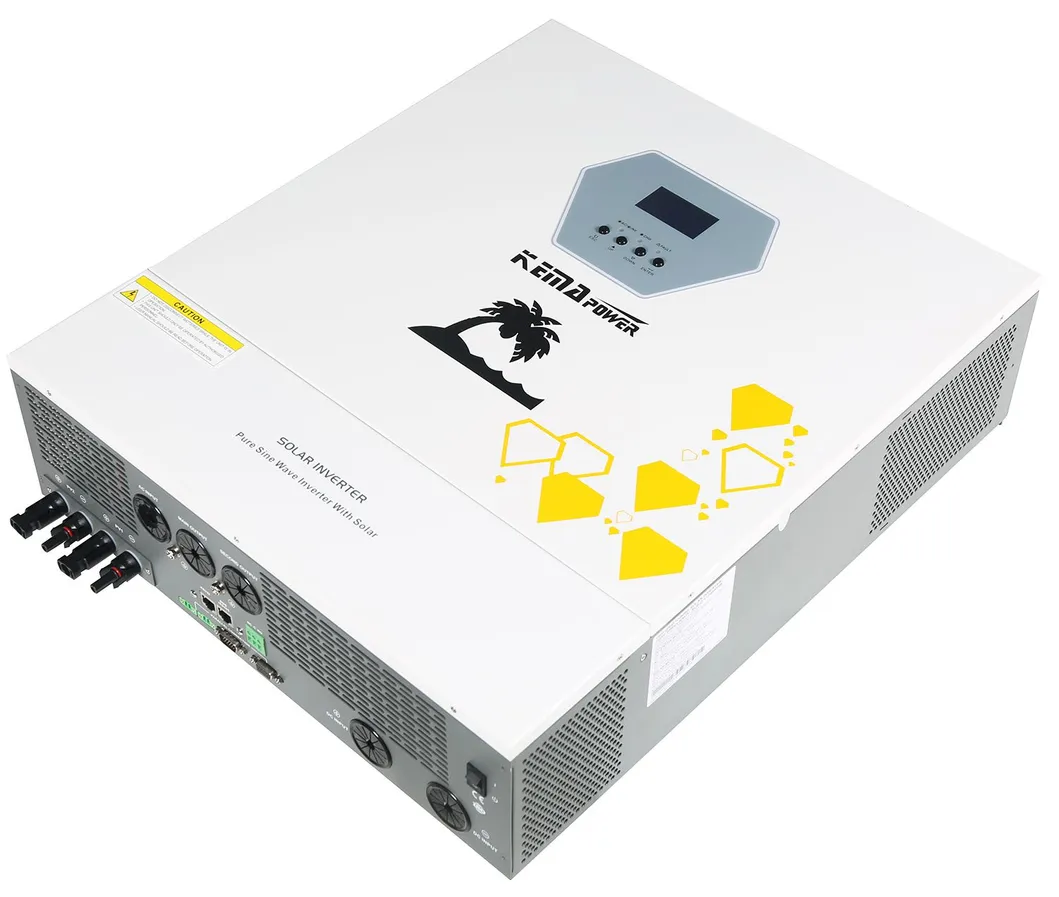

Solar Inverter Detail 2

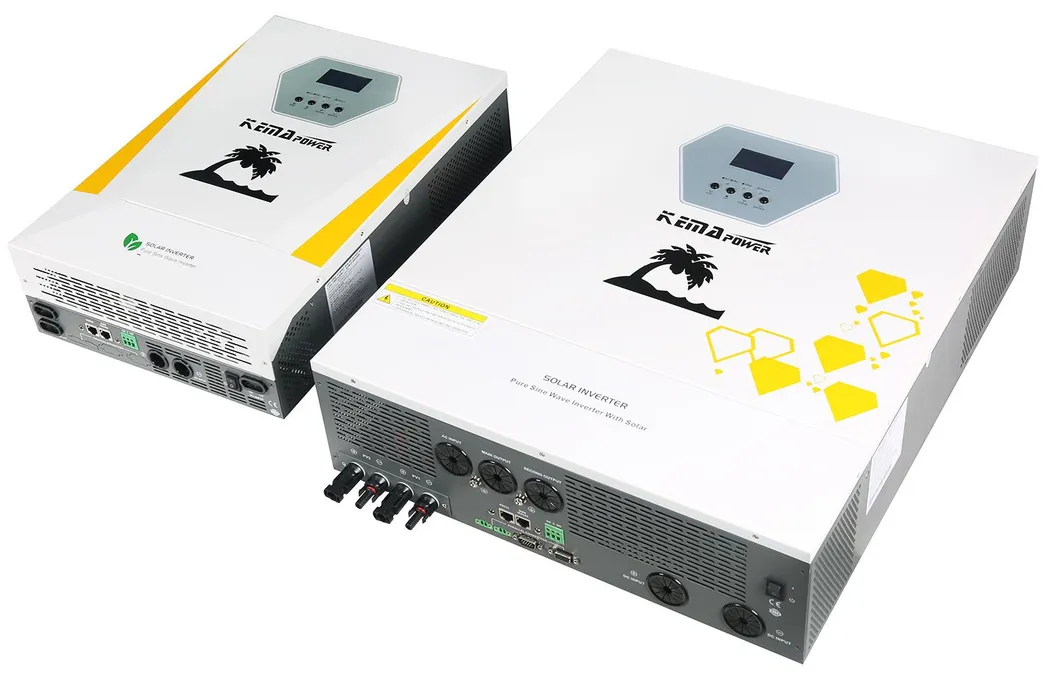

Application 1

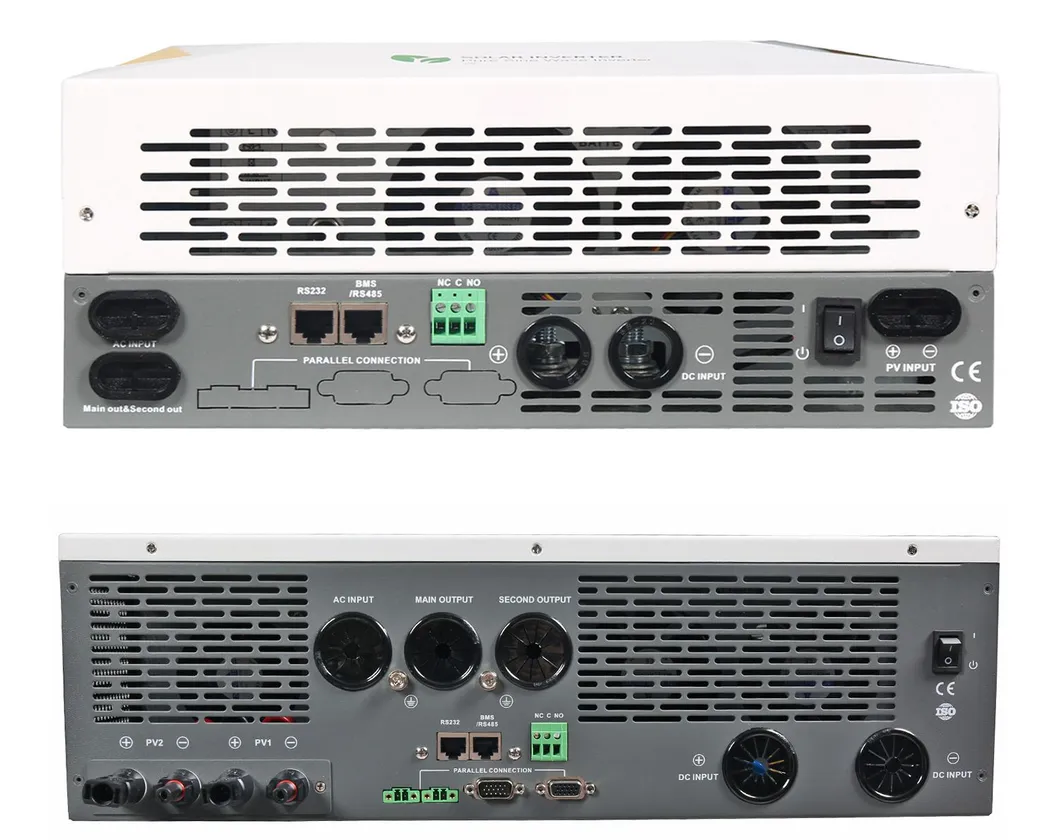

Application 2

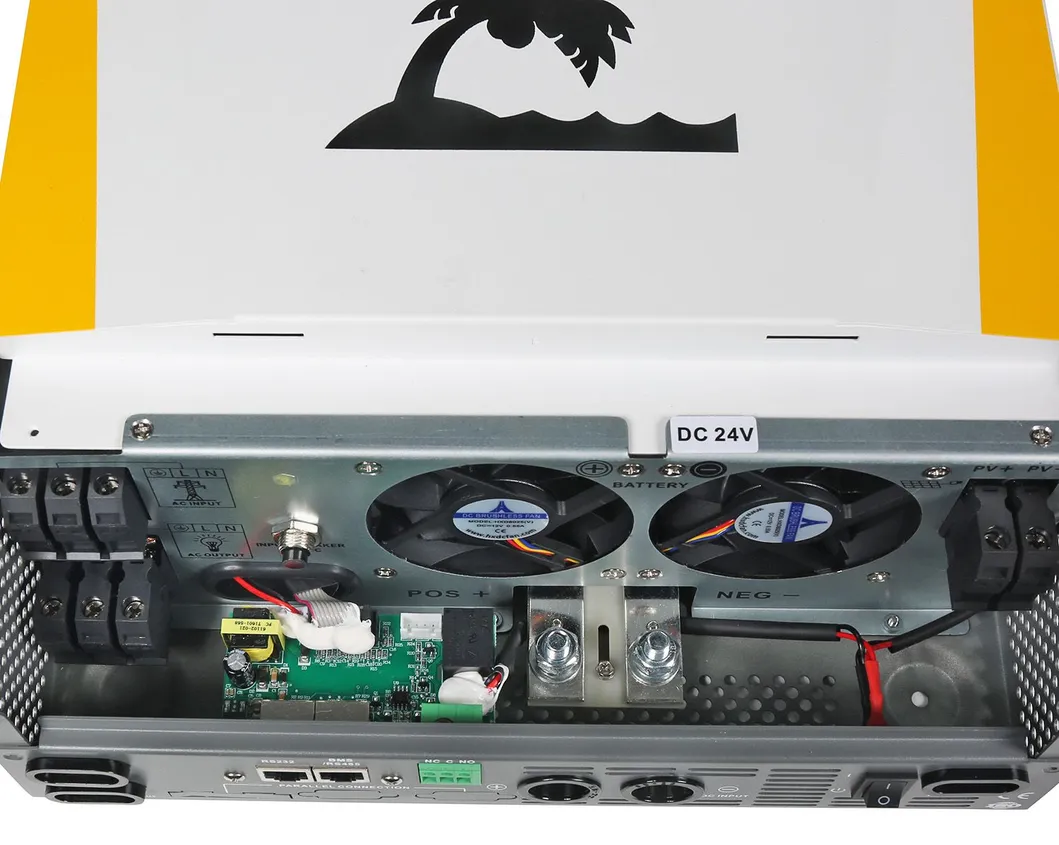

Application 3

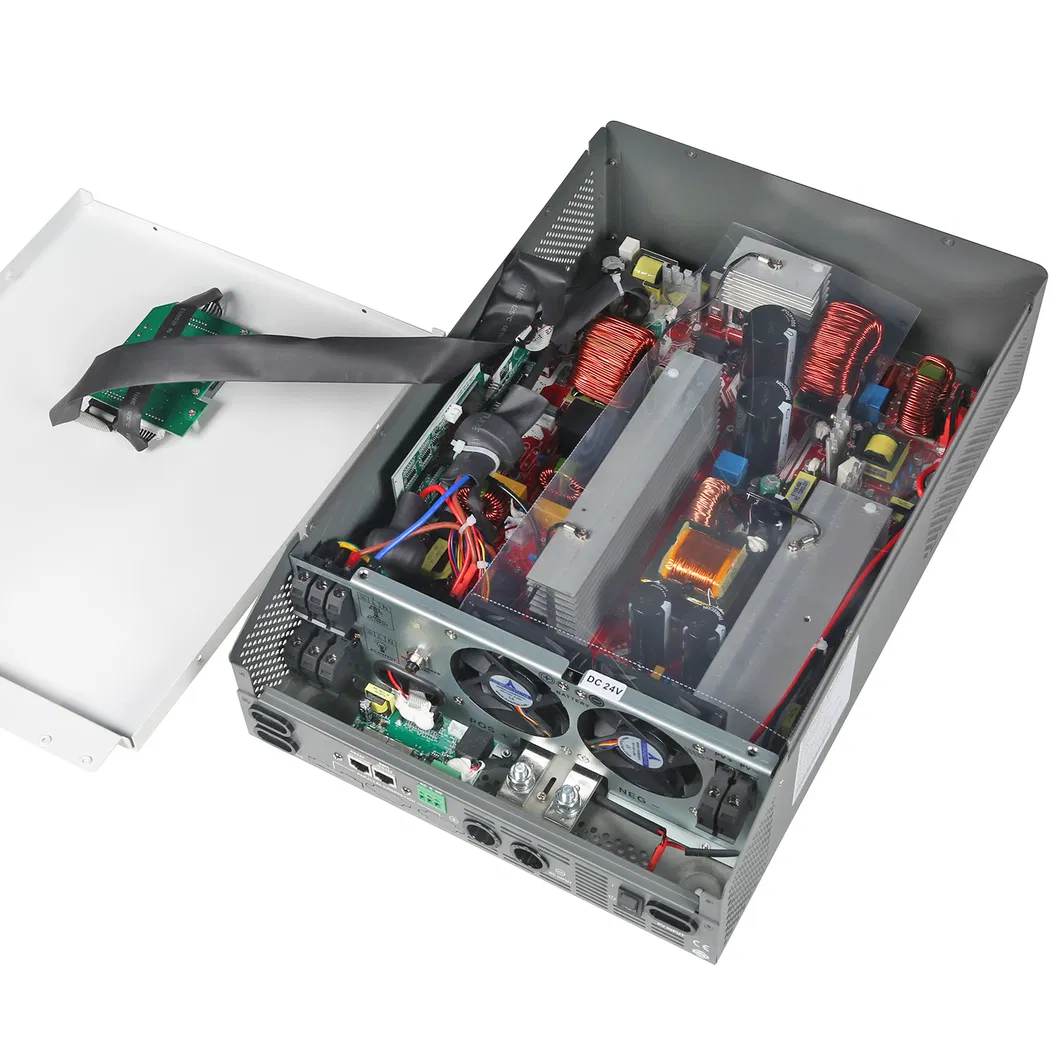

Inverter Interface

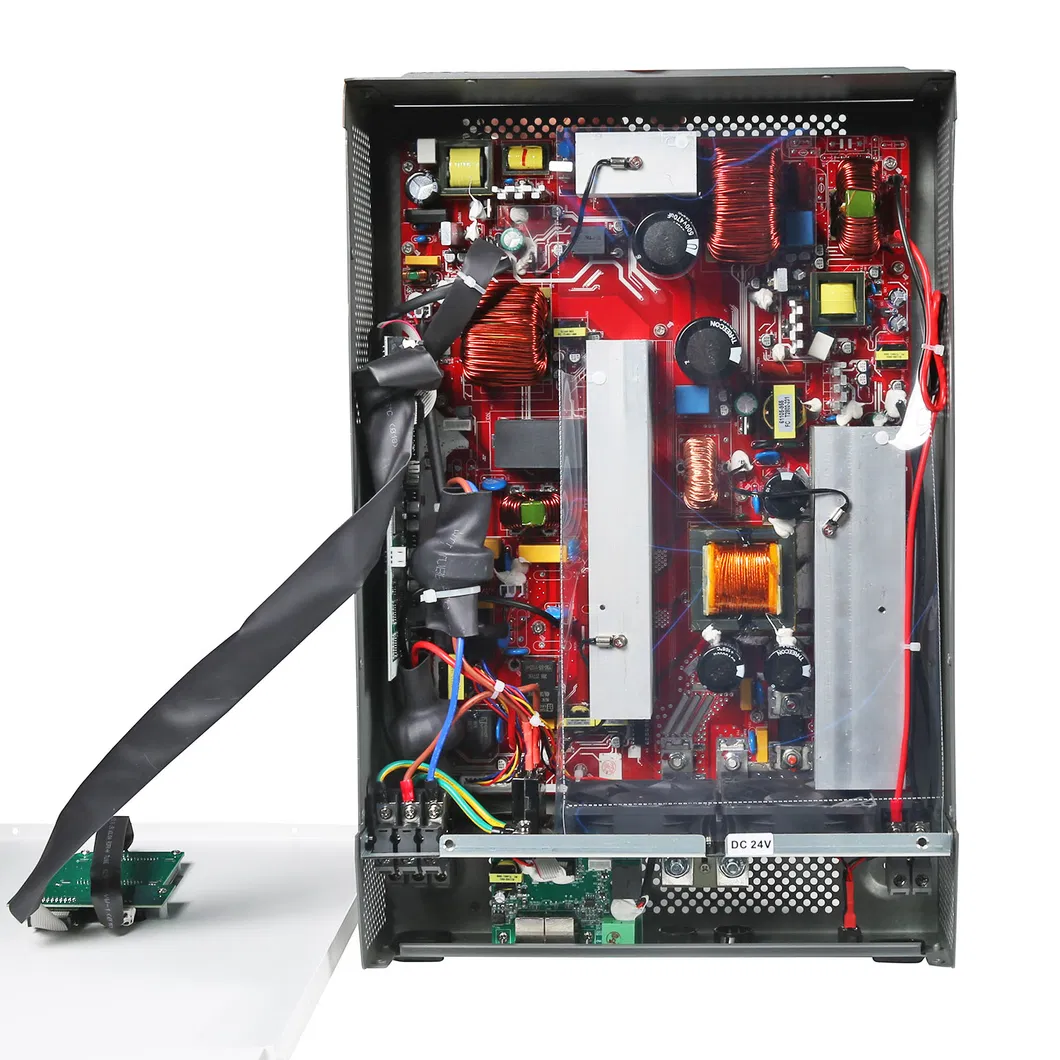

Inverter Side View
Inverter Full Specification Sheet 1 Inverter Full Specification Sheet 2 Inverter Full Specification Sheet 3 Inverter Full Specification Sheet 4
Frequently Asked Questions
Can this hybrid inverter work without a battery?
Yes, the SUB-D series is designed to work without a battery during the daytime, utilizing solar power directly to support the load.
What is the maximum number of units that can be connected in parallel?
The 6.2KW and 11KW models support parallel functionality, allowing for a maximum of 9 units to be connected together.
Does it support lithium battery activation?
Yes, it features a lithium activation wake-up function and is compatible with both Lead-acid and Lithium battery types with adjustable charging settings.
What is the MPPT voltage range for the solar input?
The inverter offers a wide MPPT range from 40VDC to 500VDC or 120VDC to 500VDC depending on the specific model selected.
Is the output a pure sine wave?
Yes, the inverter provides a pure sine wave output, which is suitable for sensitive electronic devices and various household appliances.
What communication interfaces are available?
The device supports RS232, BMS/RS485, and Dry Contact communication. It also has options for WiFi or GPRS for remote mobile app monitoring.
