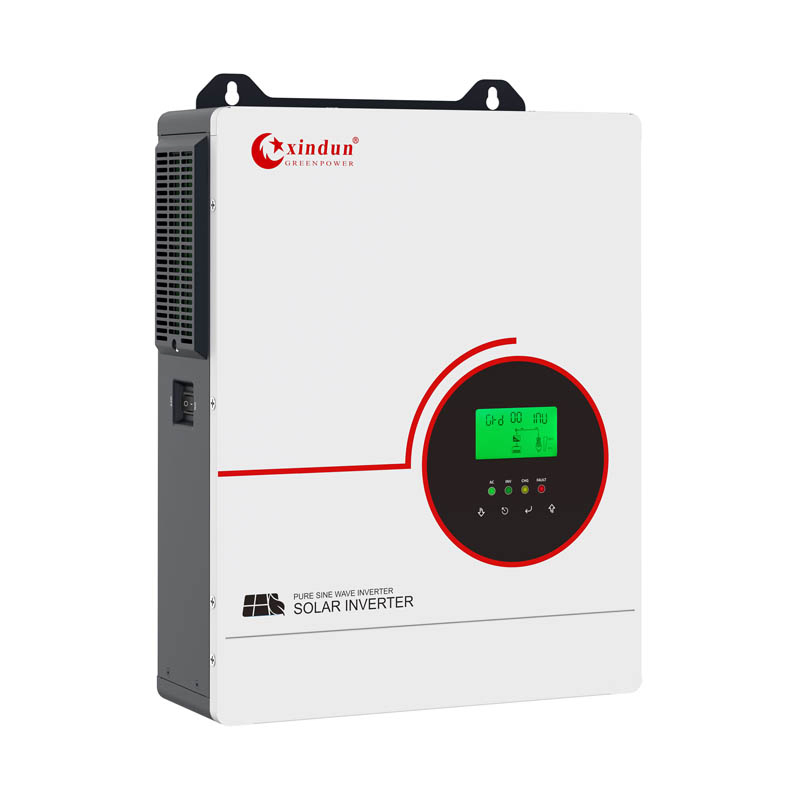

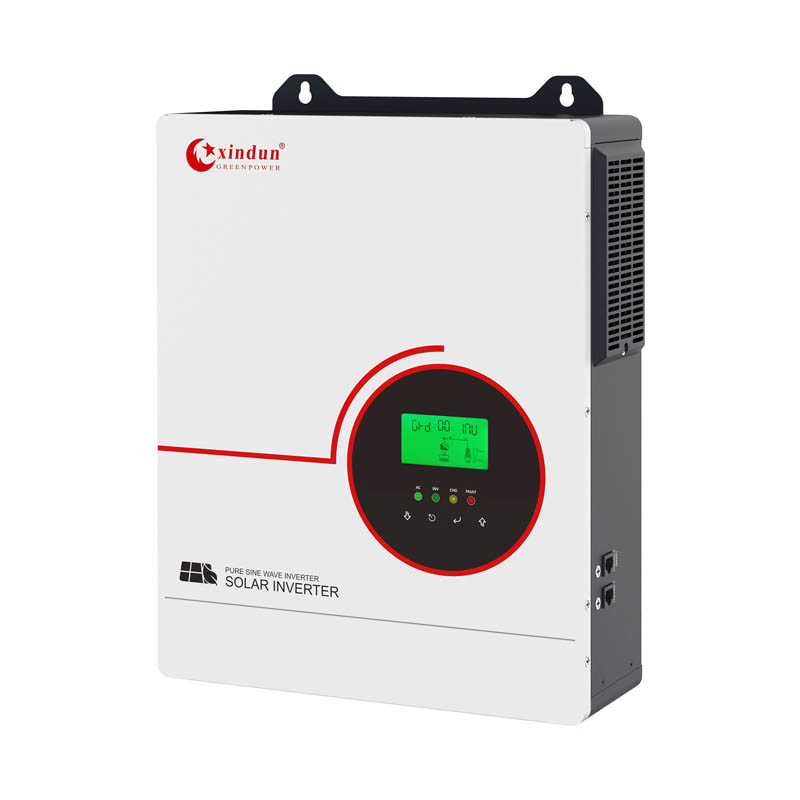

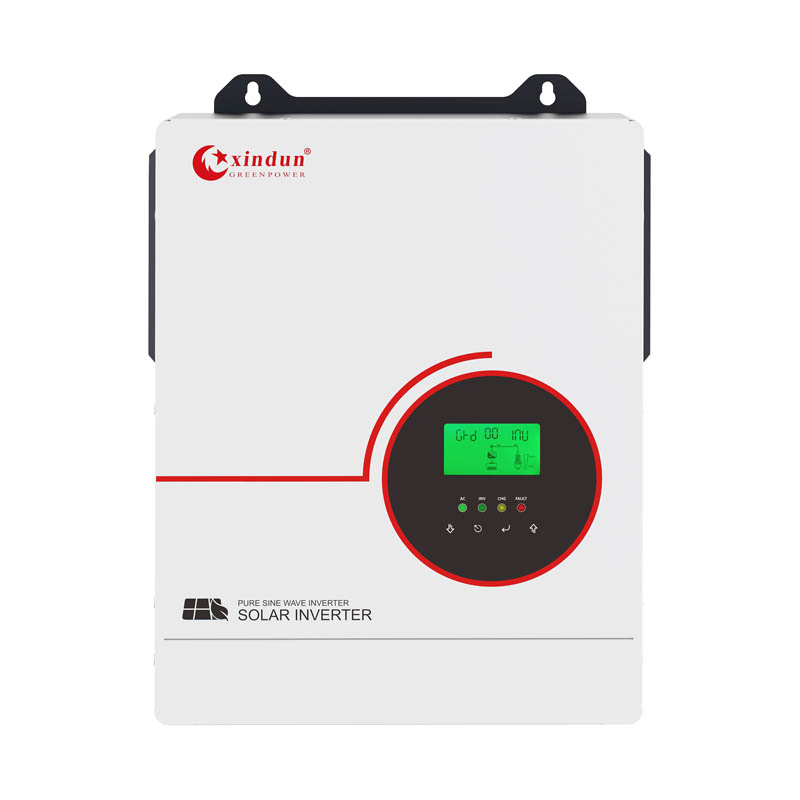

3000W 3kw 6kw 110V 120V Pure Sine Wave off Grid Hybrid Solar Inverter
3000W 3kw 6kw 110V 120V Pure Sine Wave off Grid Hybrid Solar Inverter
3000W 3kw 6kw 110V 120V Pure Sine Wave off Grid Hybrid Solar Inverter
3000W 3kw 6kw 110V 120V Pure Sine Wave off Grid Hybrid Solar Inverter
3000W 3kw 6kw 110V 120V Pure Sine Wave off Grid Hybrid Solar Inverter
1 / 5
3000W 3kw 6kw 110V 120V Pure Sine Wave off Grid Hybrid Solar Inverter
3000W 3kw 6kw 110V 120V Pure Sine Wave off Grid Hybrid Solar Inverter
3000W 3kw 6kw 110V 120V Pure Sine Wave off Grid Hybrid Solar Inverter
3000W 3kw 6kw 110V 120V Pure Sine Wave off Grid Hybrid Solar Inverter
3000W 3kw 6kw 110V 120V Pure Sine Wave off Grid Hybrid Solar Inverter

3000W 3kw 6kw 110V 120V Pure Sine Wave off Grid Hybrid Solar Inverter

Customization: Available
After-sales Service: Support
Warranty: 1~2 Years
Send Inquiry

Product Description

📊 Basic Information
Model NO.
XD-HFU
Nature of Source Flow
Pure Sine Wave
Phase
Single
Output Power
3.3kw / 6.3kw
Certification
CE
Type
DC/AC Inverters
Power Source
Solar Power
Rated Output Voltage
105VAC/110VAC/115VAC/120VAC
Output Efficiency
92%
Charging Mode
MPPT Solar Inverter
Battery Type
Lithium / Lead Acid / Gel
Max PV Charging Current
120A
⚙️ Product Description
Solar Inverter View 1

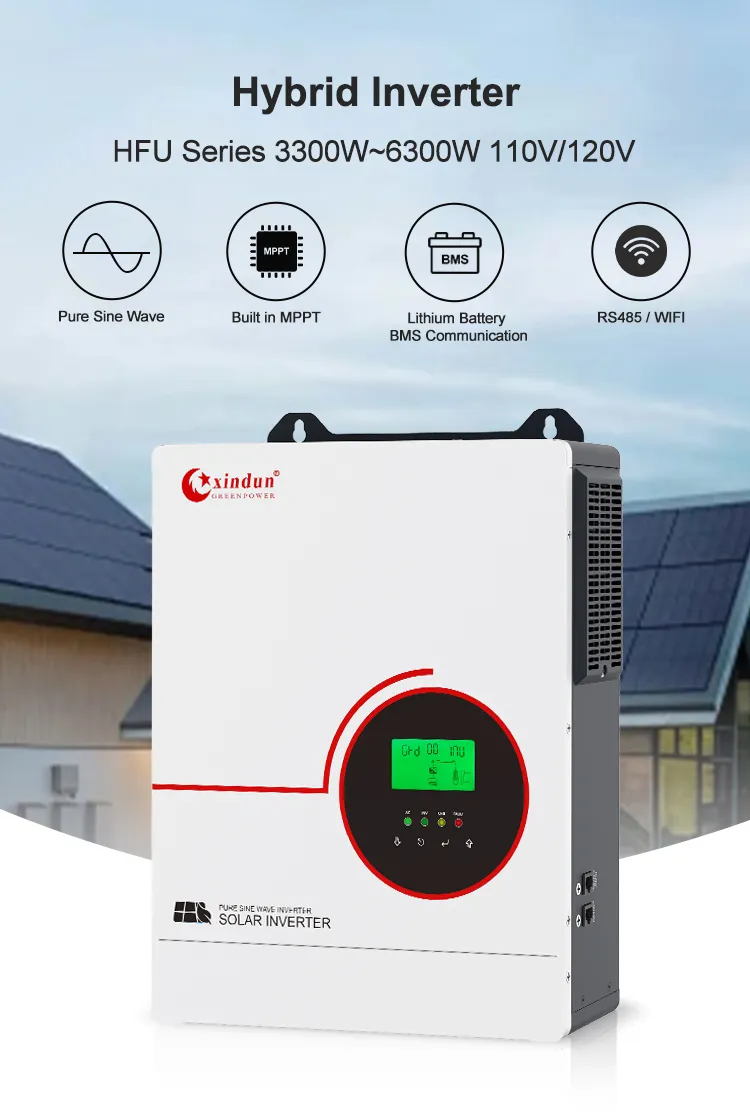

Solar Inverter View 2

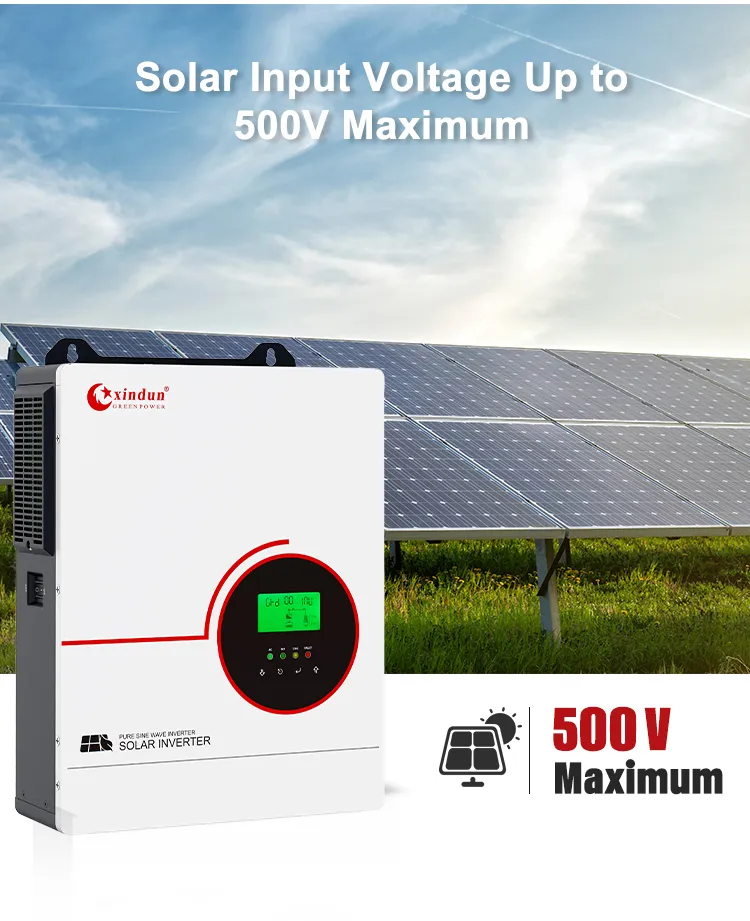

Solar Inverter View 3
Solar Inverter View 4
Solar Inverter View 5

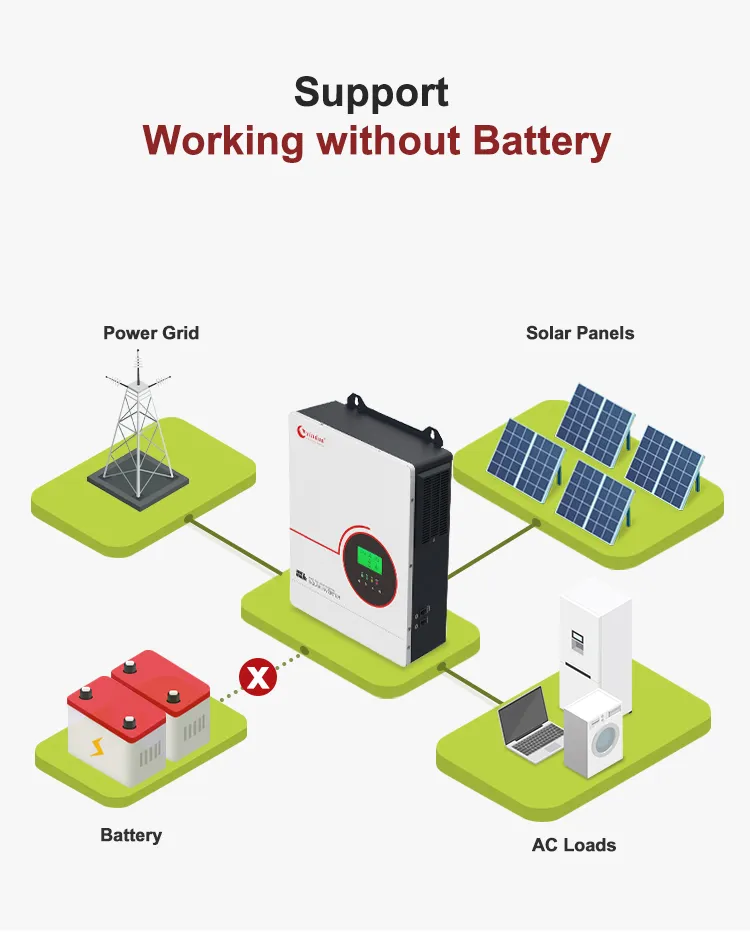

Solar Inverter View 6

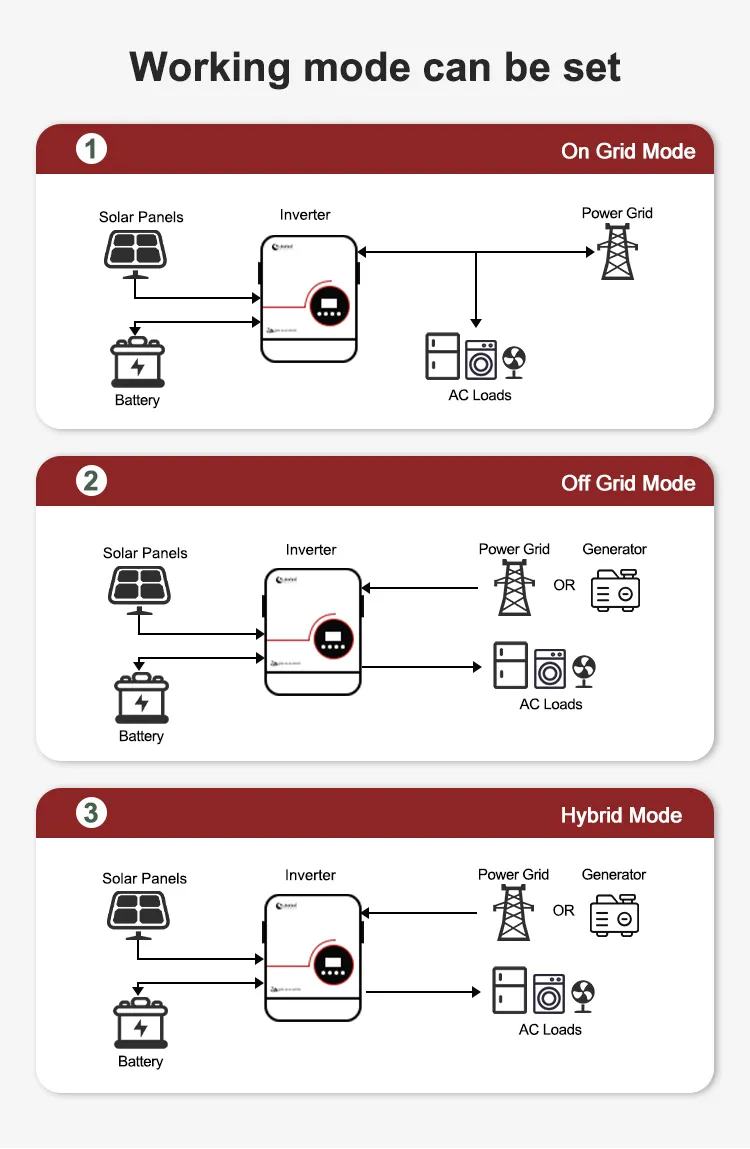

🔌 Wiring Diagram
Wiring Diagram
📋 Technical Specifications
Model :HFU 33224 63248
PV Input Max PV Input Power 5000W 5000W*2
MPPT Voltage Range 40VDC-450VDC 80VDC-450VDC
Max Input Voltage 500VDC
Max Input Current 18A 18A*2
Battery Rated Battery Voltage 24VDC 48VDC
Max PV Charging Current 120A
Max AC Charging Current 80A
AC Output Rated Output Power 3300W 6300W
Output Voltage 105Vac/110Vac/115Vac/120Vac
Waveform Pure Sine Wave

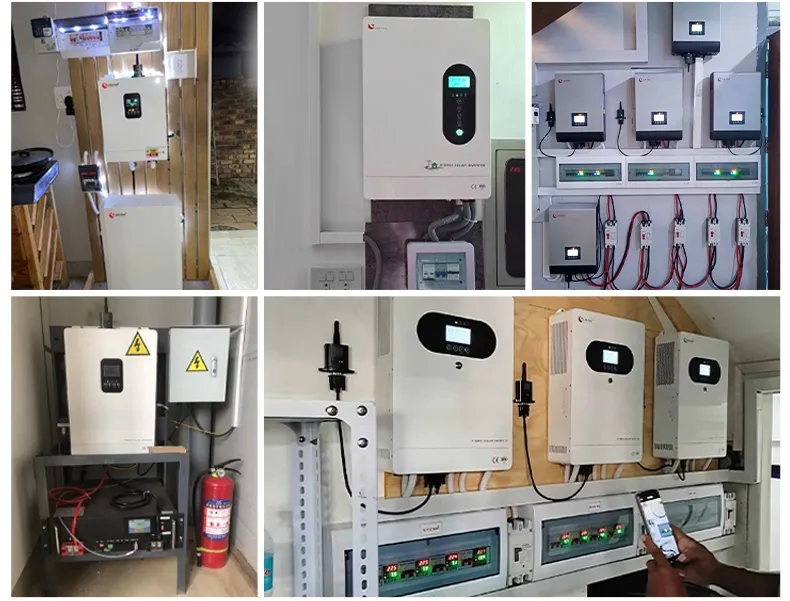

🏠 Application Scenarios

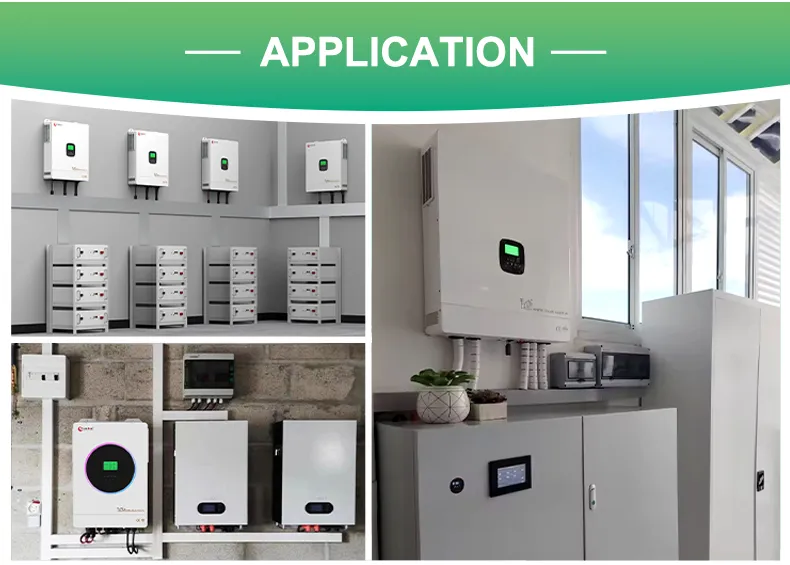

Application 1
Application 2

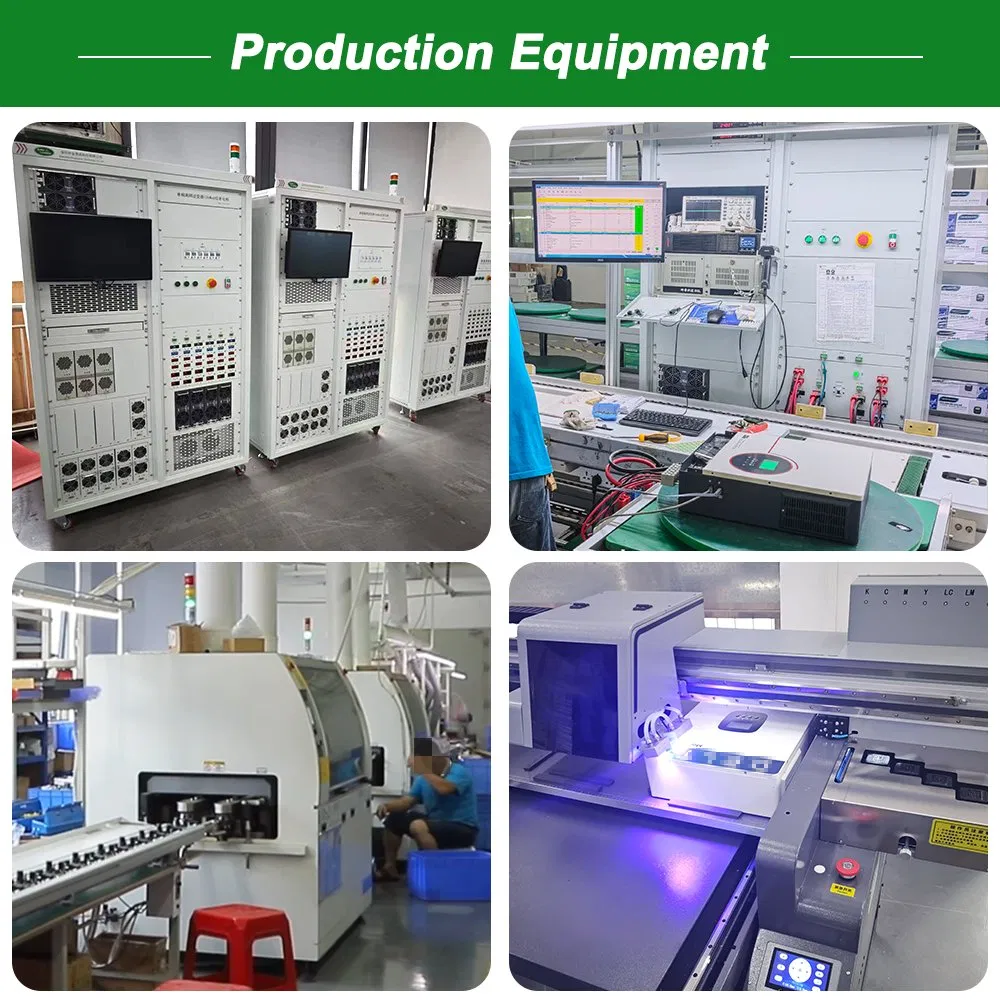

🏭 Production & Quality Control
Factory View
Testing

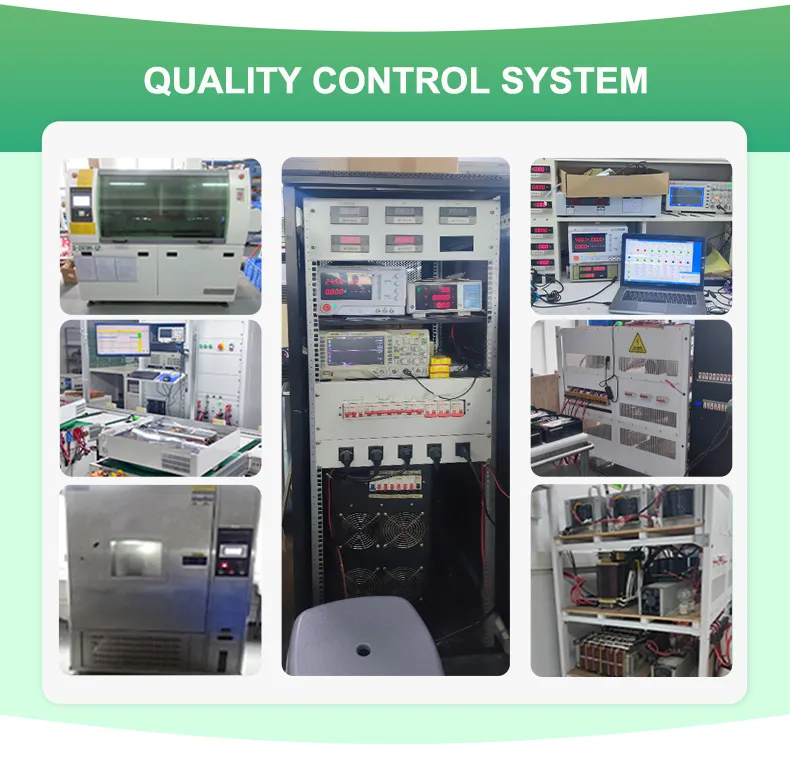

Production Line
Storage
❓ Frequently Asked Questions
1. What is the benefit of a Pure Sine Wave inverter?
A pure sine wave inverter provides high-quality electricity similar to grid power. it ensures the stable operation of sensitive electronics like laptops, medical equipment, and appliances with motors, preventing noise and potential damage.
2. Can this hybrid inverter work without a battery?
This model is designed as an off-grid hybrid system. While it manages PV and AC inputs, connecting a battery (Lead-acid or Lithium) is recommended to ensure stable power supply during night time or cloudy weather.

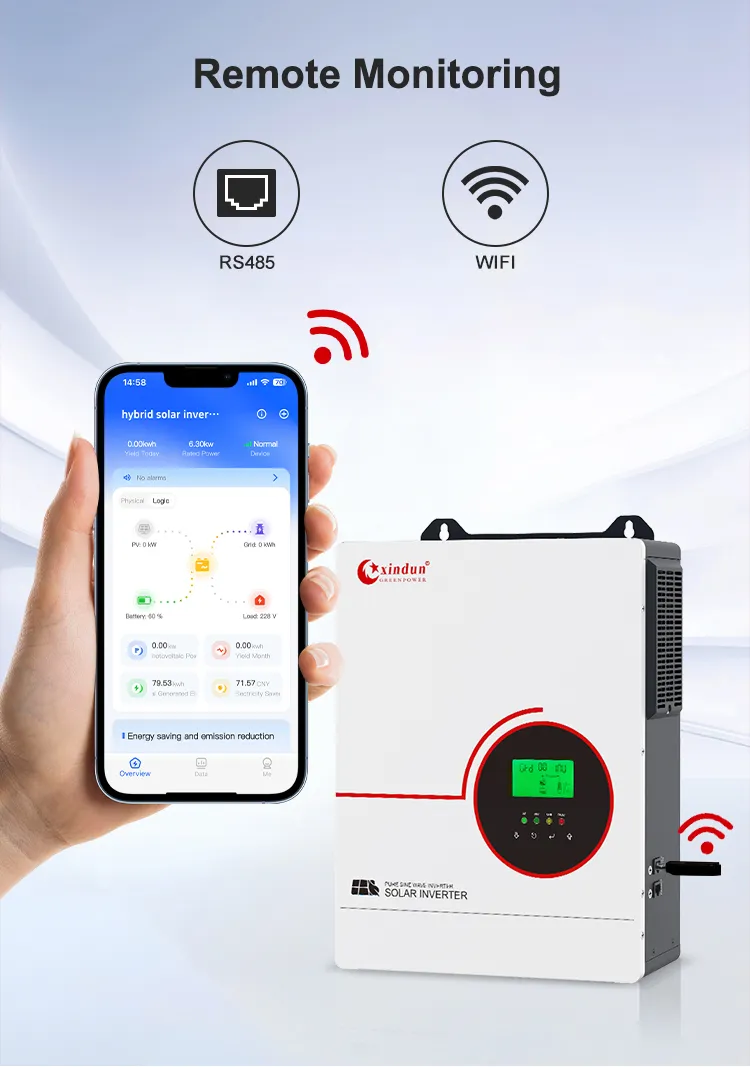

3. Does it support monitoring via mobile phone?
Yes, it features RS485 communication and can be equipped with an optional WiFi or GPRS monitoring module, allowing you to track your solar system status via a mobile APP.
4. What is the maximum PV charging current supported?
The XD-HFU series supports a maximum PV charging current of up to 120A, thanks to its integrated high-efficiency MPPT solar controller.

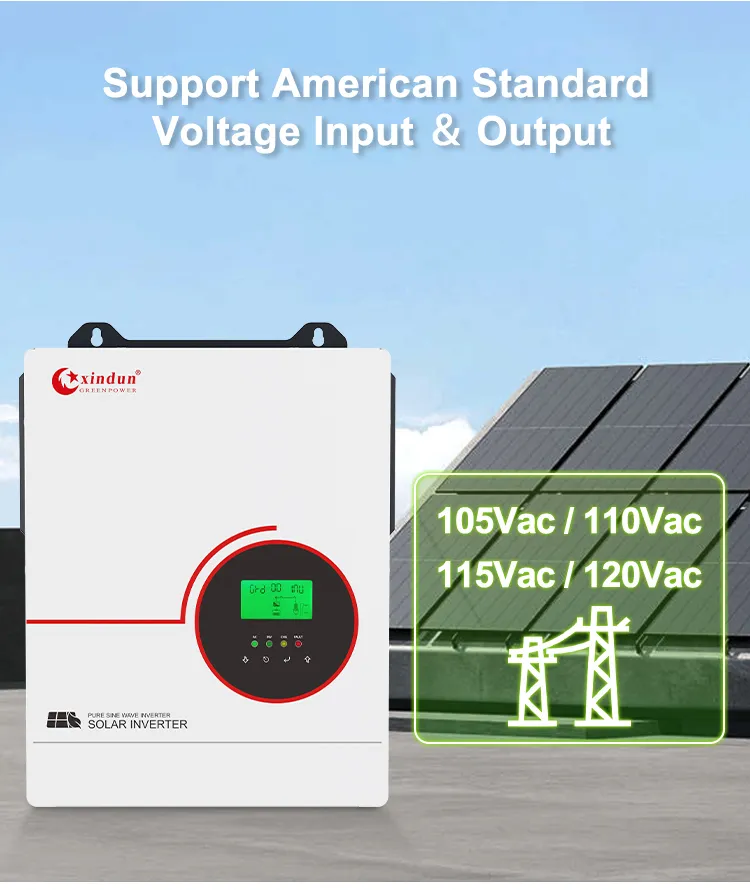

5. Is it compatible with 110V/120V household appliances?
Yes, the rated output voltage is adjustable between 105VAC, 110VAC, 115VAC, and 120VAC, making it perfectly suitable for North American and other regions using the 110V standard.
6. How long is the transfer time between solar and grid power?
The typical transfer time is 10ms, which is fast enough to keep most household appliances and office equipment running without interruption during power switching.
