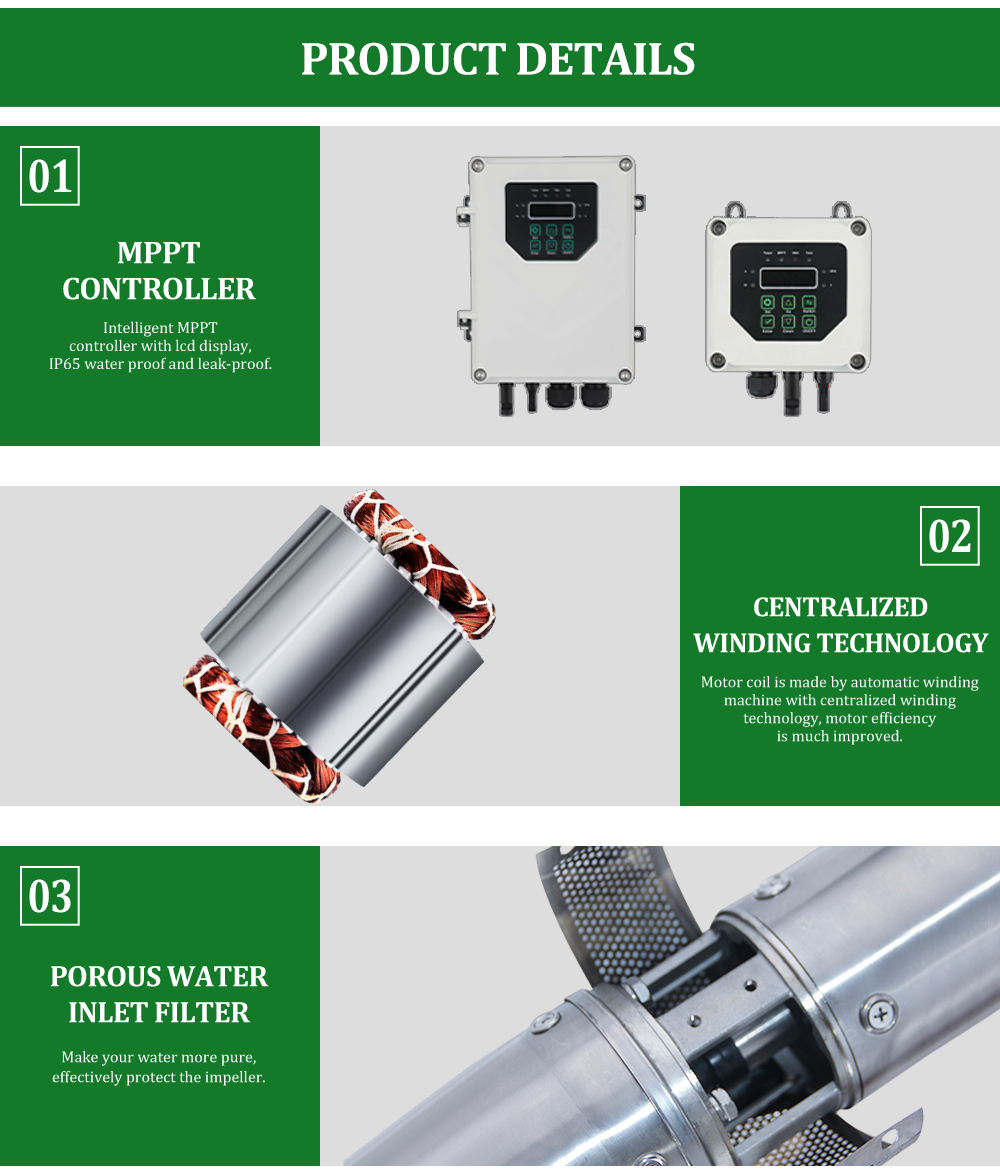

IP65 water proof and leak-proof
⚡
Strong self-priming ability
⚙️
Permanent magnet brushless motors, efficiency improved by 15% - 20%
🛡️
Intelligent soft start function, no impulse current, protects motor
🔄
Automatic Frequency Conversion function

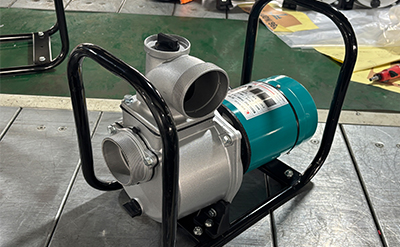

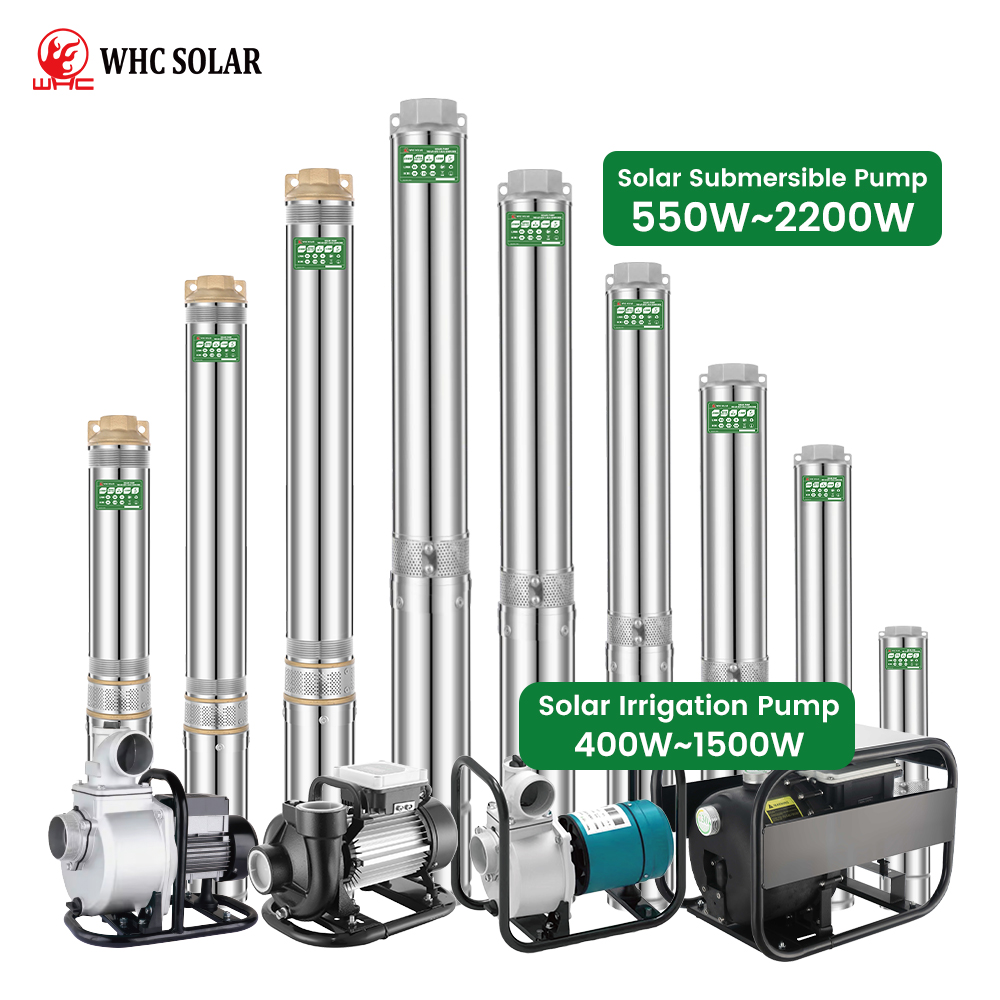

Solar Surface Pump Specifications
| Model |
Power |
Voltage Range |
Open Circuit Voltage |
Outlet (inch) |
Max flow (m³/h) |
Max head (m) |
| WHC-CPM4-22-400W/36V | 400W | 36V-42V | ＜55V | CPM130 1X1 | 4 | 22 |
| WHC-CPM5-35-750W/72V | 750W | 72V-124V | ＜150V | CPM158 1X1 | 5 | 35 |

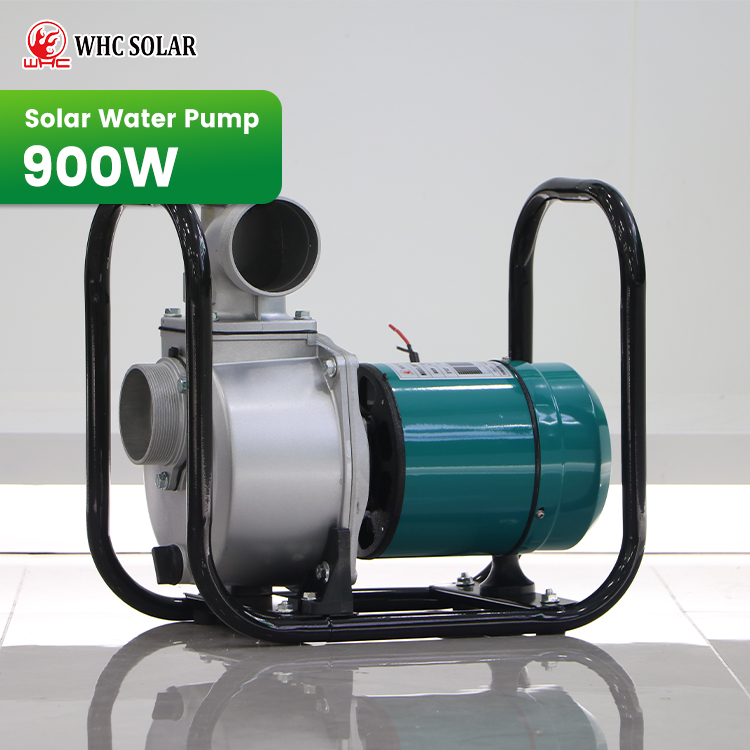

| WHC-TP30S-900W/96V | 900W | 96V-124V | ＜150V | 3X3 | 30 | 14 |
| WHC-PN22-28-1200W/110V | 1200W | 110V-164V | ＜200V | PN205 2X2 | 22 | 28 |
| WHC-Z45-22-1500W/150V | 1500W | 150V-205V | ＜400V | WP-30 3X3 | 45 | 22 |

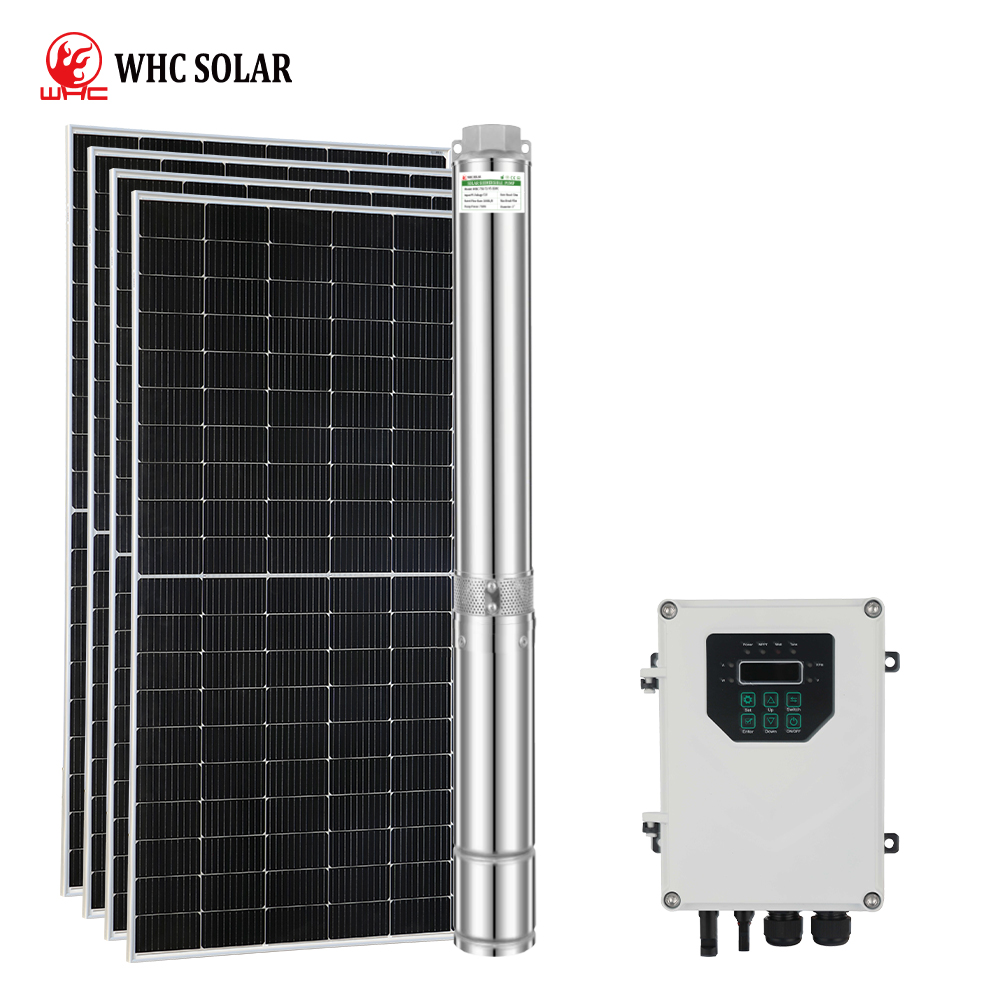

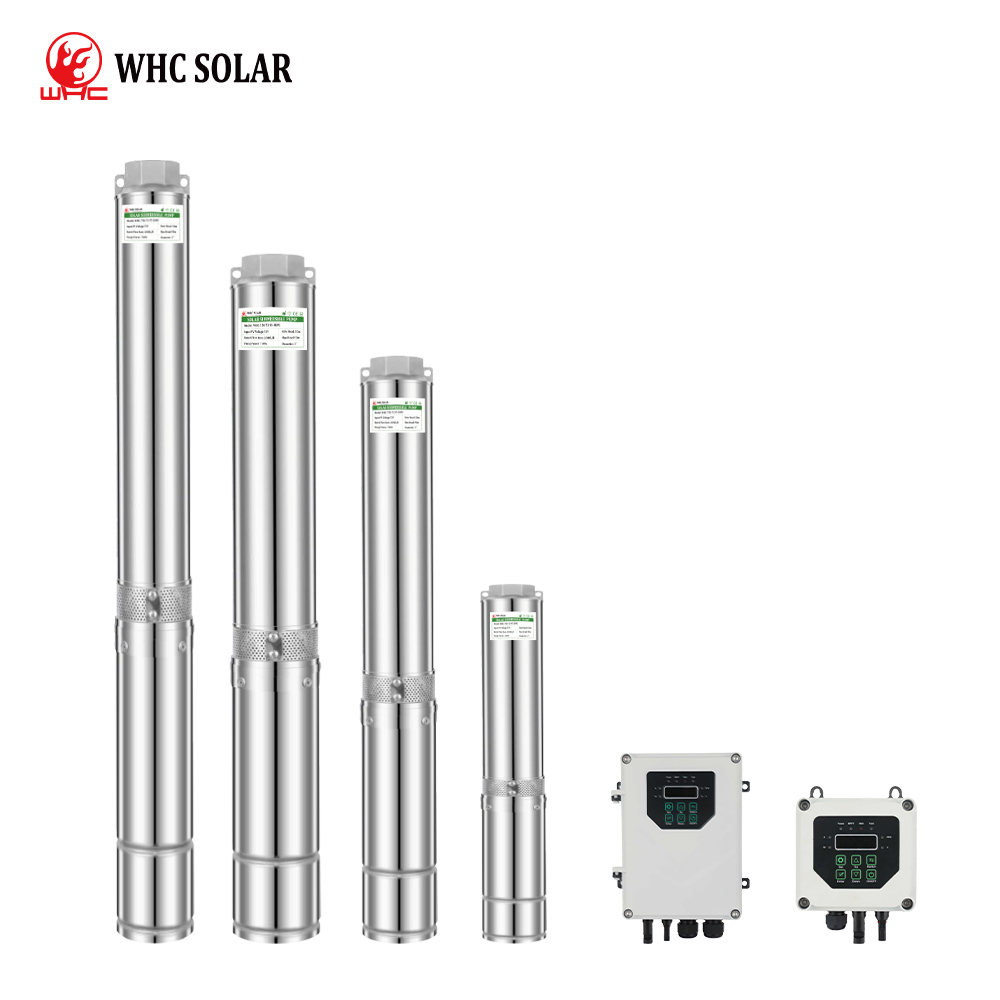

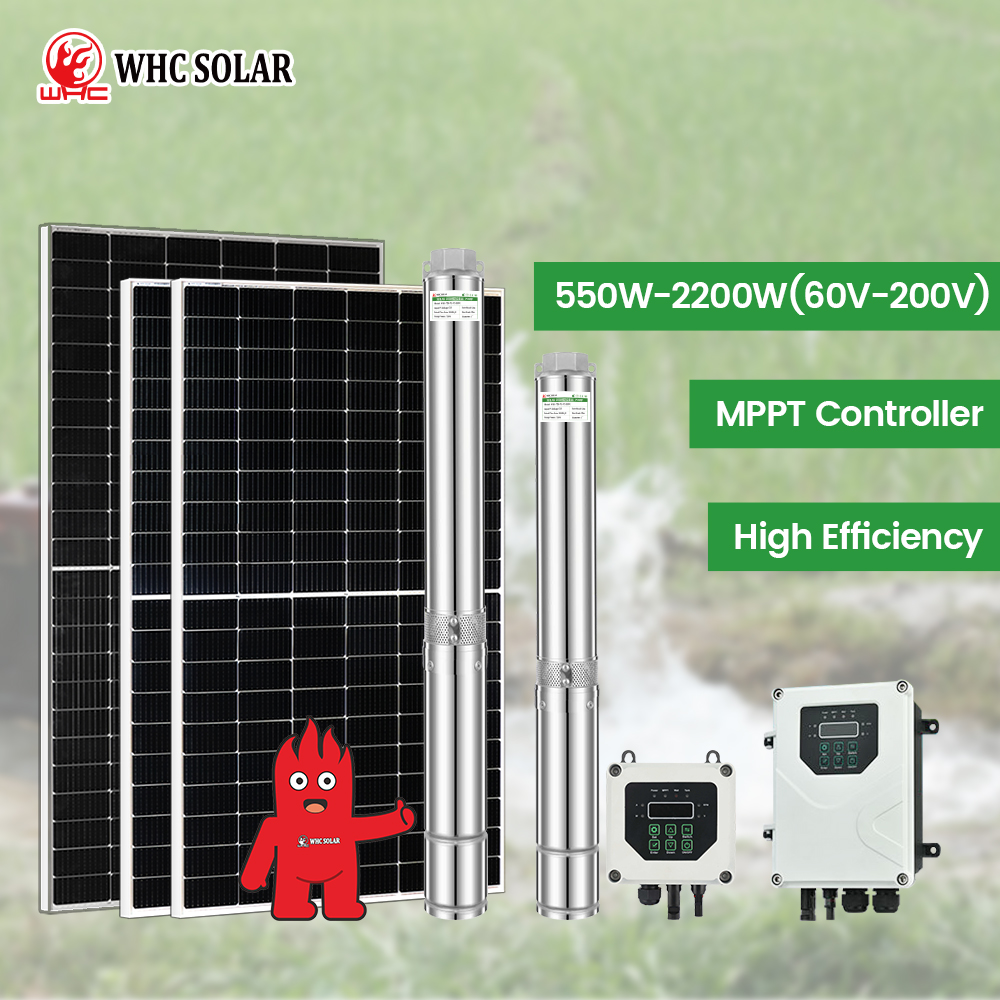

Solar Submersible Pump Specifications
| Model |
Power |
Voltage Range |
Open Circuit Voltage |
Outlet (inch) |
Max flow (m³/h) |
Max head (m) |
| WHC-3SP2.5-38/10-550W/60V | 550W | 60-84V | ＜100V | 1.25/1.5" | 4.8 | 48 |
| WHC-3SP2.5-50/10-750W/72V | 750W | 72-124V | ＜150V | 1.25/1.5" | 4.8 | 78 |
| WHC-4SP2-63/11-900W/96V | 900W | 96V-124V | ＜150V | 1.25" | 4 | 100 |
| WHC-4SP2-88/14-1200W/110V | 1200W | 110V-164V | ＜200V | 1.25" | 4 | 137 |
| WHC-4SP2-110/18-1500W/110V | 1500W | 110V-164V | ＜200V | 1.25" | 4 | 176 |
| WHC-4SP3-128/23-2200W/200V | 2200W | 200-330V | ＜450V | 1.25" | 5 | 188 |

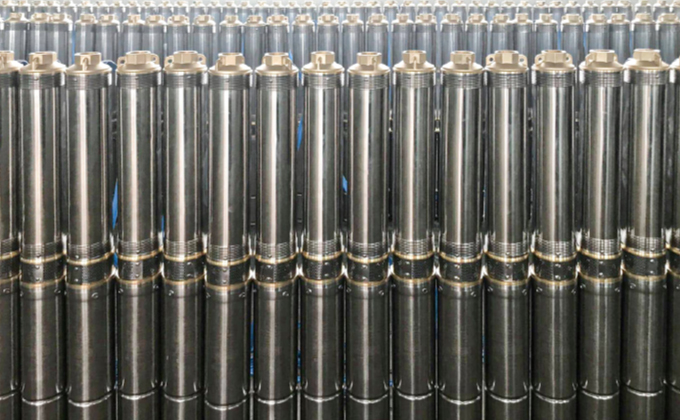

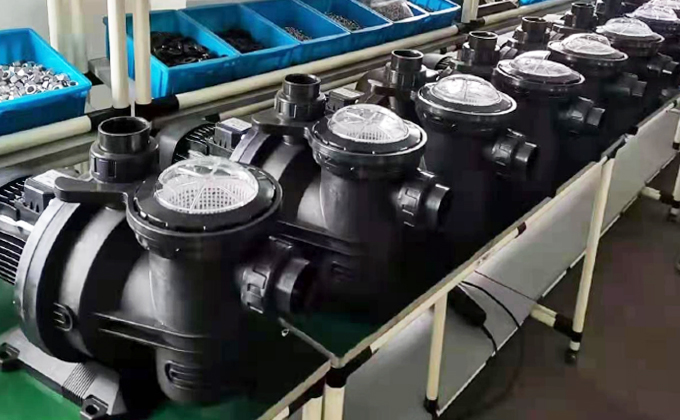

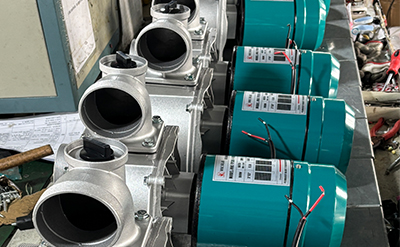

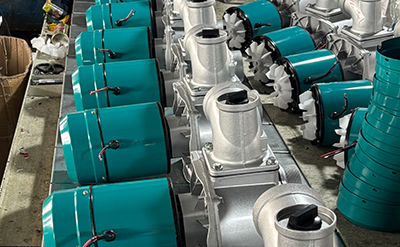

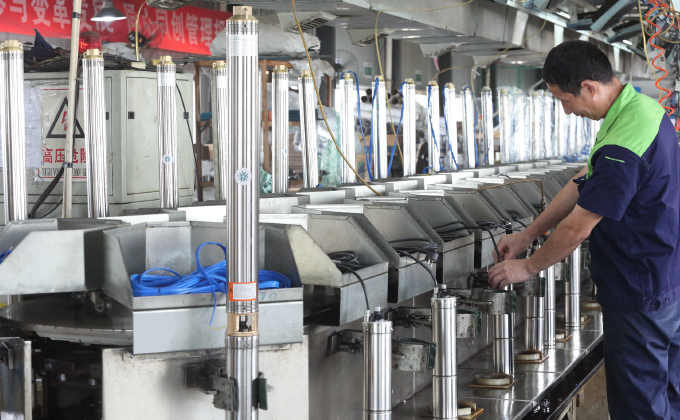

We operate a modern factory dedicated to the research, development, and production of solar water pumps for energy storage. The facility spans a total area of 200,000 square meters and utilizes advanced automatic production lines to ensure product quality while maintaining competitive market pricing.
Professional Solar Solutions
Founded in 2009, our company has specialized in the solar field for more than 16 years. Our expertise covers solar batteries, solar inverters, solar panels, controllers, street lights, and solar water pumps. We have a robust global network with over 100 agents, and we aim to expand our reach significantly to support wholesalers and distributors worldwide.
We maintain multiple overseas warehouses in Africa, totaling over 15,000 square meters. This supports direct local delivery, shortens lead times, and provides better service to local partners. Our localized after-sales team, including professional engineers, offers on-site technical guidance and support in major markets.
Our enterprise holds 9 utility model patents and 1 invention patent, ensuring market protection. We have achieved over 30 product certificates, including CE, ISO, ROHS, UN38.3, MSDS, and SGS. These verify the high quality and reliability of our solar solutions.
We have participated in over 100 international exhibitions, including Nigeria New Energy, Vietnam Future Energy Exhibition, Myanmar Green Energy Expo, Shanghai SNEC Exhibition, and the Canton Fair.
Currently, we have more than 300 agents all around the world, and our strategy is to expand it to 1,000 in the future. We welcome wholesalers, distributors, and retailers to collaborate for mutual success.
Frequently Asked Questions
Q1: How does a solar water pump work?

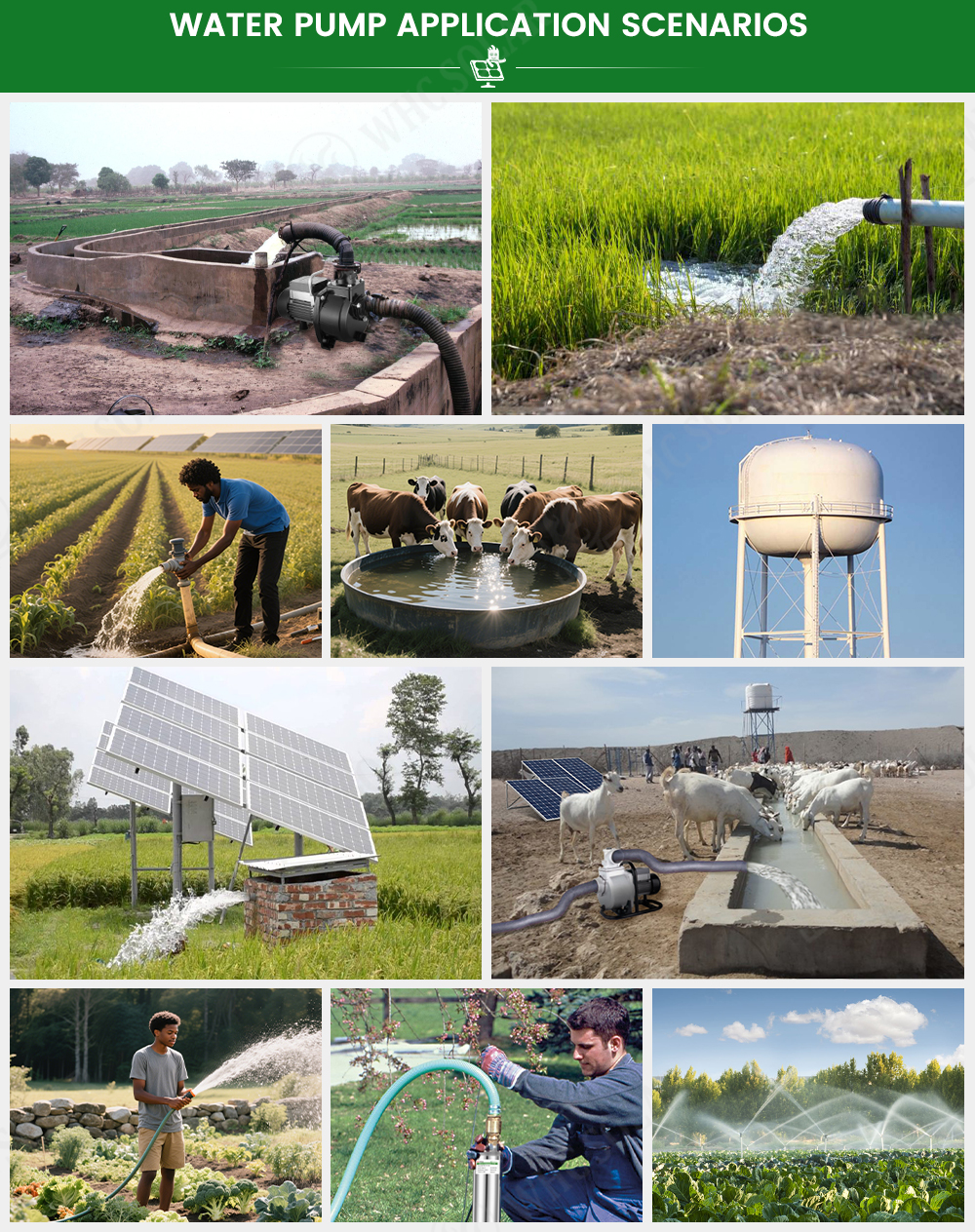

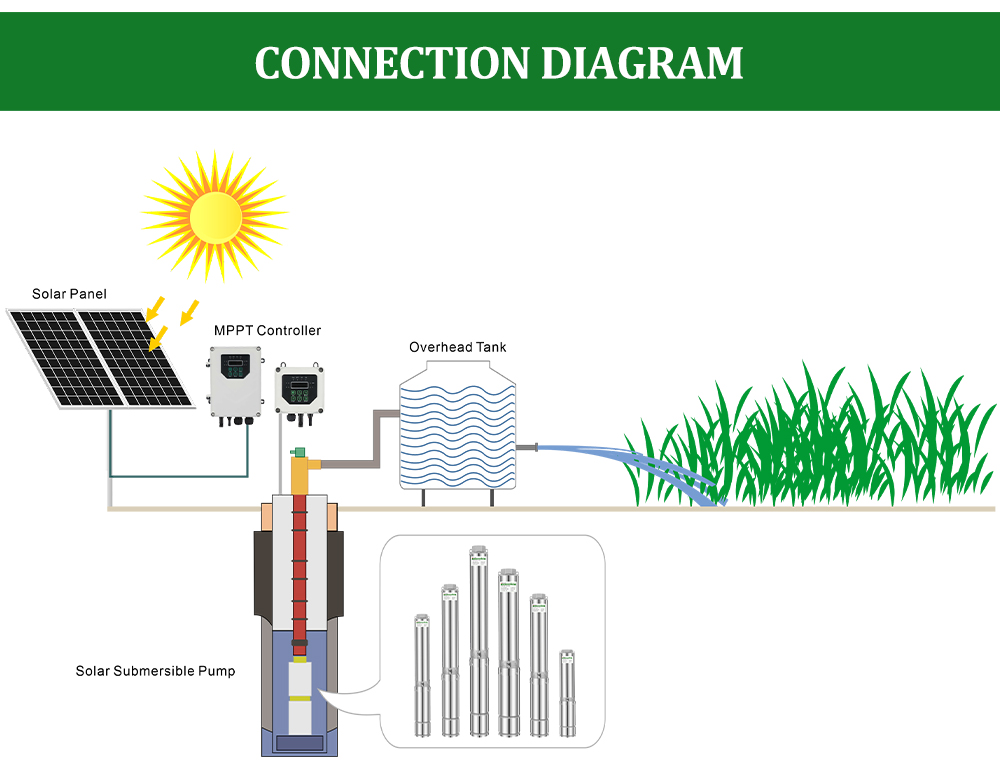

A: The system works by converting sunlight into electricity via solar panels. This DC power then drives the brushless motor of the pump, which moves water from a source (well or lake) to your storage tank or field.
Q2: Can the pump work on cloudy days?
A: Yes, the pump can still operate under low light conditions, though the flow rate will be reduced. Our intelligent frequency conversion function helps optimize performance based on available sunlight.
Q3: Is a battery required for the solar pump system?
A: Most systems are designed to pump water during the day into a storage tank (water as energy storage), which is more cost-effective. However, batteries can be added if you require pumping at night.
Q4: What is the benefit of a brushless motor?
A: Brushless motors are 15-20% more efficient than traditional motors. They require significantly less maintenance, have a longer lifespan, and operate more quietly.
Q5: What is the IP65 rating?
A: IP65 means the device is "dust-tight" and protected against water jets from any angle, ensuring the pump controller remains safe in outdoor environments.
Q6: Do you provide after-sales support?
A: Yes, we have localized after-sales teams and warehouses in key markets to provide technical guidance, spare parts, and professional maintenance services.
