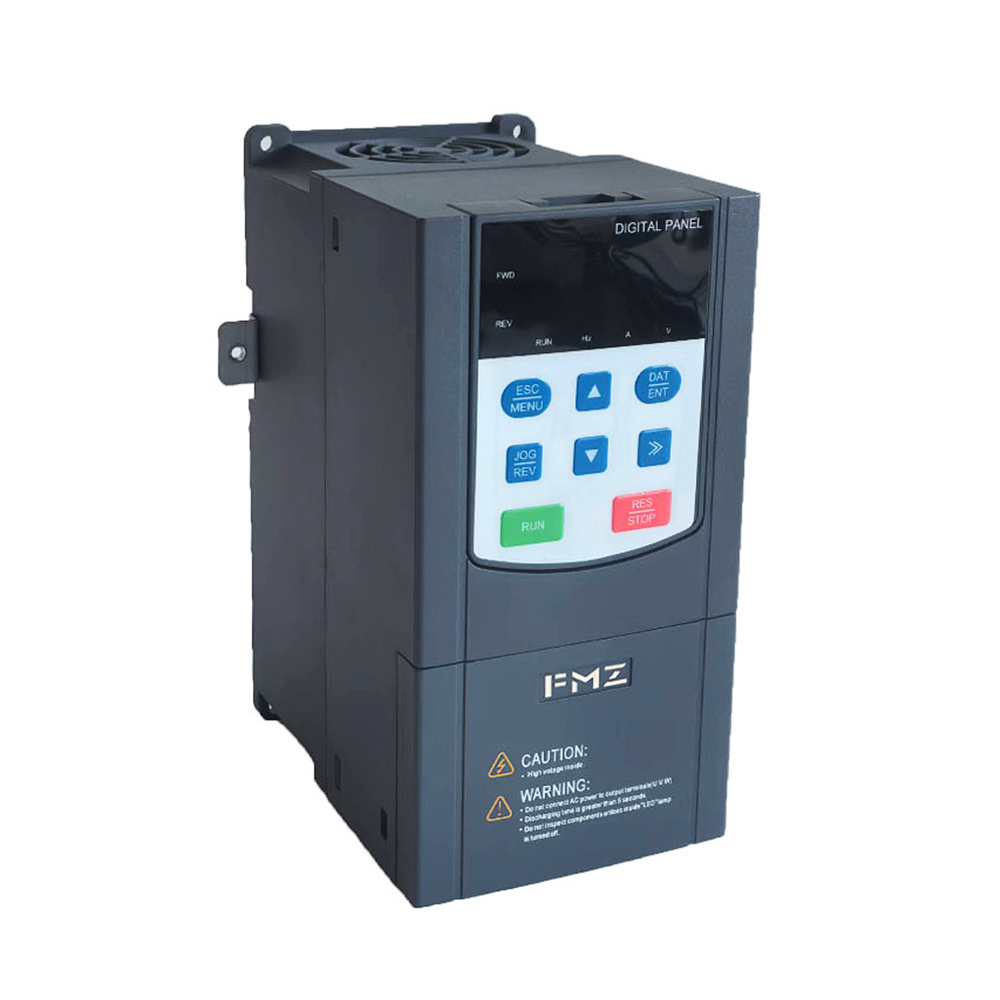

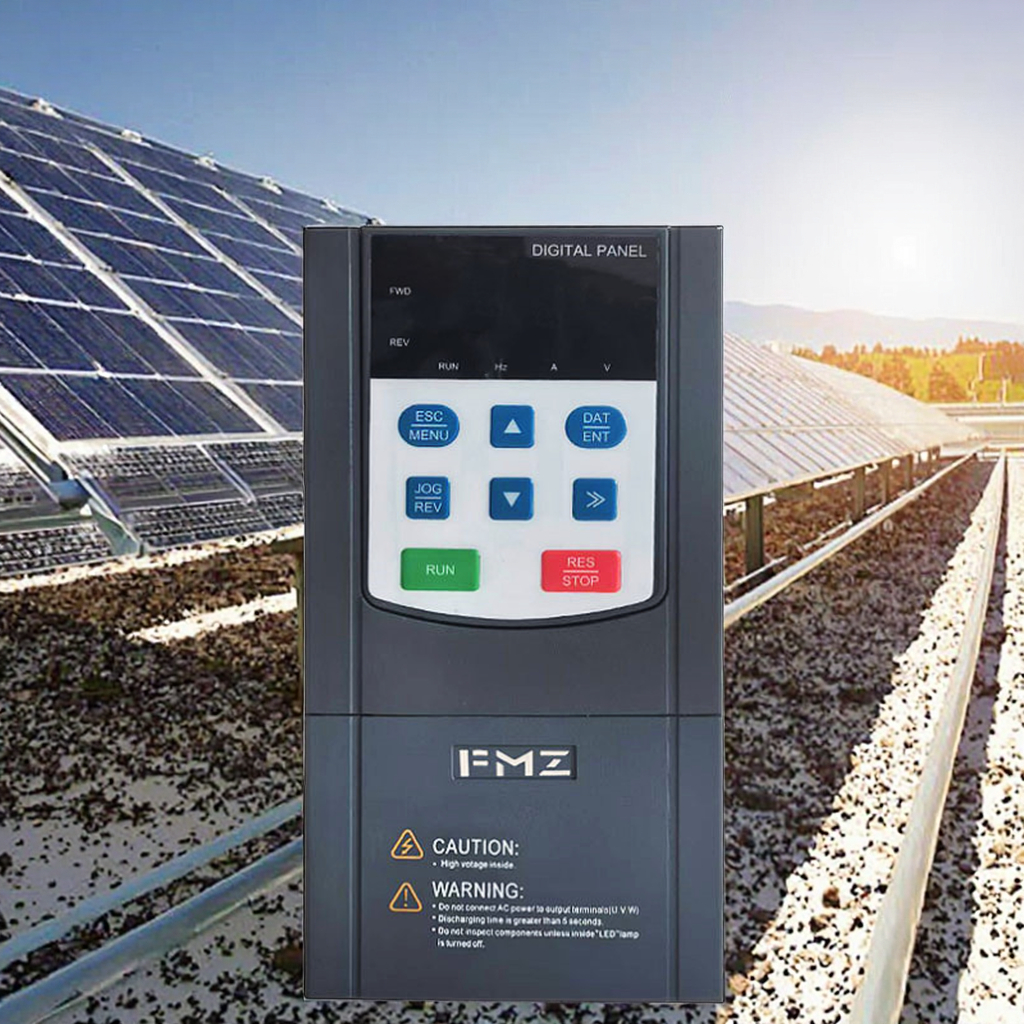

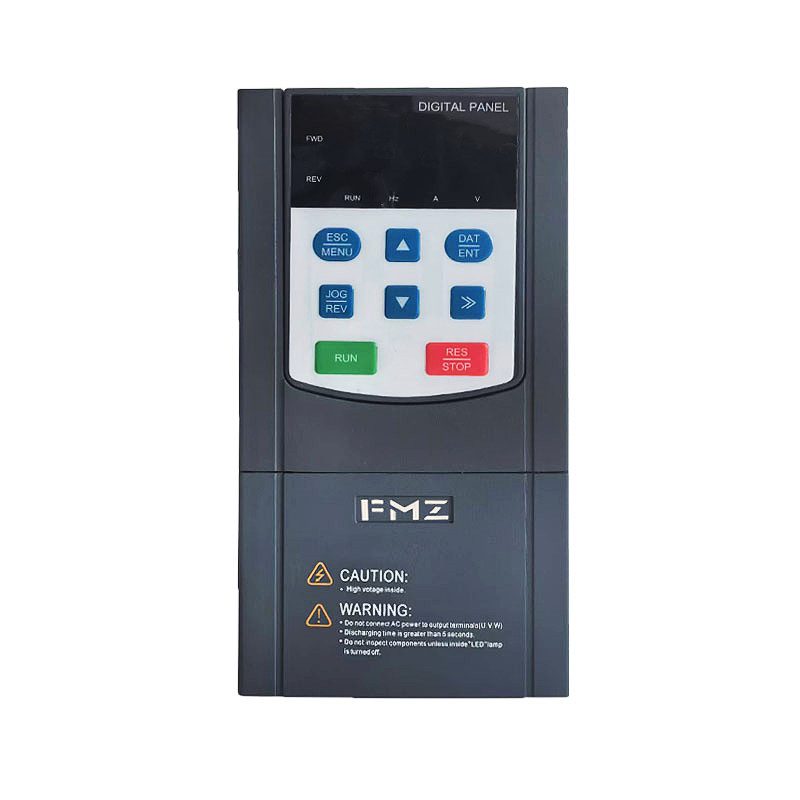

| Product Name | H880G Solar Pump Inverter |
| Model Number | H880-7R5G/11RP-T4 |
| Rated Power(kW) | 7.5kW |
| Control Mode | VF, SVC |
| Rated AC Input Voltage(VAC) | 220VAC/380VAC |

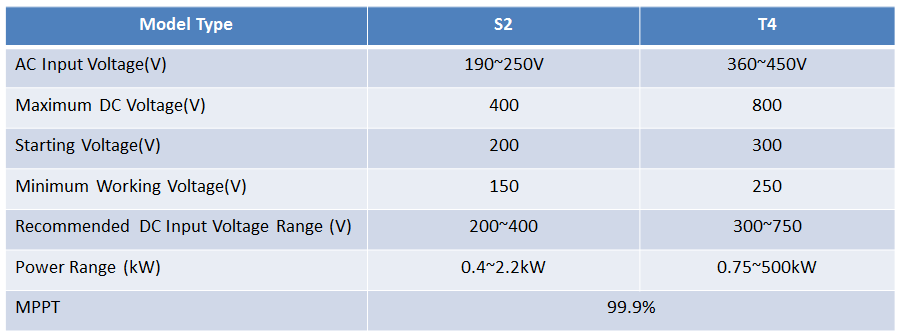

| Rated DC Input Voltage(VDC) | 200~400VDC |
| Maximum DC Voltage(V) | 800V |
| Starting Voltage(V) | 300V |
| Minimum Working Voltage(V) | 250V |
| Recommended DC Input Voltage Range (V) | 300~750V |
| Overload Capacity | 150% 1 min, 180% 10s, 200% 0.5s |
| Output Frequency | 0~600Hz |
| Operating Temperature | -10 to 40℃ |
| IP Protection | IP20 |

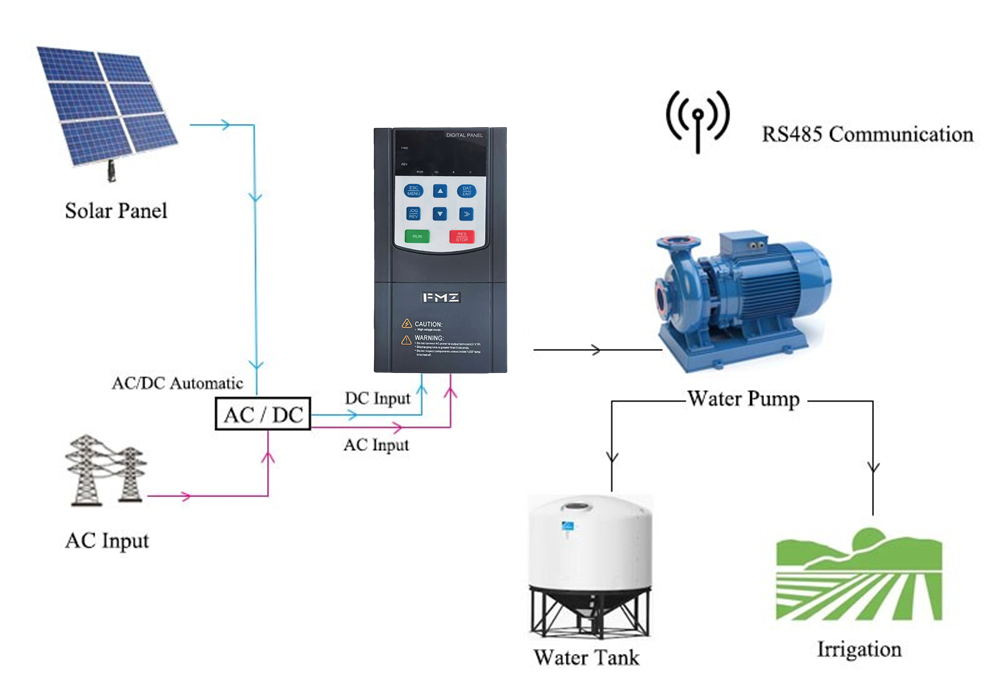

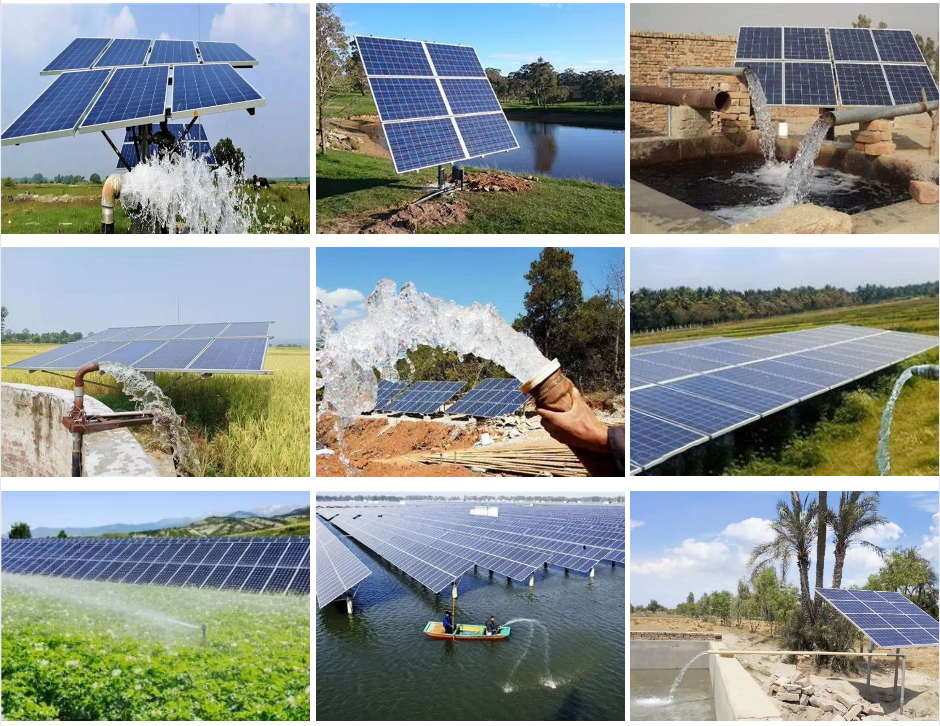

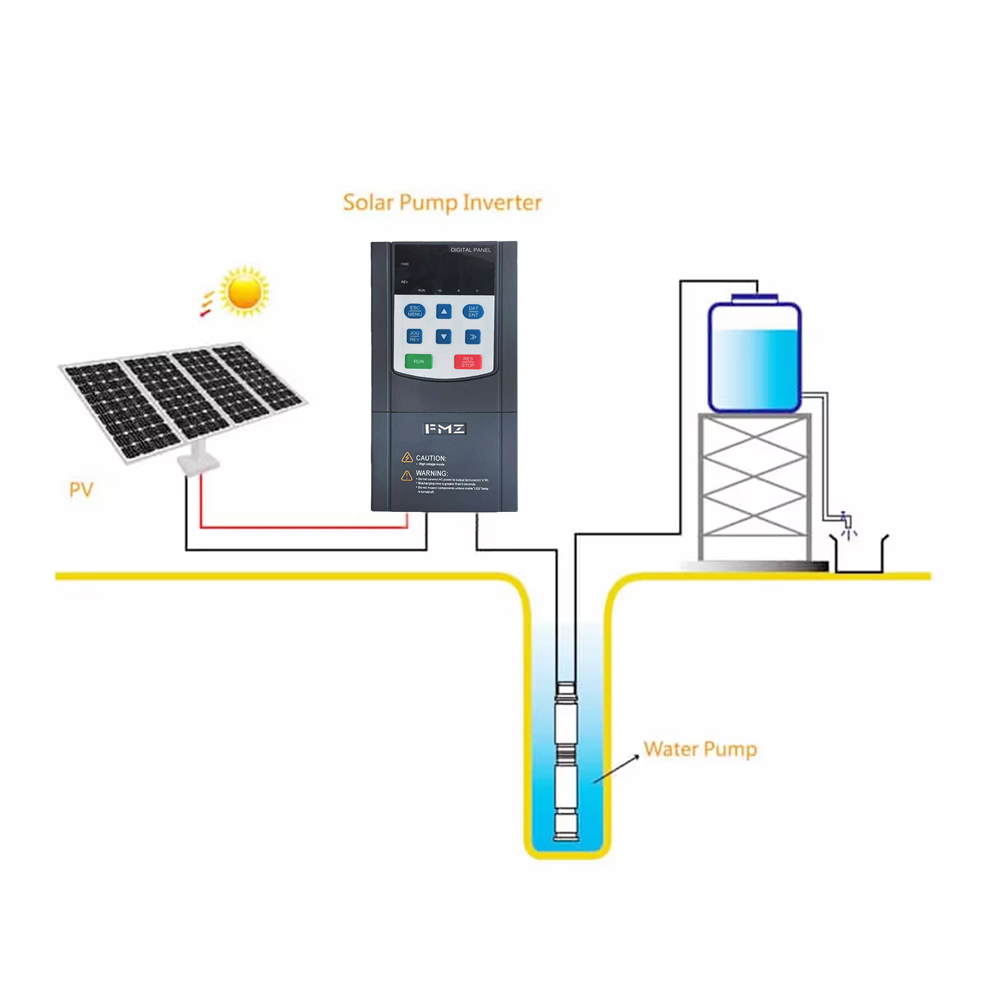

| Application | Solar Water Pump |

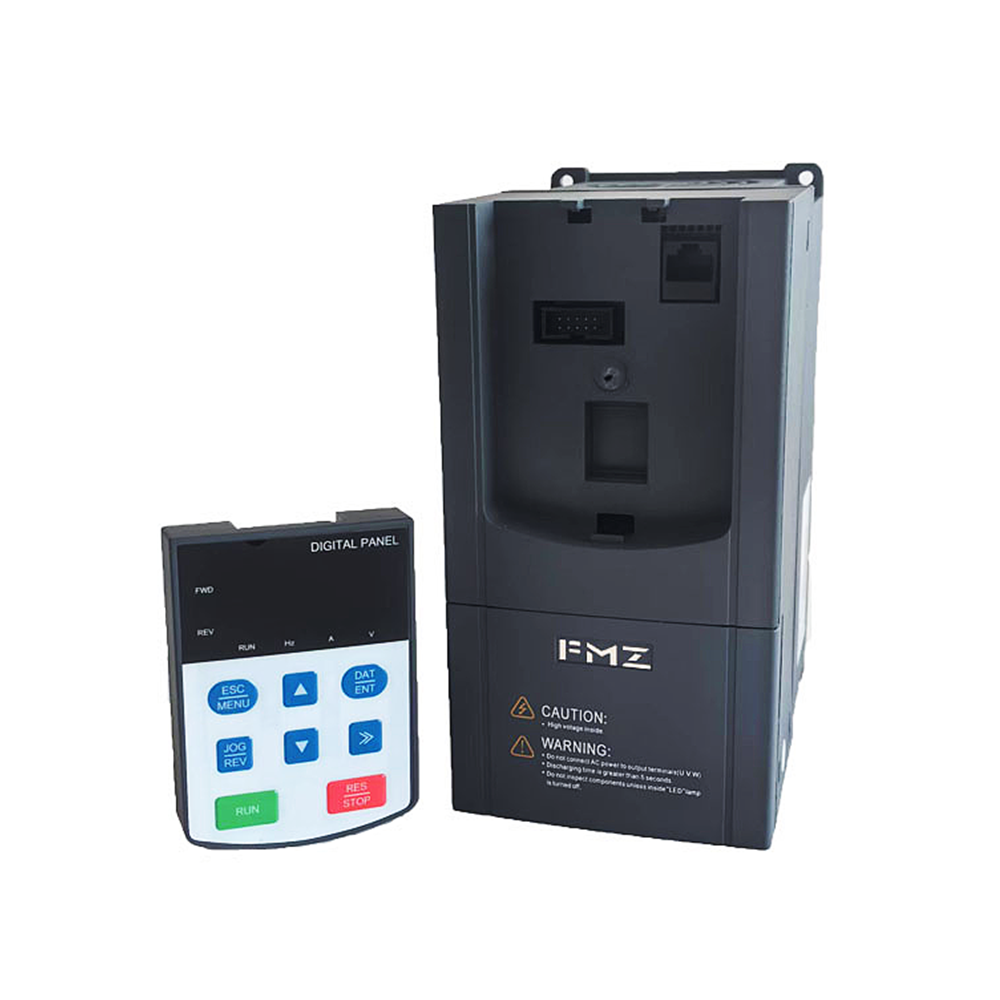

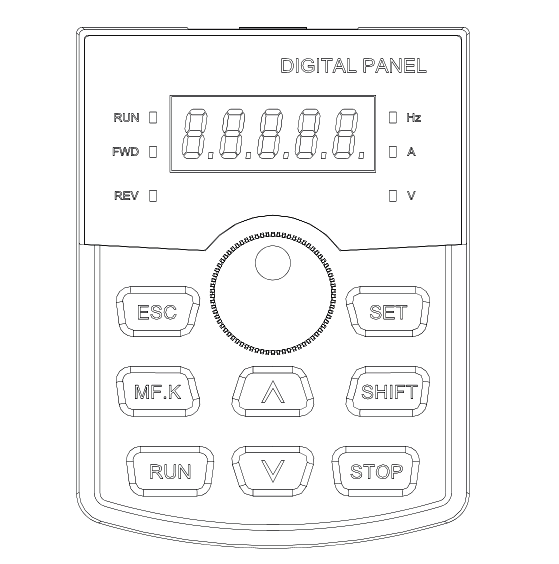

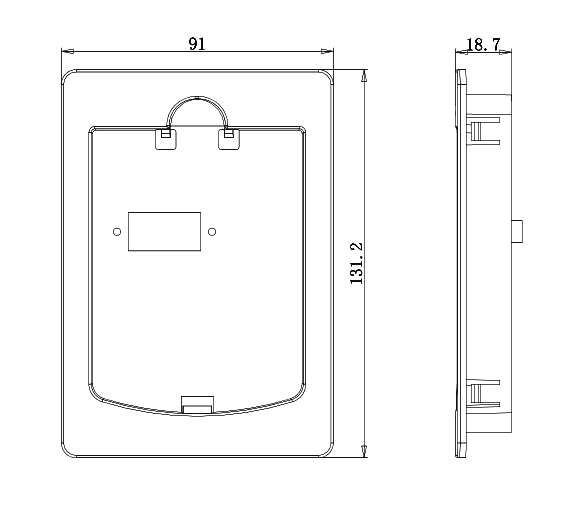

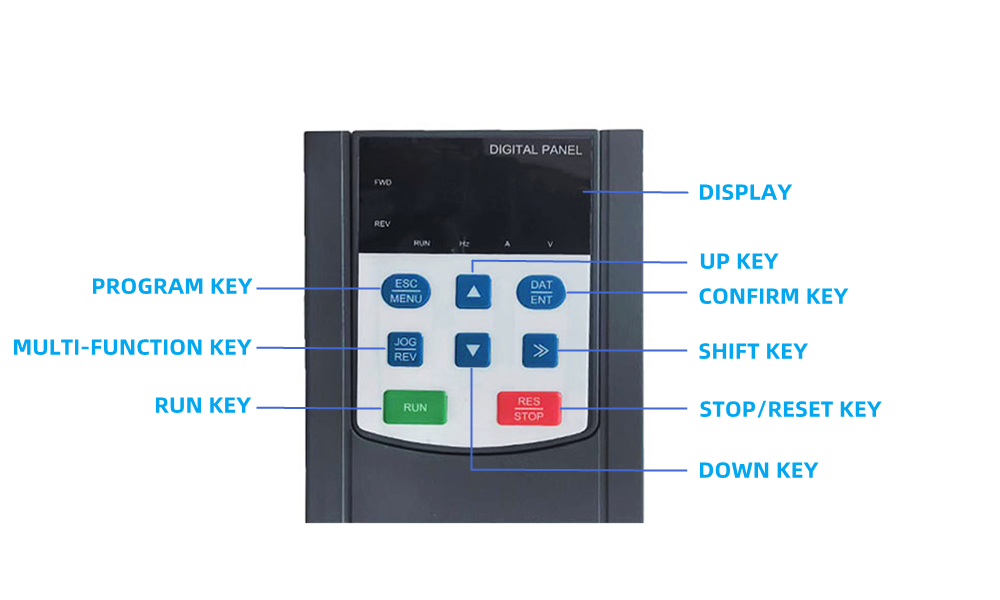

Keypad Panel Display & Operation

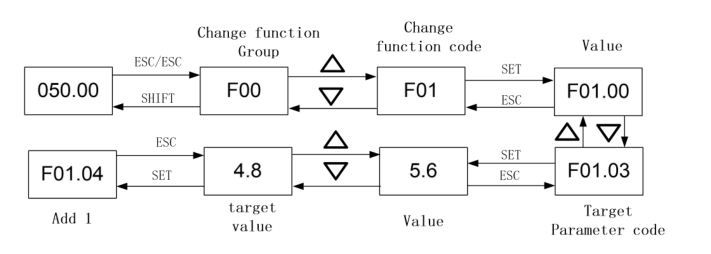

Parameter Modification Flowchart
Wiring Diagram of 220V Single Phase VFD

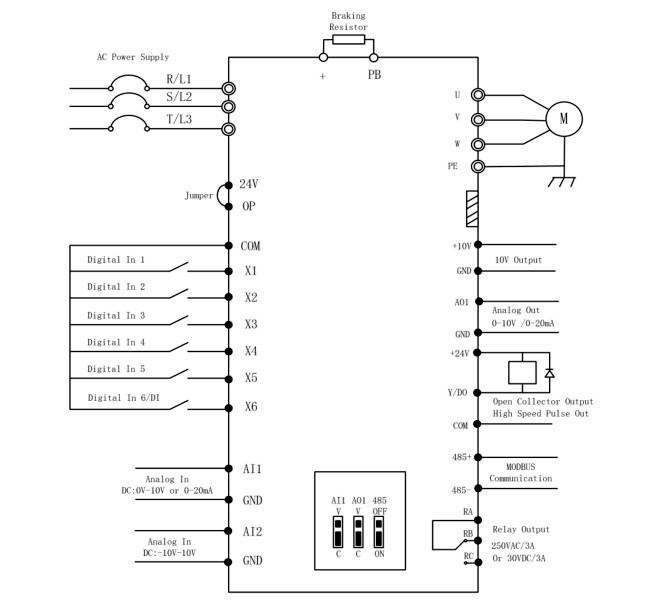

Wiring Diagram of 380V Three Phase VFD

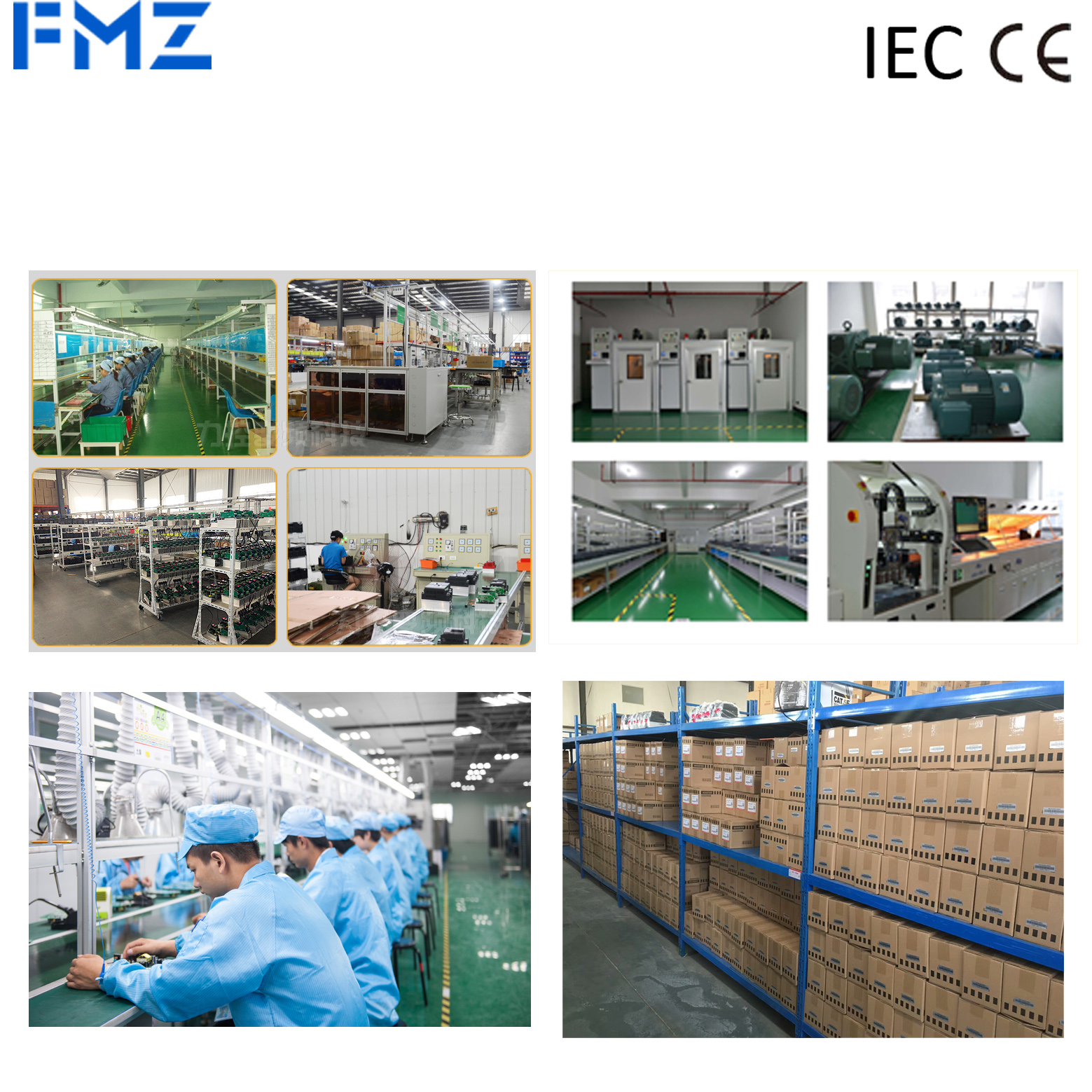

We specialize in R&D, manufacture, sales and professional technical services upon industrial automation control products such as frequency inverter (variable frequency drive, VFD, VSD, frequency converter, AC Drive), soft starter, HMI, motor servo, PLC and other general parts.
