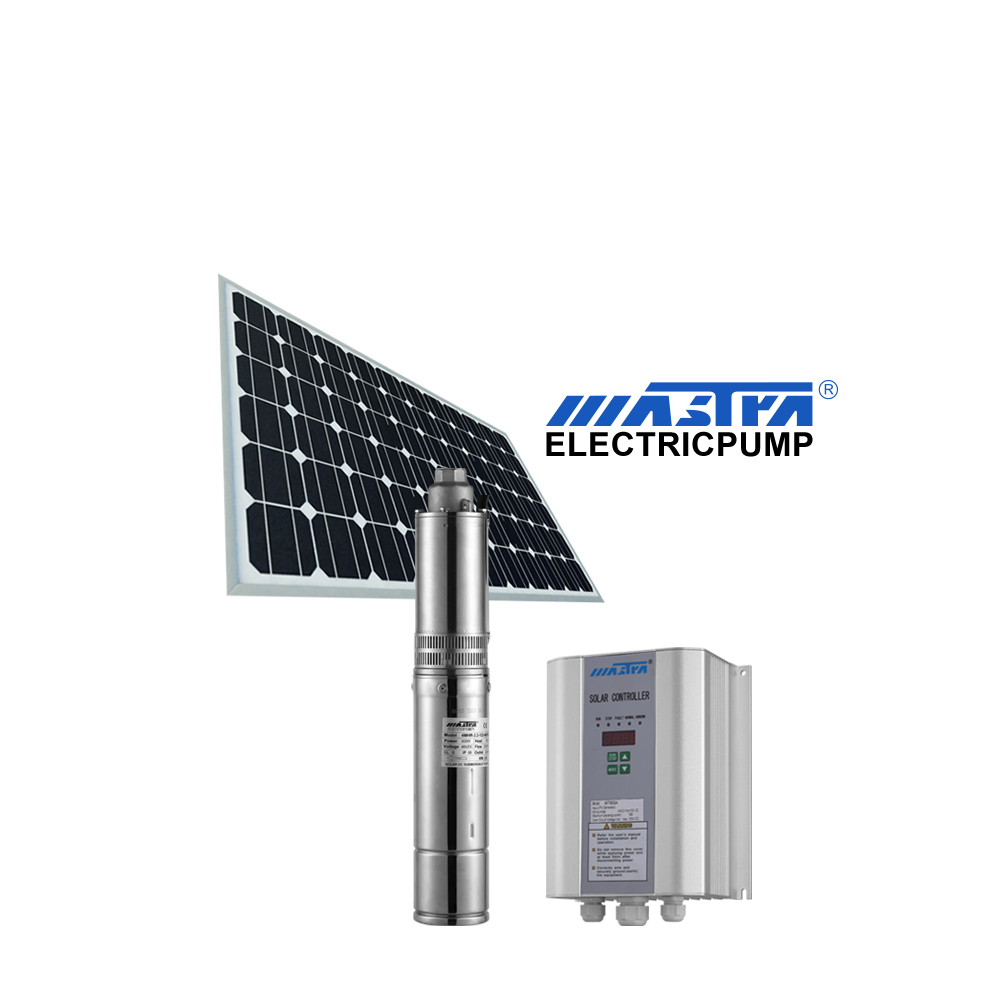

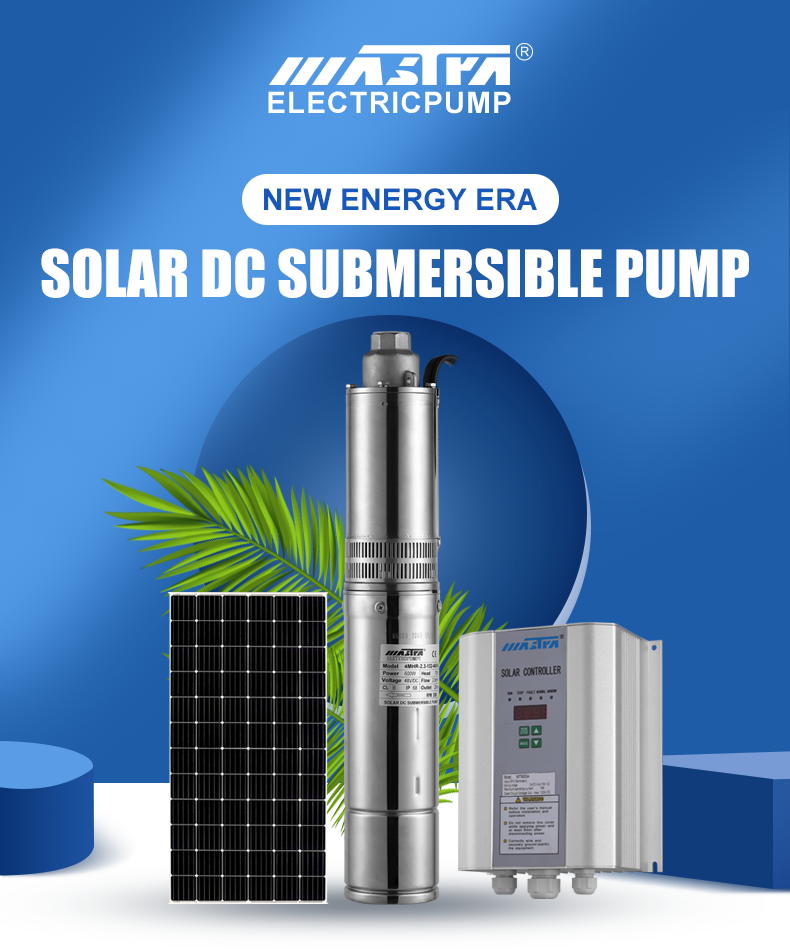

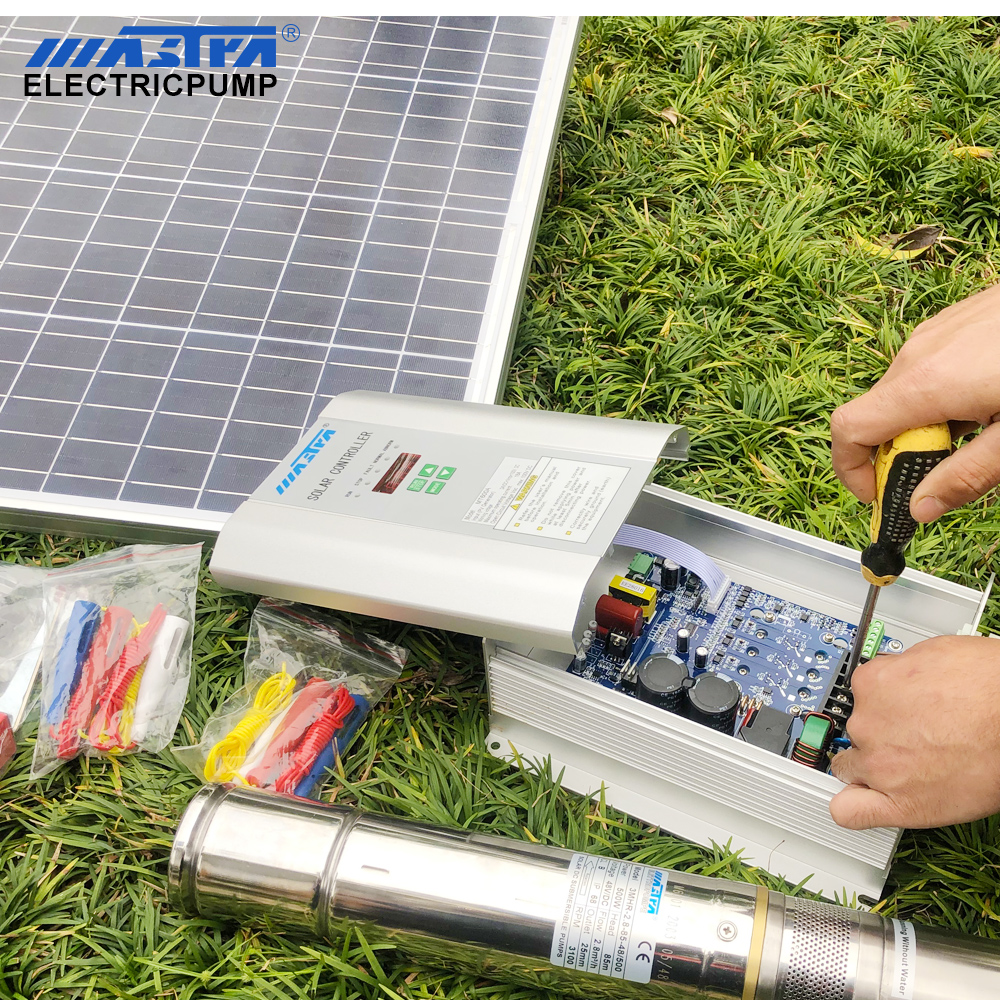

MASTRA Submersible Deep Well Dc Solar Power Fountain Water Pump Inverter System Solar Pump

Send Inquiry

Product Description

📋 Product Description

⚙ Product Parameters

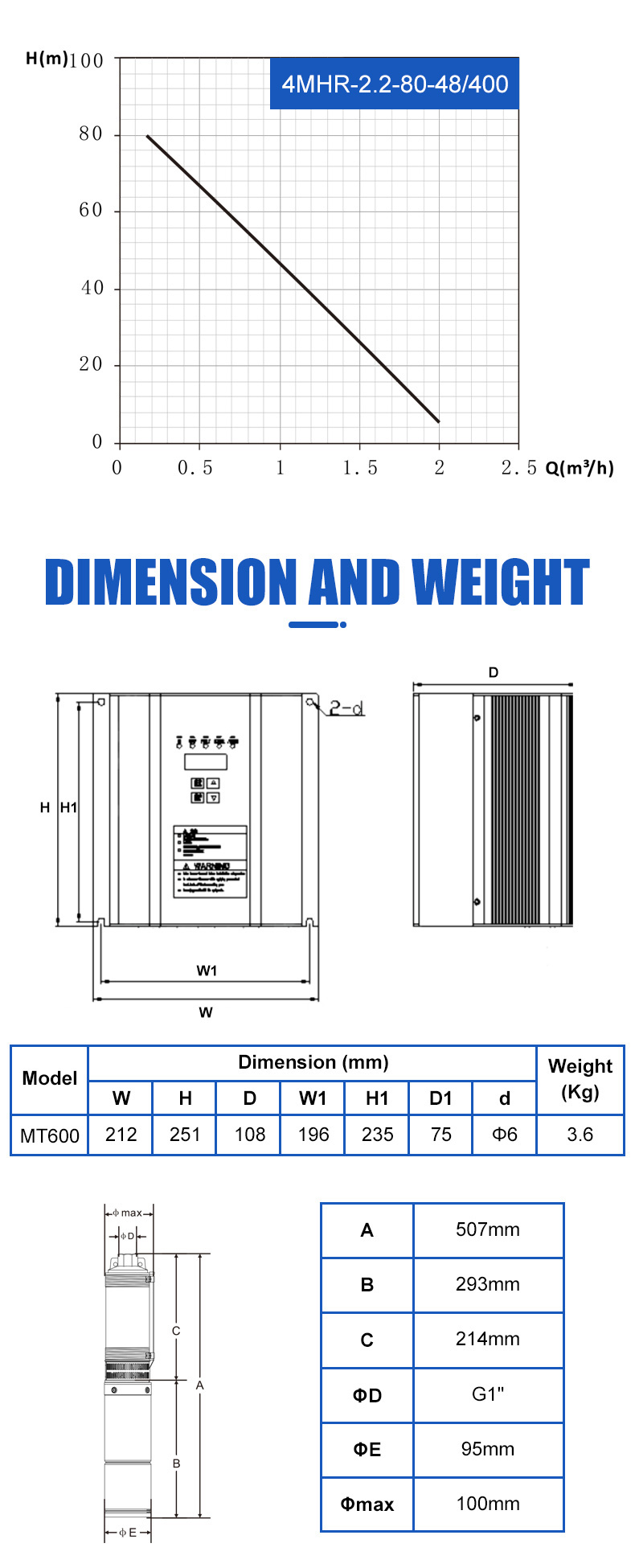

Model: 4MHR-2.2-80-48/400

Head	Max.80m	Recommended Mpp Voltage	≥20VDC
Flow	Max.2.2m³/h	Controller Ambient Temperature	-20℃~60℃

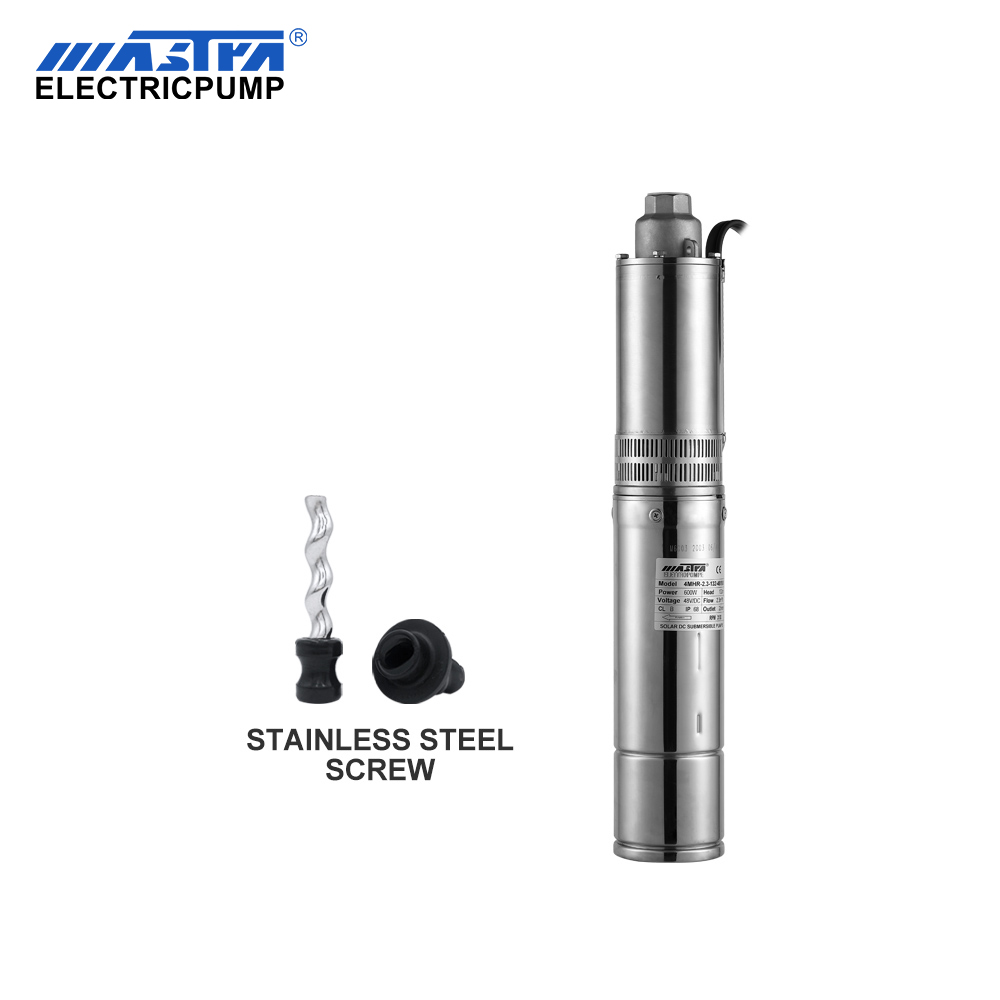

Pump Type	Screw Pump	Pump Model	R95-SCR-400
Pump Outlet Dia	G1"	Motor power/Voltage	0.4Kw/48V
Adapting Well Dia	100mm	Motor Speed	0-3100rpm

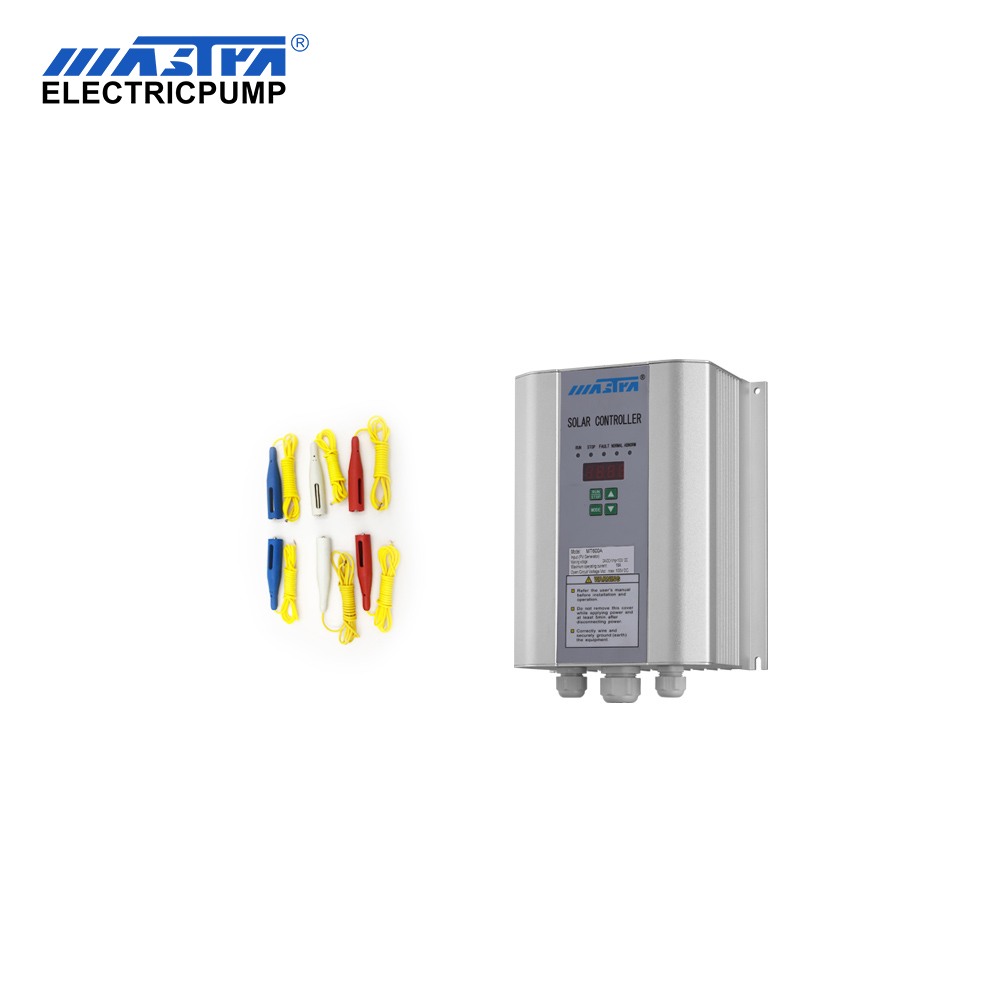

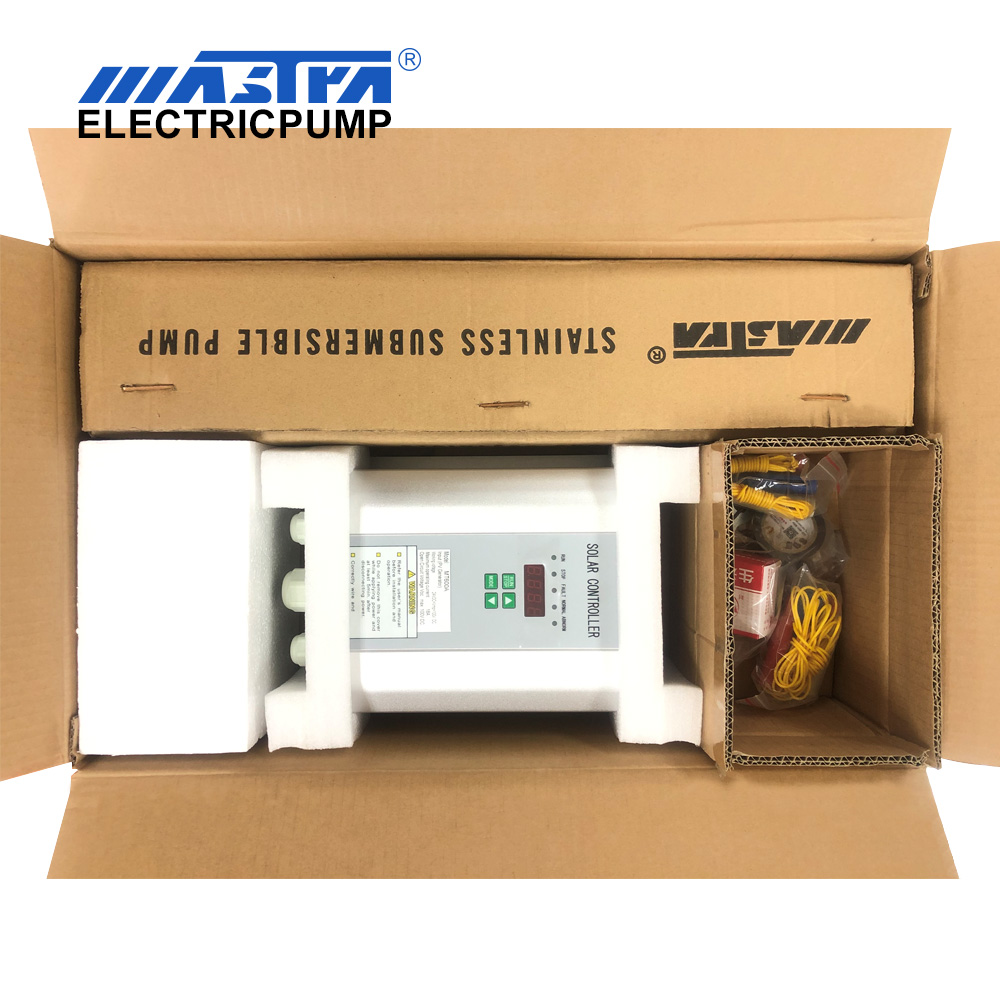

Solar Pumping Controller Model	MT600A	Enclosure Class	Ip68
Controller Power	600W	Insulation Class	F
Max Output Current Of Controller	18A	Ambient Water PH Range	6.5-8.0
Controller Efficiency	98%	Ambient Water Temperature	1℃-35℃
Max.DC Input Voltage	100VDC	Submersion	Max.150m

🏭 Production Showcase

❓ Frequently Asked Questions

What is the maximum lift height of this solar pump?

This model features a maximum head of 80 meters, making it suitable for deep well applications and long-distance water transport.

Can this pump operate under high temperatures?

Yes, the controller is designed to function in ambient temperatures ranging from -20℃ to 60℃, while the pump can handle water temperatures up to 35℃.

What type of motor does this pump use?

The pump utilizes a high-efficiency DC motor with a speed range of 0-3100rpm, optimized for solar power input.

Is the controller waterproof?

The system features an IP68 enclosure class for the motor components, ensuring excellent protection against dust and water submersion.

What is the required well diameter for installation?

This pump is specifically designed to adapt to wells with a diameter of 100mm or larger.

Does the controller support high voltage input?

The controller supports a maximum DC input voltage of 100VDC with a recommended MPP voltage of at least 20VDC for optimal performance.
