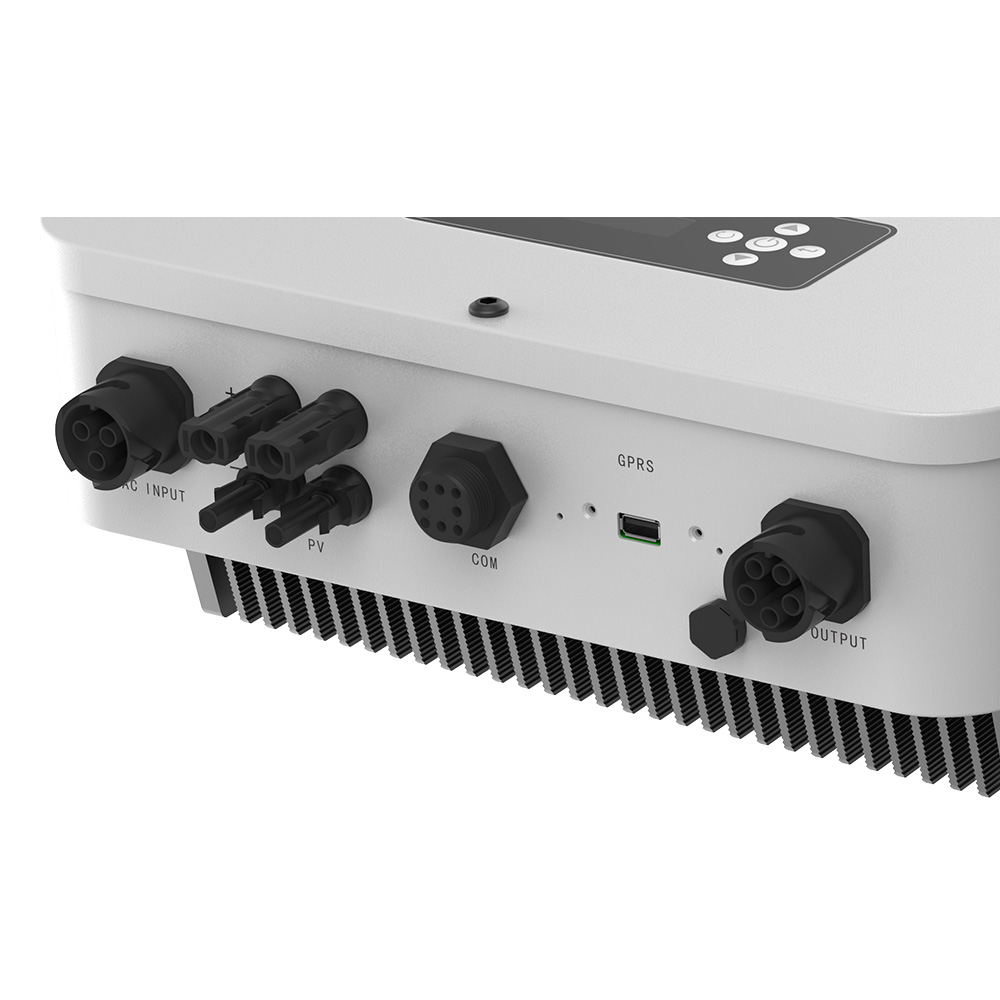

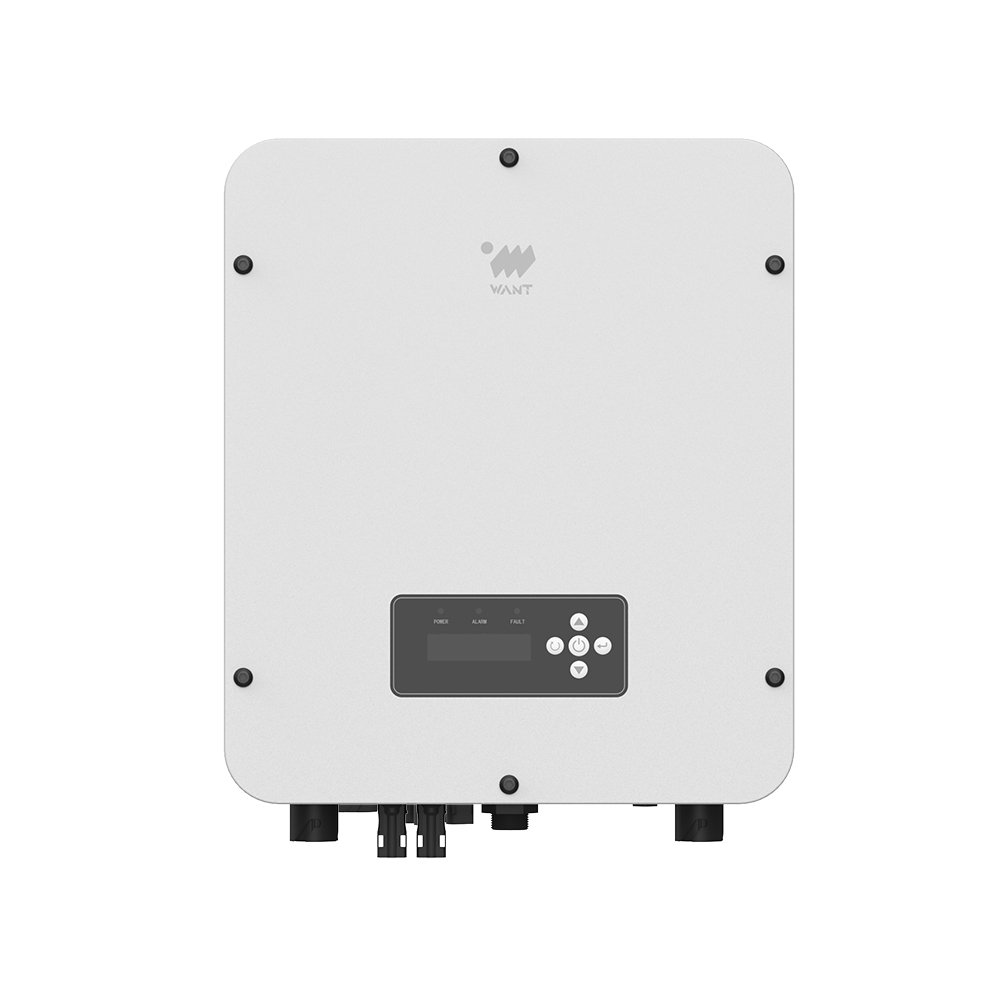

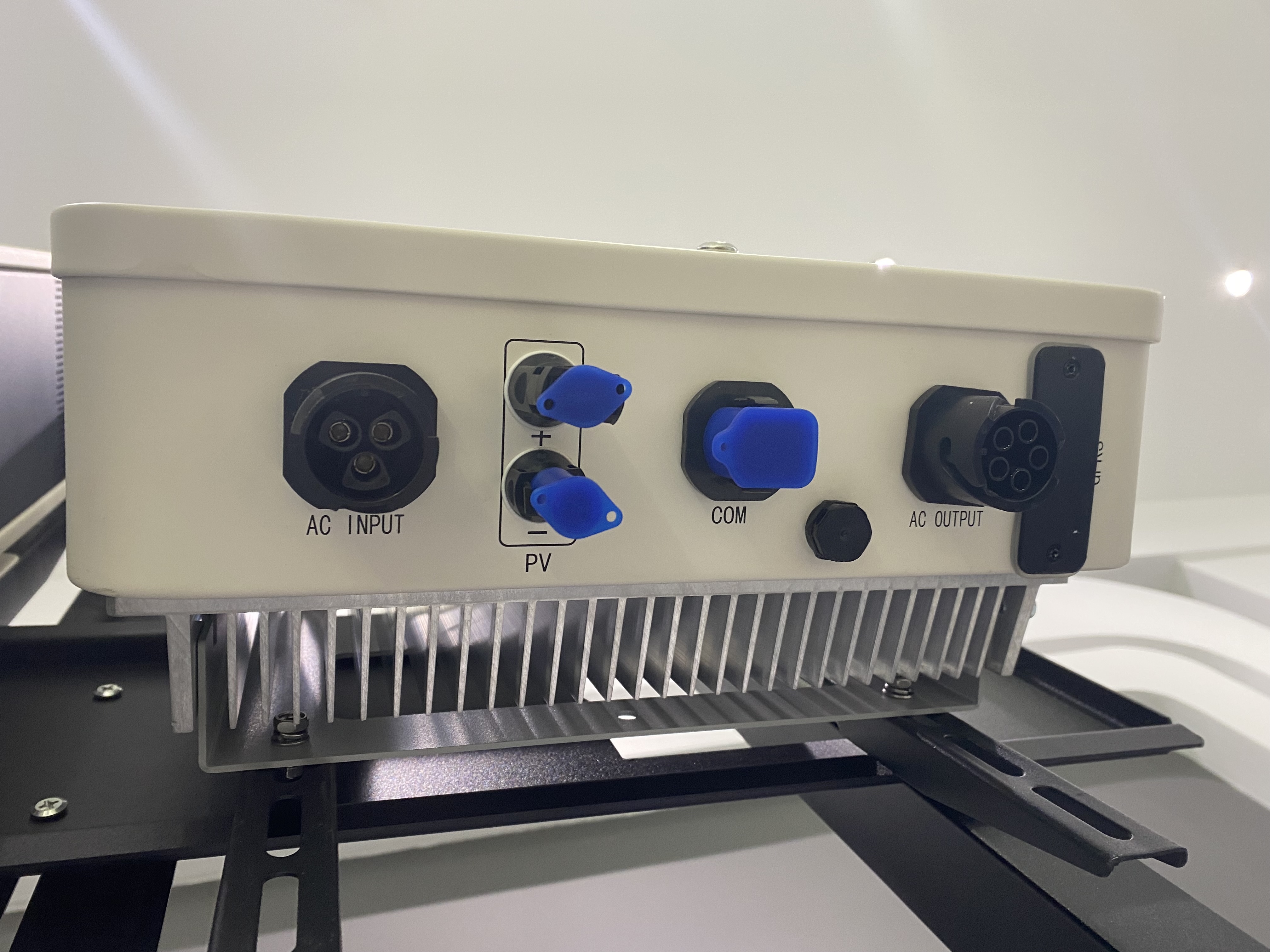

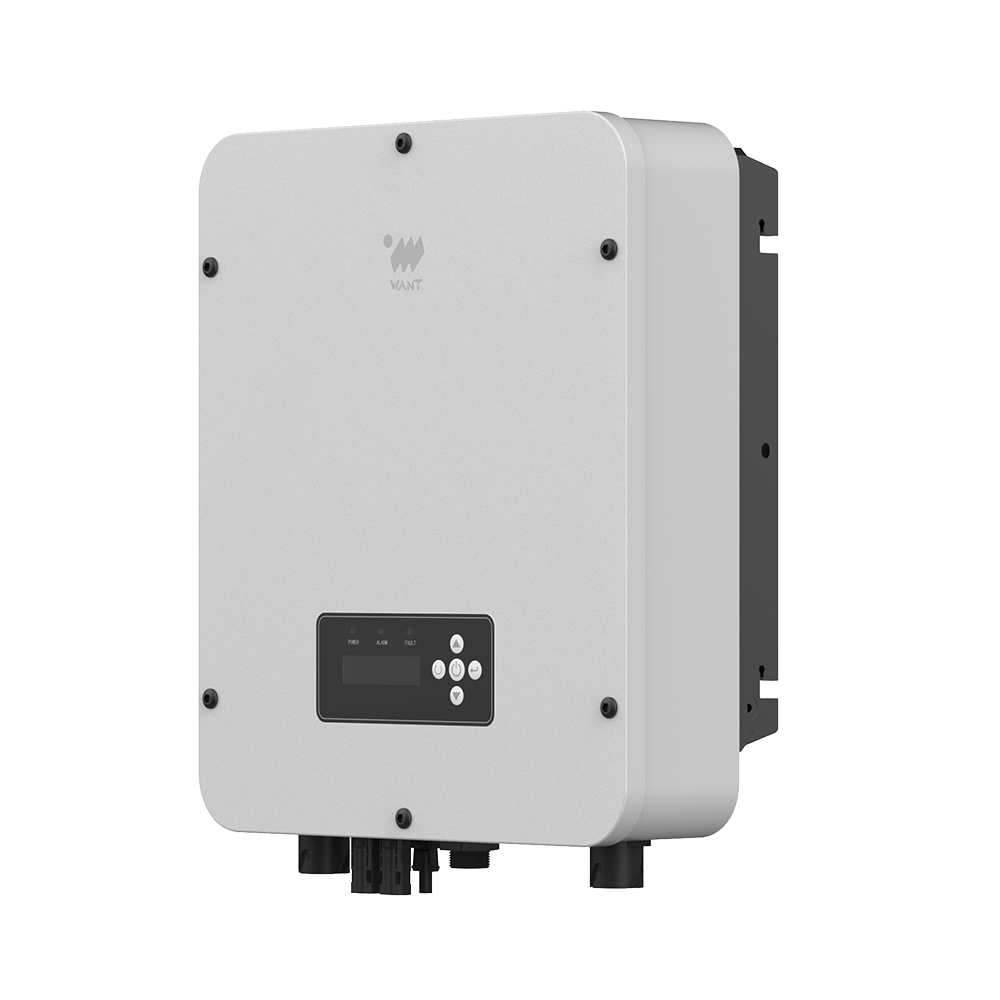

WANTPOWER 1.5kW Solar Pumping Inverter 3 Phase 220V IP65 VDF Solar Water Pump 3HP with MPPT 3-Year Warranty
WANTPOWER 1.5kW Solar Pumping Inverter 3 Phase 220V IP65 VDF Solar Water Pump 3HP with MPPT 3-Year Warranty
WANTPOWER 1.5kW Solar Pumping Inverter 3 Phase 220V IP65 VDF Solar Water Pump 3HP with MPPT 3-Year Warranty
WANTPOWER 1.5kW Solar Pumping Inverter 3 Phase 220V IP65 VDF Solar Water Pump 3HP with MPPT 3-Year Warranty
WANTPOWER 1.5kW Solar Pumping Inverter 3 Phase 220V IP65 VDF Solar Water Pump 3HP with MPPT 3-Year Warranty
1 / 5
WANTPOWER 1.5kW Solar Pumping Inverter 3 Phase 220V IP65 VDF Solar Water Pump 3HP with MPPT 3-Year Warranty
WANTPOWER 1.5kW Solar Pumping Inverter 3 Phase 220V IP65 VDF Solar Water Pump 3HP with MPPT 3-Year Warranty
WANTPOWER 1.5kW Solar Pumping Inverter 3 Phase 220V IP65 VDF Solar Water Pump 3HP with MPPT 3-Year Warranty
WANTPOWER 1.5kW Solar Pumping Inverter 3 Phase 220V IP65 VDF Solar Water Pump 3HP with MPPT 3-Year Warranty
WANTPOWER 1.5kW Solar Pumping Inverter 3 Phase 220V IP65 VDF Solar Water Pump 3HP with MPPT 3-Year Warranty

WANTPOWER 1.5kW Solar Pumping Inverter 3 Phase 220V IP65 VDF Solar Water Pump 3HP with MPPT 3-Year Warranty

Send Inquiry

Product Description

Product Description
  • ✔ Rated power range of 1500W to 4000W
  • ✔ Built-in MPPT solar charger
  • ✔ Wide MPPT input voltage range of 100V to 400V
  • ✔ Auto-restart feature after PV reconnect or AC return
  • ✔ Full feature system protection and self-diagnosis
  • ✔ Soft start feature available
  • ✔ Large LCD / LED display
  • ✔ IP65 protection design
  • ✔ (Optional) Remote monitoring through GPRS / WIFI

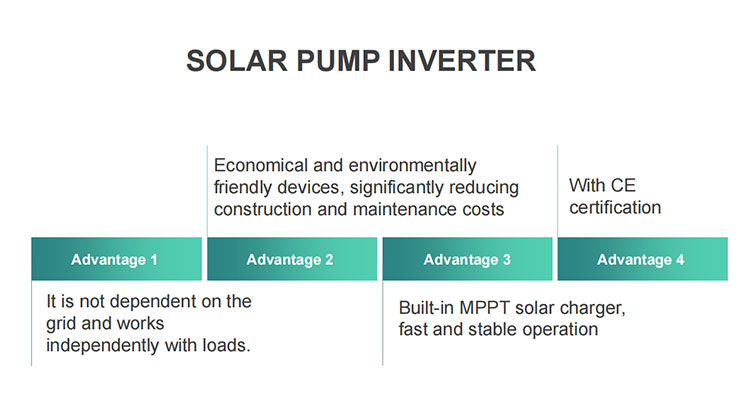

Solar Pump Inverter

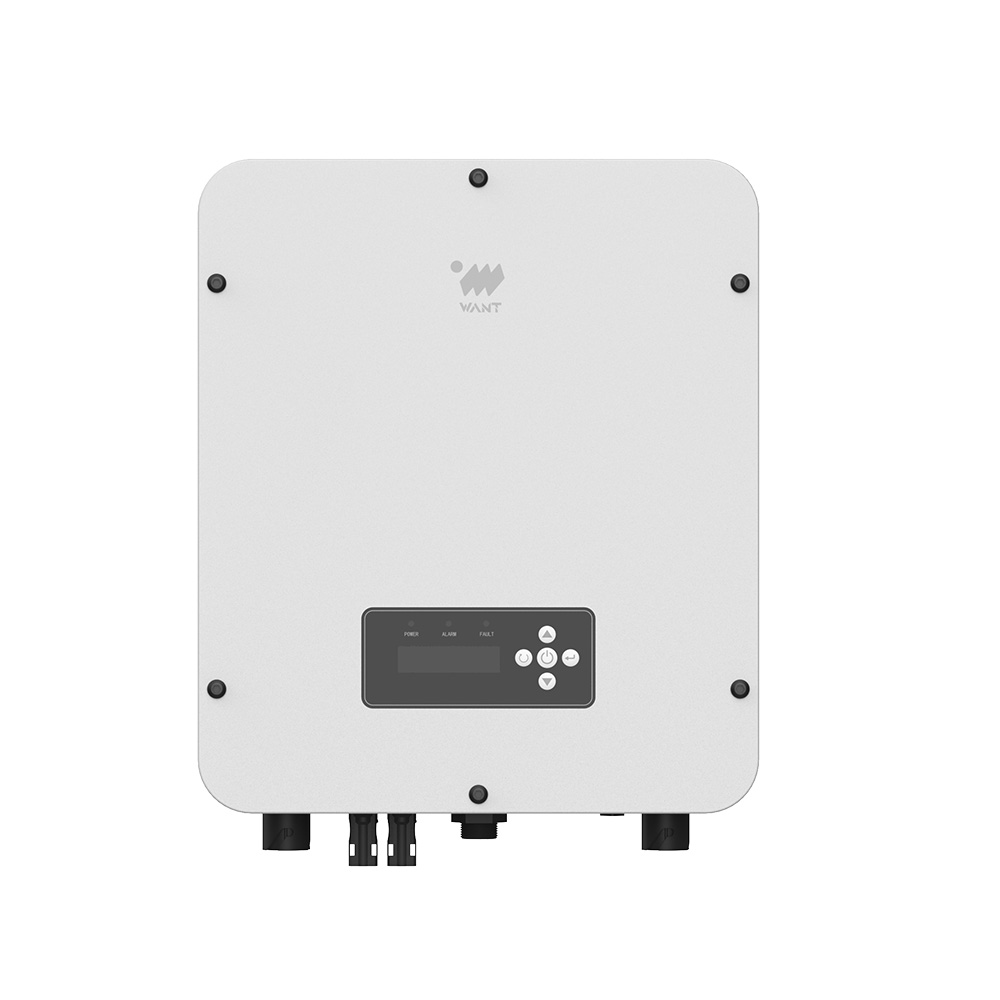

Inverter Detail 1 Inverter Detail 2
⚠️ NOTE:

1. The connected PV array is recommended to be 1.5 times the rated power of the solar pump inverter.

2. The pump inverter power must be greater than water pump power.

Product Parameters
Specifications PD-STP1.5K-G2 PD-STP2.2K-G2 PD-STP4K-G2
Rated Power 1500W 2200W 4000W
Maximum Current 7.5A (3PH) / 10.2A (1PH) 10A (3PH) / 14A (1PH) 16A (3PH) / 25A (1PH)
Wiring Mode 1P1L / 3P3L
Rated Voltage 0 to 220V (1PH or 3PH)
MPPT Voltage Range 100V to 400V
Starting Voltage 80V
Motor Type Asynchronous motor, 220V (1 phase) / 220V (3 Phase)
IP Rating IP65
Dimensions (W/H/D) 335mm/335mm/156mm 335mm/335mm/156mm 360mm/420mm/169mm
Weight 9.75 kg 9.75 kg 12 kg
Product Packaging

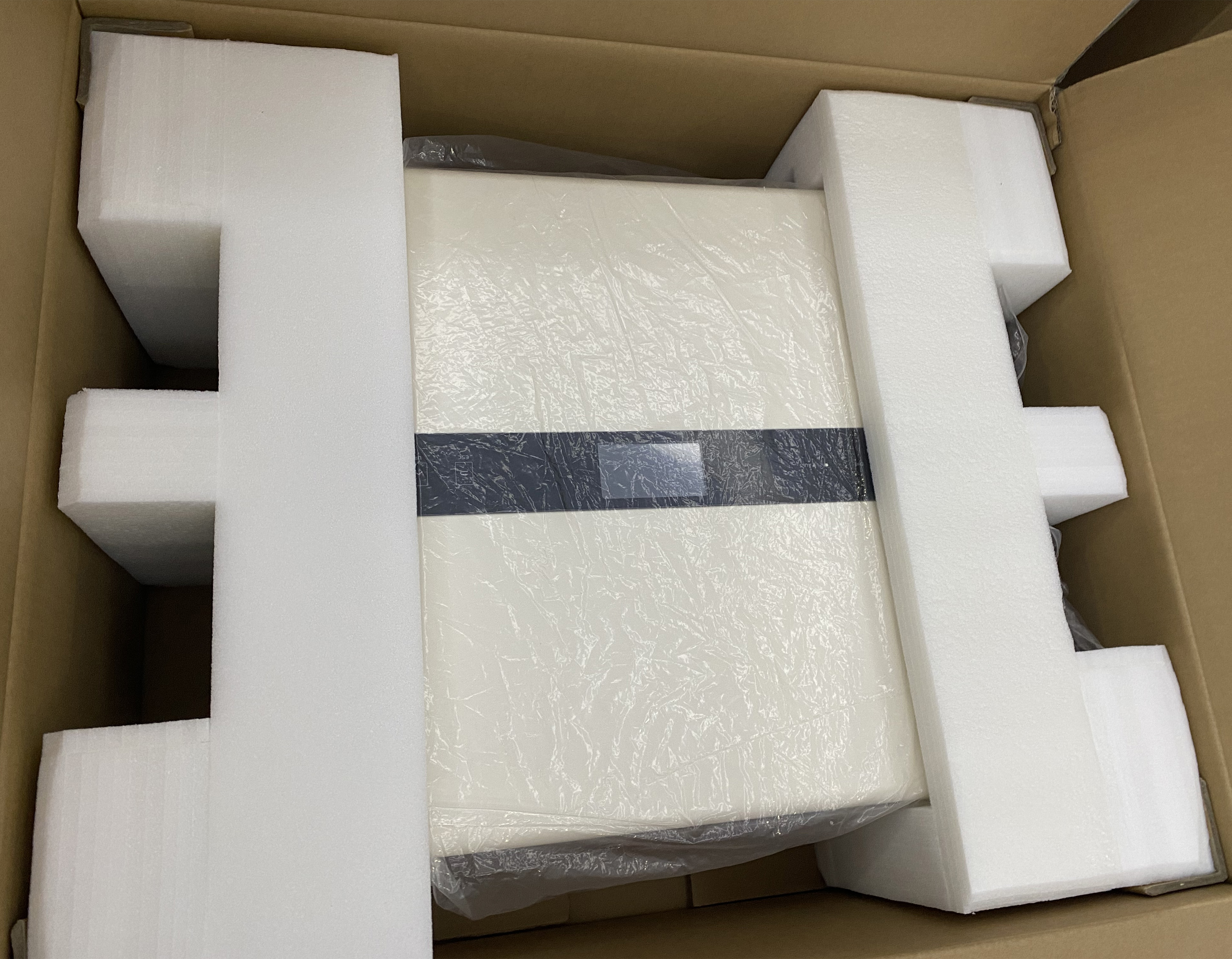

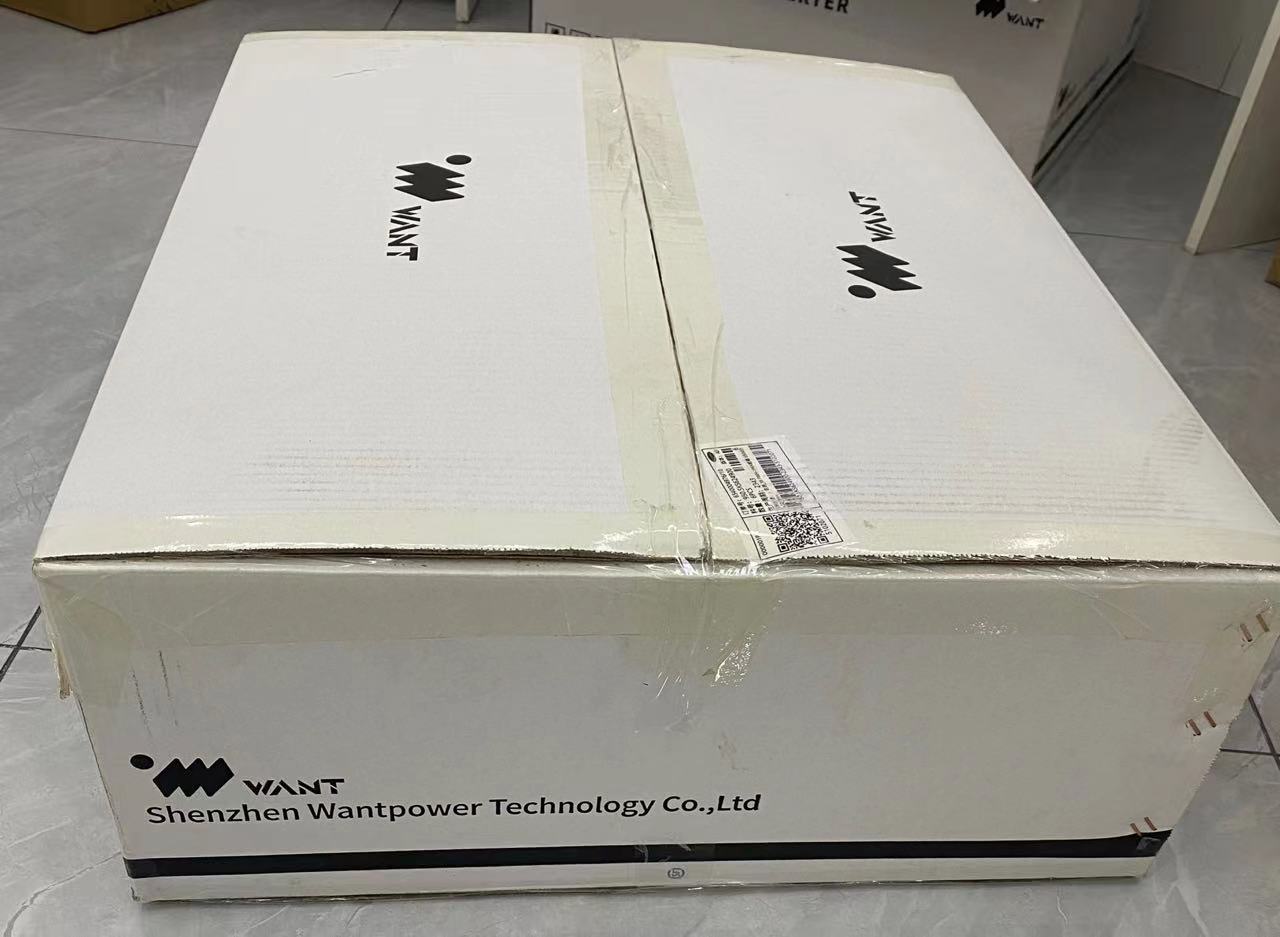

Packaging 1 Packaging 2
Company Profile
We are an energy storage company dedicated to providing a comprehensive selection of inverters and batteries for various applications. Our product portfolio includes grid-tie inverters, off-grid inverters, hybrid inverters, and a wide range of lithium-ion batteries. These products cater to the needs of residential, commercial, and industrial customers, providing reliable and efficient energy solutions.

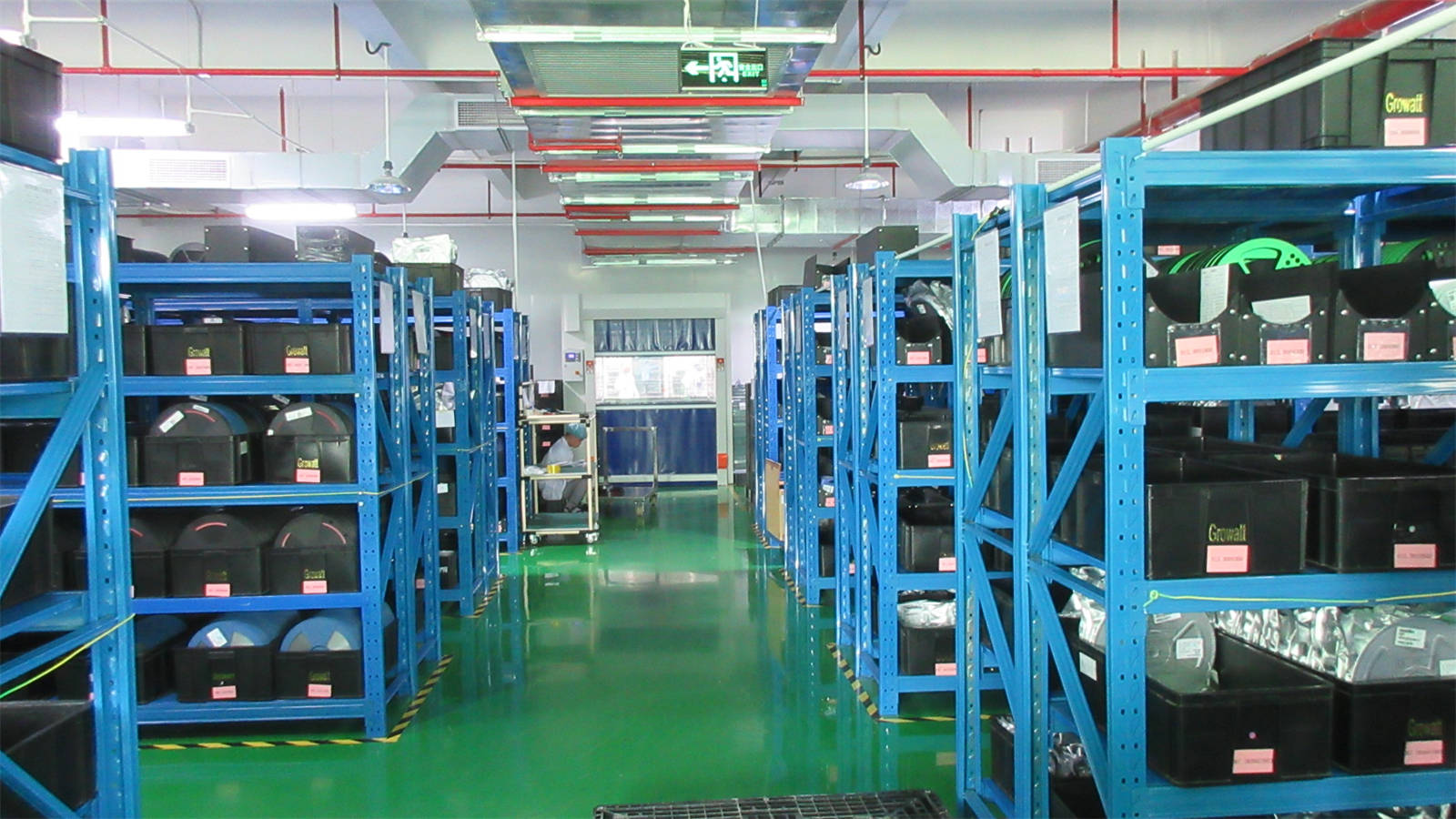

Raw Materials
1-Raw Materials

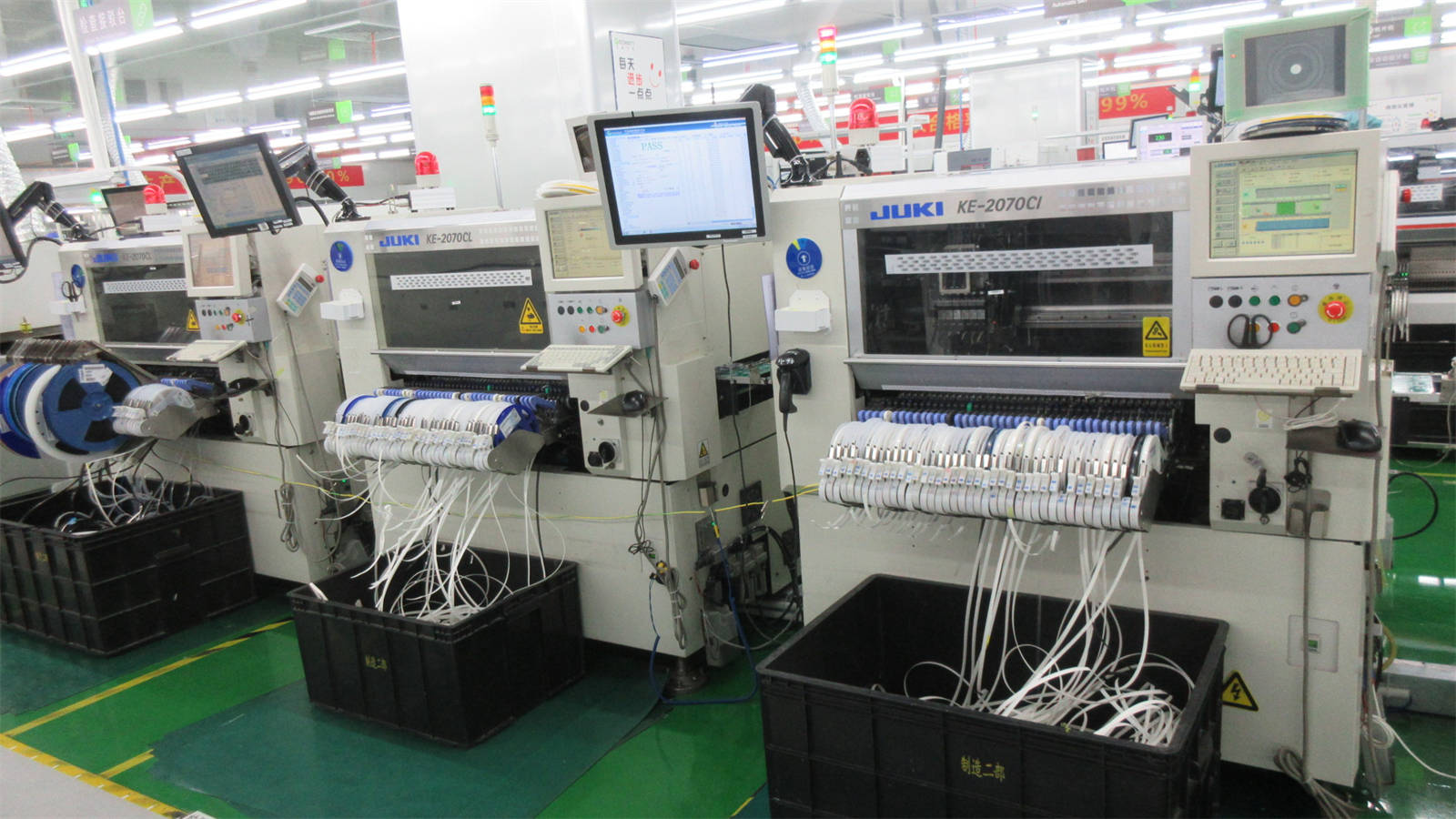

SMT
2-SMT

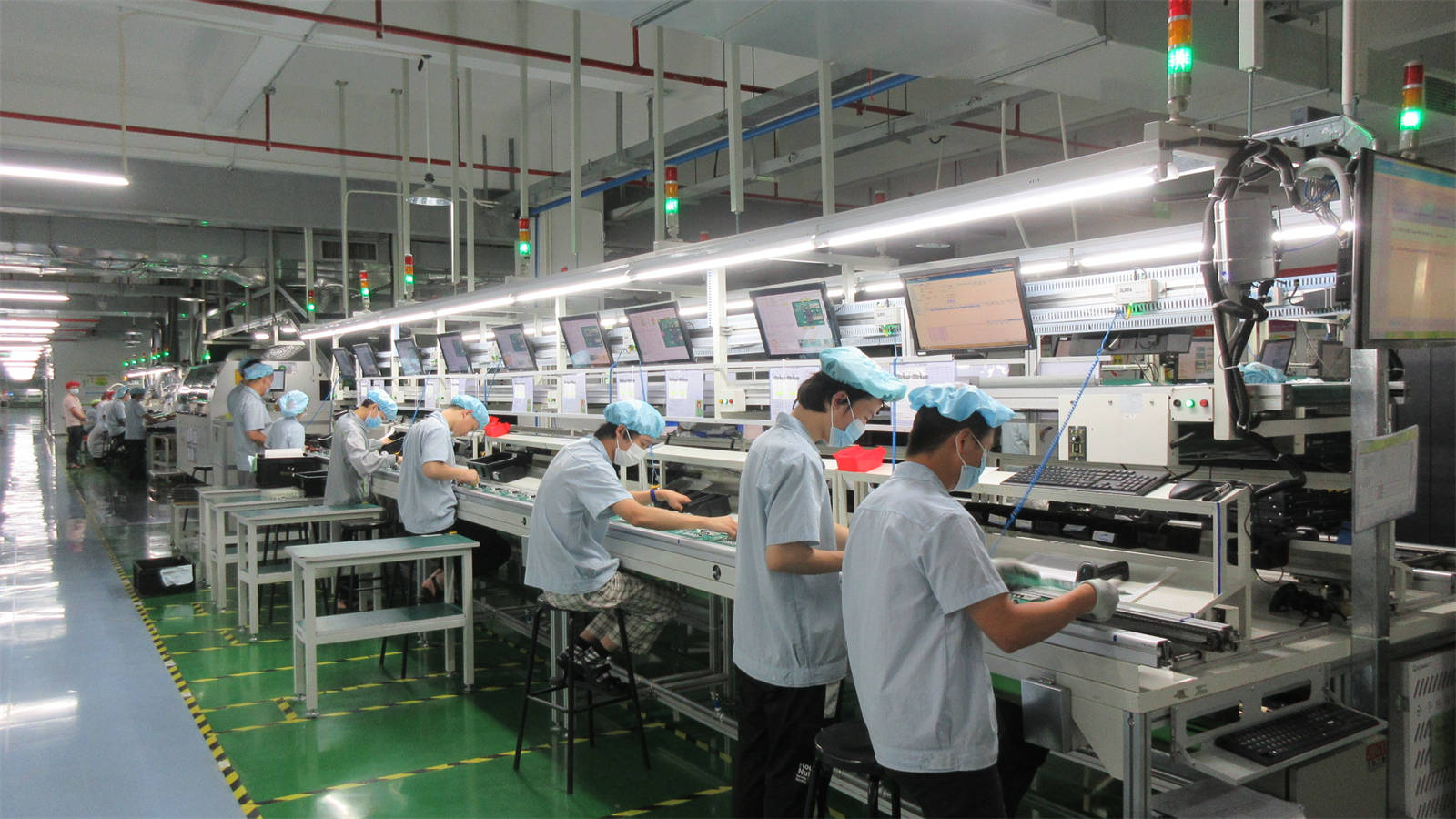

DIP
3-DIP

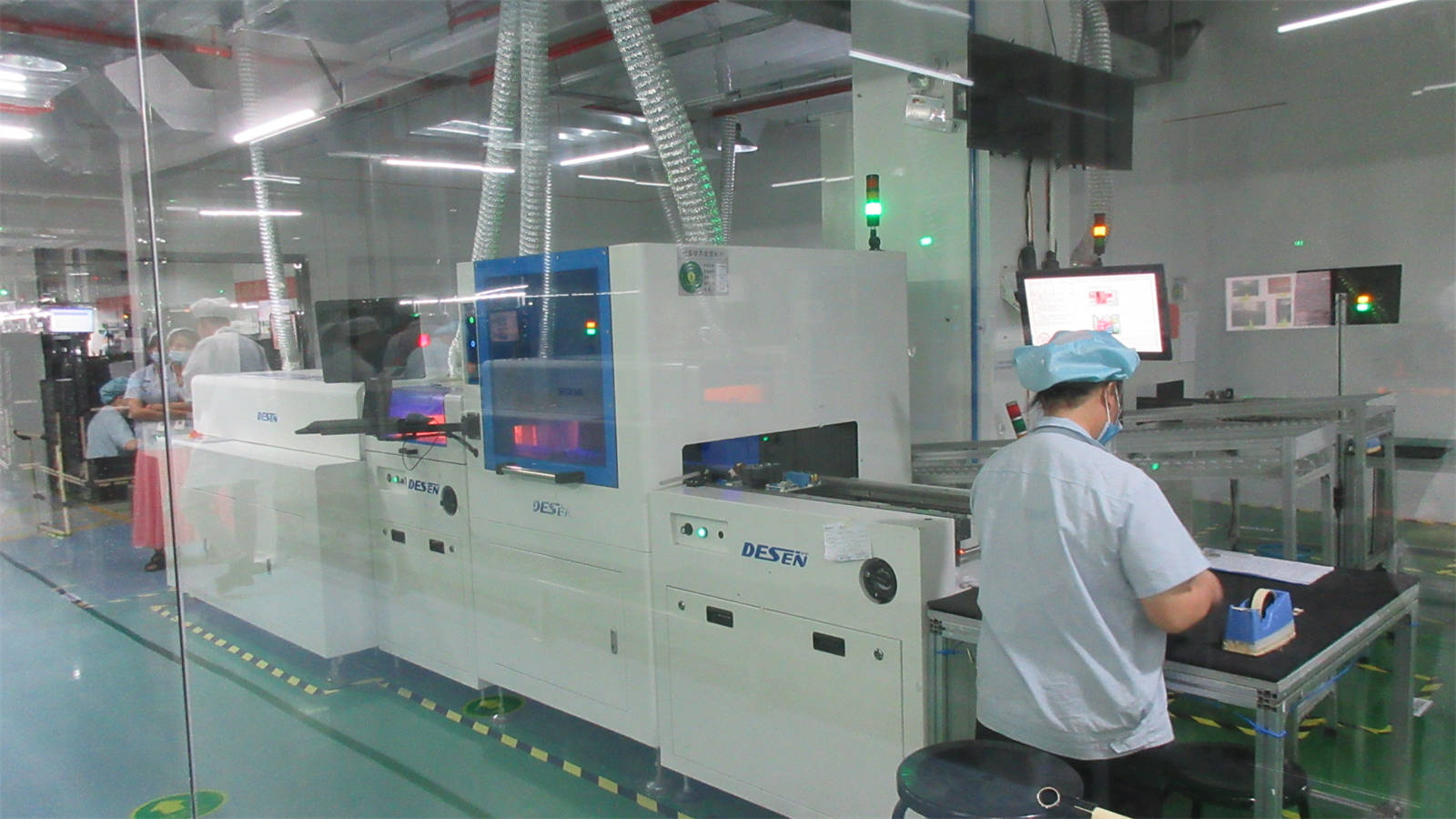

Spraying
4-Spraying

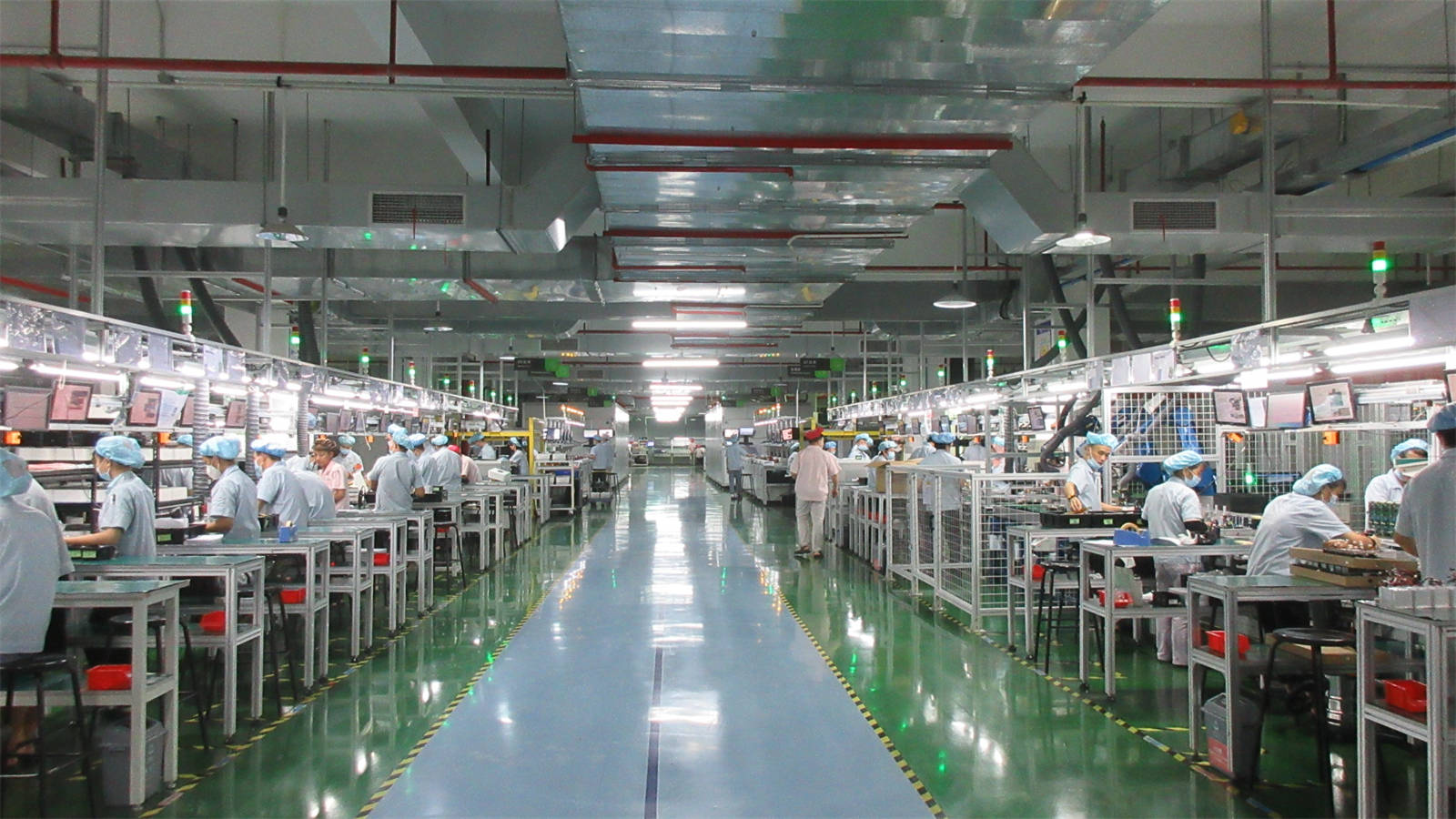

Assembly
5-Assembly

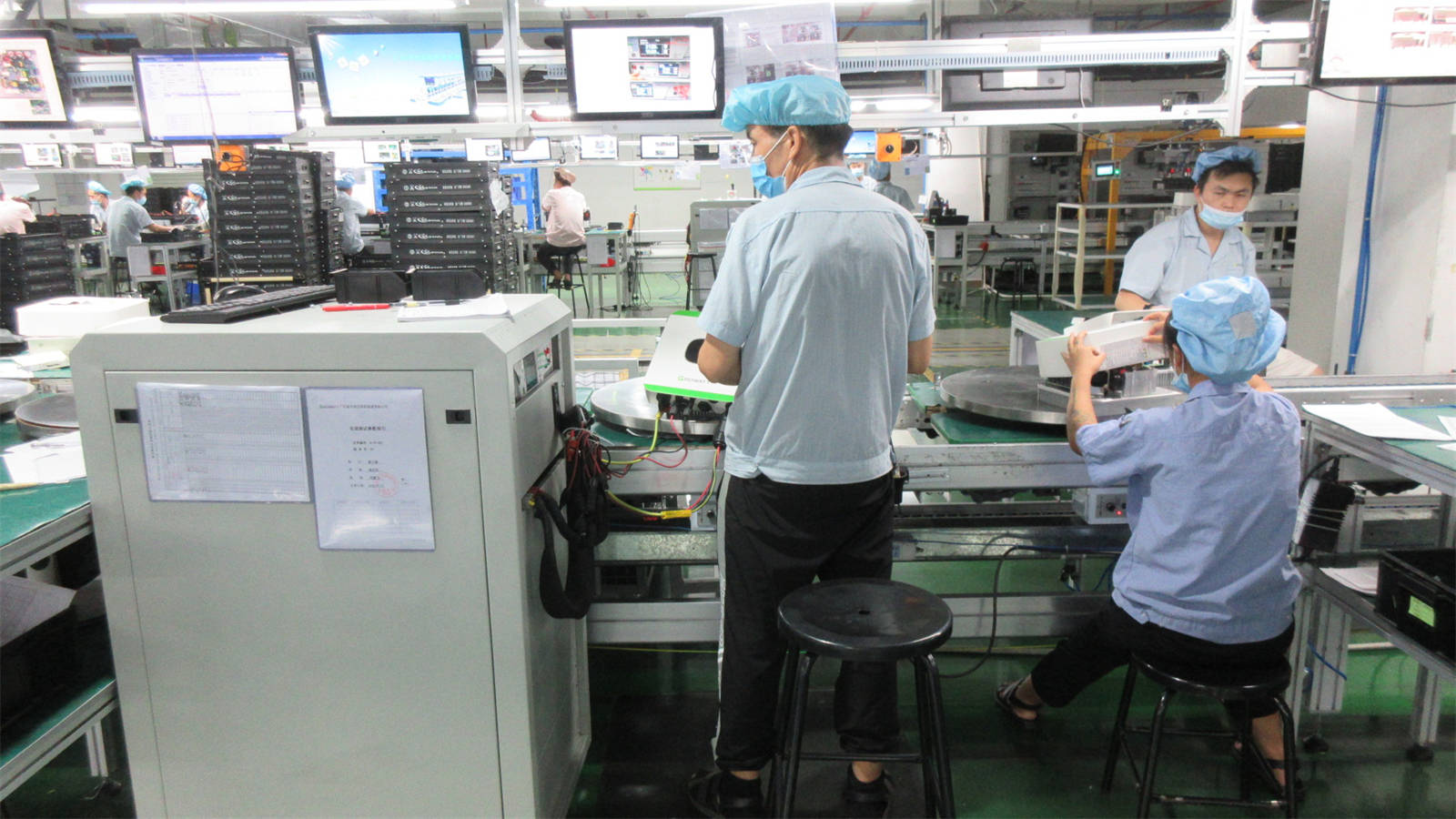

Safety Testing
6-Safety Testing
Frequently Asked Questions
Q1: What is the power range of these solar pump inverters?
A: The rated power range spans from 1500W to 4000W, catering to various water pumping requirements.
Q2: Does the inverter support remote monitoring?
A: Yes, remote monitoring via GPRS or WIFI is available as an optional feature for real-time tracking.
Q3: What is the recommended PV array size for these inverters?
A: It is recommended that the connected PV array be 1.5 times the rated power of the solar pump inverter for optimal performance.
Q4: Are these inverters suitable for outdoor installation?
A: Yes, they feature an IP65 protection design, making them dust-tight and protected against water jets.
Q5: How do you ensure the quality of your products?
A: We maintain strict quality control through pre-production samples and a final 100% inspection before every shipment.
Q6: What types of motors can be used with this inverter?
A: It supports asynchronous motors, including both 220V single-phase and 220V three-phase configurations.
