For SI30 IP65 Waterproof Inverter for Solar Water Pump 11kW 15HP
For SI30 IP65 Waterproof Inverter for Solar Water Pump 11kW 15HP
For SI30 IP65 Waterproof Inverter for Solar Water Pump 11kW 15HP
For SI30 IP65 Waterproof Inverter for Solar Water Pump 11kW 15HP
For SI30 IP65 Waterproof Inverter for Solar Water Pump 11kW 15HP
1 / 5
For SI30 IP65 Waterproof Inverter for Solar Water Pump 11kW 15HP
For SI30 IP65 Waterproof Inverter for Solar Water Pump 11kW 15HP
For SI30 IP65 Waterproof Inverter for Solar Water Pump 11kW 15HP
For SI30 IP65 Waterproof Inverter for Solar Water Pump 11kW 15HP
For SI30 IP65 Waterproof Inverter for Solar Water Pump 11kW 15HP

For SI30 IP65 Waterproof Inverter for Solar Water Pump 11kW 15HP

Send Inquiry

Product Description

Solar Inverter Banner

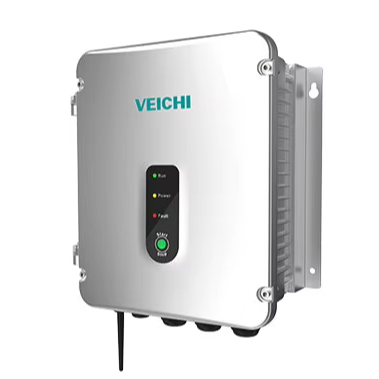

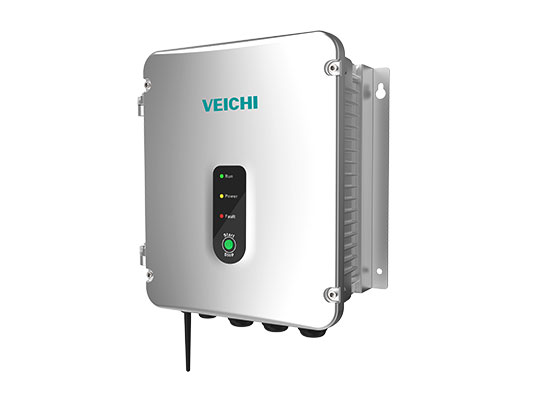

SI30 Solar Water Pump Inverter

SI30 Solar Water Pump Inverter

SI30 solar pump inverter has wireless transmission technology (GPRS, Bluetooth, WIFI), mobile APP "one-key operation". Modular design, four major modules for customers to choose from. IP65 high protection grade, directly installed outdoors, without cabinet assembly.

Drive synchronous, asynchronous, BLDC various types of pump motors. The new aluminum-alloy appearance is simple and elegant and more reliable.
Product Description

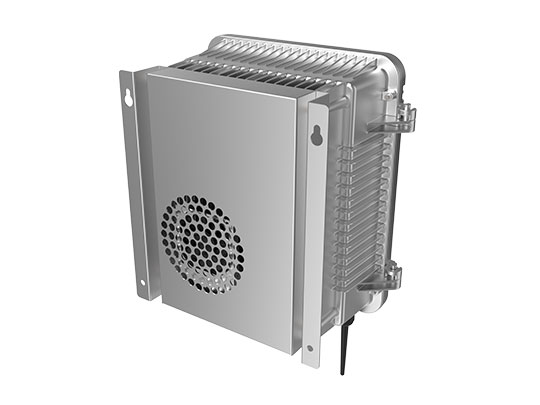

Metal Design

Metal Design: A Perfect Blend of Style and Technology

  • Die-cast aluminum shell: Lightweight, reliable, 25+ years lifespan.
  • High-speed sandblasting and anodized finish.
  • New keyboard design: Simple look, one-key start/stop.

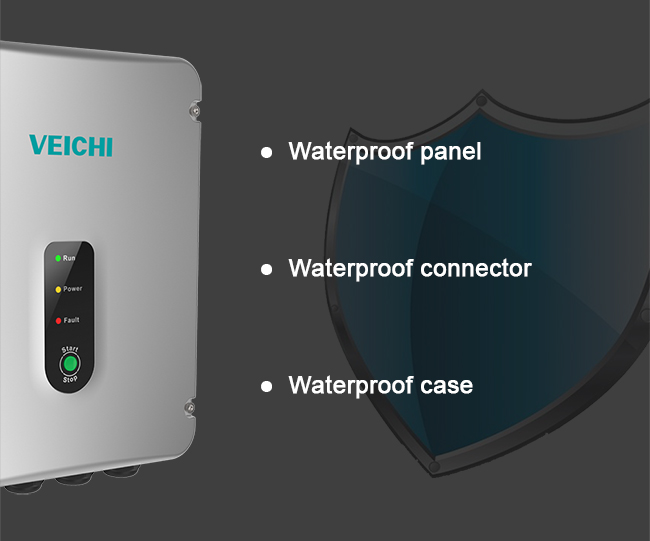

IP65 Protection

IP65 Triple Protection for a Superior Experience

  • Waterproof panel: One-button operation in any weather.

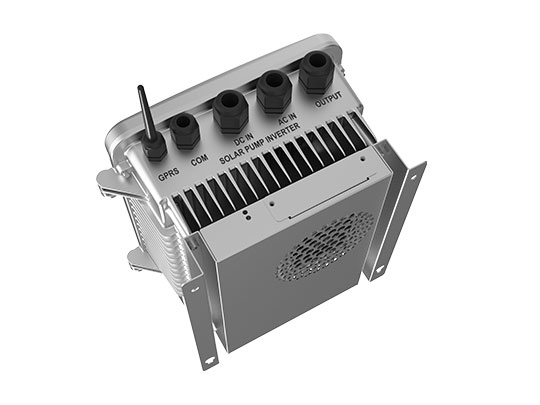

  • Waterproof connector: Safe and reliable input/output.
  • Waterproof shell: Durable armor protects against wind and rain.

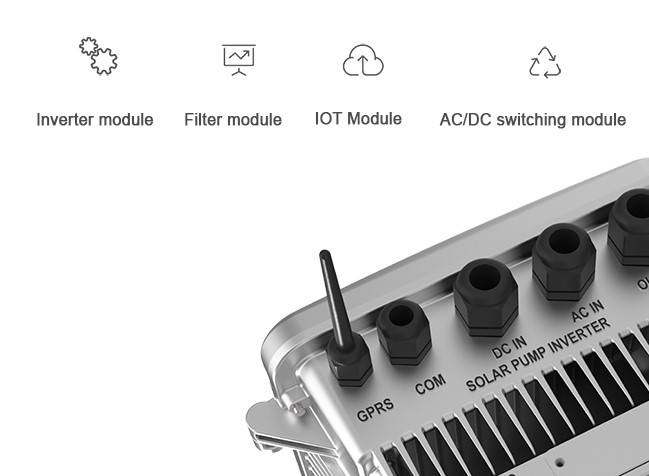

Modular Design

Flexible Modular Design

  • AC/DC module: Smart power switching.
  • Inverter module: Compact and efficient.
  • Filter module: Protects pumps.
  • IoT module: Cloud-enabled smart control.

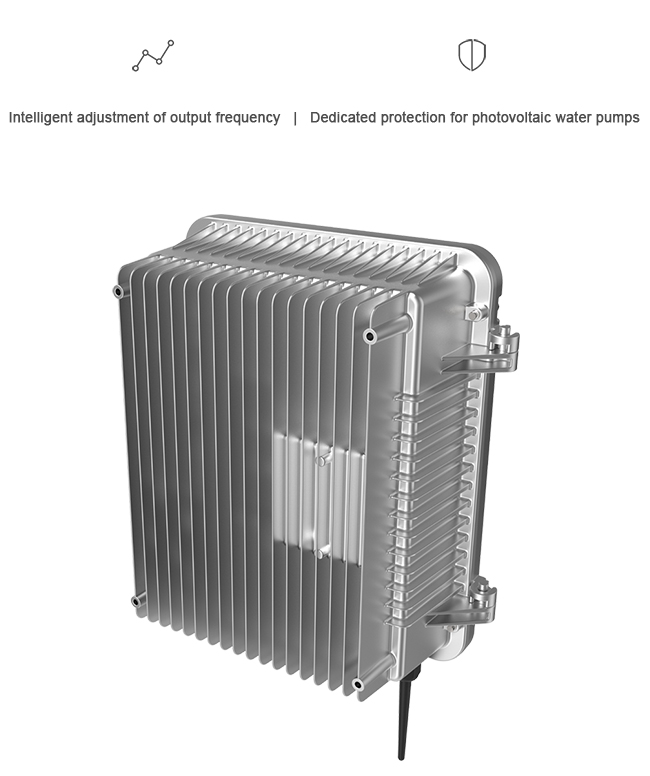

Software Function

Powerful software function to escort the water pump

  • MPPT >99%: Real-time frequency adjustment for maximum power.
  • Specialized protection: Dormancy, low frequency, dry run, overcurrent, and minimum power safeguards.

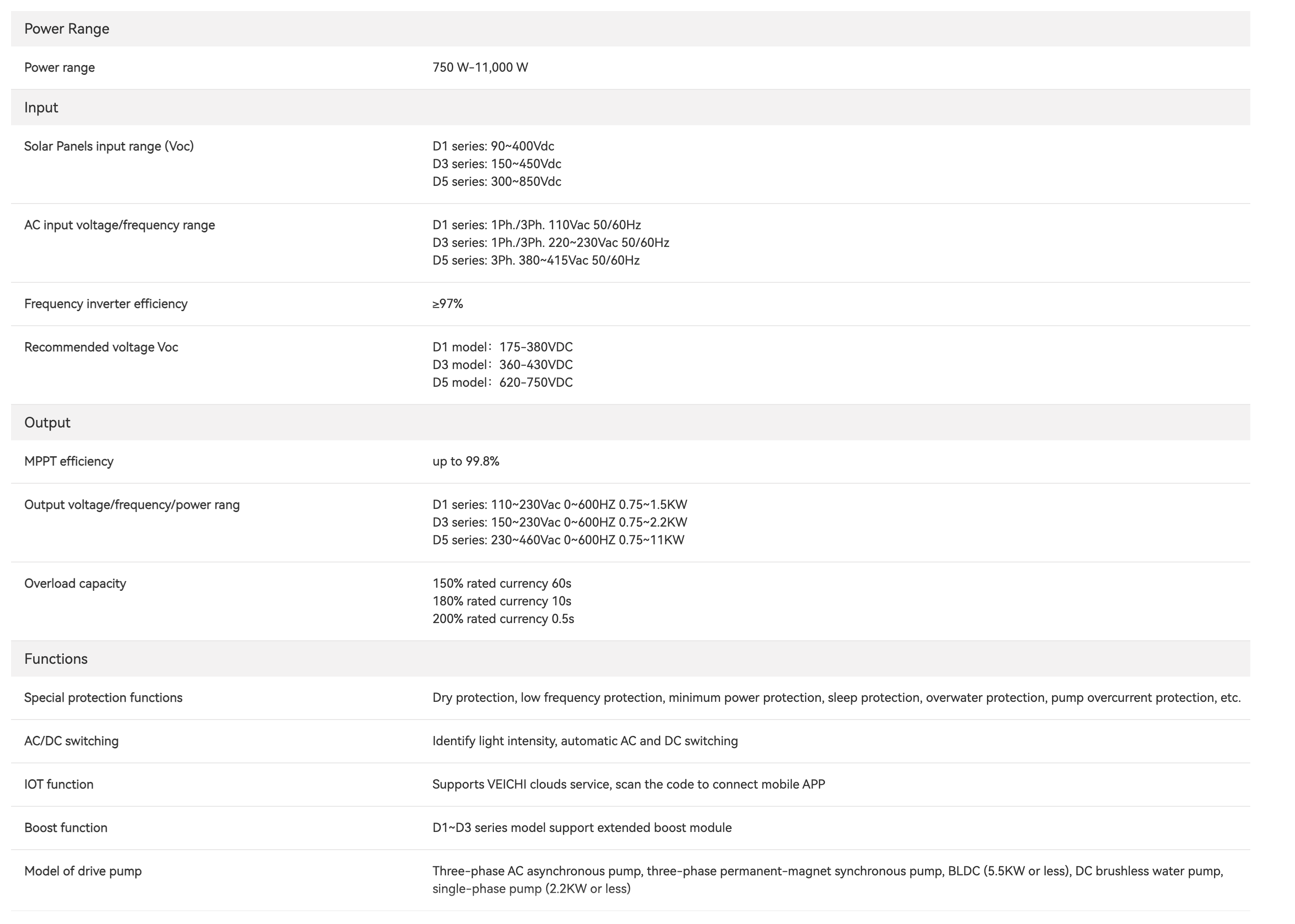

Specifications

Specifications Technical Data
Inverter Model Dimension (mm) Installation Dimension (mm) Aperture Size
SI30-D1-R75G-R to SI30-D5-004G-R 308*446.5*151.38 221*270 M6
SI30-D5-5R5G-R to SI30-D5-011G-R 308*446.5*195.88 260*260 M7

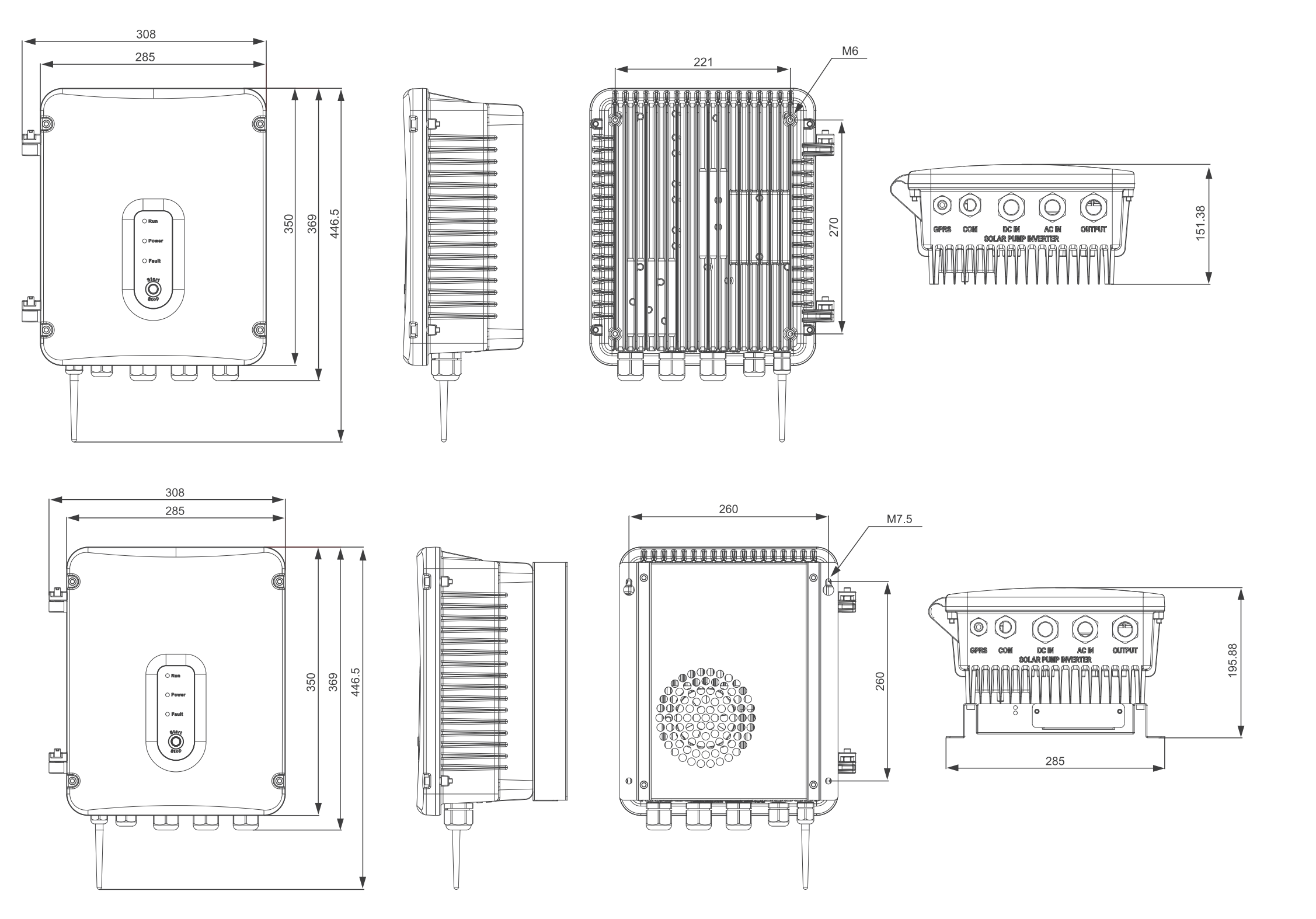

Dimension Diagram

Recommend Products

Recommend Products

About Us

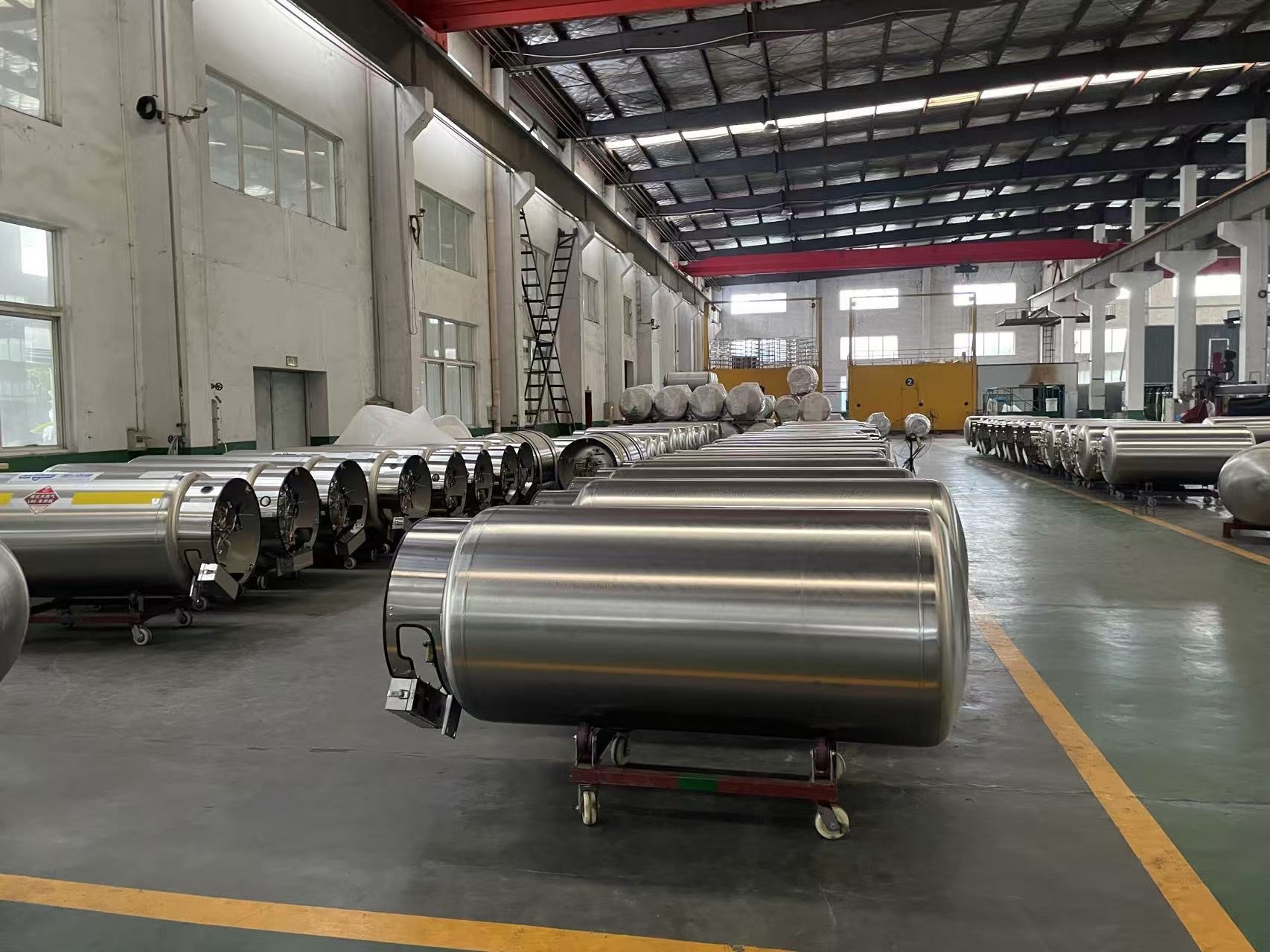

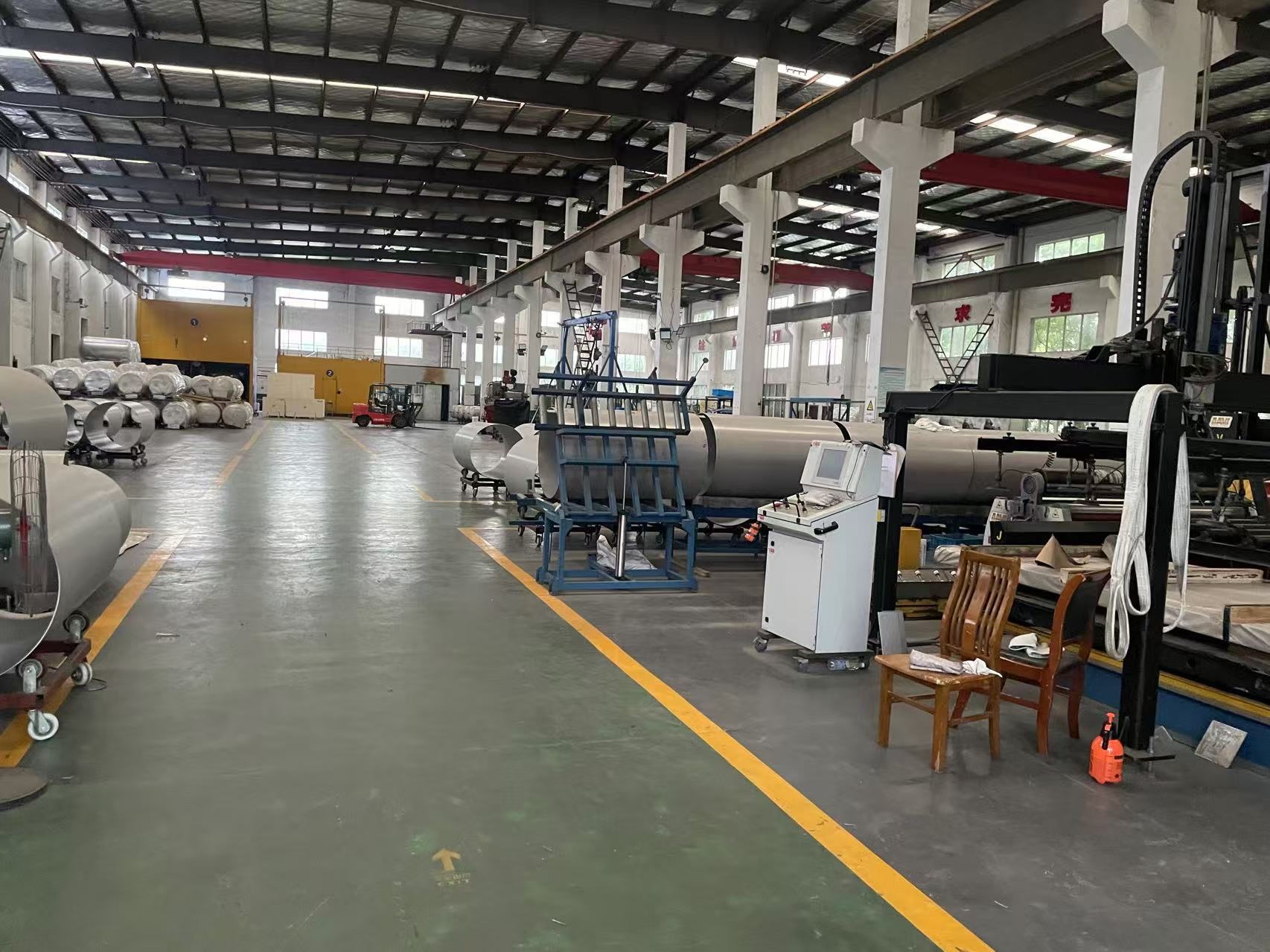

Factory Image 1 Factory Image 2

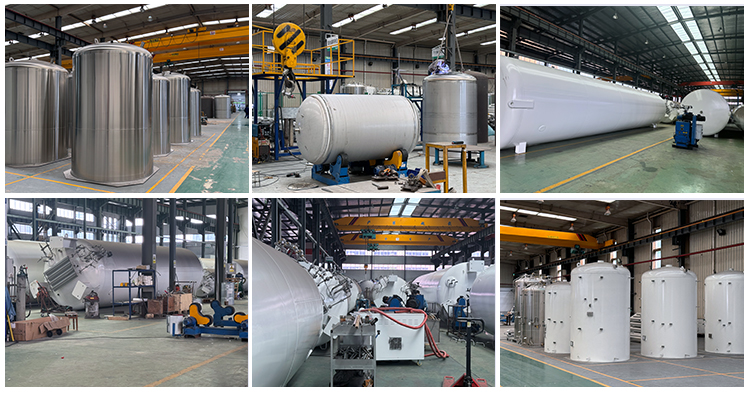

Service Team
From gas company to the end user, we provide welding thermal insulation cylinder, mini tank, cryogenic liquid storage tank, evaporator (pry), biological container, vacuum thermal insulation pipe and other various cryogenic product. In addition, we also provide service of installation, maintenance, and other customized services. Our technical team covers the design, manufacturing, quality control and after-sale, and other sectors. All technical staffs have more than 10 years practical experience of cryogenic vessel and its accessories.

Frequently Asked Questions

Q1: What are the wireless control options for the SI30 solar pump inverter? A: The SI30 supports GPRS, Bluetooth, and WIFI transmission technology, allowing for easy mobile APP "one-key operation".
Q2: Can this inverter be installed directly outdoors? A: Yes, it features an IP65 high protection grade with a waterproof shell, panel, and connectors, making it suitable for outdoor installation without cabinet assembly.
Q3: What types of pump motors can the SI30 drive? A: It is compatible with various types of pump motors, including synchronous, asynchronous, and BLDC motors.
Q4: How efficient is the MPPT software? A: The software features MPPT with >99% efficiency, providing real-time frequency adjustment to ensure maximum power output.
Q5: What safety protections are built into the system? A: The inverter includes specialized safeguards such as dormancy control, low frequency protection, dry run protection, overcurrent protection, and minimum power safeguards.
Q6: What is the lifespan of the aluminum shell? A: The die-cast aluminum shell is designed to be lightweight and highly reliable, with an expected lifespan of 25+ years.
