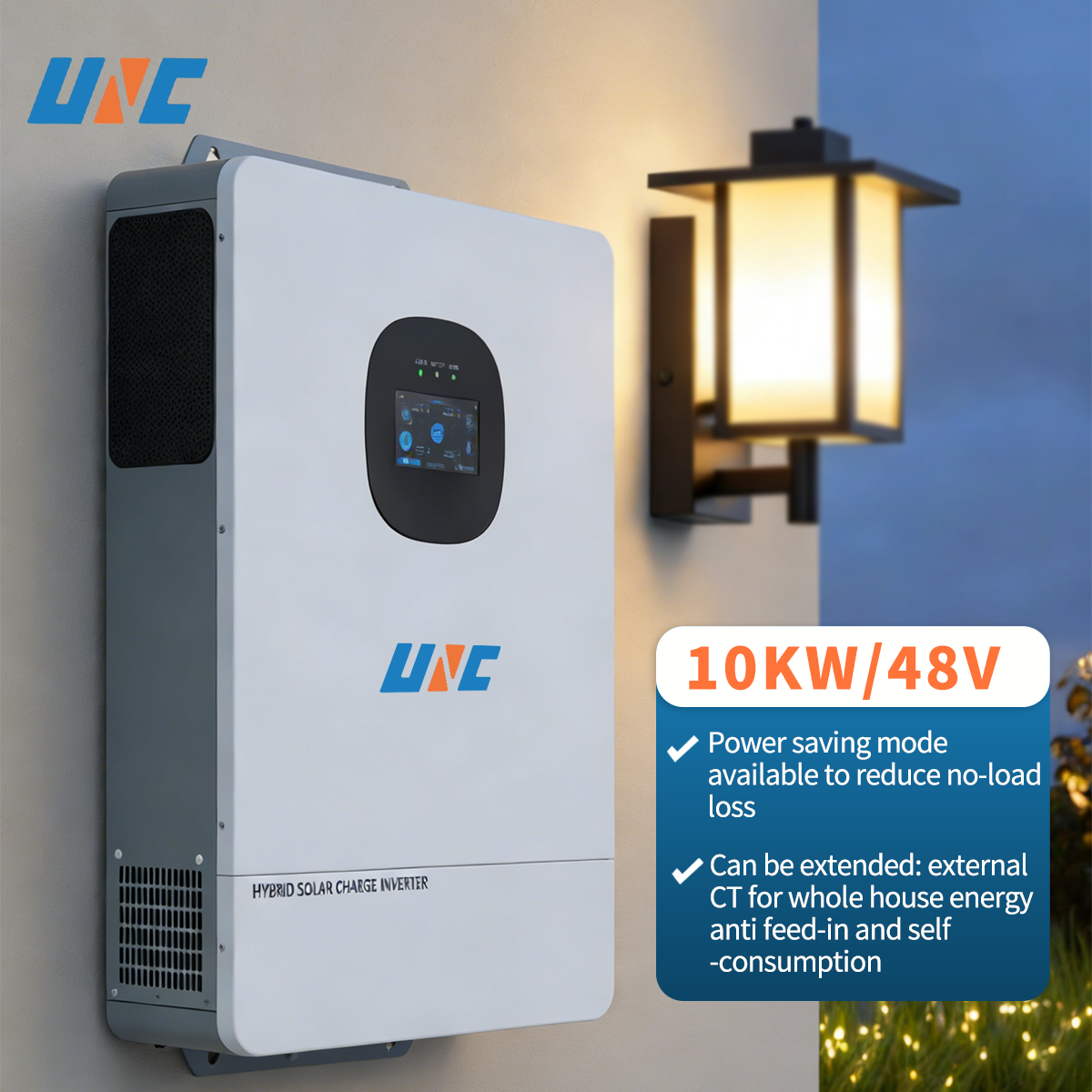

UNC 10kw 10kva 110V/220v 51.2v 48v Hybrid Inverter UL1741 Dual MPPT Split Phase Grid-connected Diesel Generator Solare Ibrido
UNC 10kw 10kva 110V/220v 51.2v 48v Hybrid Inverter UL1741 Dual MPPT Split Phase Grid-connected Diesel Generator Solare Ibrido
UNC 10kw 10kva 110V/220v 51.2v 48v Hybrid Inverter UL1741 Dual MPPT Split Phase Grid-connected Diesel Generator Solare Ibrido
UNC 10kw 10kva 110V/220v 51.2v 48v Hybrid Inverter UL1741 Dual MPPT Split Phase Grid-connected Diesel Generator Solare Ibrido
UNC 10kw 10kva 110V/220v 51.2v 48v Hybrid Inverter UL1741 Dual MPPT Split Phase Grid-connected Diesel Generator Solare Ibrido
1 / 5
UNC 10kw 10kva 110V/220v 51.2v 48v Hybrid Inverter UL1741 Dual MPPT Split Phase Grid-connected Diesel Generator Solare Ibrido
UNC 10kw 10kva 110V/220v 51.2v 48v Hybrid Inverter UL1741 Dual MPPT Split Phase Grid-connected Diesel Generator Solare Ibrido
UNC 10kw 10kva 110V/220v 51.2v 48v Hybrid Inverter UL1741 Dual MPPT Split Phase Grid-connected Diesel Generator Solare Ibrido
UNC 10kw 10kva 110V/220v 51.2v 48v Hybrid Inverter UL1741 Dual MPPT Split Phase Grid-connected Diesel Generator Solare Ibrido
UNC 10kw 10kva 110V/220v 51.2v 48v Hybrid Inverter UL1741 Dual MPPT Split Phase Grid-connected Diesel Generator Solare Ibrido

UNC 10kw 10kva 110V/220v 51.2v 48v Hybrid Inverter UL1741 Dual MPPT Split Phase Grid-connected Diesel Generator Solare Ibrido

Send Inquiry

Product Description

10kw 10kva 110V/220v 51.2v 48v Hybrid Inverter UL1741 Dual MPPT Single Split Phase Grid-connected 120A 95% Efficiency Diesel Generator Access US Standard 120v/240v Pure Sine Wave

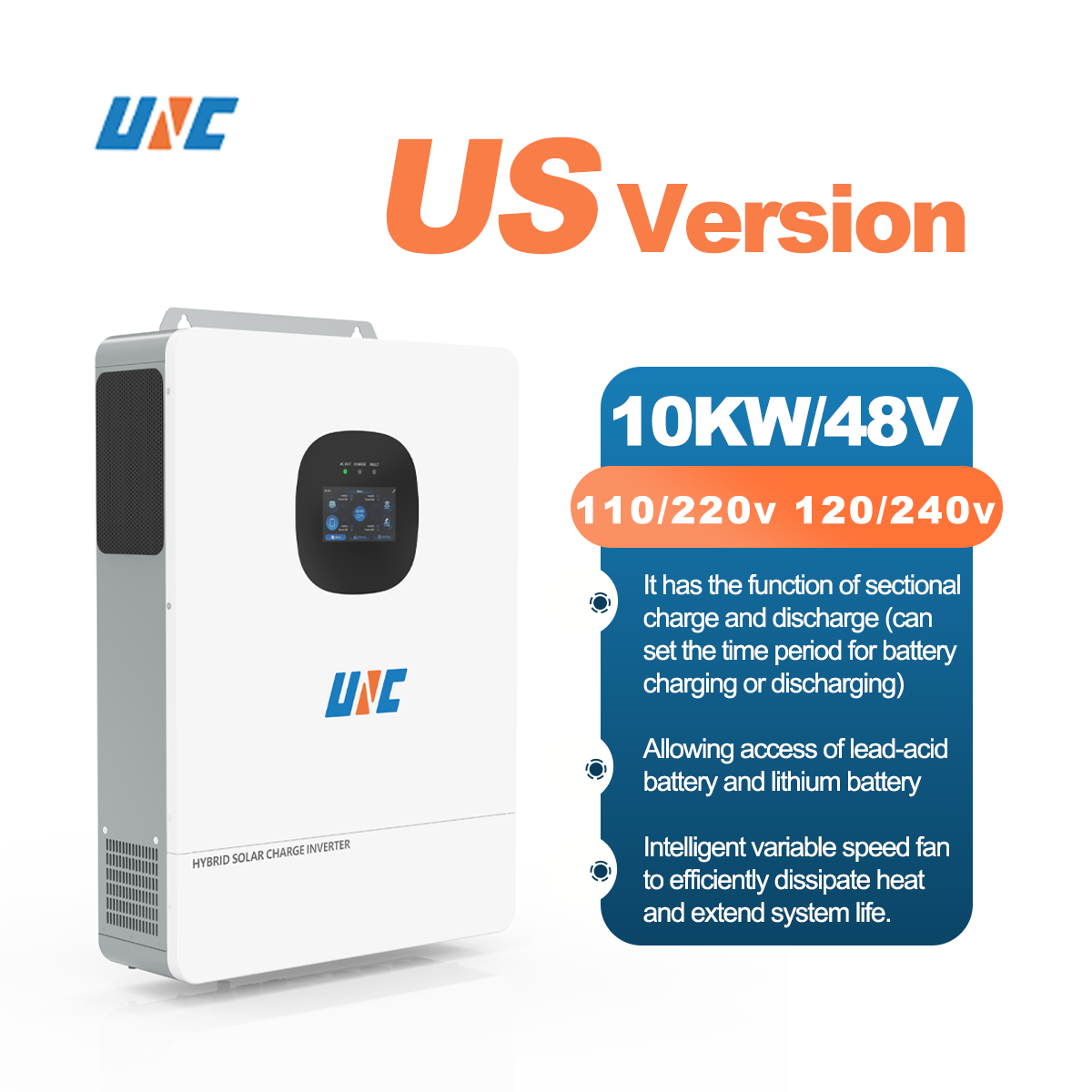

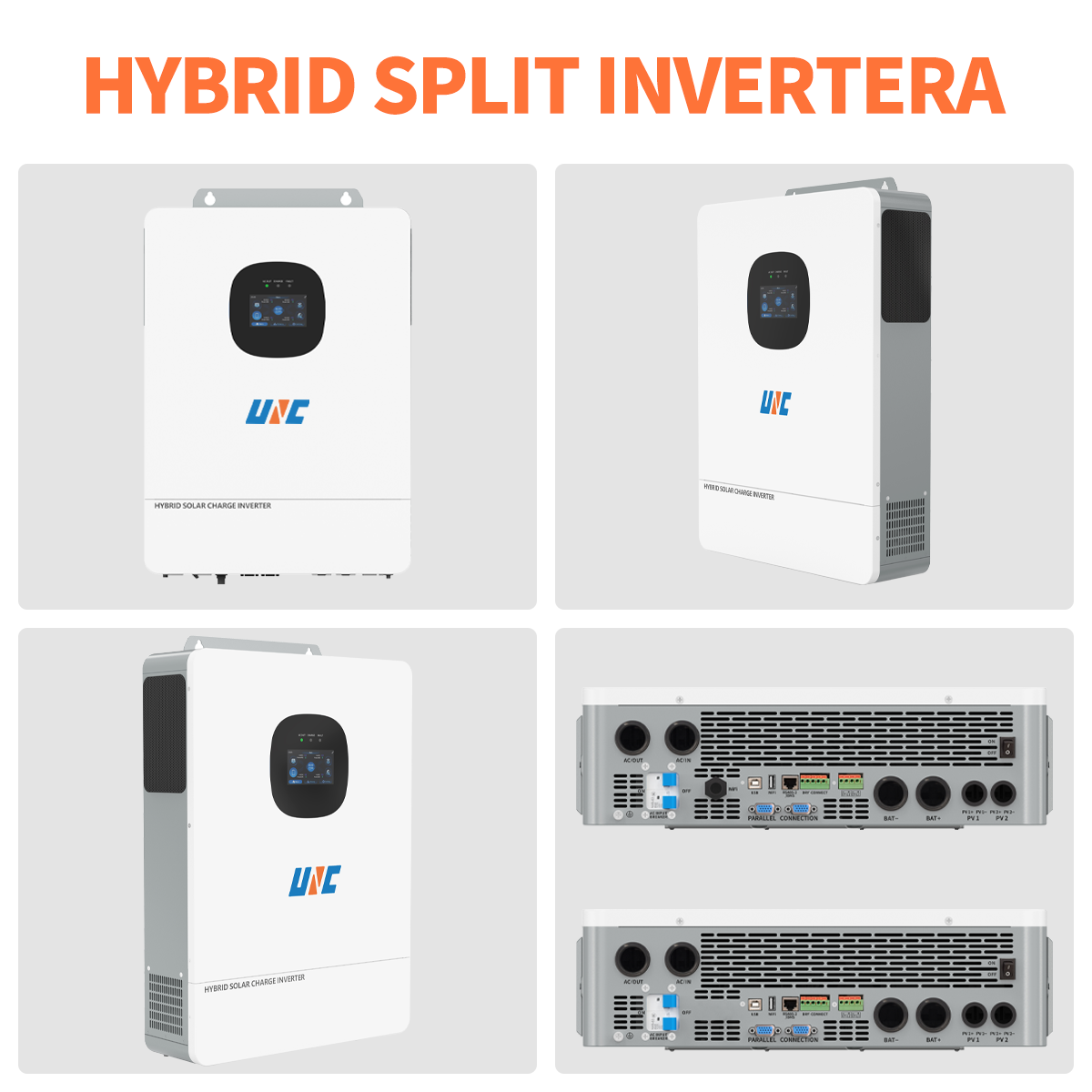

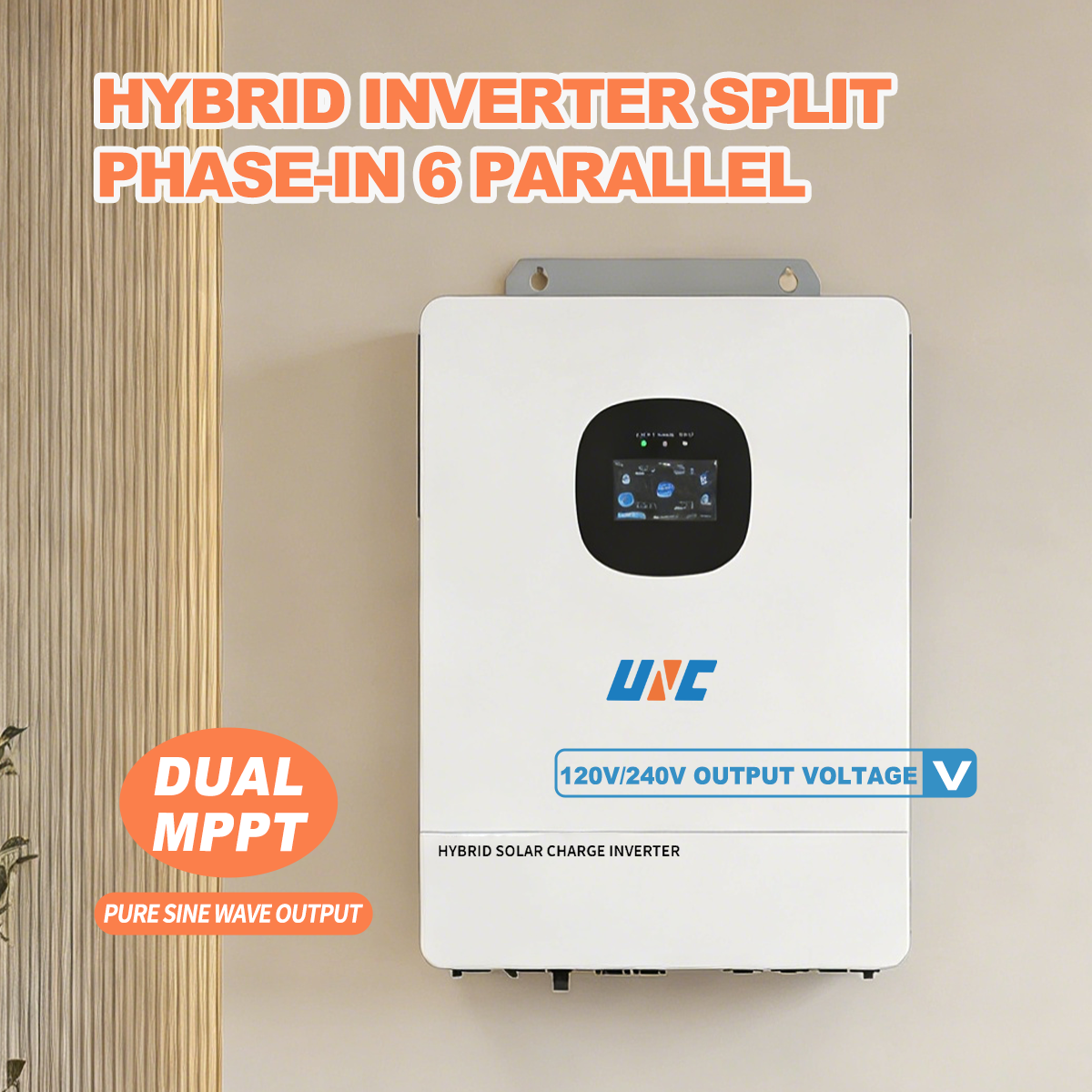

Hybrid Inverter Main Image
Product Description
Inverter Features 1

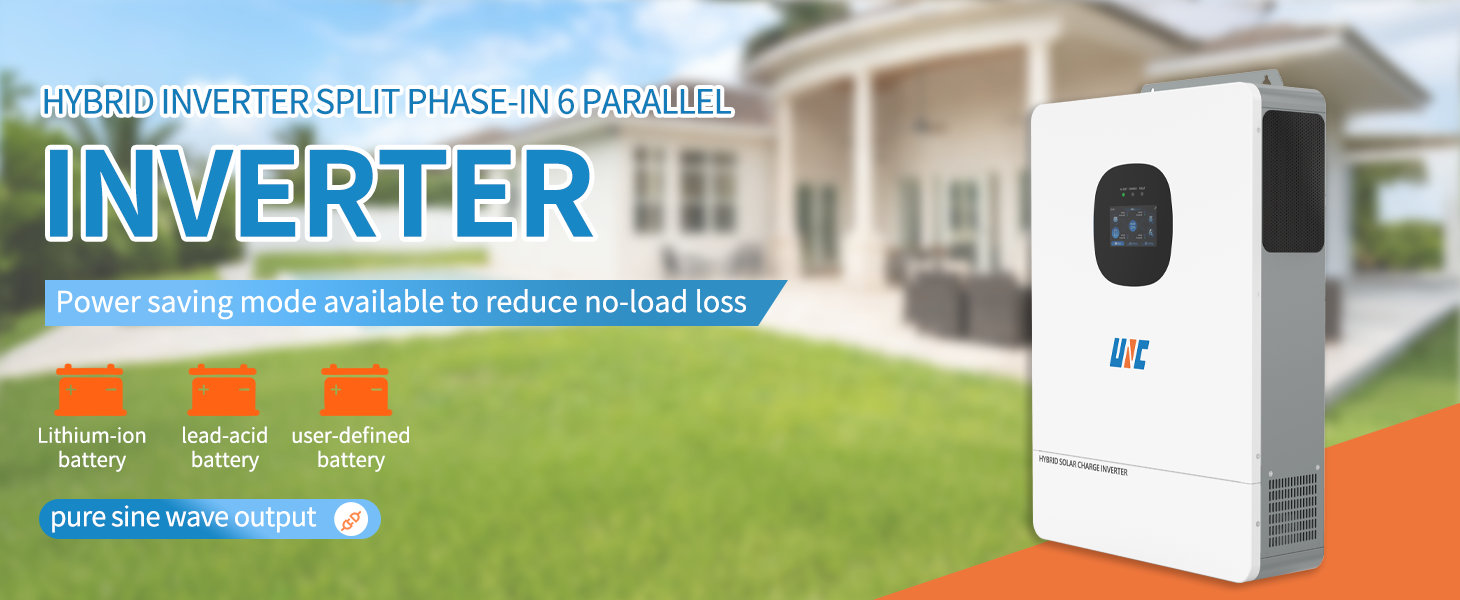

Inverter Features 2

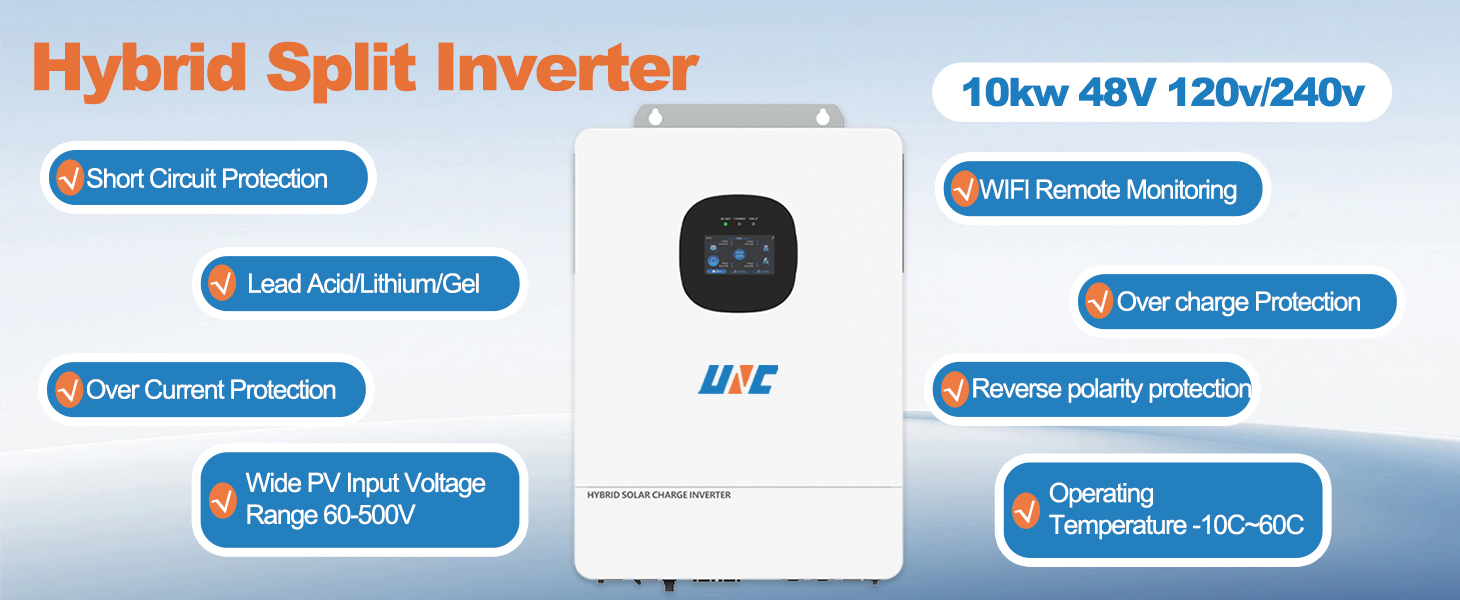

Inverter Display

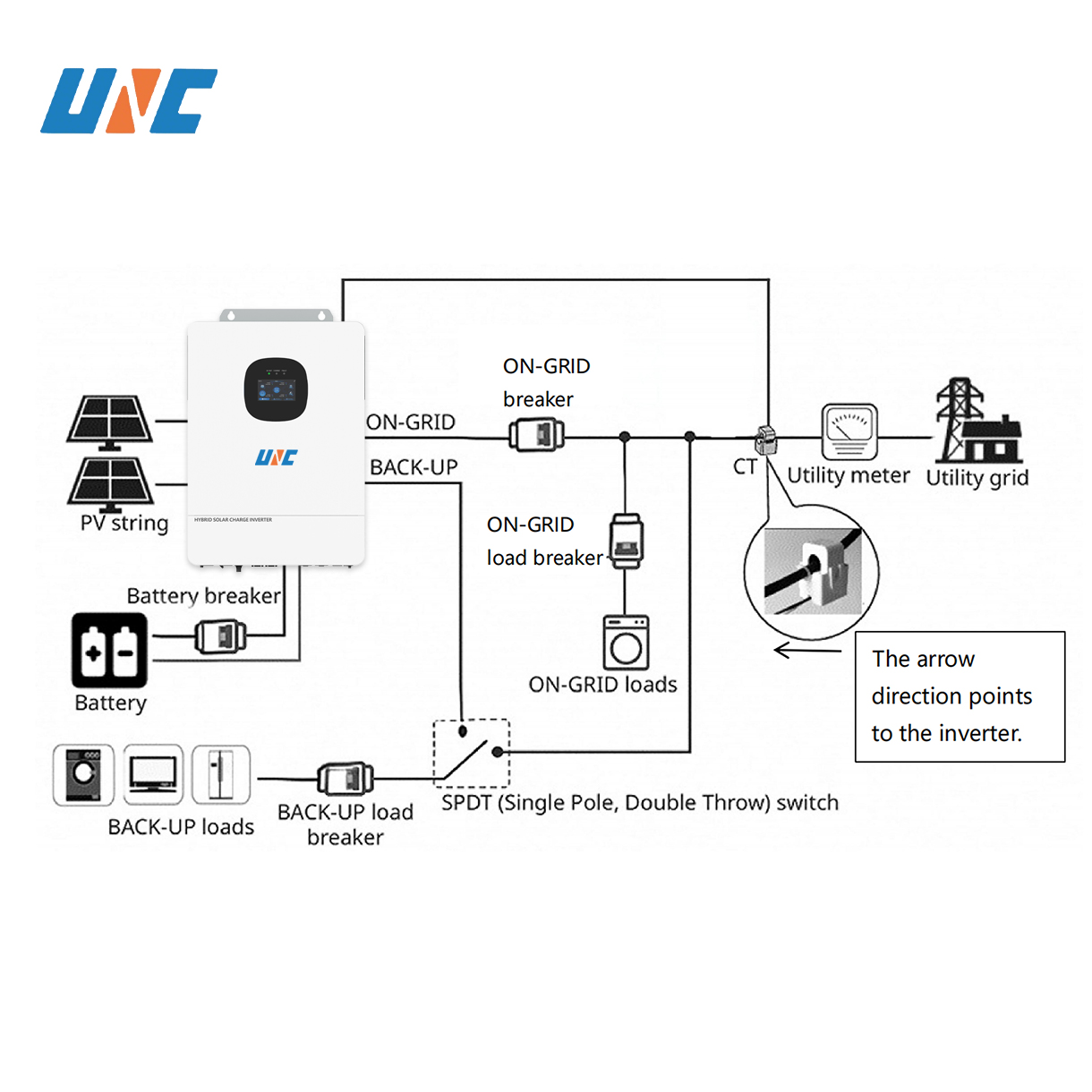

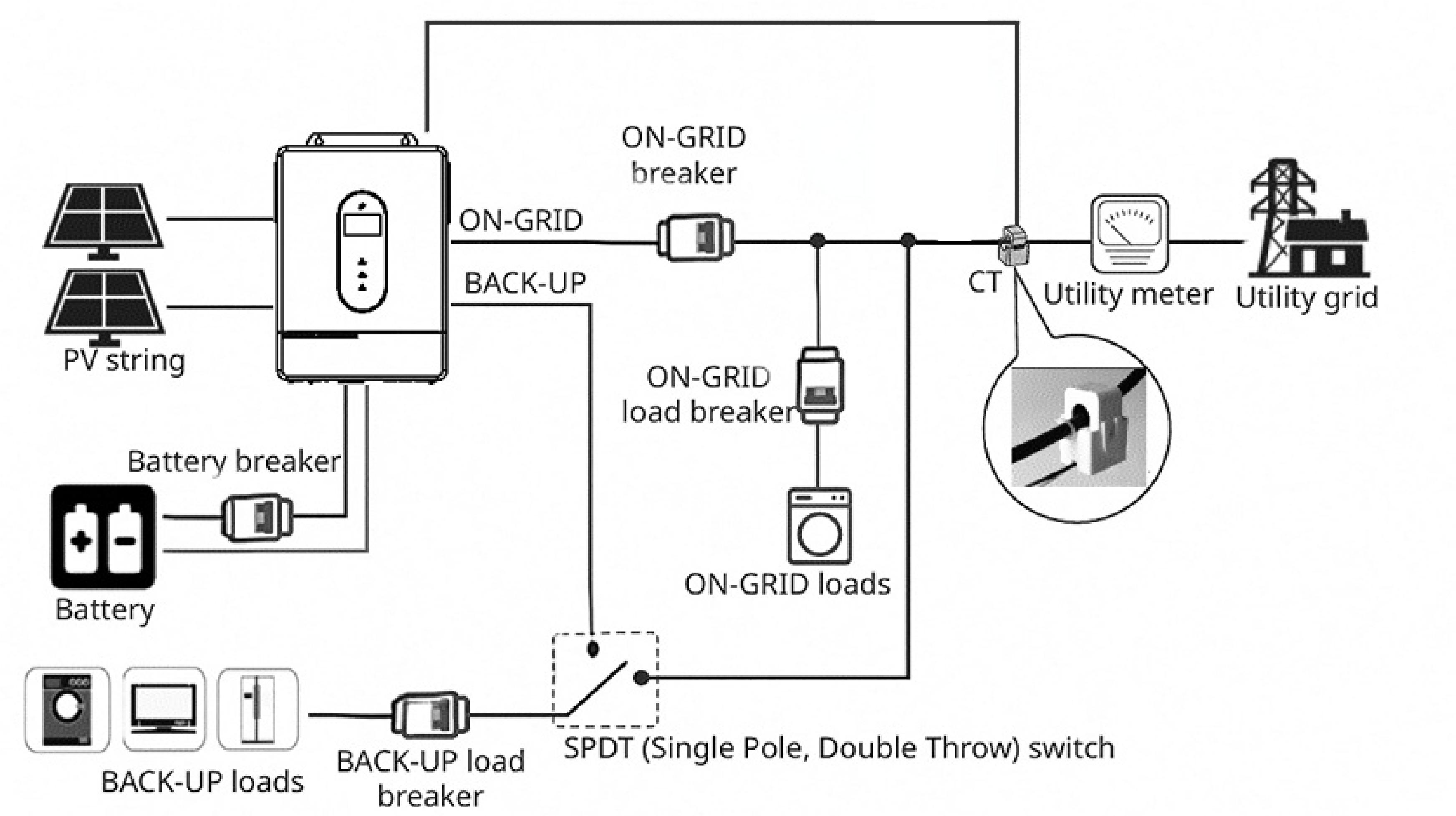

System Connection Diagram
Sectional charge and discharge function (set specific time periods for battery usage).
Compatible with both lead-acid and lithium batteries.
Anti feed-in and self-consumption function (hybrid power from solar, battery, and grid).
Battery-less operation: Solar and grid can power loads simultaneously.
Dual lithium battery activation via mains or solar power.
Power saving mode to minimize no-load loss.
Four charging modes: Only Solar, Mains Priority, Solar Priority, and Hybrid Charging.
Uninterrupted power supply with mains bypass and inverter output modes.
360° All-round protection: over/under voltage, overload, reverse protection, etc.
LCD Touch Screen with dynamic flow diagrams for easy system monitoring.
Advanced SPWM technology for Pure Sine Wave output; supports split-phase and single-phase.
Dual independent MPPTs with 99.9% tracking efficiency.
Product Parameters
Model ESS1-10K1P-02-LV-FG
AC Mode
Rated input voltage120/240Vac (L1/N, L2/N, L1/L2)
Efficiency>95%
Conversion time10ms (typical)
Inverter Mode
Output voltage waveformPure sine wave
Rated output power (W)Split phase: 10000W / Single phase: 7200W
Rated output voltage120Vac / 240Vac
Peak powerSplit phase: 15000VA
Rated battery voltage51.2V (Min 44V)
PV Charging
MPPT Channels2
Max PV Open Circuit Voltage500Vdc
Max PV Input Power9000W + 9000W
Certification & Environment
CertificationUL1741 / CSA C22.2#107.1 / FCC Part 15 Class B
Operating Temperature-10°C to 55°C
CommunicationUSB/RS485/WiFi/GPRS/Dry Contact
Product Size620mm * 450mm * 132mm
Quality & Manufacturing
Compliance 1
Compliance 2
Production Facility
Testing Process
Quality Control
Cert 1
Cert 2
Cert 3
Cert 4
Frequently Asked Questions
Q1: Do you support Ready To Ship, OEM & ODM?
Yes, we support various shipping methods and offer customization services for OEM and ODM requirements with low MOQ.
Q2: How is the product quality guaranteed?
All products pass CE, CCC, UL, and ROHS certifications. We perform pre-production sample checks and final inspections before packing.
Q3: What types of solar products are available?
We provide solar tied inverters, off-grid hybrid inverters, solar pumping inverters, pure sine wave inverters, MPPT/PWM controllers, and solar lighting systems.
Q4: How do I select the right hybrid inverter for my home?
Please share your power demand and load requirements, and we will recommend the most suitable model and controller for your needs.
Q5: Can the inverter work without a battery?
Yes, this model features a battery-less mode where solar energy and the utility grid can power loads simultaneously.
Q6: What charging modes does the system support?
It supports four modes: Only Solar, Mains Priority, Solar Priority, and combined Mains & Solar hybrid charging.
