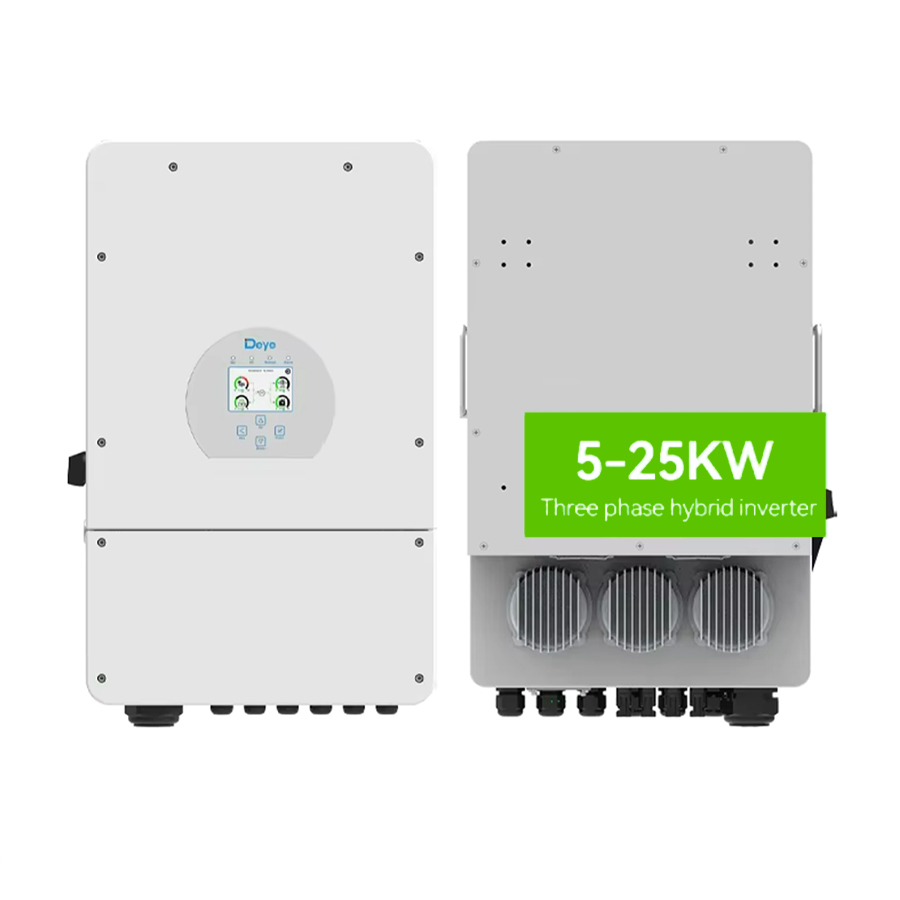

Hybrid Inverter 240A Fast Charging Diesel Generator Compatible 48V Low Voltage Parallel 10 Units for Solar Energy Storage
Hybrid Inverter 240A Fast Charging Diesel Generator Compatible 48V Low Voltage Parallel 10 Units for Solar Energy Storage
Hybrid Inverter 240A Fast Charging Diesel Generator Compatible 48V Low Voltage Parallel 10 Units for Solar Energy Storage
Hybrid Inverter 240A Fast Charging Diesel Generator Compatible 48V Low Voltage Parallel 10 Units for Solar Energy Storage
Hybrid Inverter 240A Fast Charging Diesel Generator Compatible 48V Low Voltage Parallel 10 Units for Solar Energy Storage
1 / 5
Hybrid Inverter 240A Fast Charging Diesel Generator Compatible 48V Low Voltage Parallel 10 Units for Solar Energy Storage
Hybrid Inverter 240A Fast Charging Diesel Generator Compatible 48V Low Voltage Parallel 10 Units for Solar Energy Storage
Hybrid Inverter 240A Fast Charging Diesel Generator Compatible 48V Low Voltage Parallel 10 Units for Solar Energy Storage
Hybrid Inverter 240A Fast Charging Diesel Generator Compatible 48V Low Voltage Parallel 10 Units for Solar Energy Storage
Hybrid Inverter 240A Fast Charging Diesel Generator Compatible 48V Low Voltage Parallel 10 Units for Solar Energy Storage

Hybrid Inverter 240A Fast Charging Diesel Generator Compatible 48V Low Voltage Parallel 10 Units for Solar Energy Storage

Send Inquiry

Product Description

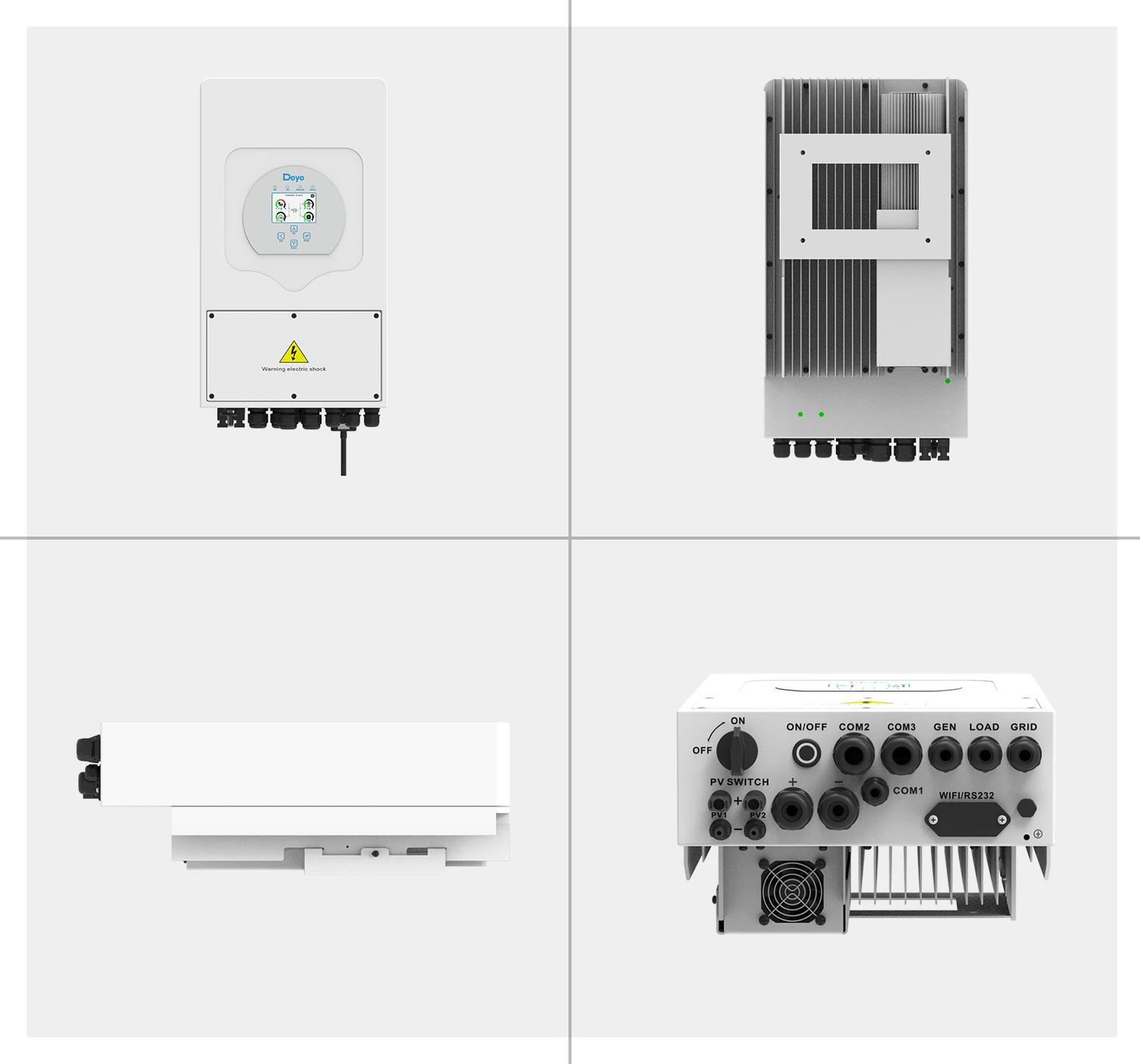

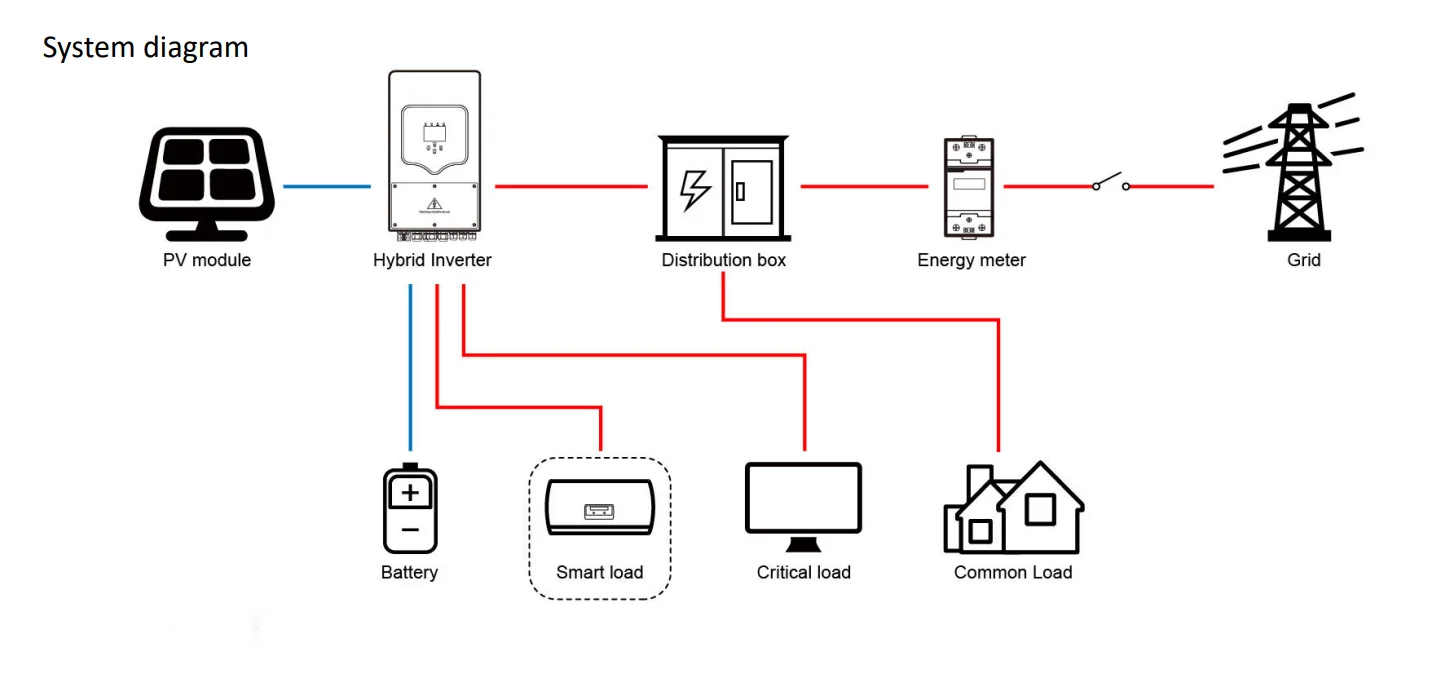

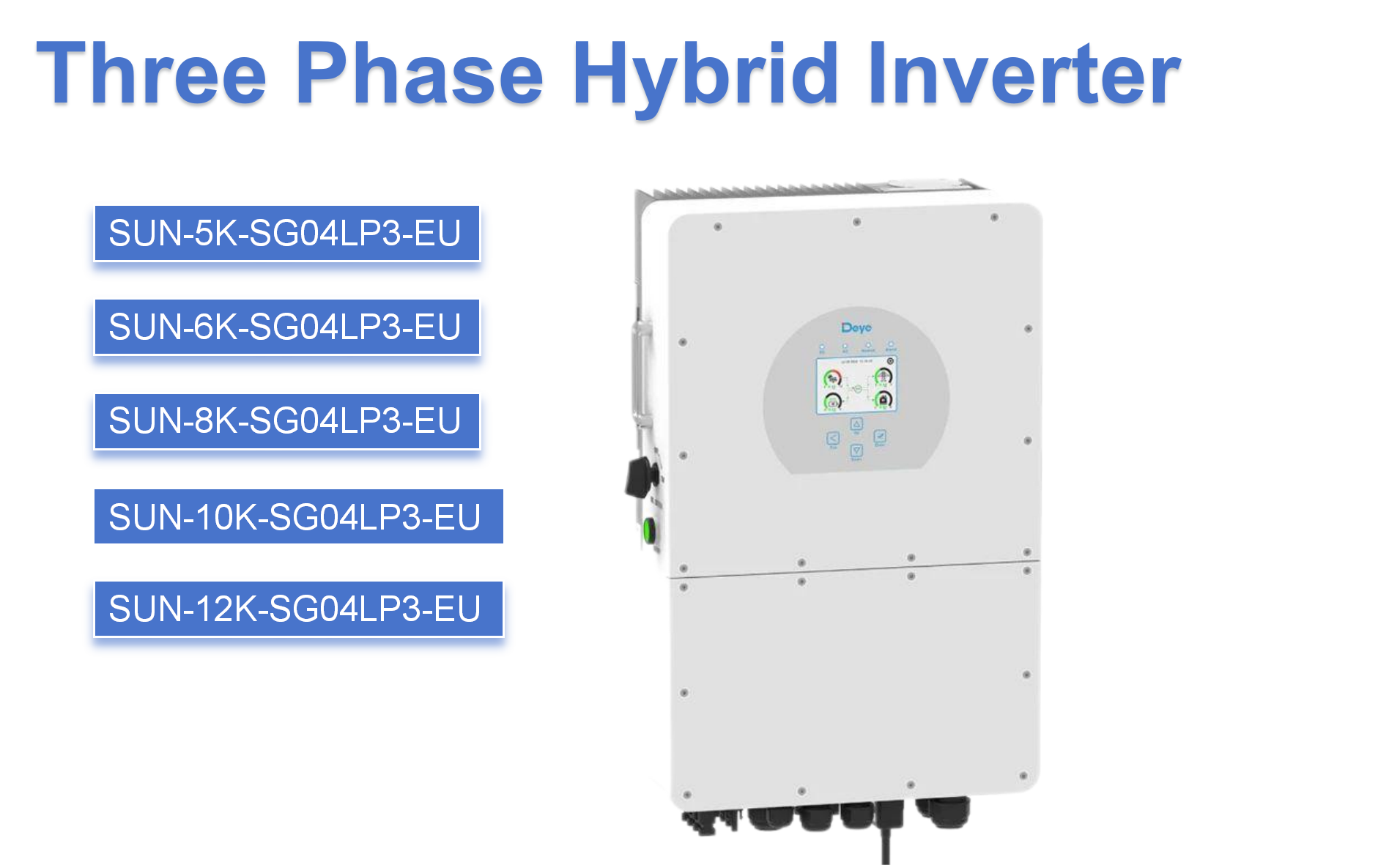

Inverter Header Product Display

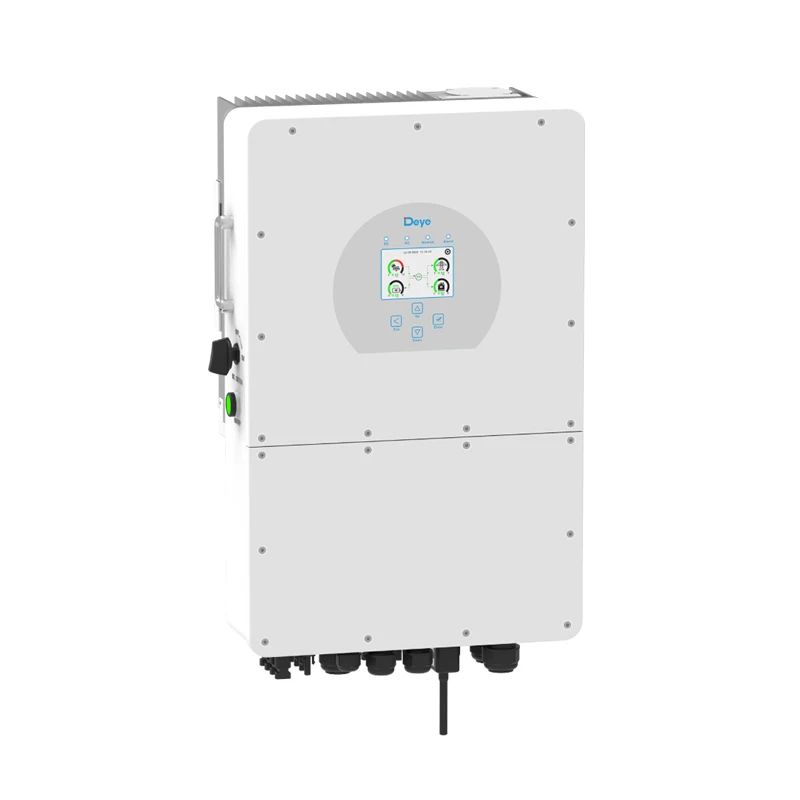

Inverter Side View

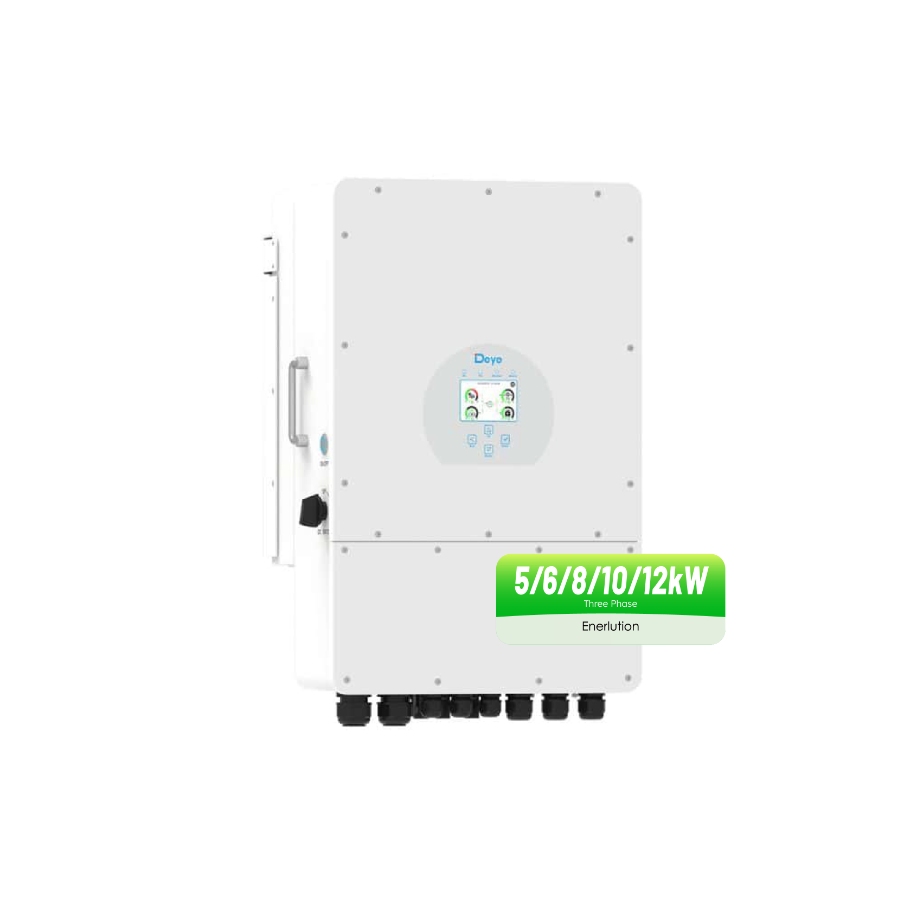

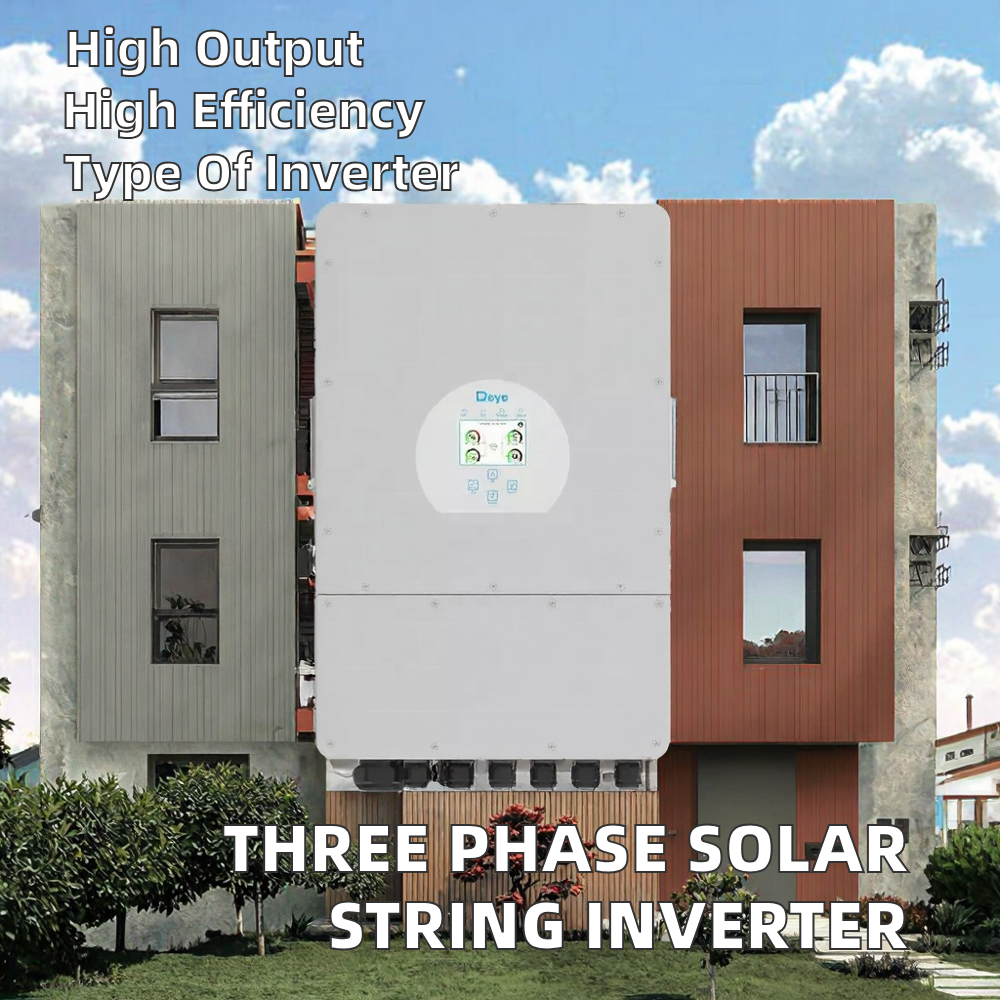

SUN 5/6/8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.

Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

  • ✔ 100% unbalanced output, each phase; Max. output up to 50% rated power

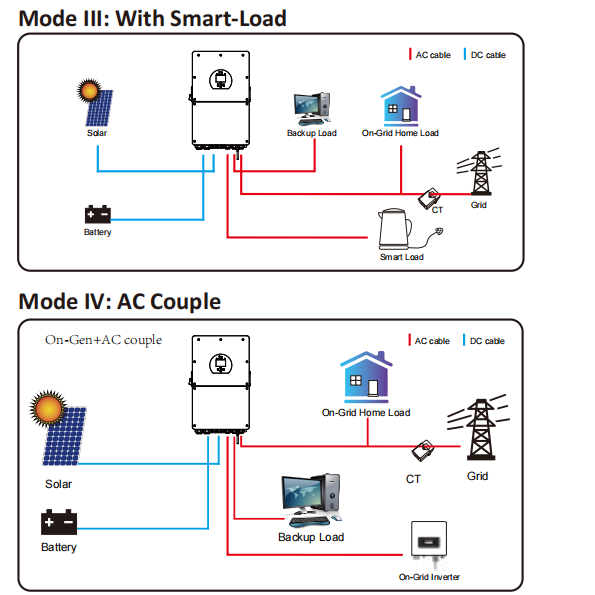

  • ✔ AC couple to retrofit existing solar system
  • ✔ Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
  • ✔ Max. charging/discharging current of 240A

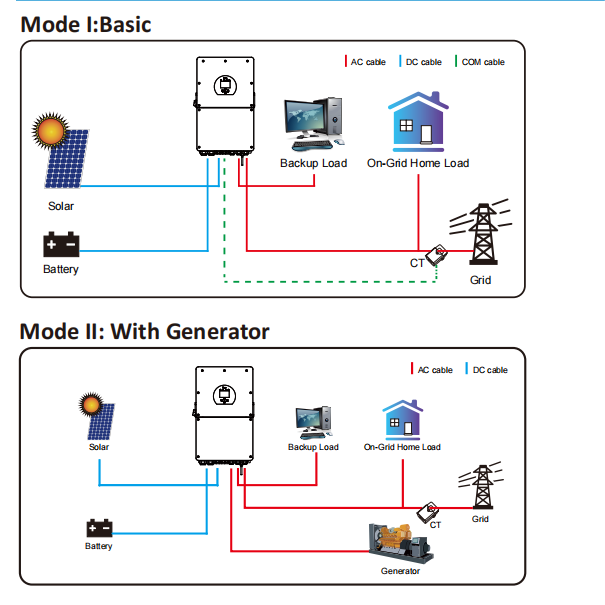

  • ✔ Support storing energy from diesel generator
  • ✔ 48V low voltage battery, transformer isolation design
  • ✔ 6 time periods for battery charging/discharging

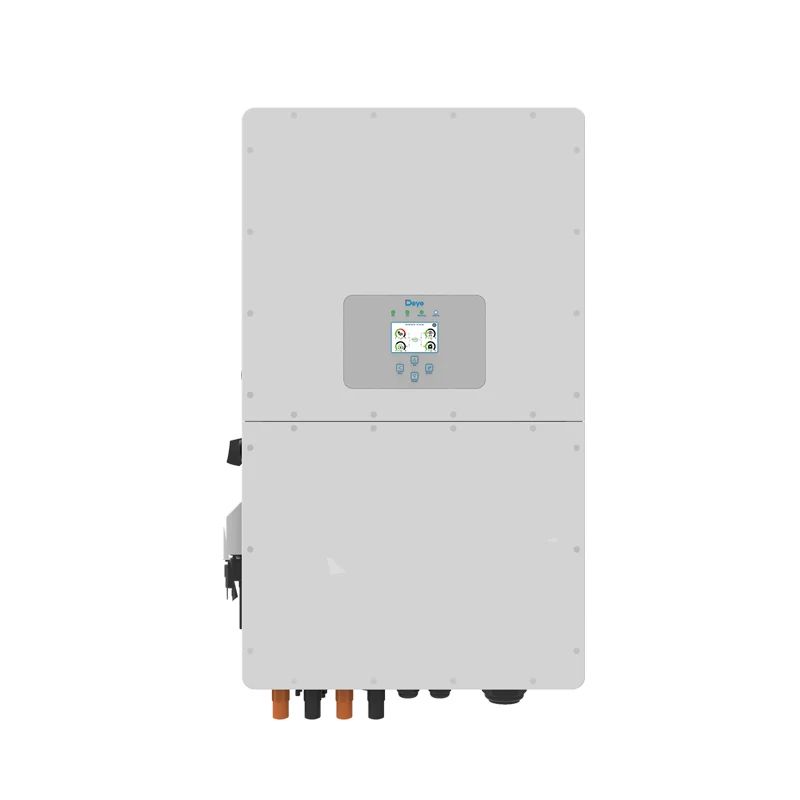

Feature Details
Model SUN-8K-SG04LP3-EU SUN-10K-SG04LP3-EU SUN-12K-SG04LP3-EU
Battery Input Data
Battery Type Lead-acid or Li-Ion
Battery Voltage Range (V) 40~60
Max. Charging Current (A) 190 210 240
Max. Discharging Current (A) 190 210 240
PV String Input Data
Max. DC Input Power (W) 10400 13000 15600
Rated PV Input Voltage (V) 550 (160~800)
MPPT Voltage Range (V) 200-650
AC Output Data
Rated AC Output and UPS Power (W) 8000 10000 12000
Max. AC Output Power (W) 8800 11000 13200
Grid Type Three Phase
General Data
Operating Temperature Range -45~60℃, >45℃ derating
Communication with BMS RS485; CAN
Weight (kg) 33.6
Protection Degree IP65
Warranty 5 years
Frequently Asked Questions
Q: Does the SUN-SG series support unbalanced phase output?
A: Yes, it supports 100% unbalanced output for each phase, with a maximum output of up to 50% of the rated power per phase.
Q: What types of batteries are compatible with this hybrid inverter?
A: This series is compatible with both Lead-acid and Lithium-ion batteries within a 40V to 60V voltage range.
Q: Can I parallel multiple inverters for a larger system?
A: Yes, you can connect up to 10 units in parallel for both on-grid and off-grid operations.
Q: Is it possible to charge the batteries using a diesel generator?
A: Absolutely. The system is designed to support storing energy from diesel generators.
Q: What is the protection rating for outdoor installation?
A: The inverter features an IP65 protection degree, ensuring high resistance to dust and water for reliable outdoor performance.
Q: Does it support remote monitoring and control?
A: Yes, it is equipped with an RS232 port specifically for remote control and system management.
