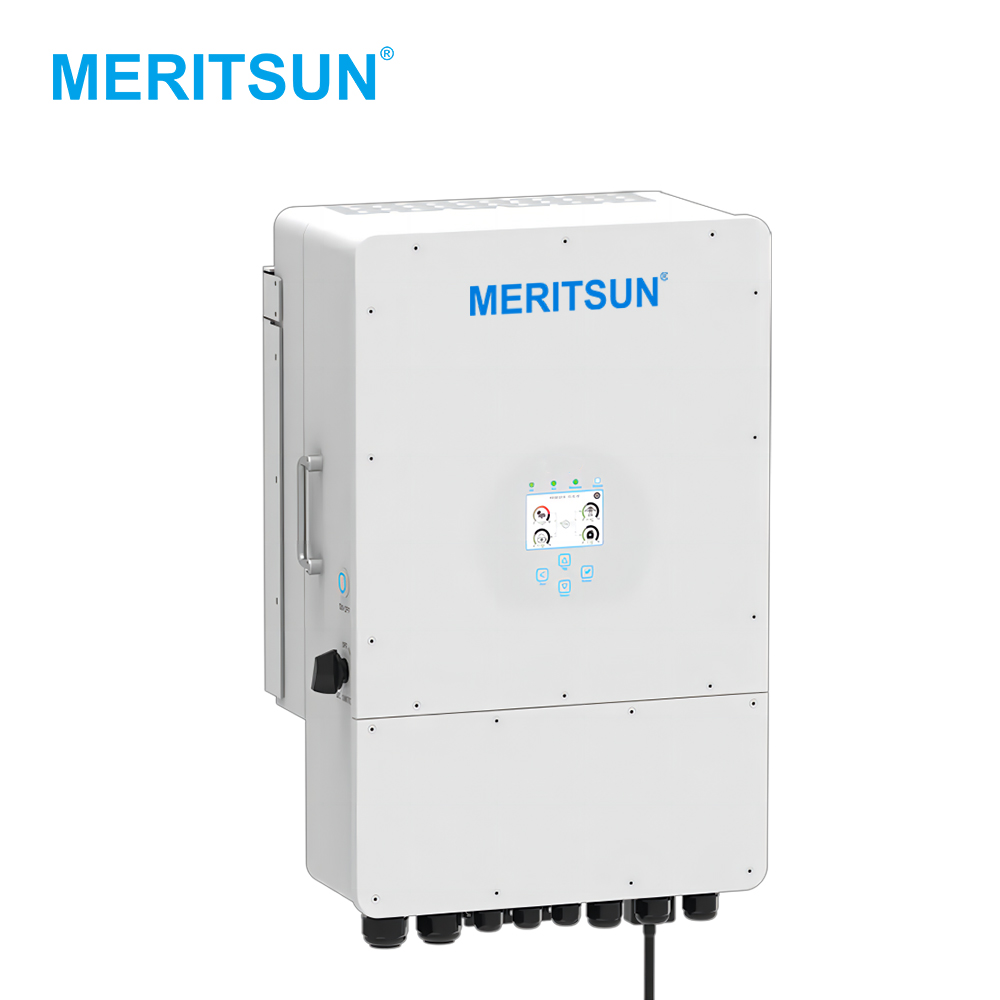

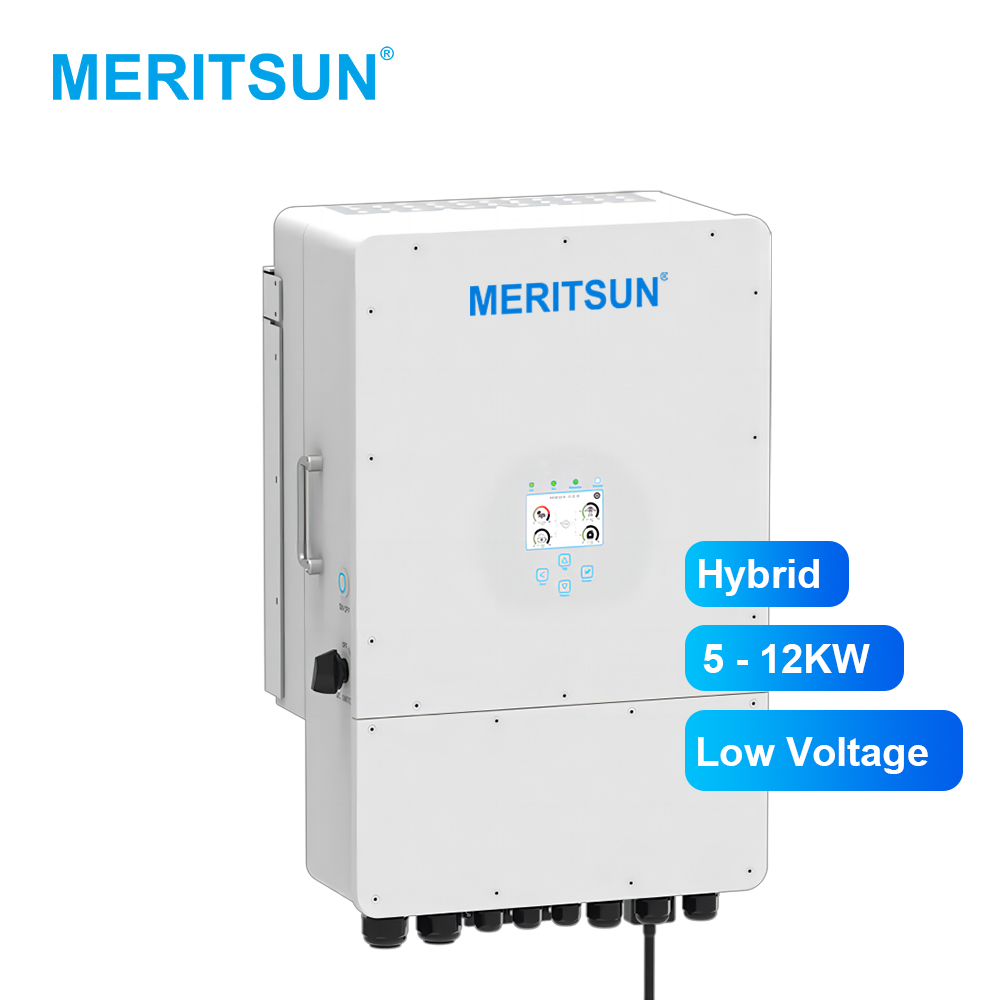

MeritSun 5-12kw Solar Inverter Three Phase Hybrid Network Low Voltage
MeritSun 5-12kw Solar Inverter Three Phase Hybrid Network Low Voltage
MeritSun 5-12kw Solar Inverter Three Phase Hybrid Network Low Voltage
MeritSun 5-12kw Solar Inverter Three Phase Hybrid Network Low Voltage
MeritSun 5-12kw Solar Inverter Three Phase Hybrid Network Low Voltage
1 / 5
MeritSun 5-12kw Solar Inverter Three Phase Hybrid Network Low Voltage
MeritSun 5-12kw Solar Inverter Three Phase Hybrid Network Low Voltage
MeritSun 5-12kw Solar Inverter Three Phase Hybrid Network Low Voltage
MeritSun 5-12kw Solar Inverter Three Phase Hybrid Network Low Voltage
MeritSun 5-12kw Solar Inverter Three Phase Hybrid Network Low Voltage

MeritSun 5-12kw Solar Inverter Three Phase Hybrid Network Low Voltage

Send Inquiry

Product Description

Products Details
Product Overview
Products Description
Product Specification 5K 6K 8K 10K 12K
DC Input
Max. Input Power 6500W 7800W 10400W 13000W 15600W
PV Voltage Range 550V (160V-800V)
Max. Input Current 13A+13A 26A+13A
AC Output
Rated Power W/VA 5000W 6000W 8000W 10000W 12000W
Nominal Voltage/Range 220/380Vac, 230/400Vac
Frequency 50/60Hz
THDI THD < 3% (Linear load < 0.5%)
AC Output Topology L+N+PE
Battery
Battery Voltage Range 40~60V
Battery Type Lithium / Lead-acid

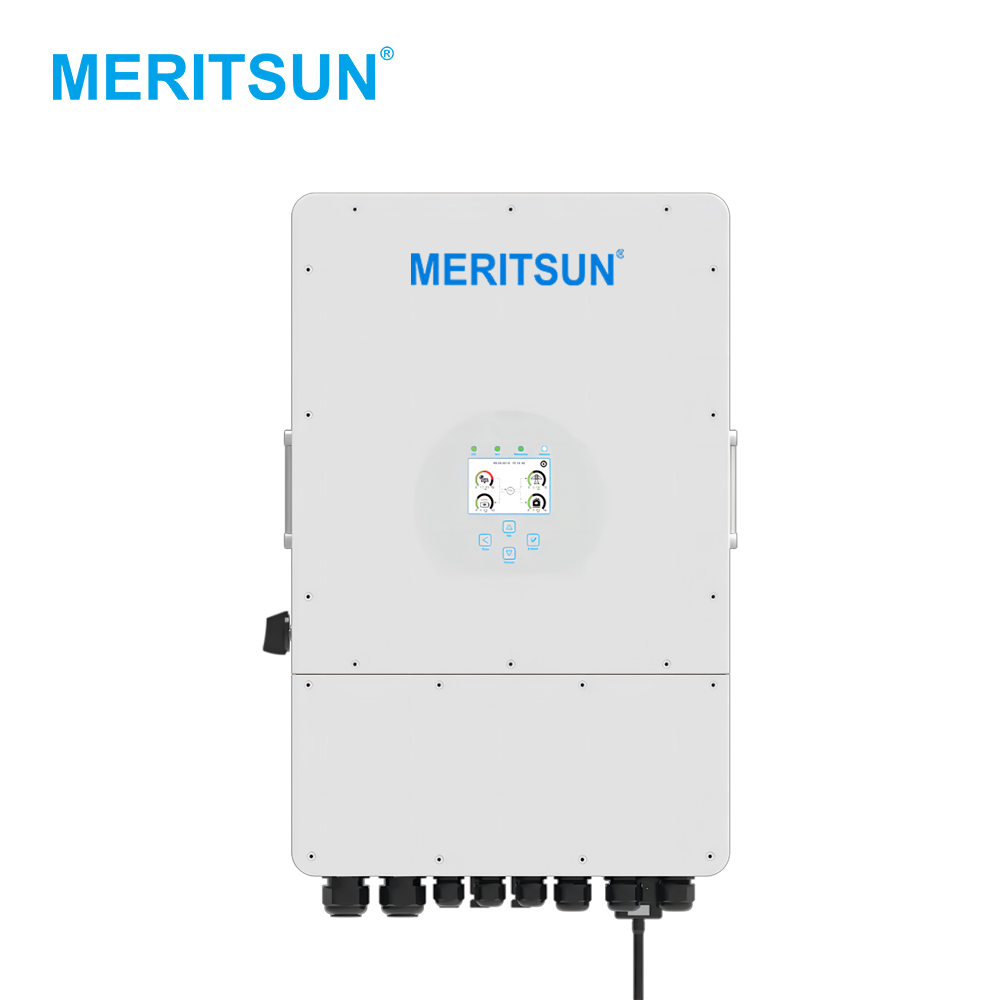

Hybrid Inverter

The 5/6/8/10/12K-SG series is a brand new three-phase hybrid inverter with a low battery voltage of 48V, ensuring the system is safe and reliable.

With a compact design and high-power density, this series supports a 1.3 DC/AC ratio, saving device investment. It supports three-phase unbalanced output, extending the application scenarios.

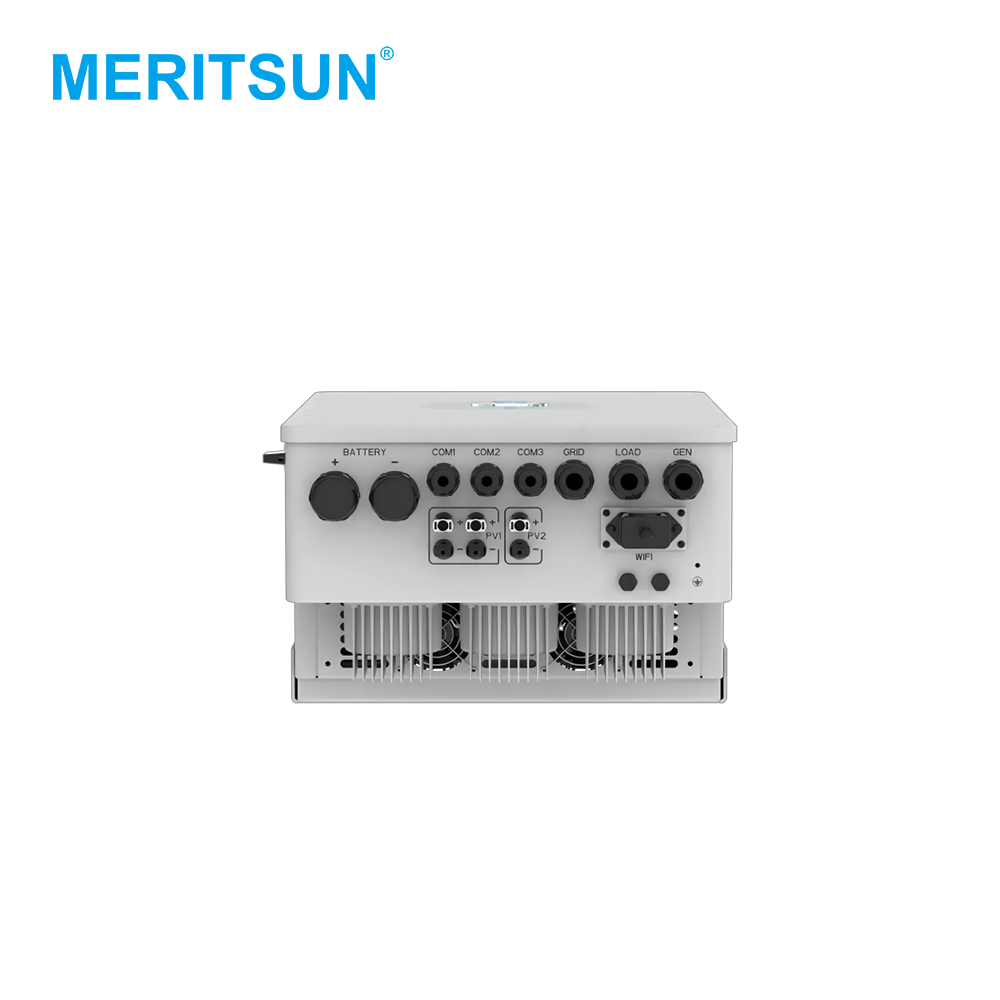

Equipped with CAN port (x2) for BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, making the system smart and flexible.

Monitoring Platform
Smart Monitoring Platform

Thanks to the smart monitoring platform, the full series inverter products support remote shutdown immediately when accidents occur. Setting parameters and firmware updates can be done remotely, which makes PV plant O&M easier.

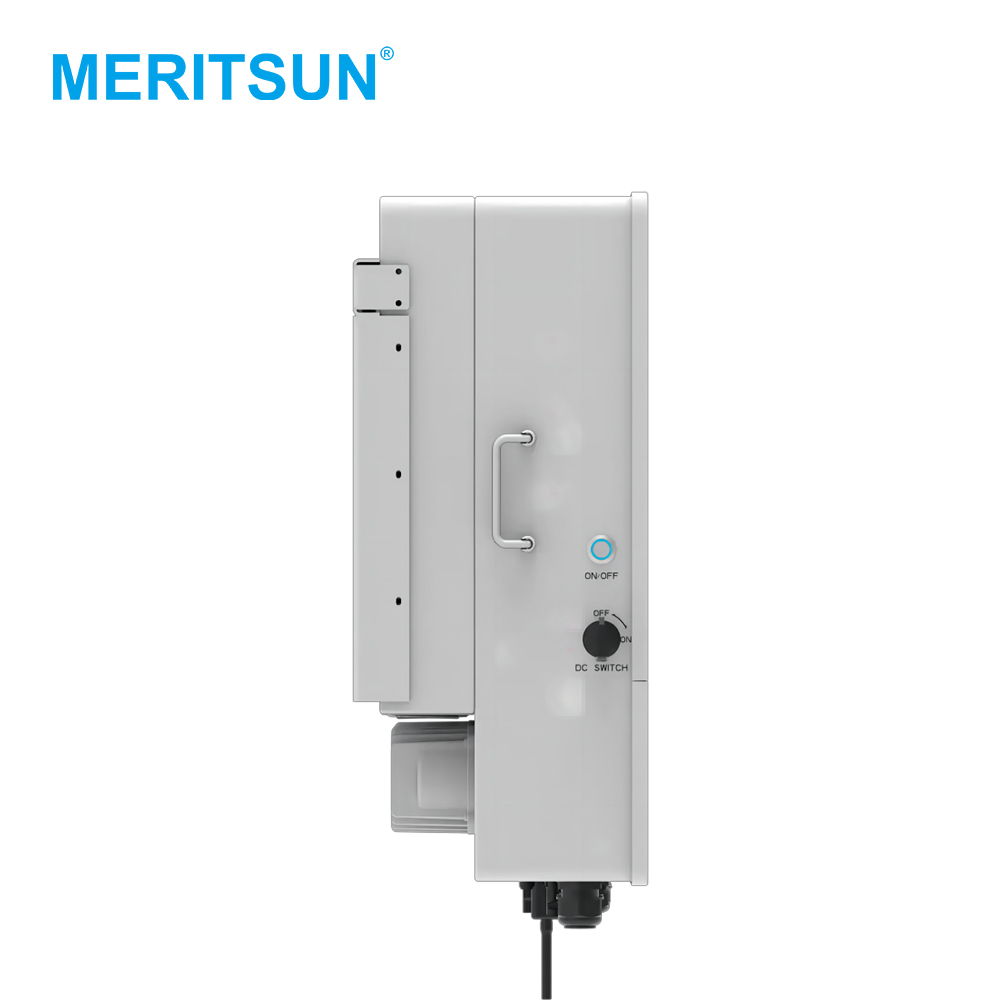

Technical Features
  • 48V low voltage battery, transformer isolation design
  • 6 time periods for battery charging/discharging
  • Max. charging/discharging current of 240A
  • Max. 10pcs parallel
  • DC couple and AC couple to retrofit existing solar system
  • Support storing energy from diesel generator
  • Supports three phase unbalanced output
  • Unique Smart Load application and Grid peak shaving function
Why Choose Us
Advantage 1 Advantage 2 Advantage 3 Advantage 4
Frequently Asked Questions
What are the main battery types supported by these hybrid inverters?
The system is compatible with both Lithium-ion and Lead-acid batteries, specifically designed for a 48V low voltage range to ensure maximum safety.
Can I monitor and control the inverter remotely?
Yes, the smart monitoring platform allows for remote shutdown, parameter settings, and firmware updates, making maintenance highly efficient.
Does this inverter support parallel connection?
Absolutely. This series supports up to 10 units in parallel for both on-grid and off-grid operations.
Can it work with an existing diesel generator?
Yes, the system is designed to support storing energy from diesel generators, providing an extra layer of energy security.
What is the advantage of the three-phase unbalanced output?
The three-phase unbalanced output extends the application scenarios, allowing for more flexible distribution of power across different phases as needed by the load.
Is it suitable for retrofitting existing solar systems?
Yes, it supports both DC couple and AC couple configurations, making it ideal for retrofitting and upgrading existing solar installations.
