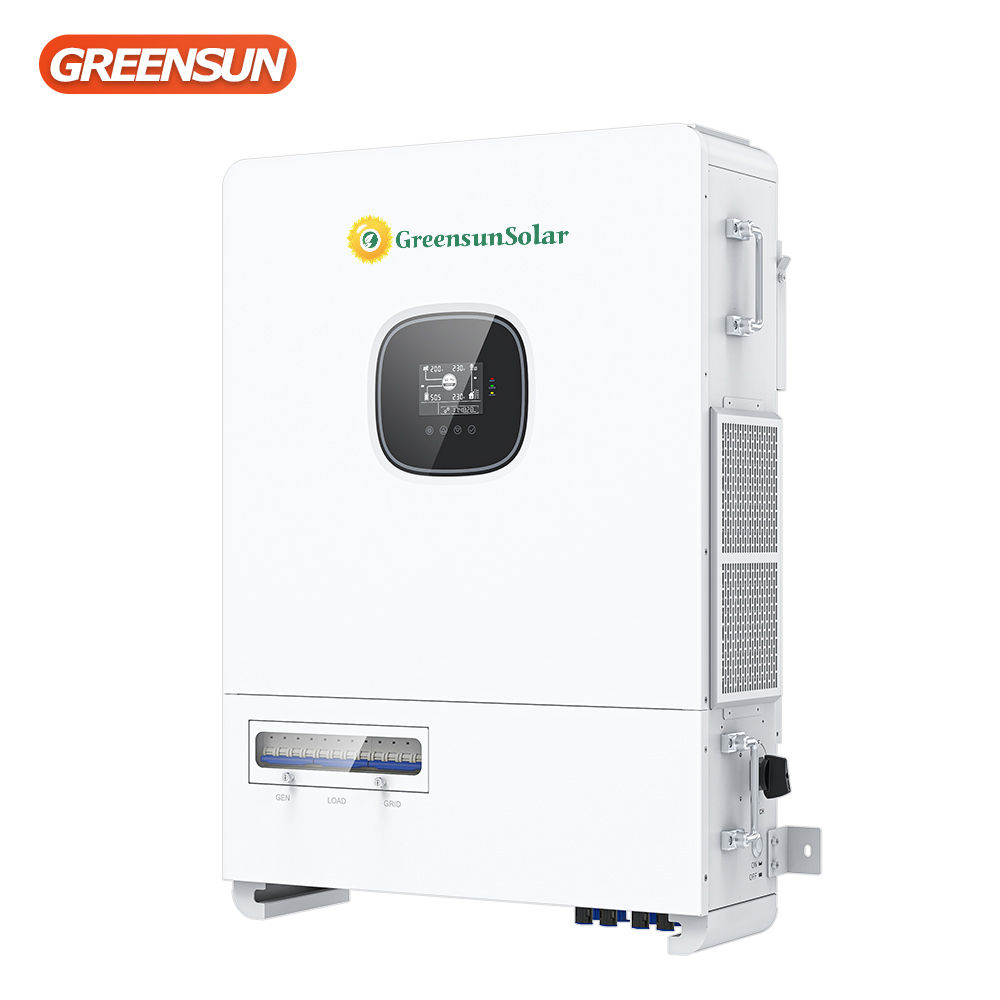

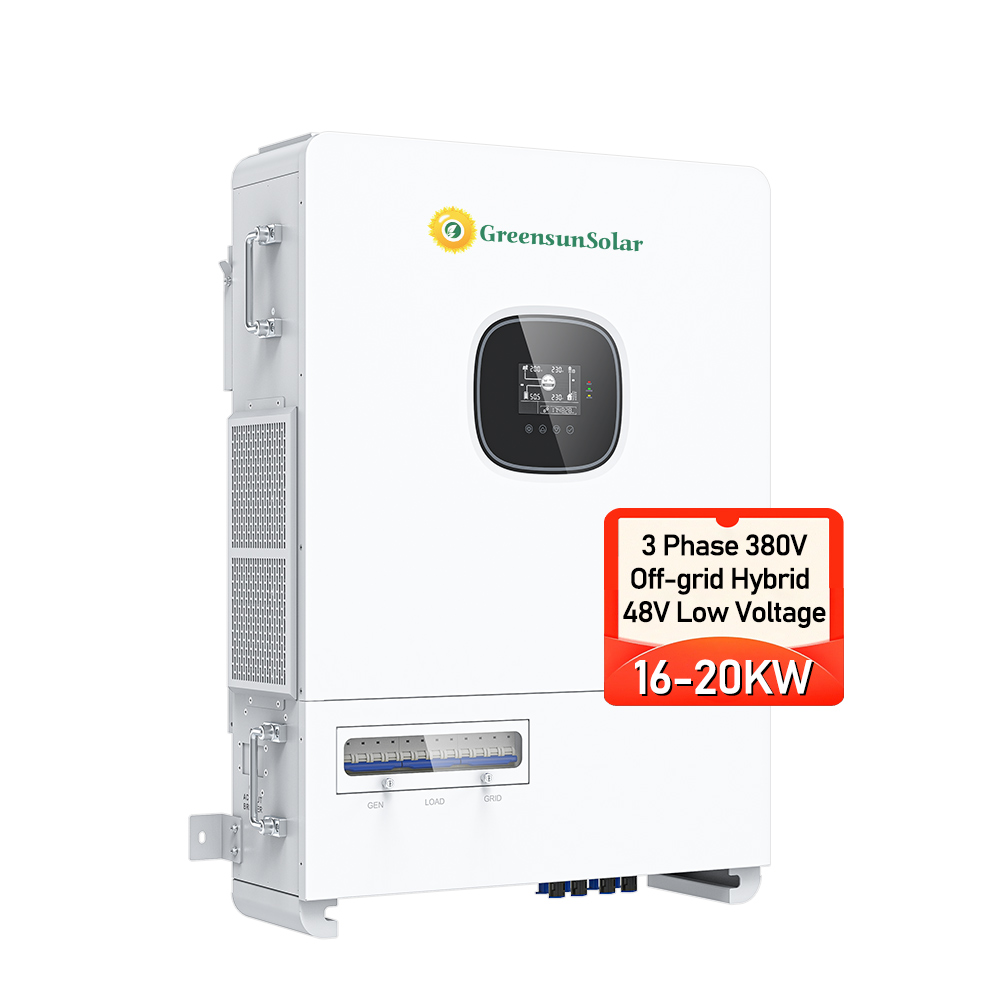

Srne 20KW Low Voltage Hybrid Off Grid Inverter 3 Phase 380V LV Battery Backup Mppt Solar Power Inverters
Srne 20KW Low Voltage Hybrid Off Grid Inverter 3 Phase 380V LV Battery Backup Mppt Solar Power Inverters
Srne 20KW Low Voltage Hybrid Off Grid Inverter 3 Phase 380V LV Battery Backup Mppt Solar Power Inverters
Srne 20KW Low Voltage Hybrid Off Grid Inverter 3 Phase 380V LV Battery Backup Mppt Solar Power Inverters
Srne 20KW Low Voltage Hybrid Off Grid Inverter 3 Phase 380V LV Battery Backup Mppt Solar Power Inverters
1 / 5
Srne 20KW Low Voltage Hybrid Off Grid Inverter 3 Phase 380V LV Battery Backup Mppt Solar Power Inverters
Srne 20KW Low Voltage Hybrid Off Grid Inverter 3 Phase 380V LV Battery Backup Mppt Solar Power Inverters
Srne 20KW Low Voltage Hybrid Off Grid Inverter 3 Phase 380V LV Battery Backup Mppt Solar Power Inverters
Srne 20KW Low Voltage Hybrid Off Grid Inverter 3 Phase 380V LV Battery Backup Mppt Solar Power Inverters
Srne 20KW Low Voltage Hybrid Off Grid Inverter 3 Phase 380V LV Battery Backup Mppt Solar Power Inverters

Srne 20KW Low Voltage Hybrid Off Grid Inverter 3 Phase 380V LV Battery Backup Mppt Solar Power Inverters

Send Inquiry

Product Description

📋 Product Description
Product Overview
Product Features
⚙ Technical Specification
MODEL SPI-16K-H3P SPI-18K-H3P SPI-20K-H3P
AC OUTPUT
Rated Output Power 16000W 18000W 20000W
Max. AC Output Power 17600VA 19800VA 22000VA
Rated AC Output Current 23.2A 26.0A 29.0A
Rated Output Voltage 230/400Vac (Three-Phase)
Output Waveform Pure sine wave
BATTERY INPUT
Battery Types Li-ion / Lead-Acid / User Defined
Rated Battery Voltage 48Vdc
Max. PV Charging Current 300A 360A 360A
PV INPUT
No. of MPPT Trackers 2
Max. PV Input Power 15000W / 15000W
Max. PV Input Voltage 1000Vdc
EFFICIENCY & GENERAL
Max. Efficiency 97.6%
Parallel Capacity 1~6 units
Protection Degree IP20
Warranty 36 months

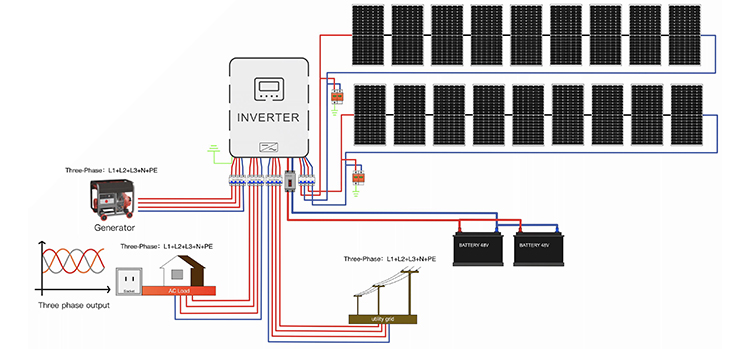

🖥 System Diagram

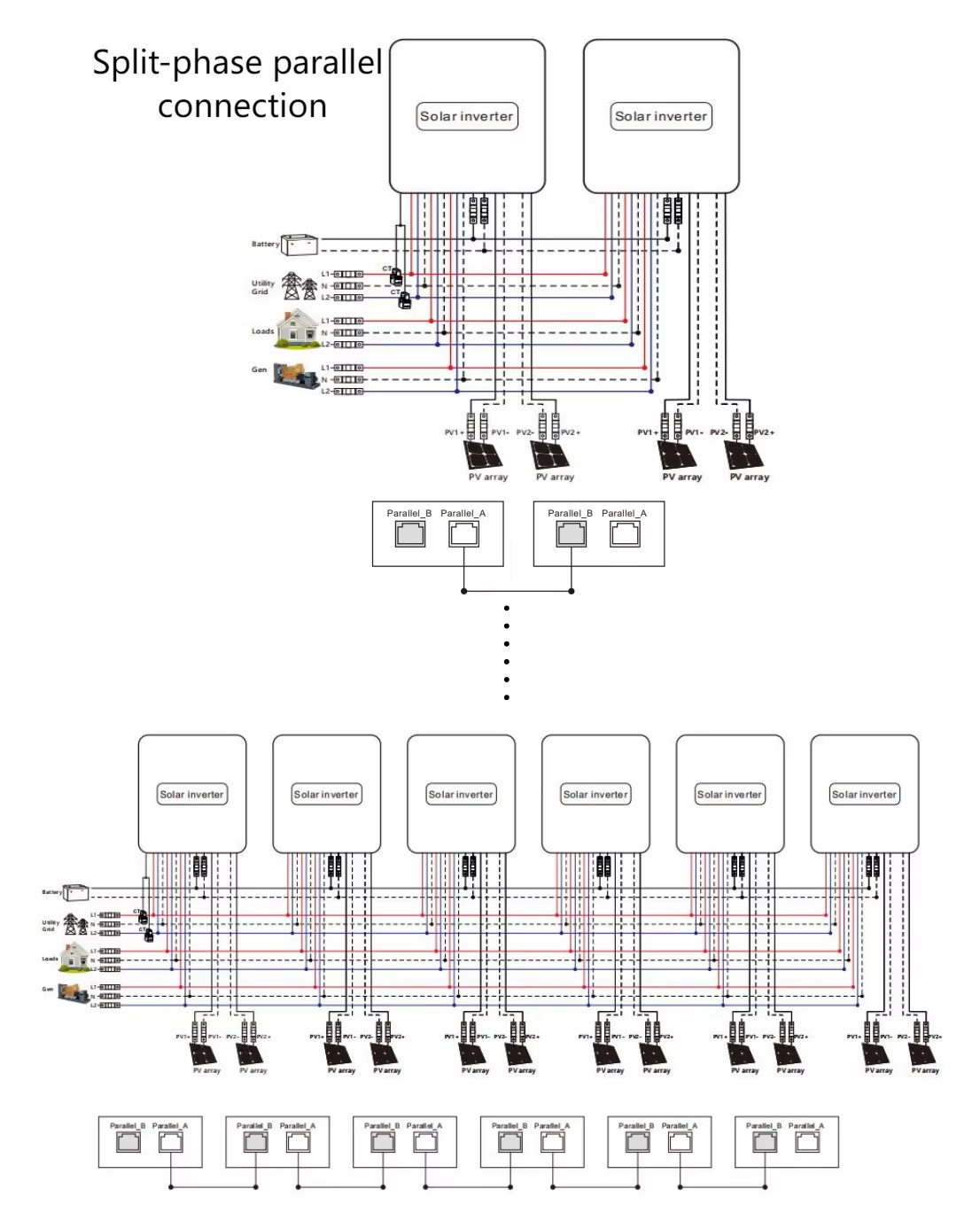

Diagram 1

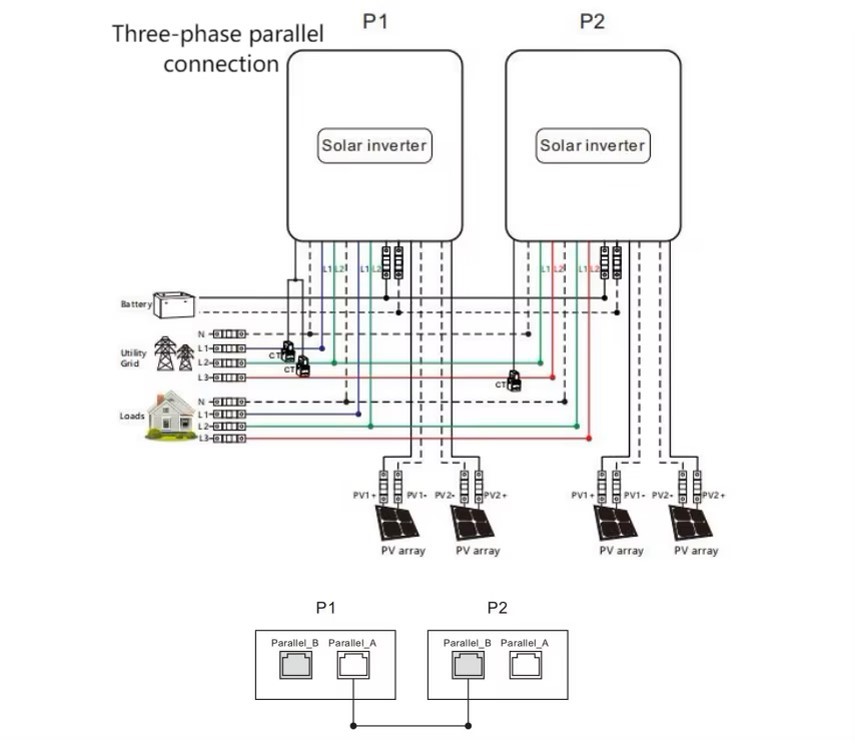

Diagram 2

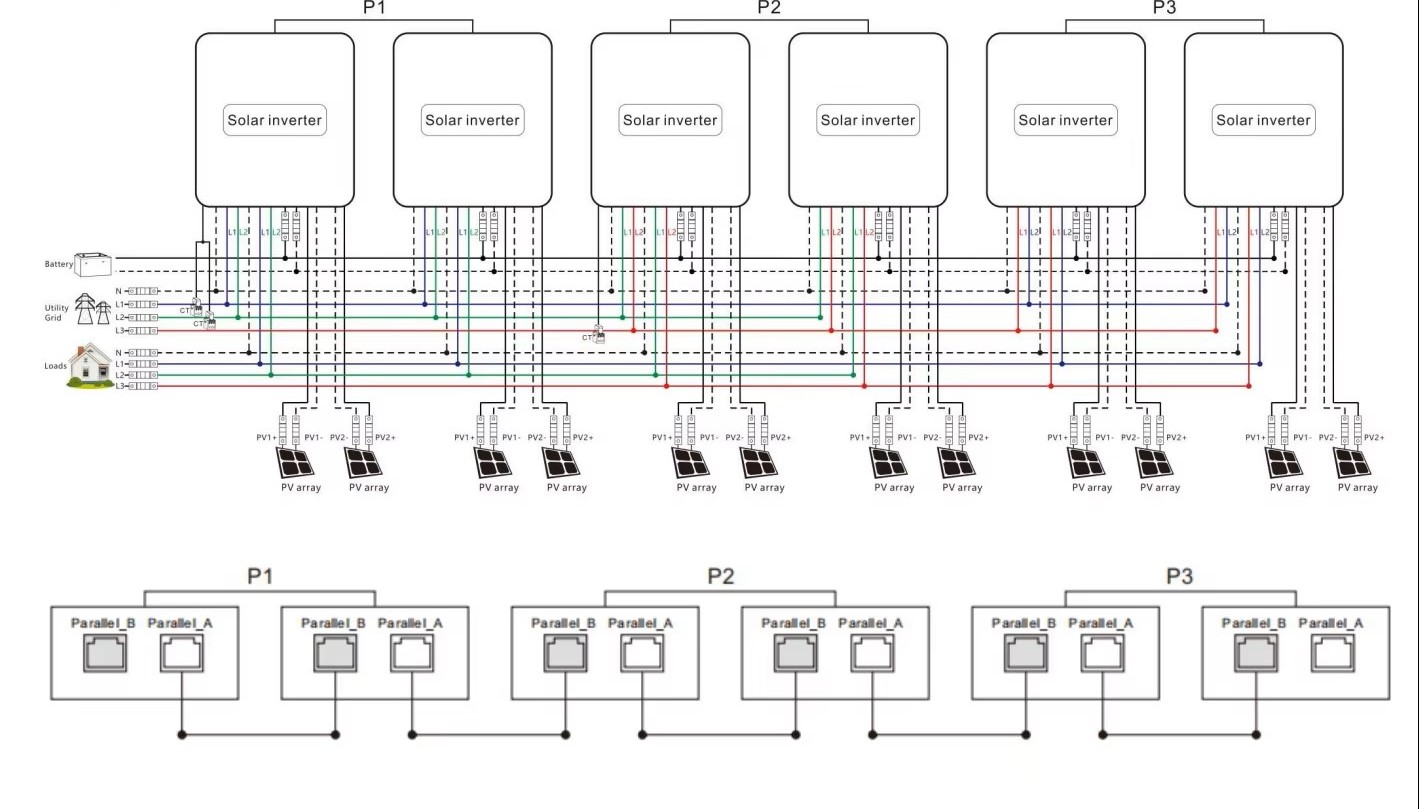

Connection Details
🏚 Success Projects

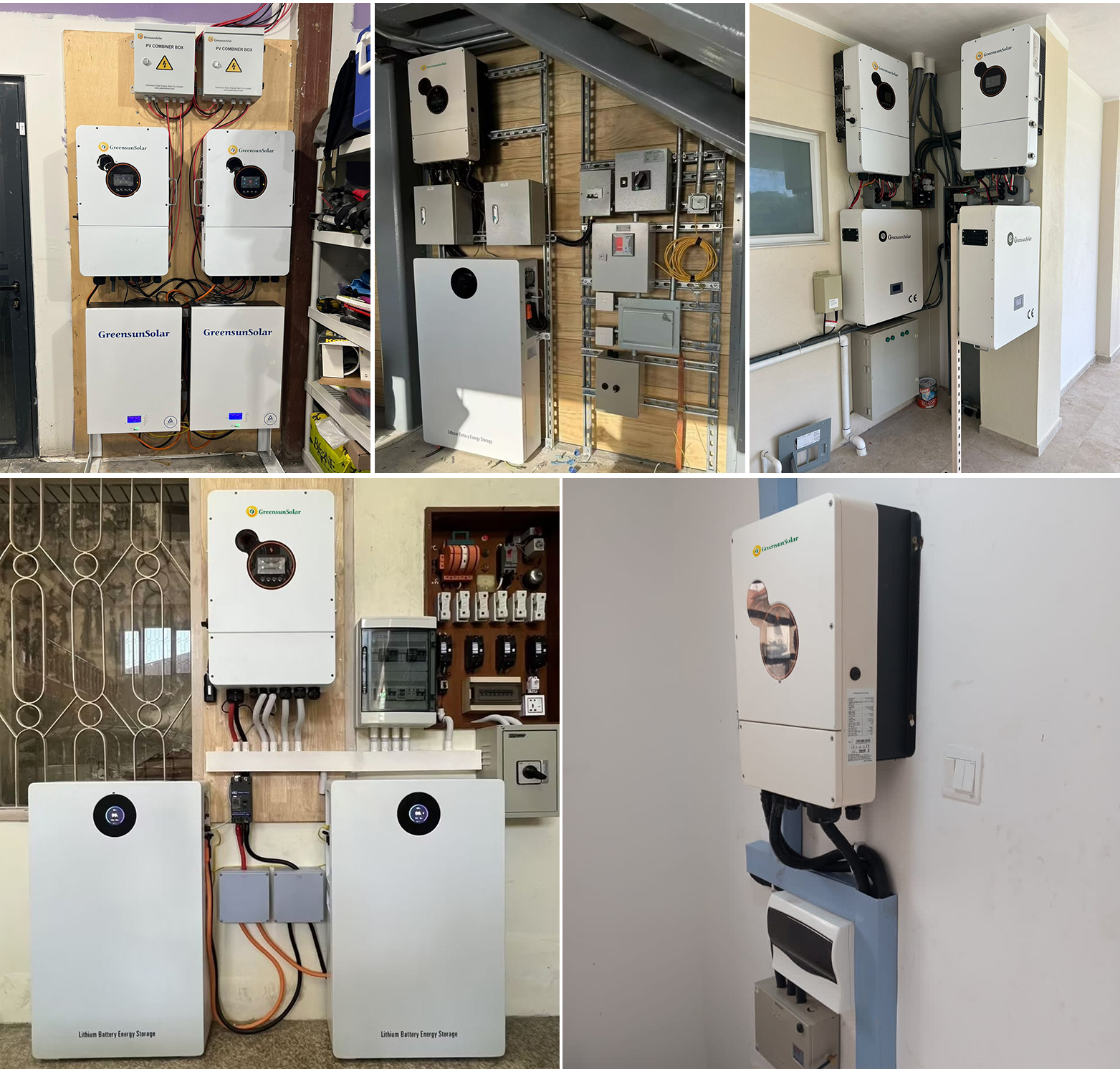

Project Case
🍃 Production Facility

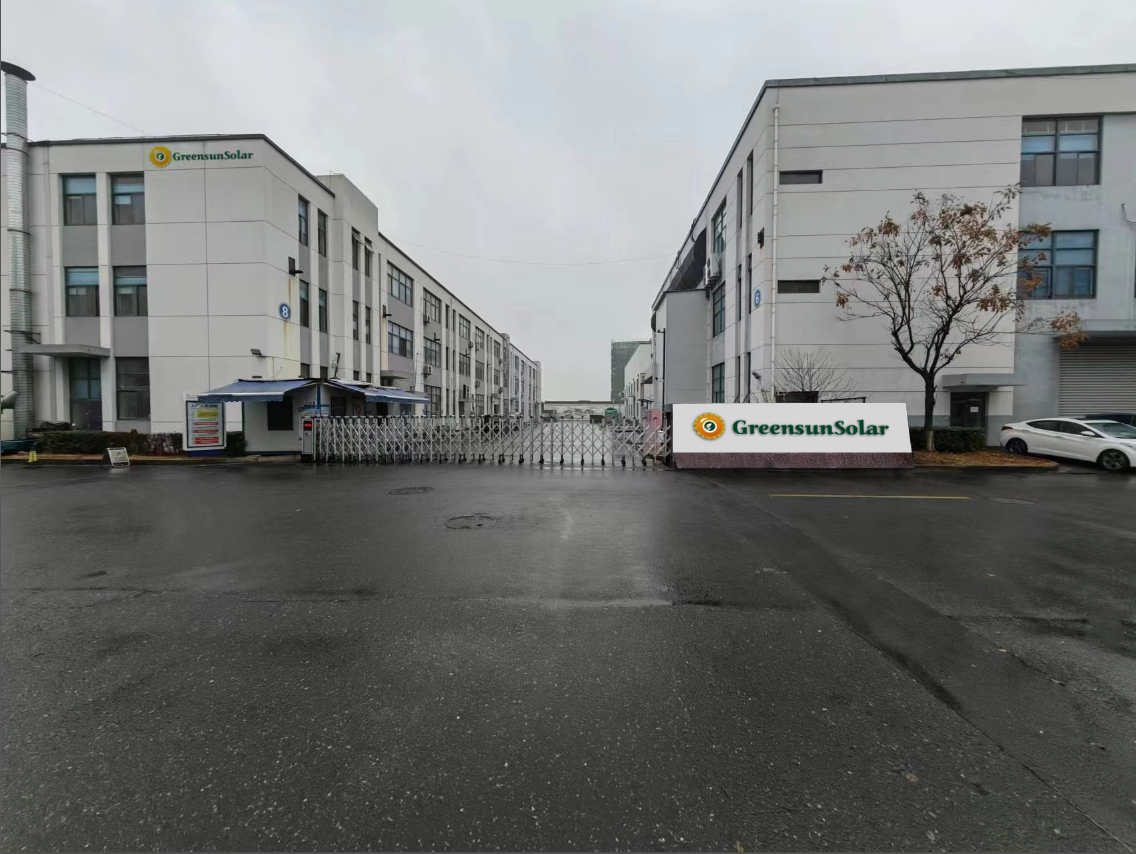

Factory Overview

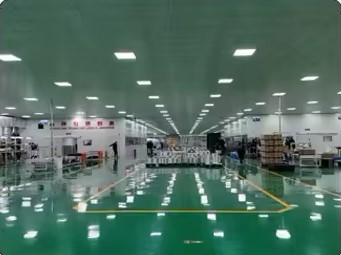

Production Line 1

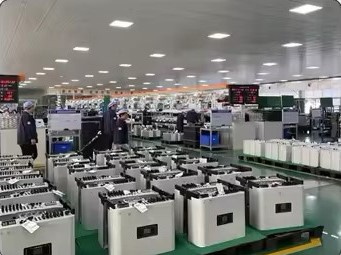

Production Line 2

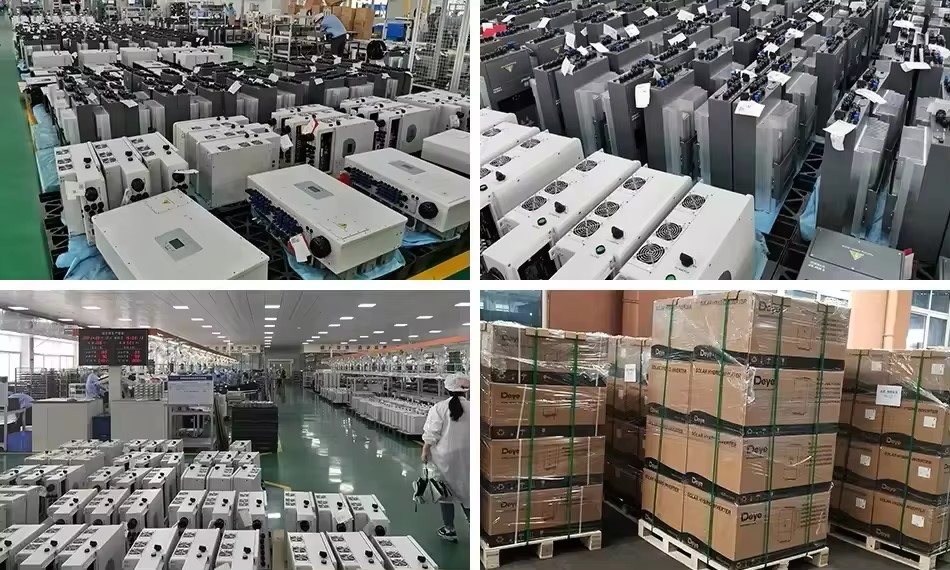

Quality Testing
🌐 International Exhibition
Exhibition Presence
👍 Related Solutions
Recommended Product
Frequently Asked Questions
What battery types are compatible with this three-phase inverter?
The system supports Li-ion, Lead-Acid, and User Defined battery types, providing flexibility for various energy storage requirements.
Can multiple units be connected in parallel?
Yes, this model supports parallel capacity of 1 to 6 units, allowing for scalable power output as your energy needs grow.
What is the maximum efficiency of the MPPT tracker?
The MPPT tracking efficiency is exceptionally high, exceeding 99%, ensuring maximum energy harvest from your PV panels.
Is the inverter suitable for harsh environments?
The unit features an IP20 protection degree and is designed to operate in ambient temperatures from -10°C to 55°C (derated above 45°C) with efficient air cooling.
What is the standard warranty for these inverters?
These inverters come with a standard warranty period of 36 months, ensuring long-term reliability and peace of mind.
