IP65 48V 6KW Single Phase Low Voltage Hybrid Solar Inverter 6000W 6KVA Pure Sine Wave On/Off Grid Solar Inverter with Dual MPPT
IP65 48V 6KW Single Phase Low Voltage Hybrid Solar Inverter 6000W 6KVA Pure Sine Wave On/Off Grid Solar Inverter with Dual MPPT
IP65 48V 6KW Single Phase Low Voltage Hybrid Solar Inverter 6000W 6KVA Pure Sine Wave On/Off Grid Solar Inverter with Dual MPPT
IP65 48V 6KW Single Phase Low Voltage Hybrid Solar Inverter 6000W 6KVA Pure Sine Wave On/Off Grid Solar Inverter with Dual MPPT
IP65 48V 6KW Single Phase Low Voltage Hybrid Solar Inverter 6000W 6KVA Pure Sine Wave On/Off Grid Solar Inverter with Dual MPPT
1 / 5
IP65 48V 6KW Single Phase Low Voltage Hybrid Solar Inverter 6000W 6KVA Pure Sine Wave On/Off Grid Solar Inverter with Dual MPPT
IP65 48V 6KW Single Phase Low Voltage Hybrid Solar Inverter 6000W 6KVA Pure Sine Wave On/Off Grid Solar Inverter with Dual MPPT
IP65 48V 6KW Single Phase Low Voltage Hybrid Solar Inverter 6000W 6KVA Pure Sine Wave On/Off Grid Solar Inverter with Dual MPPT
IP65 48V 6KW Single Phase Low Voltage Hybrid Solar Inverter 6000W 6KVA Pure Sine Wave On/Off Grid Solar Inverter with Dual MPPT
IP65 48V 6KW Single Phase Low Voltage Hybrid Solar Inverter 6000W 6KVA Pure Sine Wave On/Off Grid Solar Inverter with Dual MPPT

IP65 48V 6KW Single Phase Low Voltage Hybrid Solar Inverter 6000W 6KVA Pure Sine Wave On/Off Grid Solar Inverter with Dual MPPT

Send Inquiry

Product Description

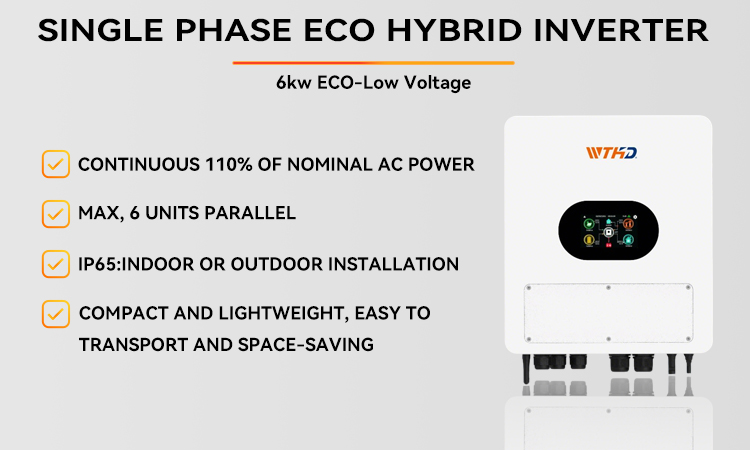

Product Overview Technical Design
MODEL: WTHD-HI-1P-6KL
PHASE1-phase in / 1-phase out
MAXIMUM PV INPUT POWER9000W
RATED OUTPUT POWER6000W
MAXIMUM CHARGING POWER6000W
GRID-TIED OPERATION
Maximum DC Voltage500Vdc
Start-up Voltage / Initial Feeding Voltage90Vdc / 120Vdc
MPPT Voltage Range60-450Vdc
Number of MPPT Trackers / Max Input Current2 / 18A
GRID OUTPUT (AC)
Nominal Output Voltage220/230/240VAC
Nominal Output Current26.1A
Power Factor>0.99
OFF-GRID OPERATION / AC INPUT
Acceptable Input Voltage Range90-280VAC
Frequency Range50Hz/60Hz (Autosensing)
Maximum AC Input Current40A
BATTERY & CHARGER
Nominal DC Voltage48Vdc
Maximum Charging Current135A
ENVIRONMENTAL & PHYSICAL

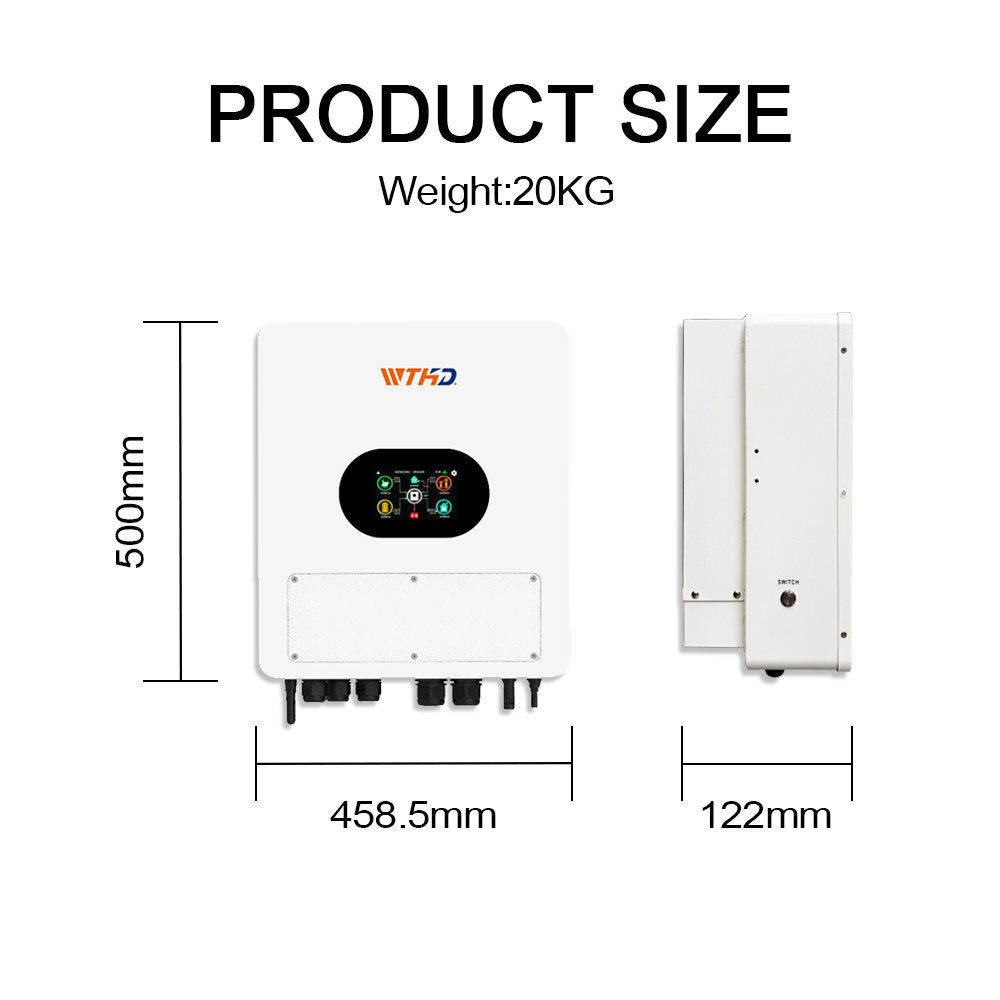

Dimension, DxWxH (mm)500x458.5x122
IP DegreeIP65
Operating Temperature-10°C to 50°C

As a certified National High-Tech and "Specialized & Innovative" enterprise, we provide advanced, customized power solutions backed by solid R&D. We specialize in durable and adaptable energy systems to meet your precise needs:

  • Custom Lithium Battery: Built for performance, safety, and long life.
  • Efficient Solar Inverters: Reliable design for optimal energy conversion.
  • Full Power Product Range: Including UPS, EPS, and voltage stabilizers.
  • OEM/ODM Support: Full customization services according to specific requirements.
Frequently Asked Questions
Q1: Are you a factory or a trading company? A: We are a manufacturing factory with a primary focus on OEM and ODM services.
Q2: What kind of certifications do you hold? A: Our products and facilities are certified with ISO9000, ISO14001, CE, ROHS, Thiel, and more.
Q3: What is your main product coverage? A: We specialize in Solar inverters, Lead-acid batteries, Lithium batteries, Solar generators, and Solar panels.
Q4: Do you accept OEM/ODM customization? A: Yes, our entire product series supports ODM/OEM with flexible minimum order quantities.
Q5: What is the warranty period for your products? A: The warranty period typically ranges from 1 to 3 years, depending on the specific product and model.
Q6: Can you support large-scale bidding projects? A: Yes, we provide full support for project bidding, including authorized manufacturing and project design.
