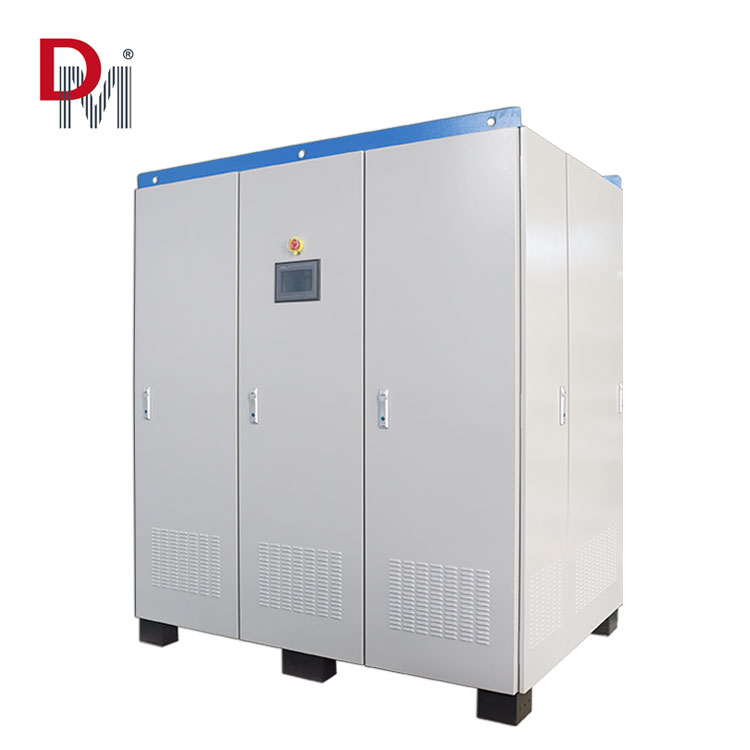

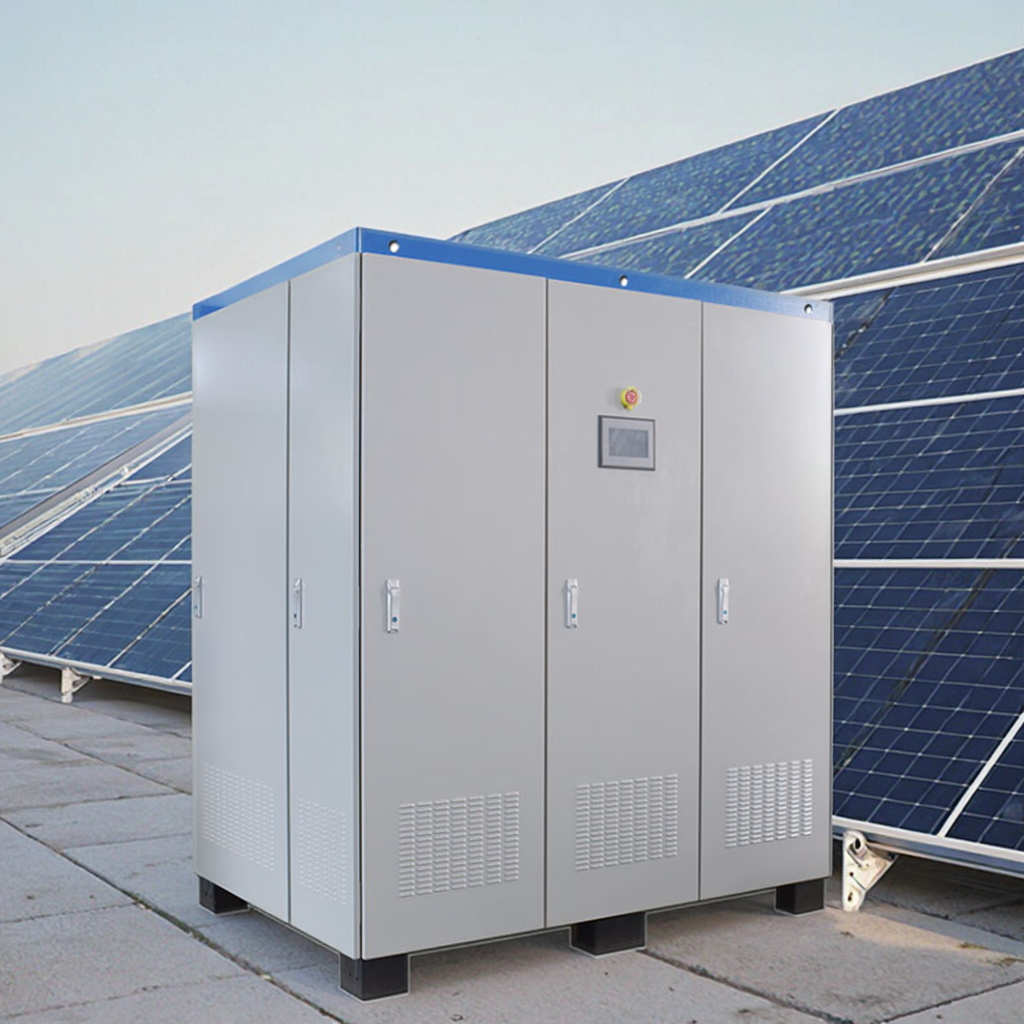

High Quality DC to AC Silent Generator Solar Hybrid Inverter for Deye Battery with MPPT

Product Description

Product Banner

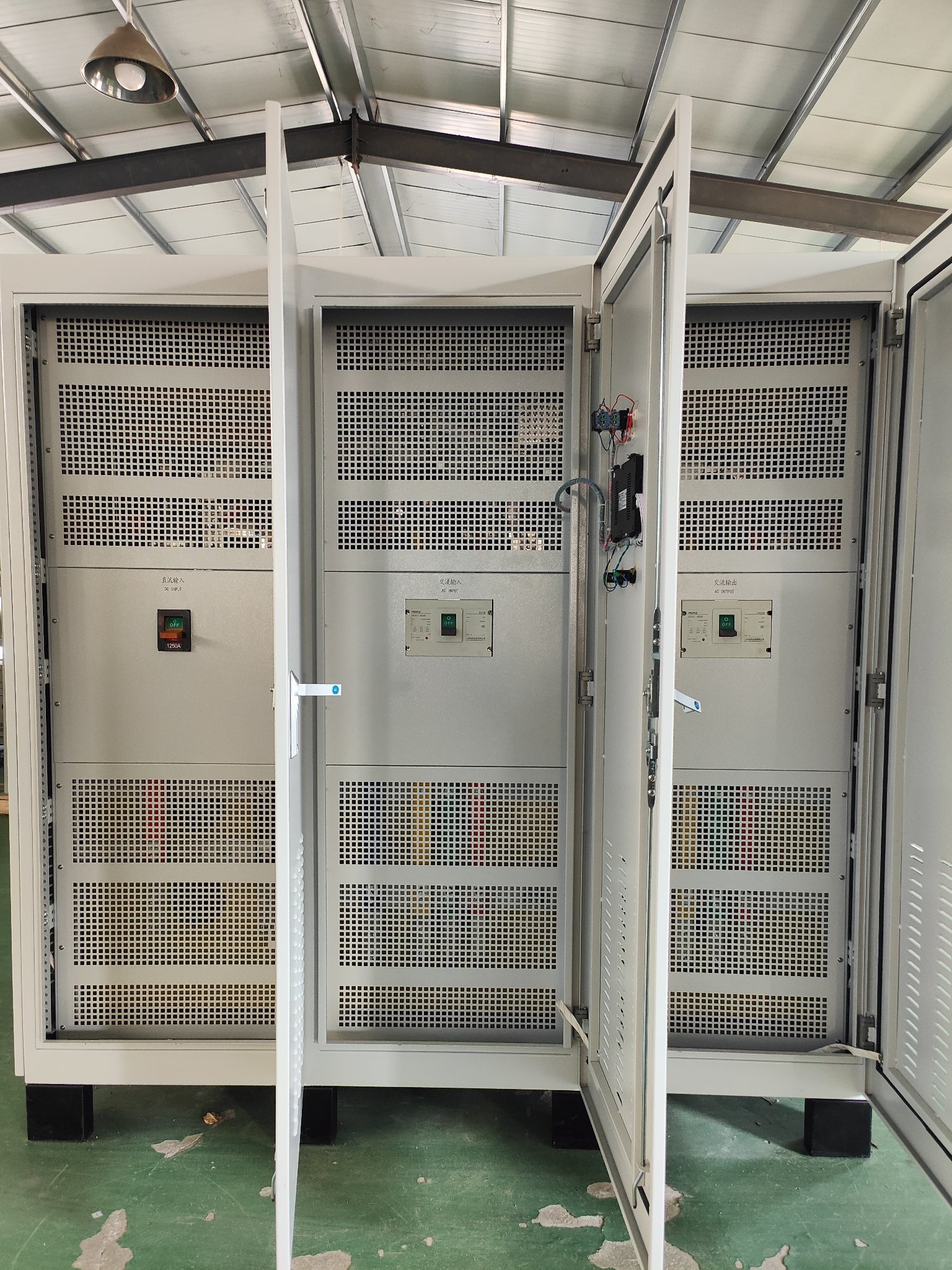

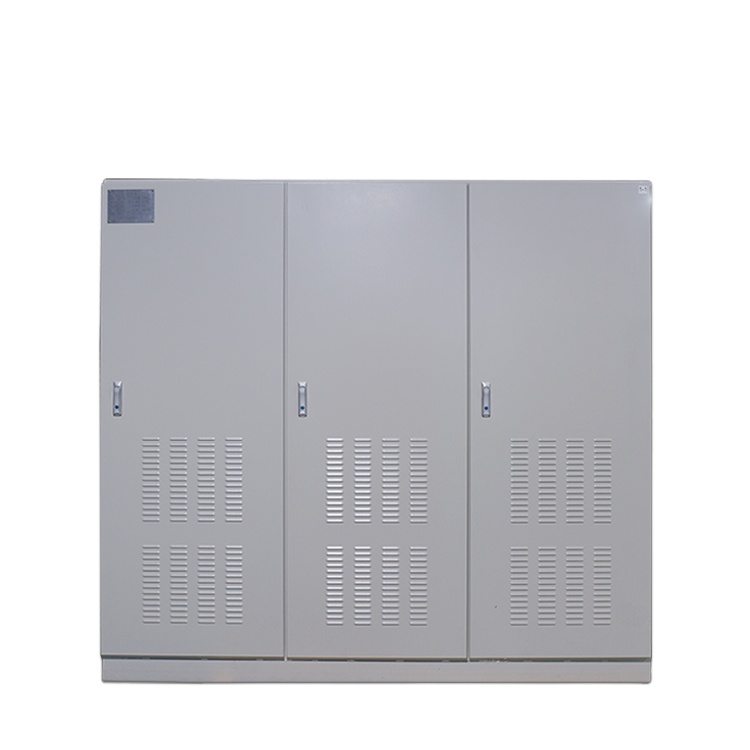

Upgrade professional technology 300KW off grid dc to ac power inverter with battery charger

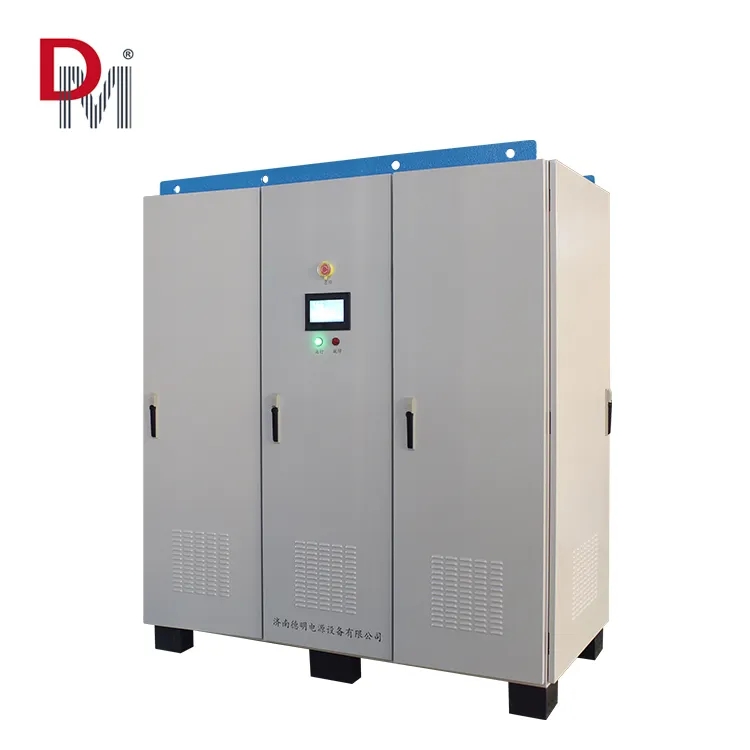

300KW Inverter
Power Frequency Pure Sine Wave Inverter Features
  • Complete isolation-type inverter technology, noiseless output.
  • Adoption of advanced SPWM technology, pure sine wave output.
  • Dynamic current loop control technology to ensure inverter reliable operation.
  • Wide DC input voltage range.
  • Excellent EMC design.
  • Low output harmonic distortion (THD≤3%).
  • LED indicators for input voltage range, load power range, normal output & failure state.
  • Optional energy saving mode.
  • Extensive protections: reverse polarity, short-circuit, overload, under/over voltage, over-temperature.
  • Wide working temperature range (industrial level).
  • Continuous operation at full power.
Technical Specifications
Type ND480-200KS
DC Input Input rated voltage 480 VDC
Input rated current 417A
Input DC voltage range 350-600 VDC
AC Input Allow input voltage range 220 / 380 / 400 VAC ± 15%
Input rated current 550A / 300A / 290A
Bypass transfer time ≤4 ms
AC Output Rated capacity / Power 200KVA / 160KW
Output voltage/frequency 220 / 380 / 400 VAC, 50Hz / 60Hz
Output voltage accuracy ± 2%
Waveform distortion (THD) ≤3%
Overload capacity 120% 3 min, 150% 10 sec
Inverter efficiency 96%
Environment Noise (1m) ≤50dB
Ambient temperature -10℃ ~ +50℃
Altitude ≤5000 m
Company Profile

Established in 2004, the company has grown into a mature enterprise with independent property rights and modern factory buildings. In 2012, we expanded to international markets. By 2015, we achieved rapid development with multiple invention and utility model patents, obtaining the "high-tech enterprise certificate" and ISO 9001 quality management system certification. We continue to innovate in new energy power sources, including electromagnetic control for wind turbines, MPPT technology, and IoT monitoring.

Our products, which have passed EU CE certification, are exported to more than 120 countries including Germany, Japan, the United States, Australia, and Saudi Arabia. We are committed to technological progress and standardized operations to provide high-quality power solutions.

Our Factory
Frequently Asked Questions
Can you provide OEM service?
Yes, we provide professional OEM services to meet your specific branding requirements.
Can you design the complete solar/wind power system?
Yes, our engineering team can design a complete system tailored to your specific energy requirements.
Are you a factory or trading company?
We are a specialized manufacturer of wind turbine solar controllers and various high-power inverters.
Is customization acceptable for your products?
Yes, customization is acceptable. We can modify product parameters and features according to customer needs.
Can I visit the factory before placing an order?
Absolutely, you are welcome to visit our manufacturing facility to see our production process and quality control.
Do you provide samples for testing?
Yes, we can provide samples for quality testing and performance verification.
