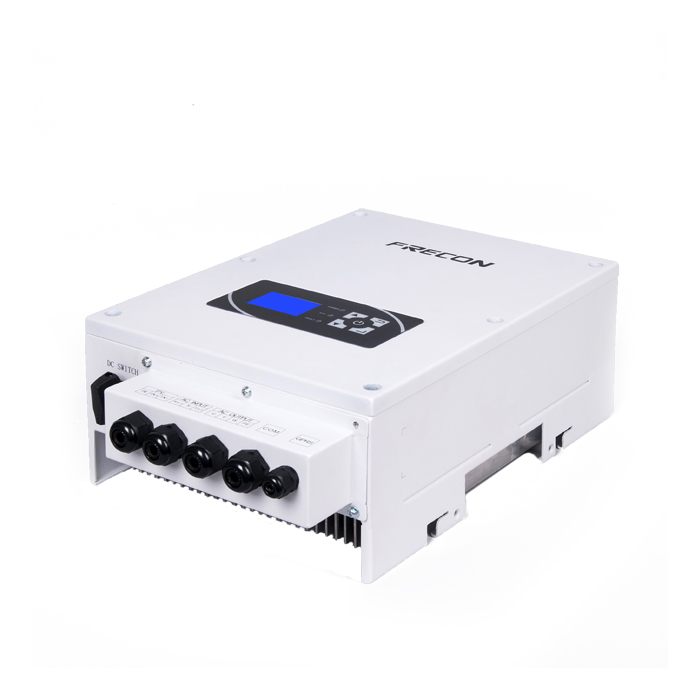

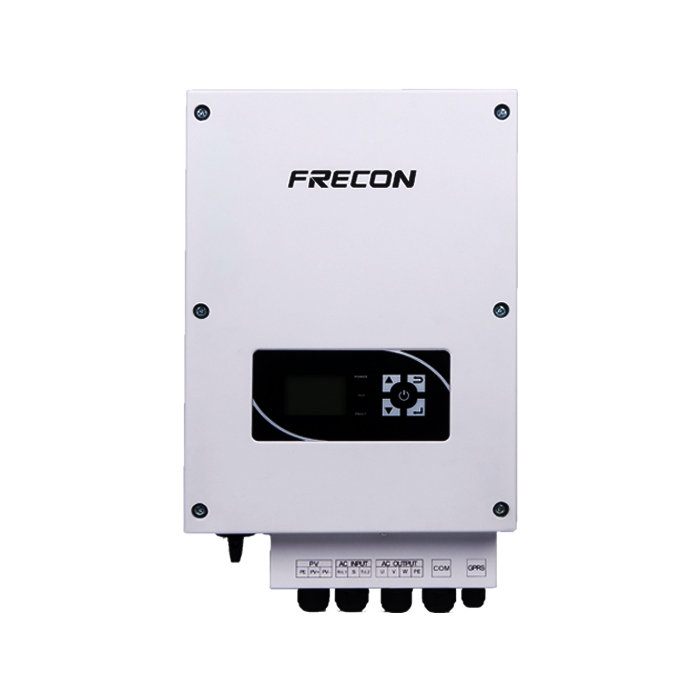

FRECON IP65 5.5KW Solar Pump Inverter 3 Phase with MPPT Vfd for Agriculture Irrigation System
FRECON IP65 5.5KW Solar Pump Inverter 3 Phase with MPPT Vfd for Agriculture Irrigation System
FRECON IP65 5.5KW Solar Pump Inverter 3 Phase with MPPT Vfd for Agriculture Irrigation System
FRECON IP65 5.5KW Solar Pump Inverter 3 Phase with MPPT Vfd for Agriculture Irrigation System
FRECON IP65 5.5KW Solar Pump Inverter 3 Phase with MPPT Vfd for Agriculture Irrigation System
1 / 5
FRECON IP65 5.5KW Solar Pump Inverter 3 Phase with MPPT Vfd for Agriculture Irrigation System
FRECON IP65 5.5KW Solar Pump Inverter 3 Phase with MPPT Vfd for Agriculture Irrigation System
FRECON IP65 5.5KW Solar Pump Inverter 3 Phase with MPPT Vfd for Agriculture Irrigation System
FRECON IP65 5.5KW Solar Pump Inverter 3 Phase with MPPT Vfd for Agriculture Irrigation System
FRECON IP65 5.5KW Solar Pump Inverter 3 Phase with MPPT Vfd for Agriculture Irrigation System

FRECON IP65 5.5KW Solar Pump Inverter 3 Phase with MPPT Vfd for Agriculture Irrigation System

Send Inquiry

Product Description

PV580 Series MPPT solar pump inverter with IP65 waterproof design, supports DC power input from solar panel and AC power output to control water pump, power range from 0.4kW to 55kW.

Solar Pump Inverter Banner

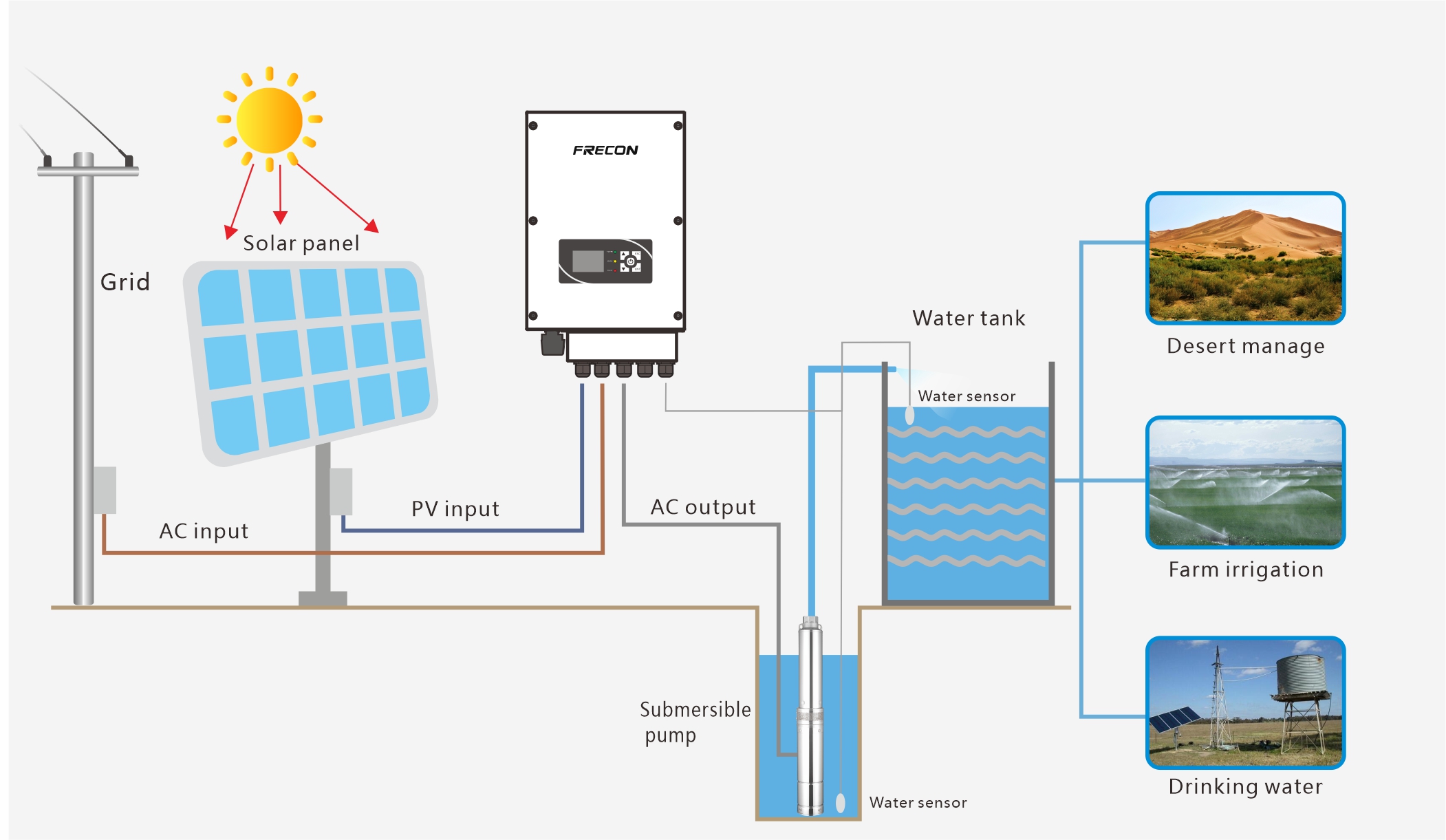

Solar Pump System
Product Features

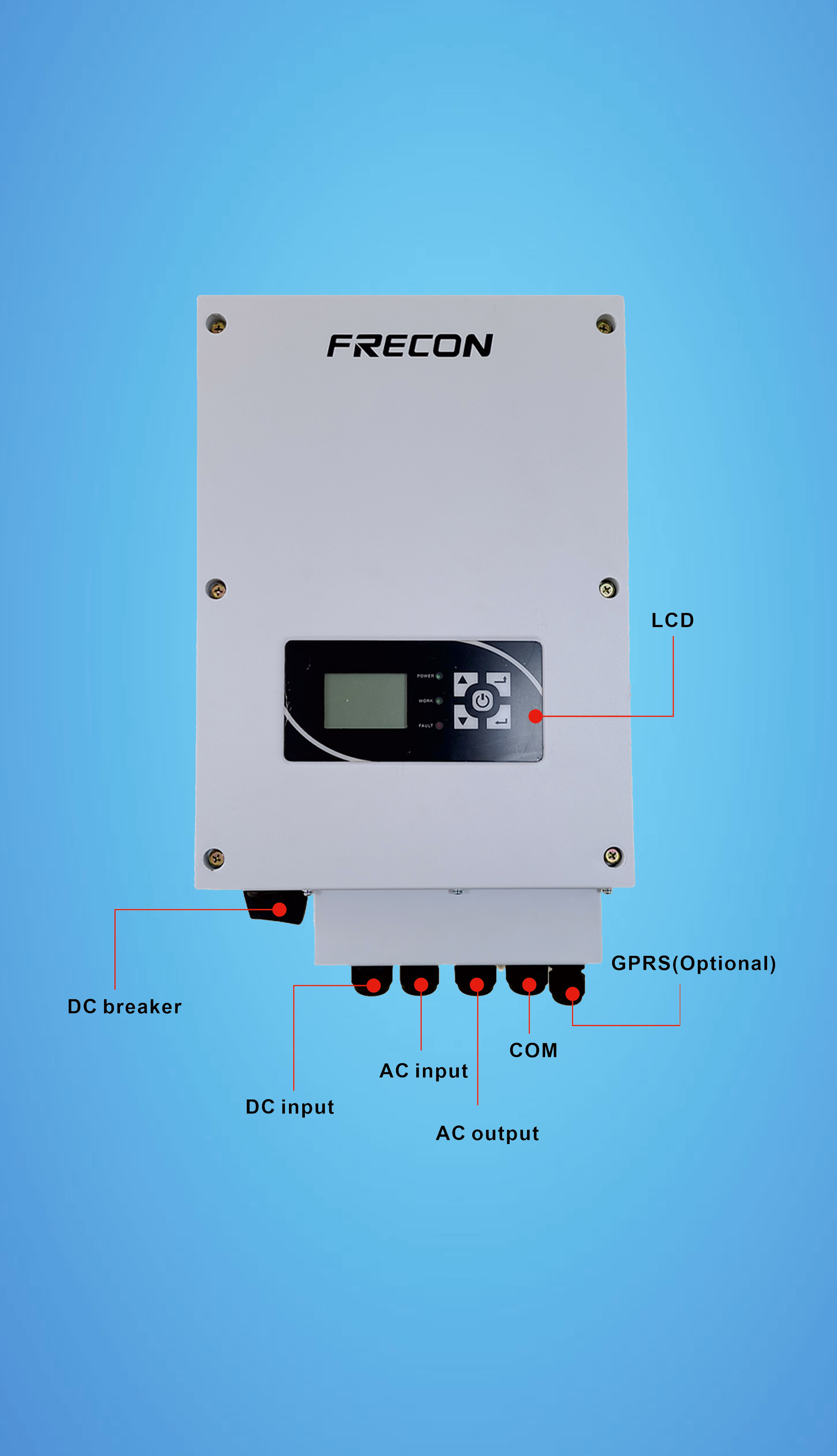

Technical Layout
💧
IP65 design: Waterproof and dustproof, can be directly installed outdoors without additional protection.
IP65 Outdoor Installation
🌡️
Operating Temperature Range: -25℃ to 60℃, supports up to 60℃ working without derating.
Temperature Resistance
📊

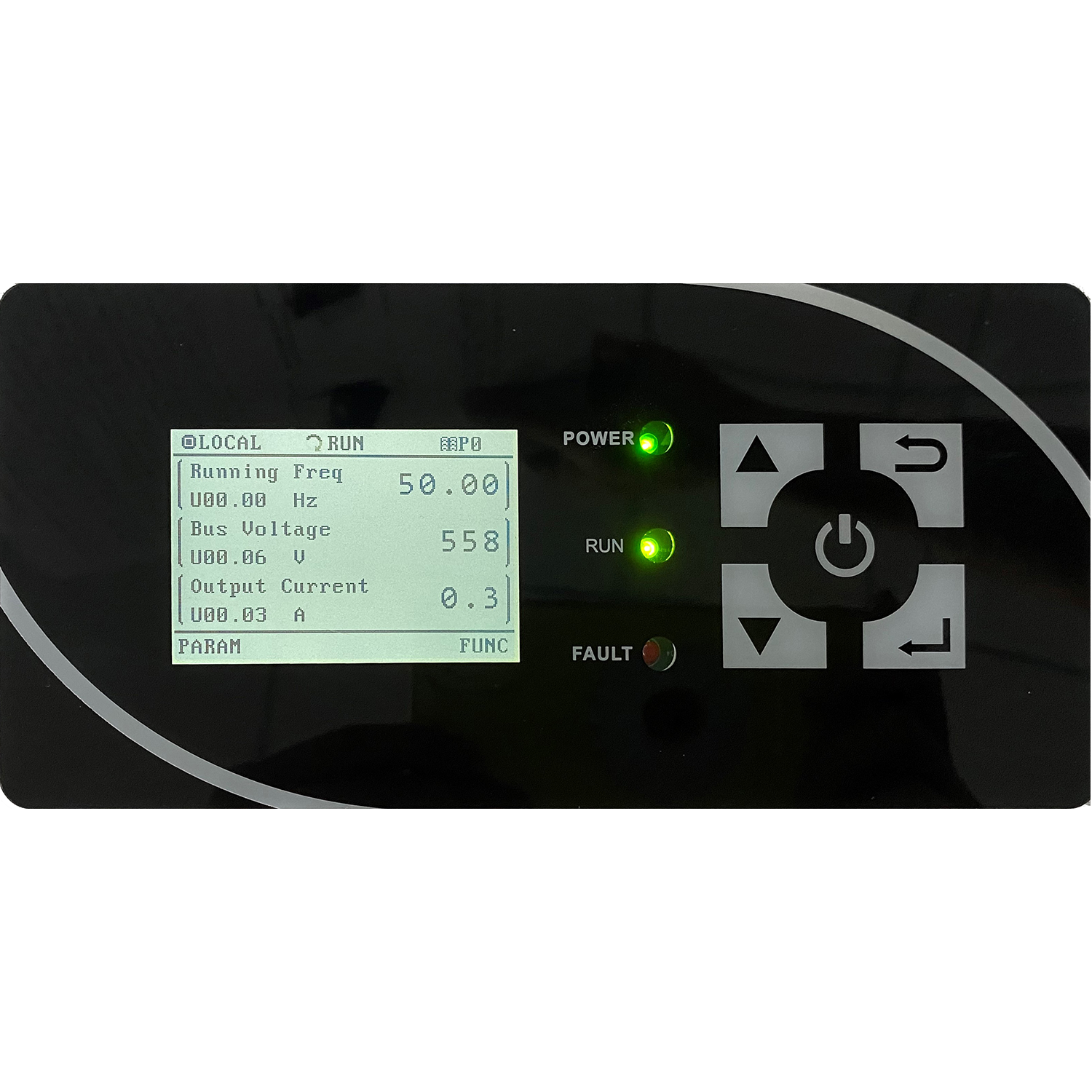

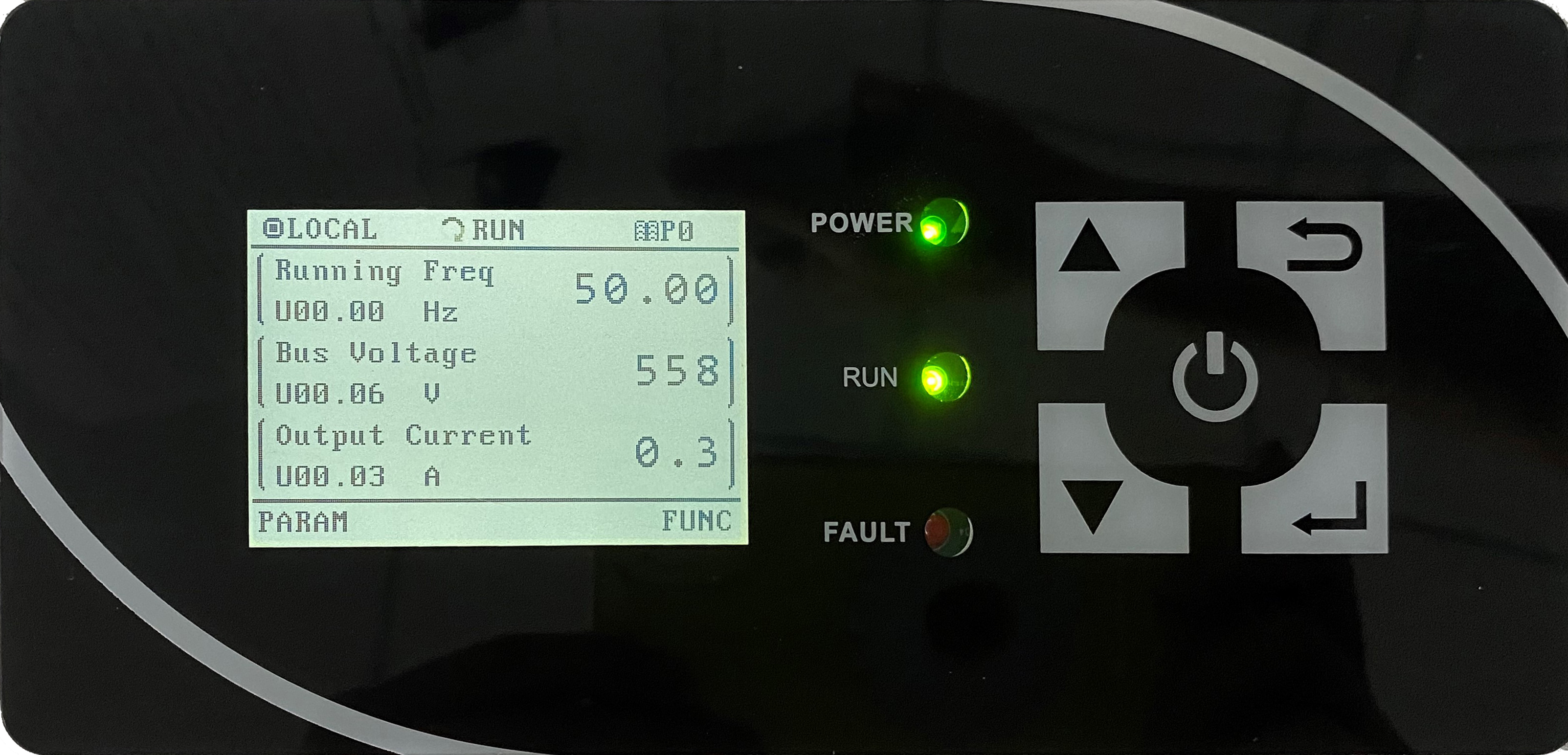

LCD Keypad: Can display three sets of data simultaneously for easy monitoring.
LCD Keypad Display
📡

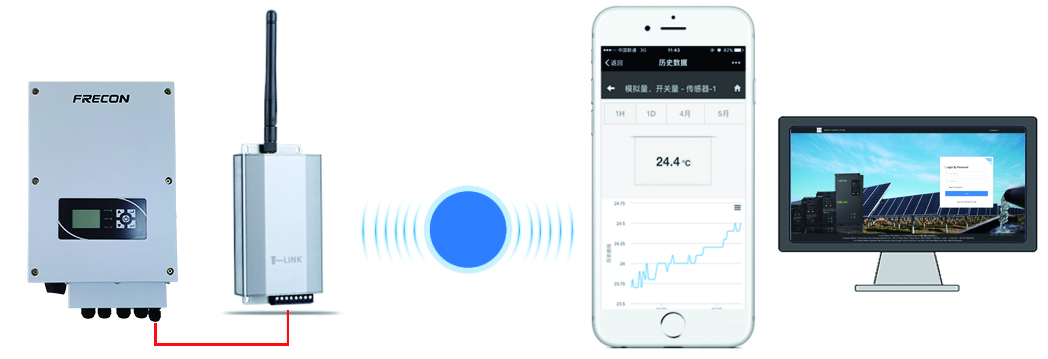

Remote Control: Optional built-in GPRS module for functions including Start/Stop, actual running parameters, and fault record monitoring.
GPRS Remote Monitoring
Input Specification
Input voltage level 4T 2S
PV Input
DC Max Input Voltage 900VDC 450VDC
Recommended MPPT Voltage 450V-850V 100V-400V
Max MPPT Efficiency >99%
AC/DC Input
Voltage 360-460Vac (3PH) 200-260Vac (3PH)
Frequency 50Hz/60Hz(±3%)
AC Output
Rated Output Voltage 380-460Vac (3PH) 220/230Vac (1PH or 3PH)
Output Frequency Range 0-50/60Hz
System
Protection Grade IP65
Operating Temperature -25 to 60°C

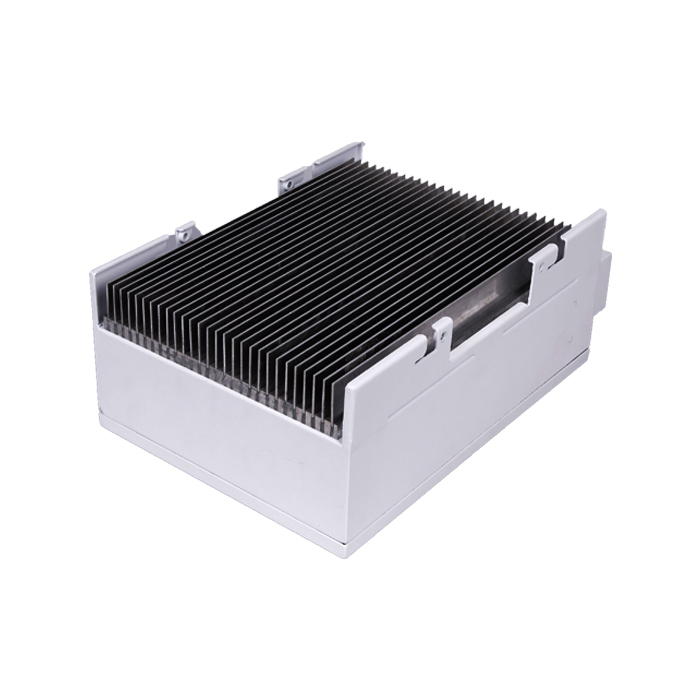

Cooling Way Natural cooling
Communication RS485/GPRS
Dimension (W*H*D) 280*400*148 mm
🌍
Main Partners Distribution: Over 40 Countries
Pakistan, Afghanistan, Egypt, Russia, India, Vietnam, Morocco, Thailand, South Africa, Turkey, Palestine...
Exporting 150,000 inverters annually globally, with 40,000 units specifically for solar pumping.
Distribution Map
  • Accredited double-soft enterprise.
  • National High-tech Enterprise certification.
  • 37 software copyrights and utility patents.
  • 12 years of experience in frequency and solar pumping inverters.
  • Products' power range covers 0.2KW to 1MW.
Certification 1
Certification 2
Certification 3
Factory Production 1
Factory Production 2
Inverter Application
Frequently Asked Questions
Q: Are you a trading company or a manufacturer? A: We are a factory with years of expert manufacturing experience.
Q: Do you provide samples? Is it free or extra? A: Yes, we offer samples for testing with reasonable charges. Samples can be delivered via express (DHL/UPS) typically within one week.
Q: What are your terms of payment? A: 100% in advance. We accept various secure payment methods. L/C and O/A terms are available for long-term regular customers.
Q: What are your terms of packing? A: Generally, low rated power units are packed in carton boxes, while units of 55KW and above are packed in wooden cases. Special requirements are acceptable.
Q: Do you test all goods before delivery? A: Yes, 100% of our products undergo rigorous testing before delivery.
Q: How long is your delivery time? A: Generally 5-10 days if in stock, or 15-20 days if not in stock, depending on the order quantity.
