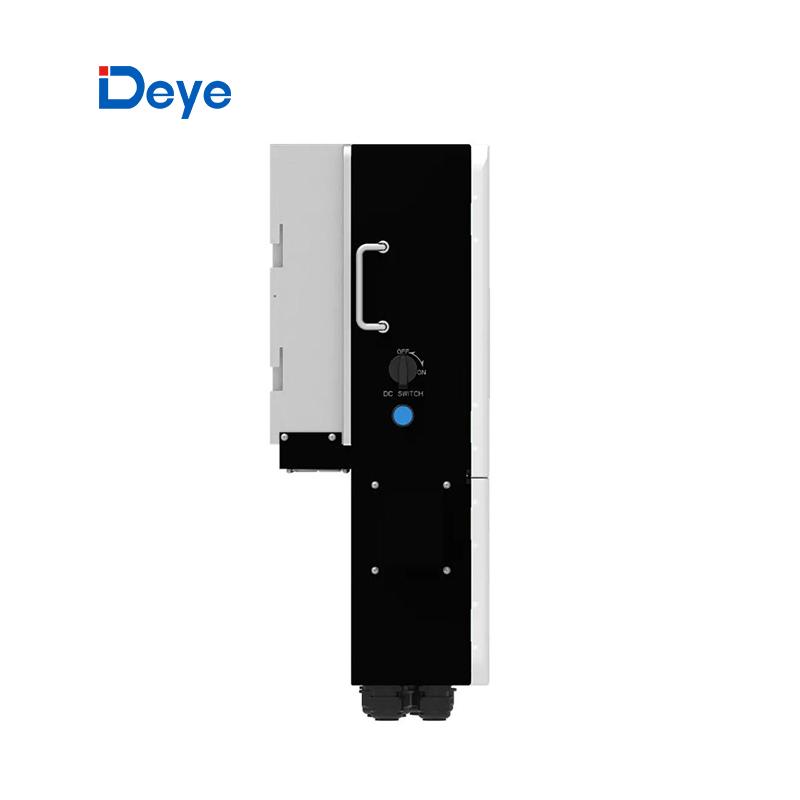

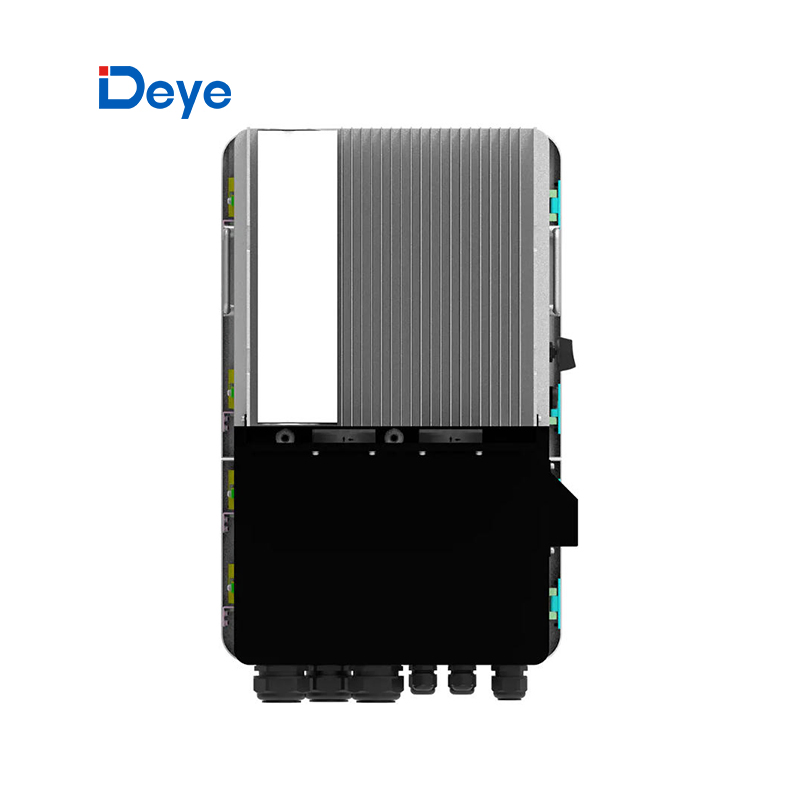

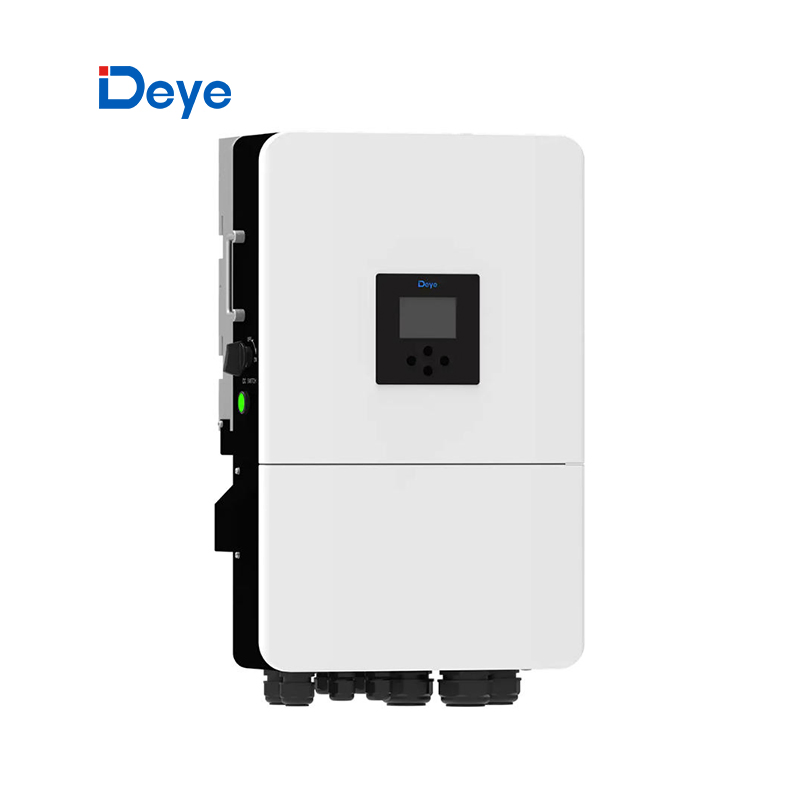

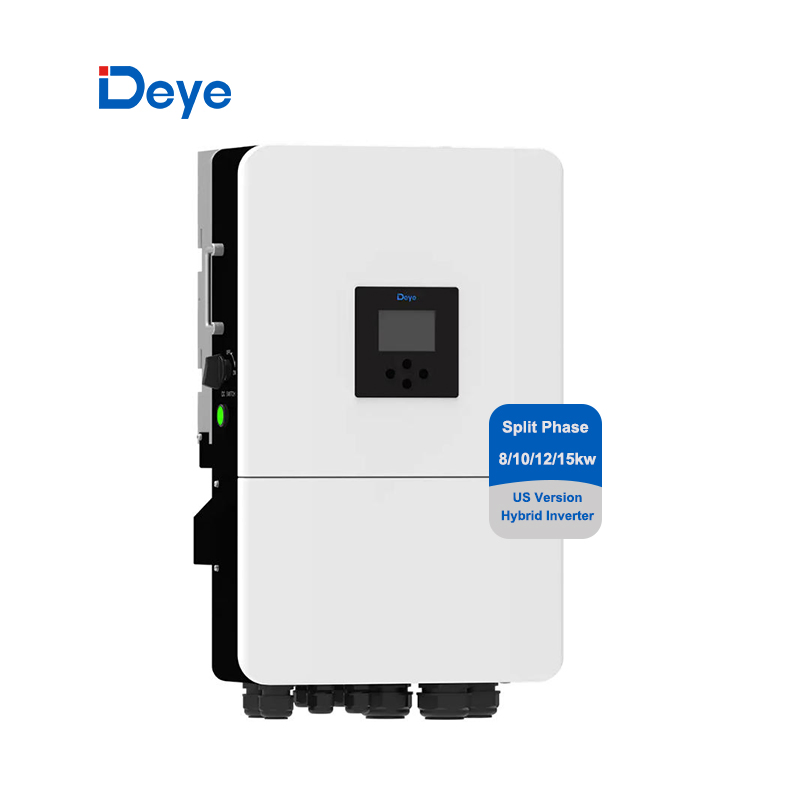

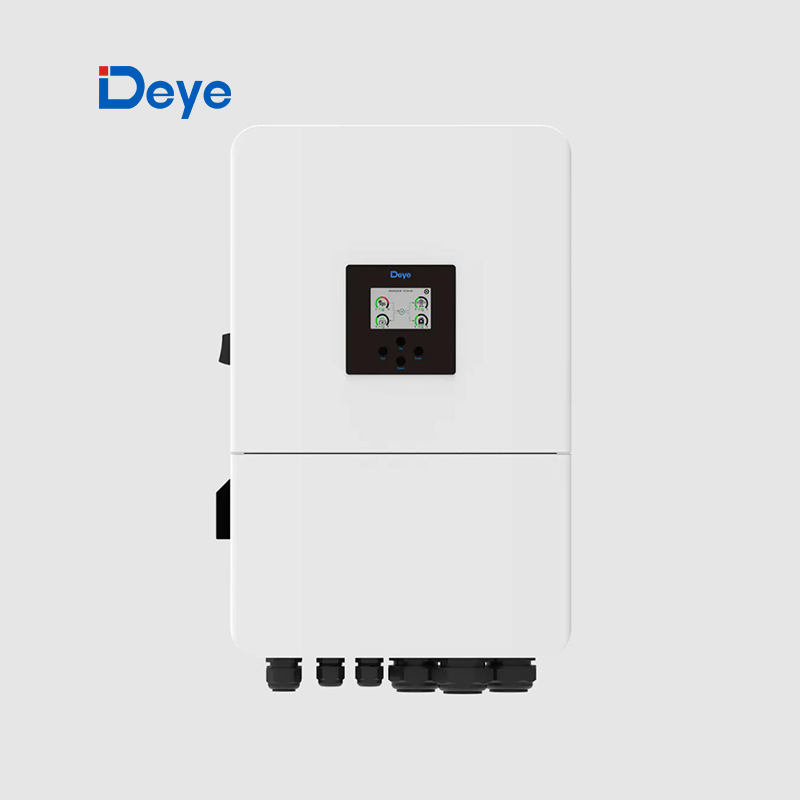

Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
1 / 5
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter

Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model
SUN-8/10/12/15K-SG01HP2-US-AM2
Phase
Split Phase
Output Power
8kW - 15kW
Efficiency
97.6%
Battery Voltage
160V - 500V
Input Voltage
380V
Output Voltage
120V/240V, 208V
Cooling
Intelligent Air Cooling
IP Rating
TYPE 3R
Communication
RS485 / RS232 / CAN
💡 Product Description
US Version Split Phase 120V/240V High Voltage Hybrid Solar Inverter (8kW-15kW)
High Voltage Hybrid Solar Inverter
⚙️ Technical Parameters
Model SUN-8K-SG01HP2 SUN-10K-SG01HP2 SUN-12K-SG01HP2 SUN-15K-SG01HP2
Battery Input Data
Battery Type Lithium-ion
Voltage Range (V) 160 - 500
Max Charge/Discharge (A) 50 / 50
PV String Input Data
Max PV Access Power (W) 16000 20000 24000 30000
Max PV Input Voltage (V) 550
MPPT Range (V) 150 - 500
AC Output Data
Rated Output Power (W) 8000 10000 12000 15000
Rated Output Current (A) 33.4 41.7 50.0 62.5
Output Voltage 120/240V (Split Phase), 208V
📦 Packaging & Project Cases
Packaging details

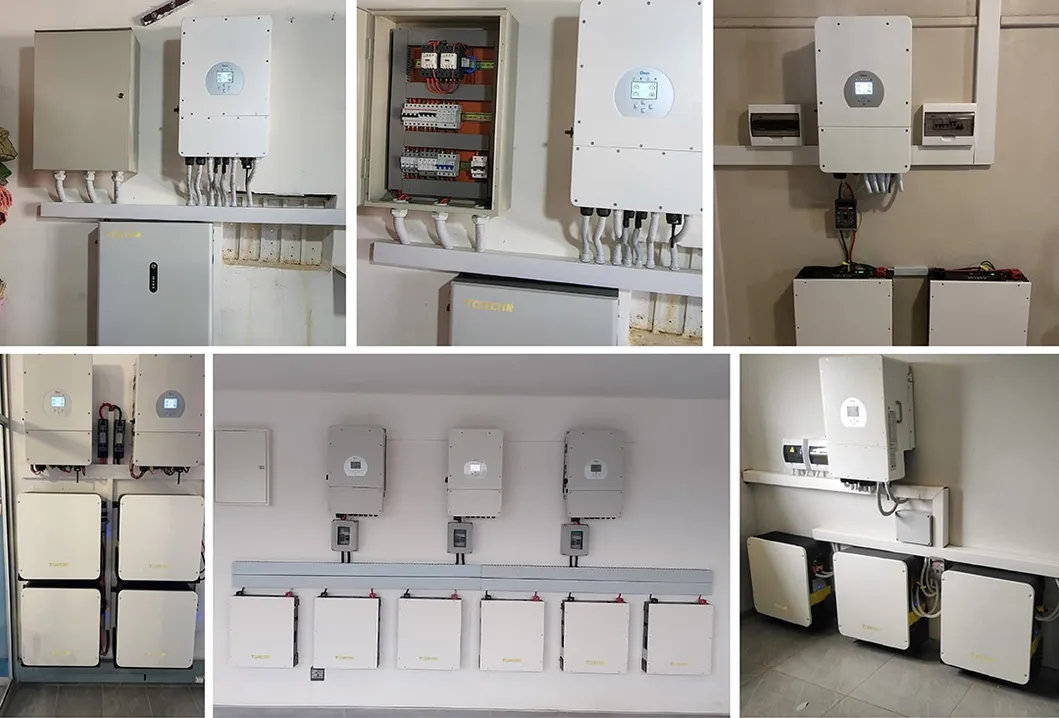

Project Installation Case
❓ Frequently Asked Questions
1. What is the battery compatibility for this hybrid inverter?
This series is designed for High Voltage Lithium-ion batteries with a voltage range of 160V to 500V, featuring self-adaption to the Battery Management System (BMS).
2. Does it support standard US residential power systems?
Yes, it is specifically designed for the US market, supporting Split Phase 120V/240V and 208V grid connections (2L+N+PE).
3. What is the maximum efficiency of the inverter?
The inverter achieves a maximum efficiency of 97.6%, with an MPPT efficiency of over 99%.
4. Can this inverter be installed outdoors?
Yes, the unit features a TYPE 3R (equivalent to high IP rating) protection level and can operate in temperatures ranging from -40°C to +60°C.
5. What protection features are integrated?
It includes comprehensive protection such as DC Polarity Reverse Connection, AC Overcurrent/Overvoltage, Short Circuit protection, Ground Fault Monitoring, and optional Arc Fault Circuit Interrupter (AFCI).
6. How can I monitor the system performance?
The system supports multiple monitoring modes including GPRS, WIFI, Bluetooth, 4G, and LAN via RS485, RS232, or CAN interfaces.
