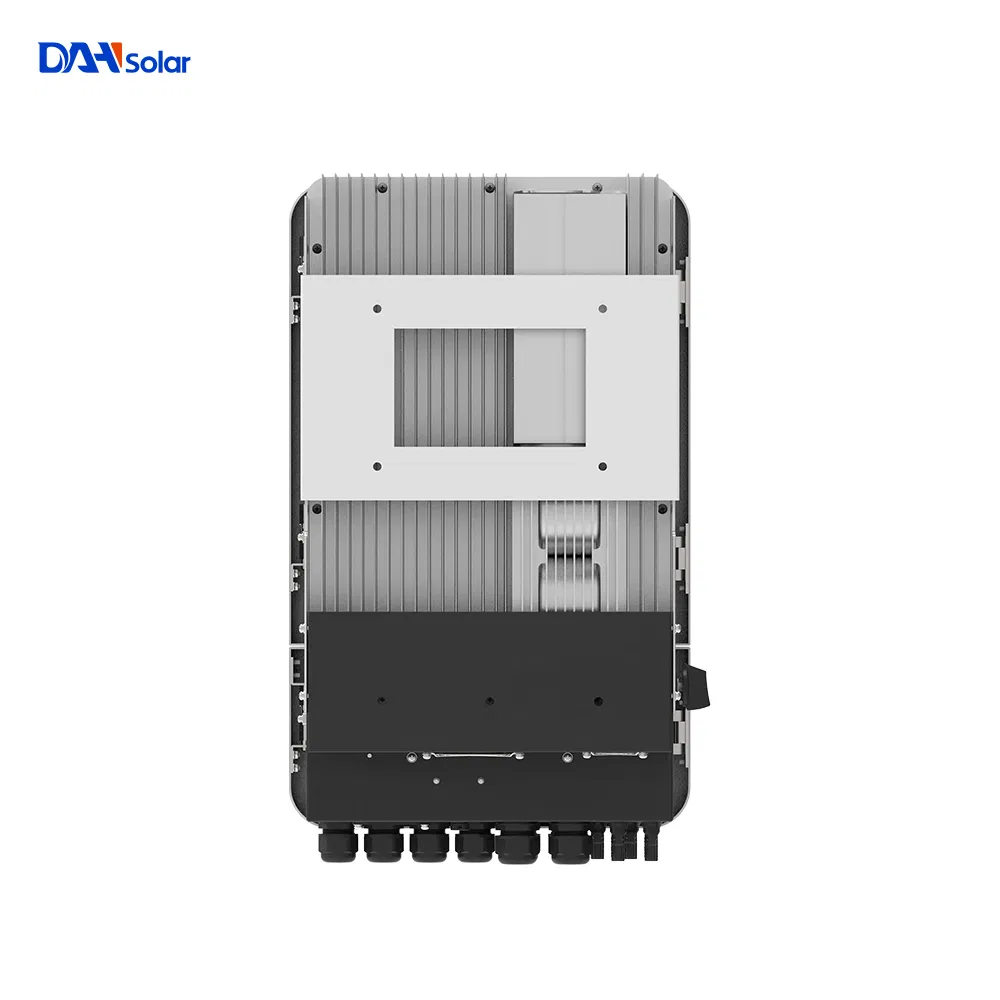

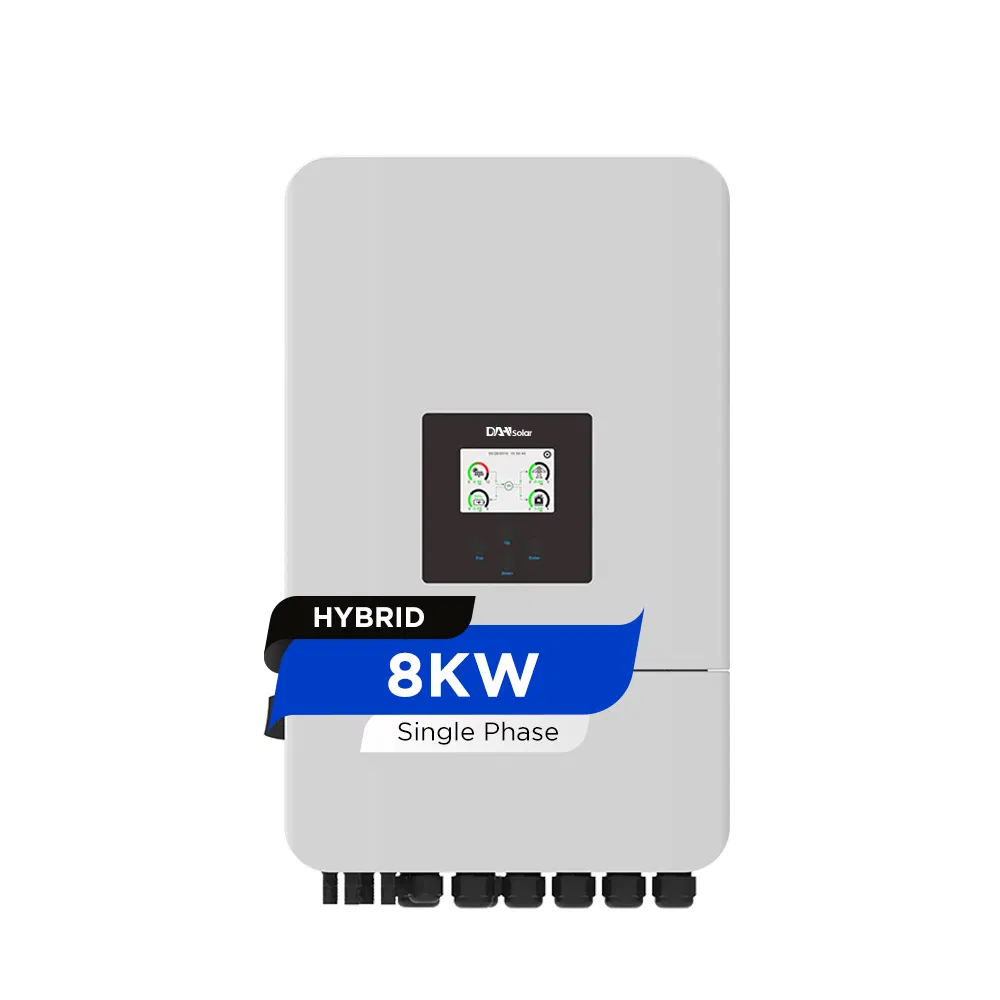

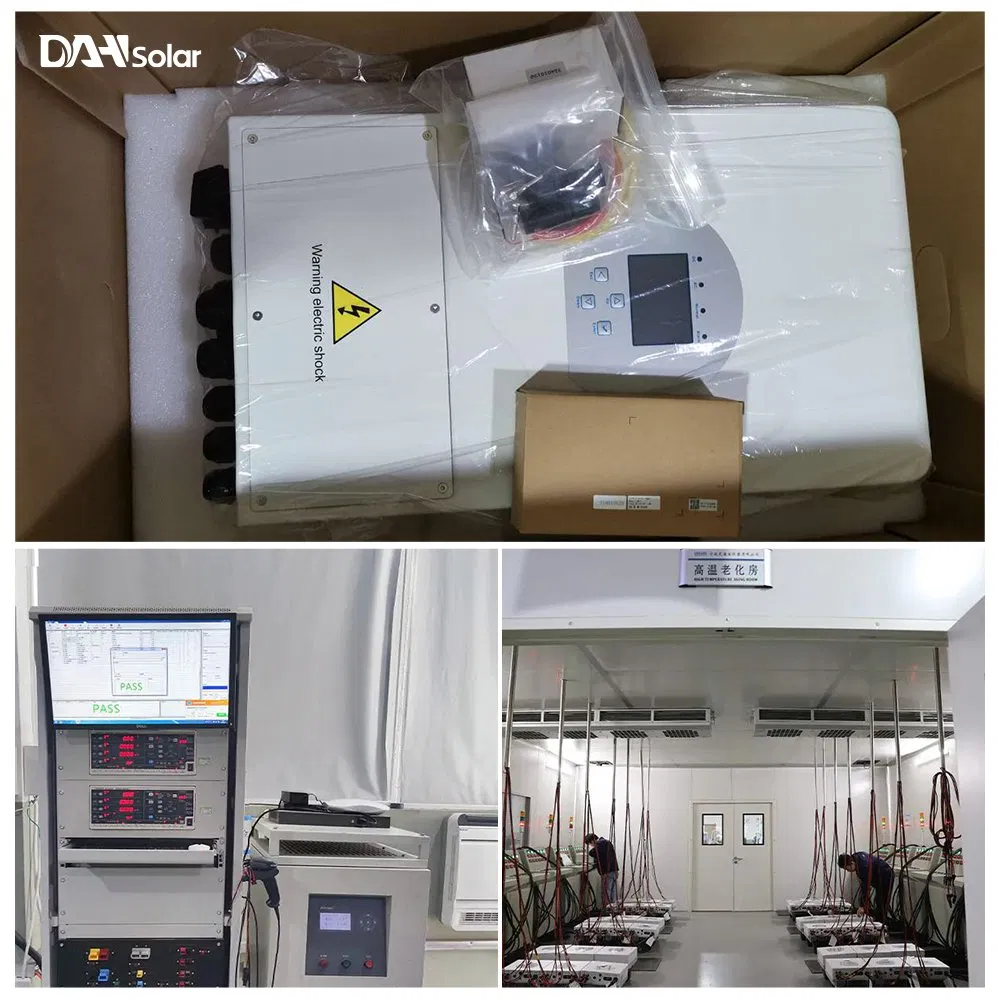

Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters Single Phase EU Version Solar Inverter for Home PV Energy Storage System
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters Single Phase EU Version Solar Inverter for Home PV Energy Storage System
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters Single Phase EU Version Solar Inverter for Home PV Energy Storage System
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters Single Phase EU Version Solar Inverter for Home PV Energy Storage System
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters Single Phase EU Version Solar Inverter for Home PV Energy Storage System
1 / 5
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters Single Phase EU Version Solar Inverter for Home PV Energy Storage System
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters Single Phase EU Version Solar Inverter for Home PV Energy Storage System
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters Single Phase EU Version Solar Inverter for Home PV Energy Storage System
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters Single Phase EU Version Solar Inverter for Home PV Energy Storage System
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters Single Phase EU Version Solar Inverter for Home PV Energy Storage System

Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters Single Phase EU Version Solar Inverter for Home PV Energy Storage System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
SUN-8K-SG05LP1-EU-SM2
Nature of Source
Active Inverter
Phase
Single Phase
Output Power
6000W - 8000W Range
Certification
SAA, CE, ROHS, ISO9001
Power Source
Solar Power
Wave String
Sine Wave Inverter
MPPT Efficiency
99.9%
Protection Rating
IP 65
Frequency
50/60 Hz
Altitude
2000m
Communication
RS485/RS232/Can
🚀 Product Features
Hybrid Inverter Overview

🌟 Smart Monitoring Platform: Support remotely shutdown immediately when accident occurs. Setting parameters and firmware updates remotely, which makes PV plant O&M easier and more efficient.

Model Parameter SUN-3.6K SUN-5K SUN-6K SUN-8K
Battery Input Data
Battery TypeLead-acid or Lithium-ion
Voltage Range (V)40-60
Max. Charging (A)90120135190
PV String Input Data
Max PV Input (W)46806500780010400
Max Input Voltage (V)500
MPPT Range (V)150-425
AC Output Data
Rated Power (W)3600500060008000
Peak Power2 times of rated power, 10s
Grid FormL+N+PE
Efficiency & Protection
Max Efficiency97.6%
MPPT Efficiency>99%
Surge ProtectionTYPE II (DC), TYPE II (AC)
🖼️ Product Gallery

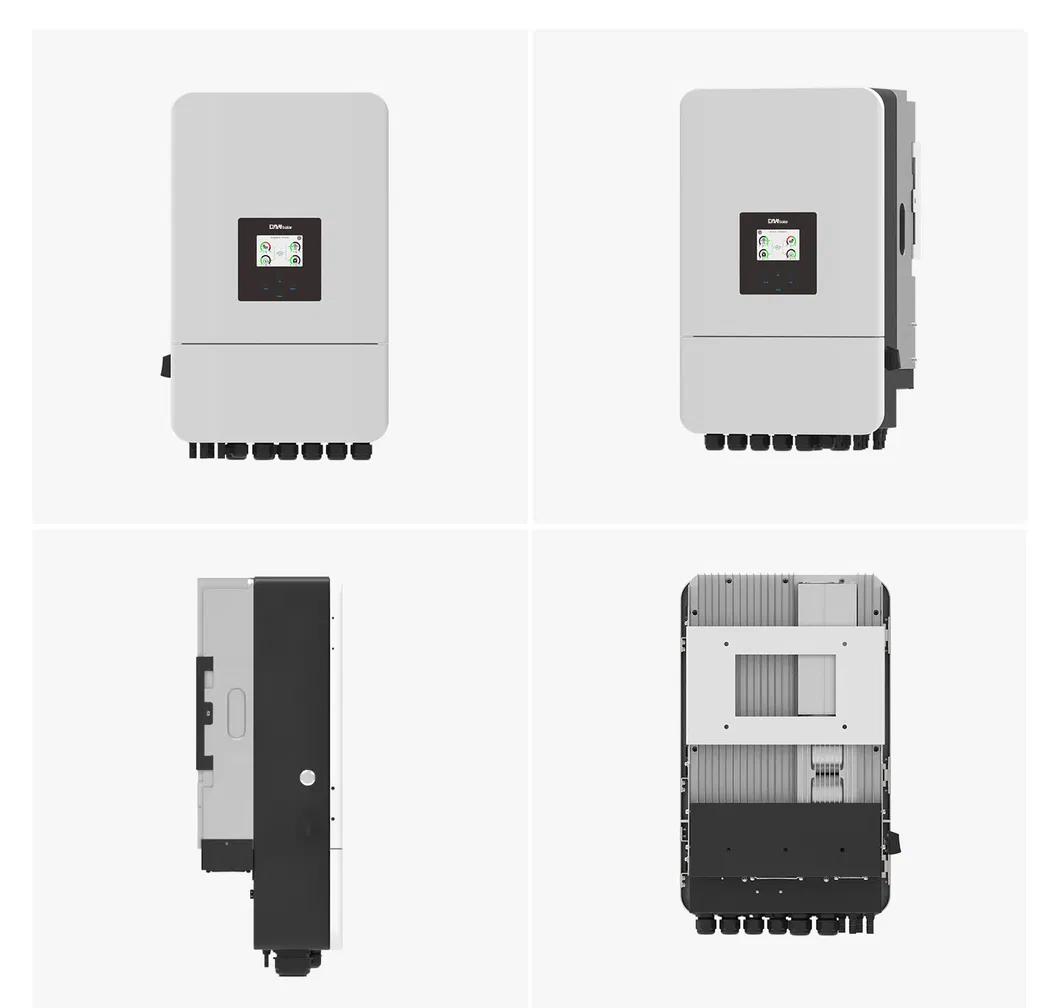

Inverter Specification Detail
Inverter Technical Diagram
📦 Packaging & Delivery
Package Size
62.00cm * 46.00cm * 35.00cm
Gross Weight
30.000kg

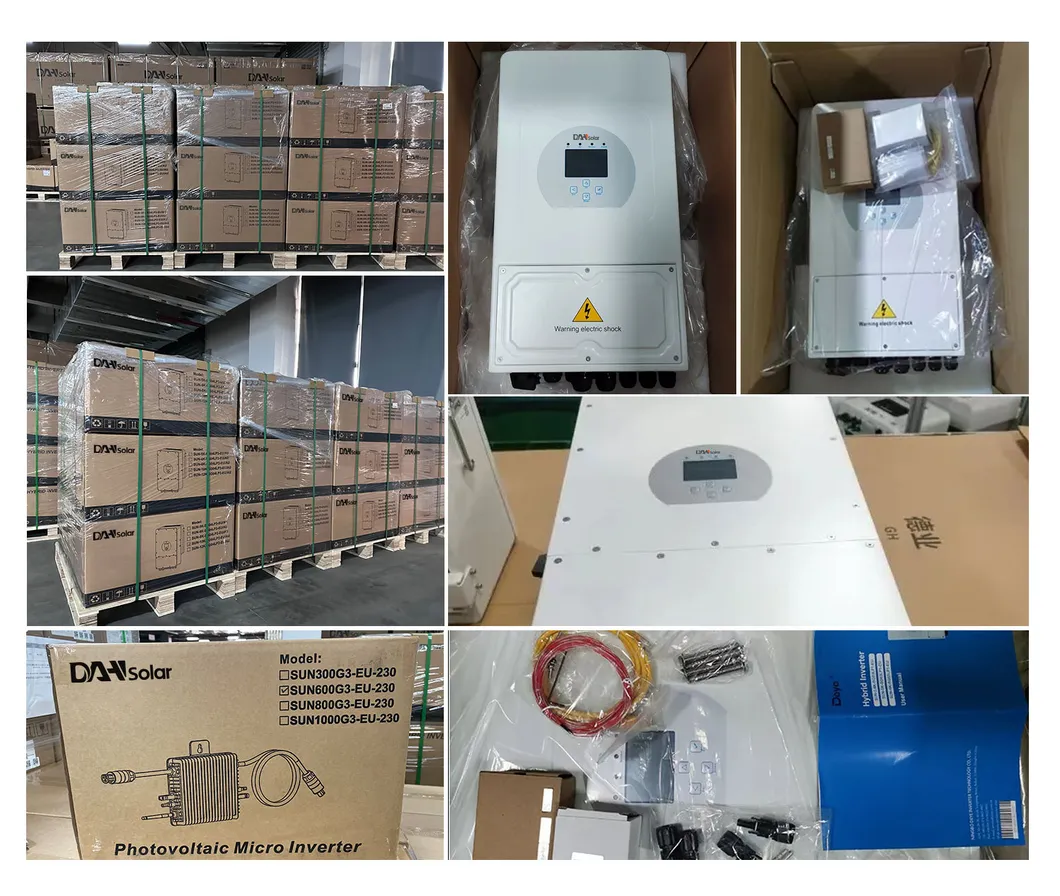

Packaging Box Detail
🏠 Installation Cases

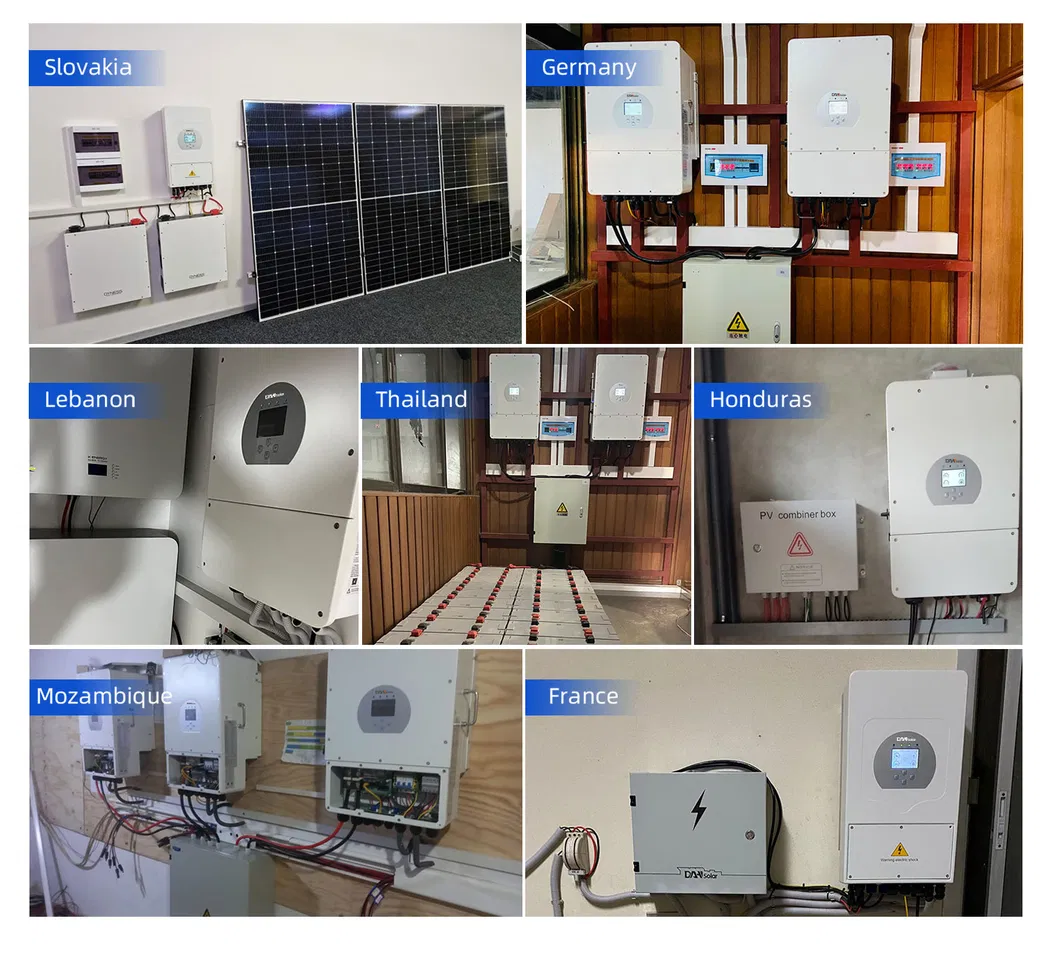

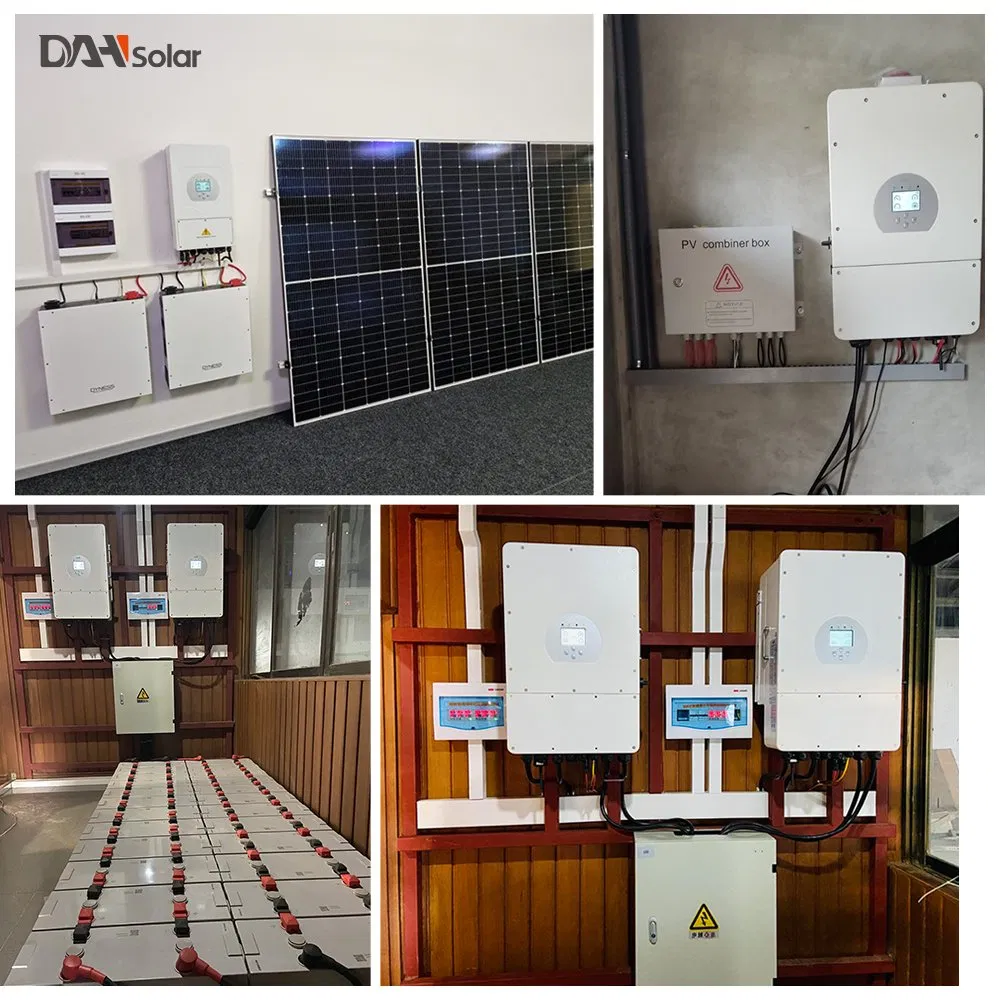

Solar Project Installation
💡 Frequently Asked Questions
What types of batteries are compatible with this hybrid inverter?
This inverter is designed for versatility and supports both Lead-acid and Lithium-ion batteries with a voltage range of 40-60V.
Does the inverter support remote monitoring?
Yes, it features a smart monitoring platform that allows for remote parameter setting, firmware updates, and immediate shutdown in case of an emergency.
Can this unit be installed outdoors?
Yes, the inverter has an IP65 ingress protection rating, making it suitable for outdoor installation with high resistance to dust and water.
What is the peak power capacity during off-grid operation?
The inverter can handle a peak power load of up to 2 times its rated power for a duration of 10 seconds during off-grid mode.
Is it possible to use multiple MPPT trackers?
The unit comes with 2 MPP Trackers, allowing for optimized energy harvest from different solar panel orientations or strings.
What communication interfaces are supported?
The system supports RS485, RS232, and CAN communication interfaces, with optional monitoring via WIFI, GPRS, or 4G.
