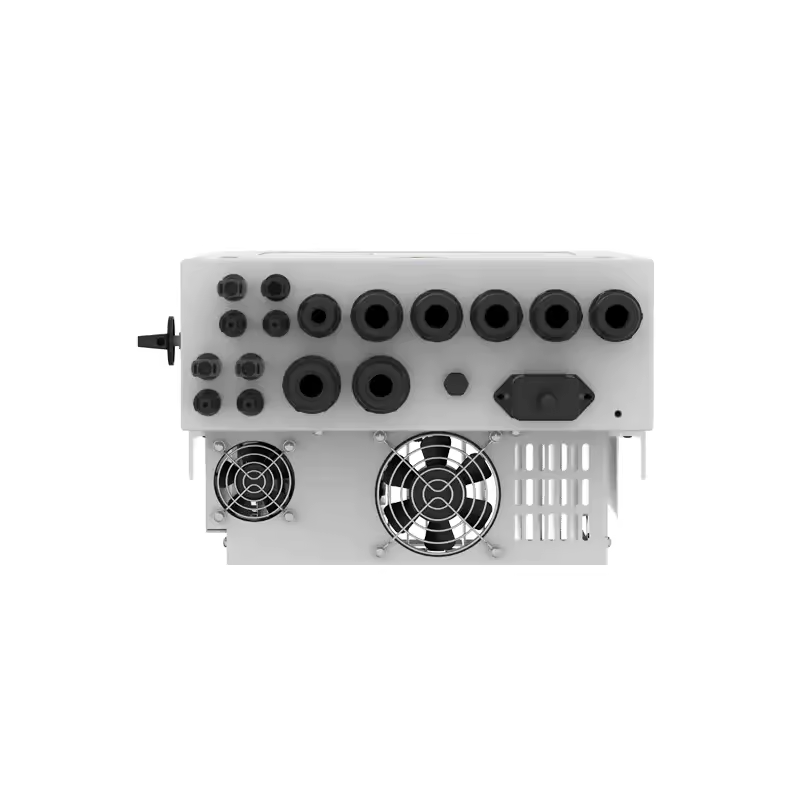

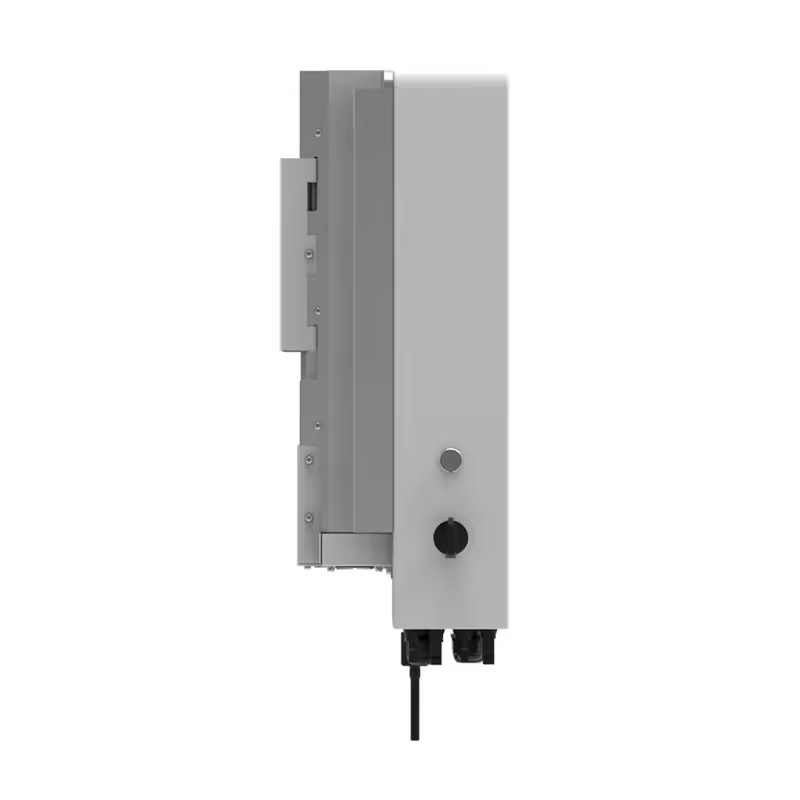

Deye Single Phase Inverter Hybrid Inverter SUN-SG05LP1-EU 3.6/5/6/7/7.6/8KW Low Voltage for Home Use

Send Inquiry

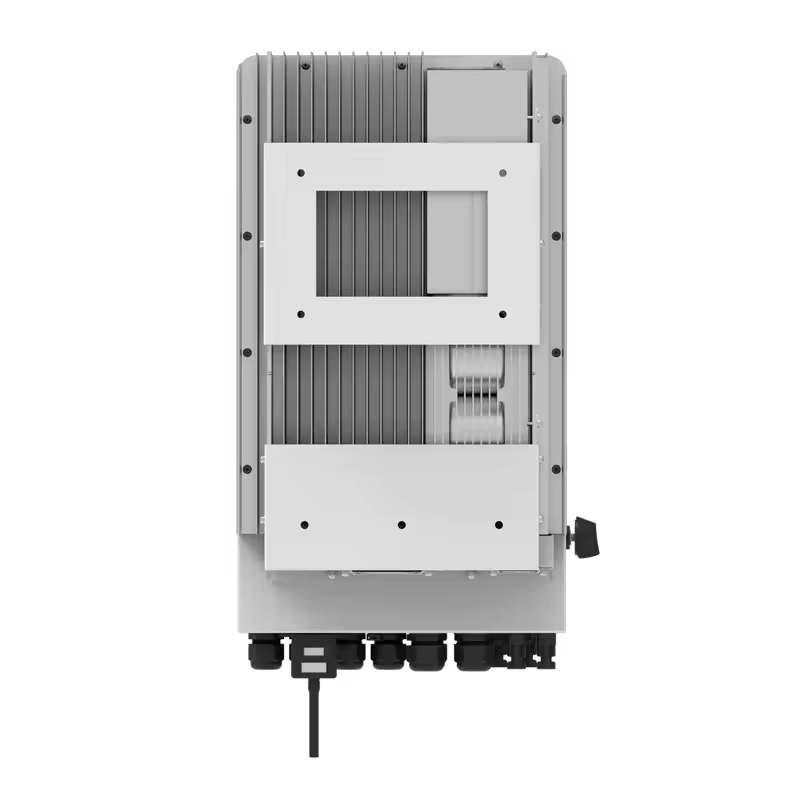

Product Description

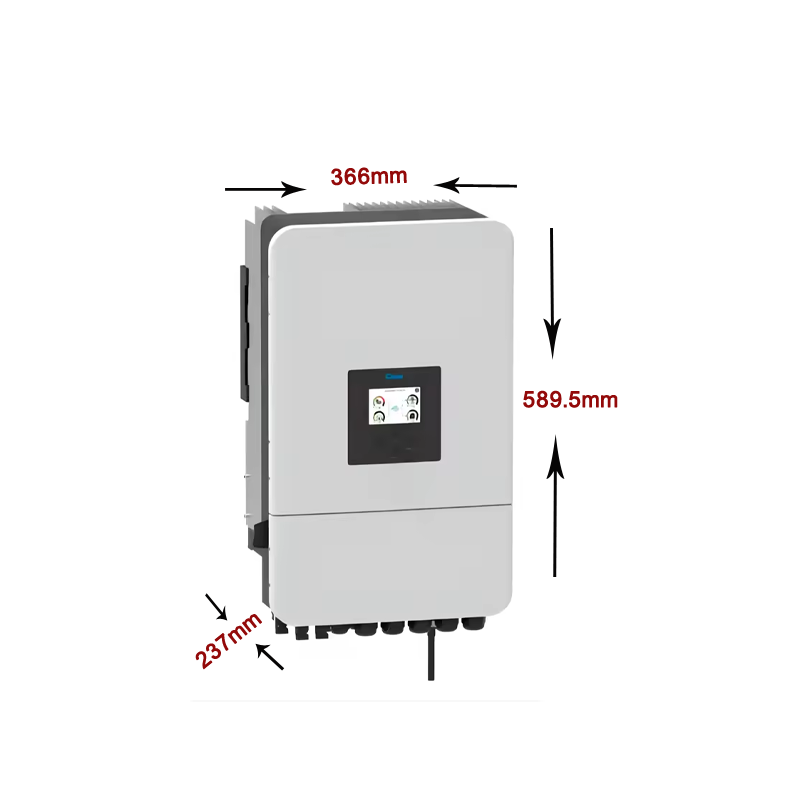

SUN-8K-SG05LP1-EU-SM2

Specification

Model		SUN-8K-SG05LP1-EU-SM2
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	190
Max. Discharging Current (A)	190
External Temperature Sensor	Yes
Charging Curve	3 Stages / Equalization
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. PV Input Power (W)	16000
Rated PV Input Voltage (V)	370
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150-425
PV Input Current (A)	34+34
Max. PV I (A)	26+26
No.of MPP Trackers	2/2+2
No.of Strings per MPP Tracker	2
AC Output Data
Rated AC Output Active Power (W)	8000
Max AC Output Active Power (W)	8800
AC Output Rated Current (A)	36.4/34.8
Max. AC Output Current (A)	40/38.3
Peak Power (off grid)	2 time of rated power, 10 S
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range(V)	220/230 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range	50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Grid Connection Form	L+N+PE
Total Harmonics Current Distortion (THDi)	<3% (of nominal power)

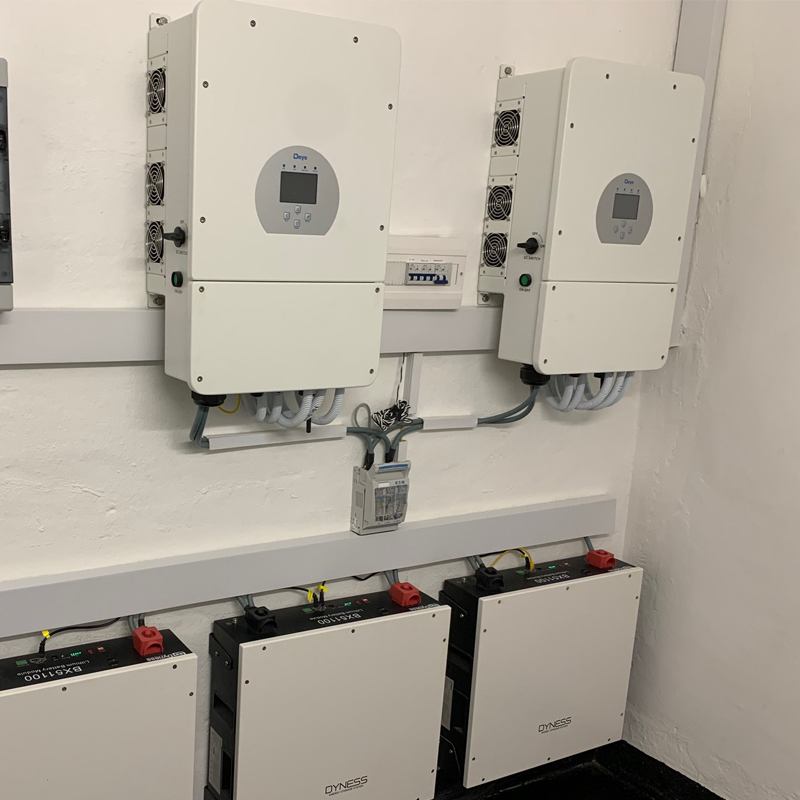

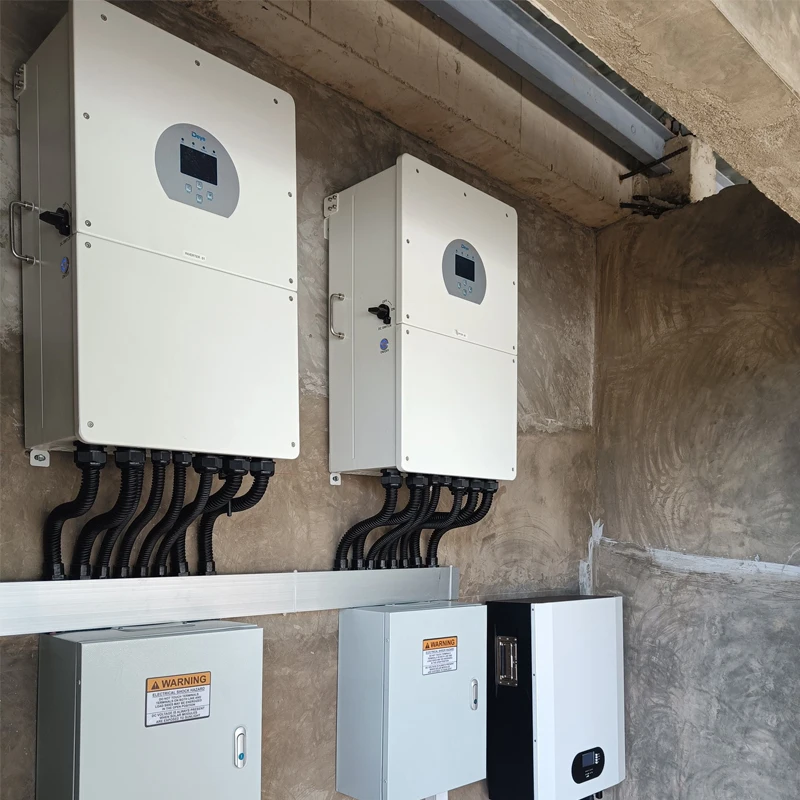

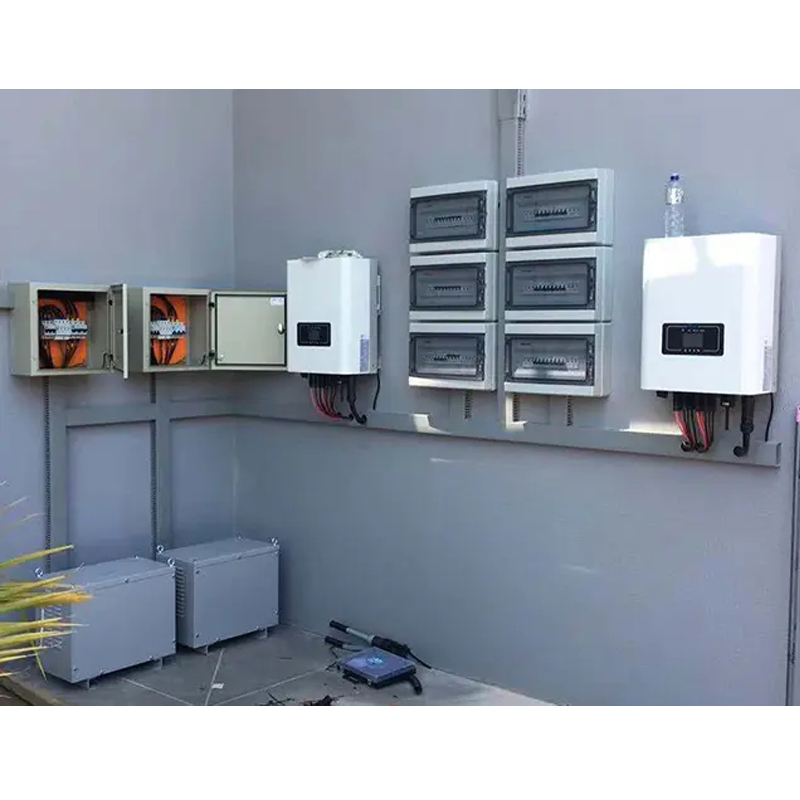

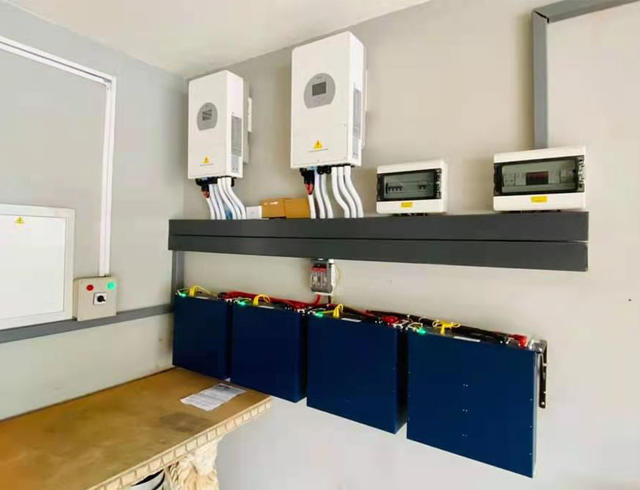

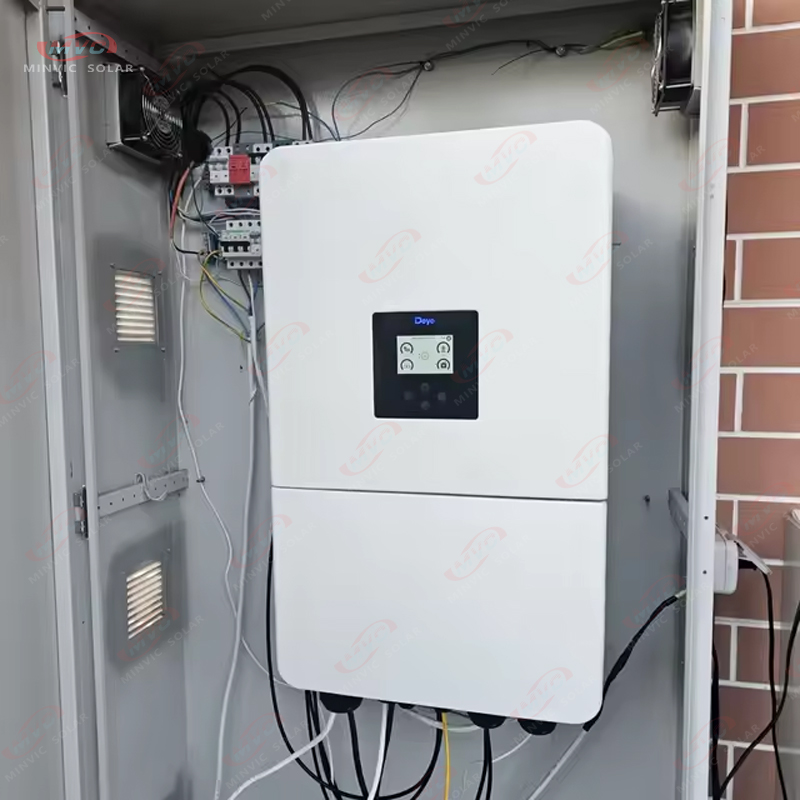

Project Case

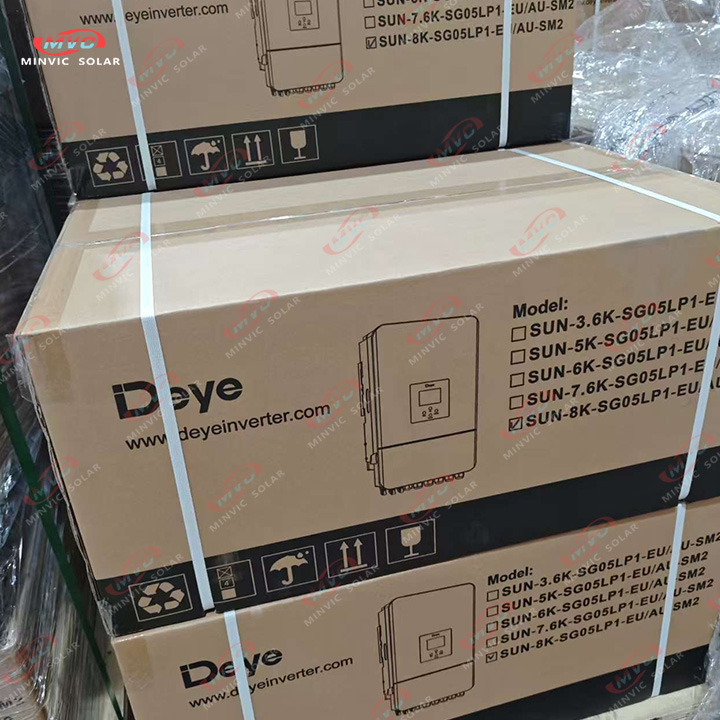

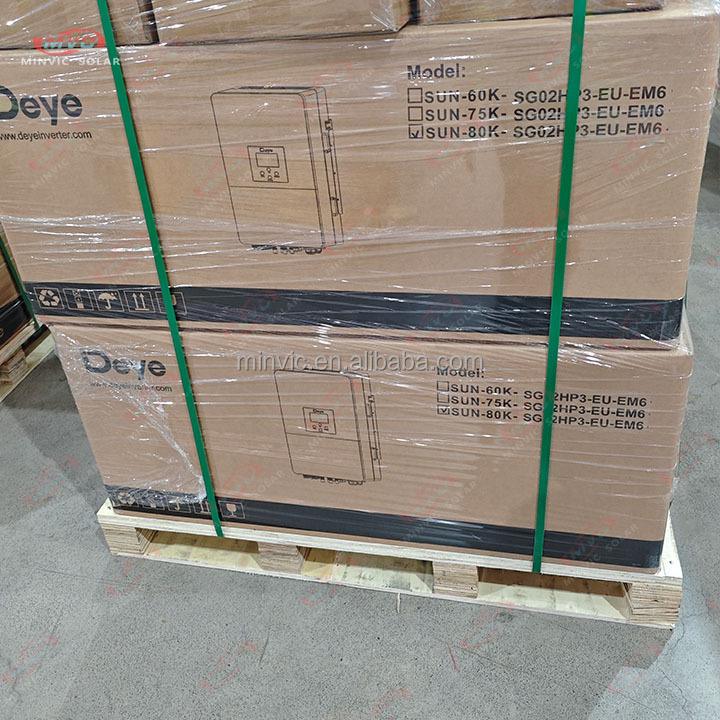

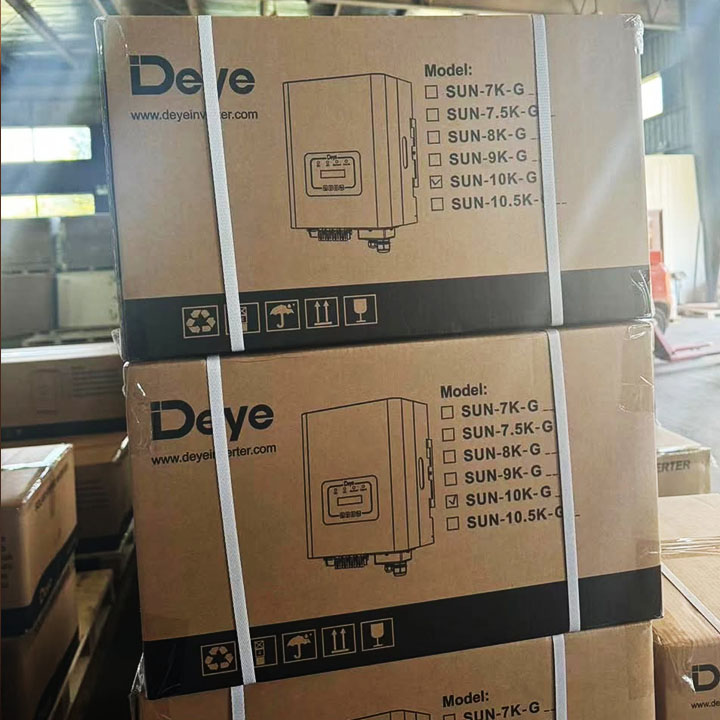

Packing & Delivery

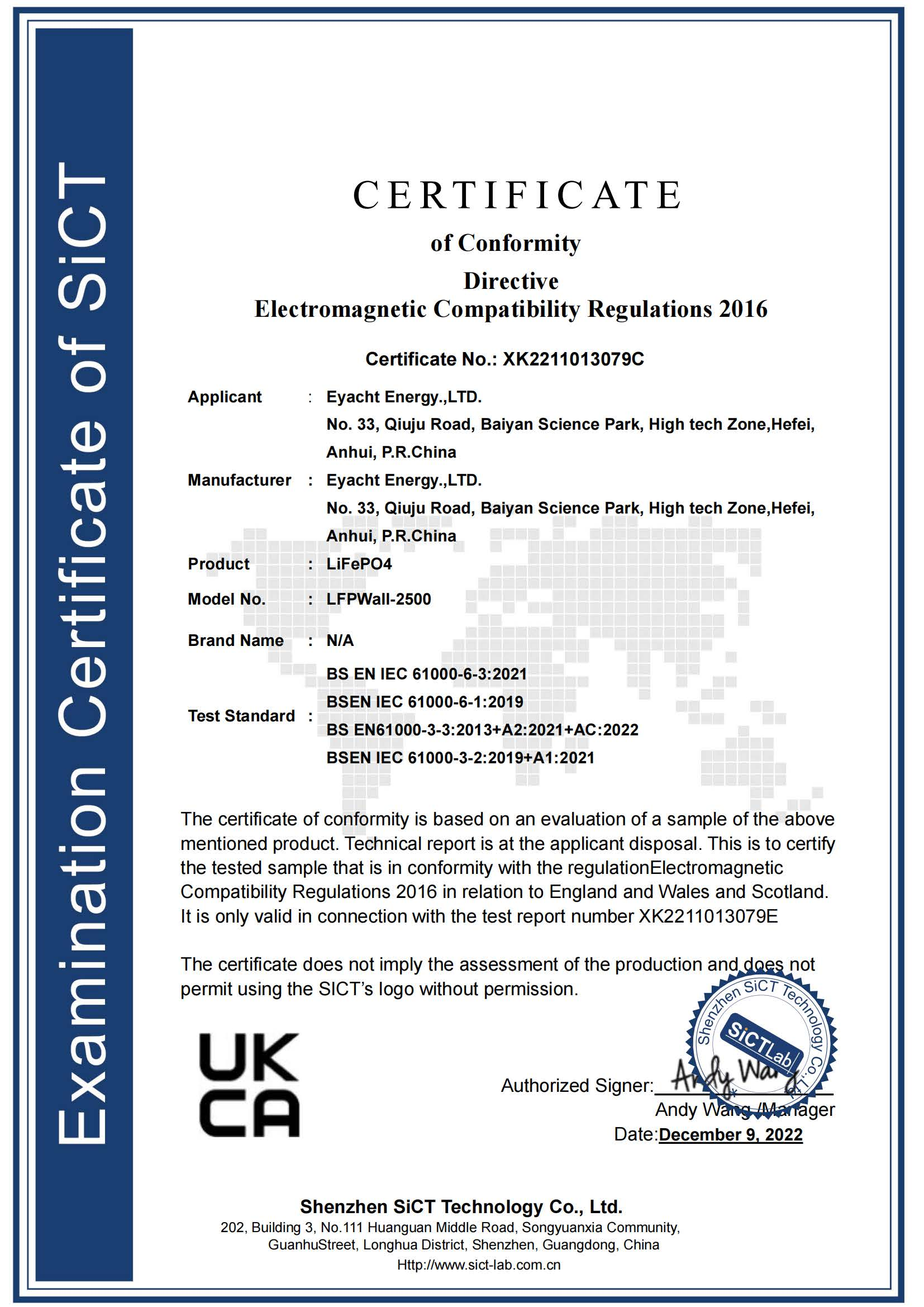

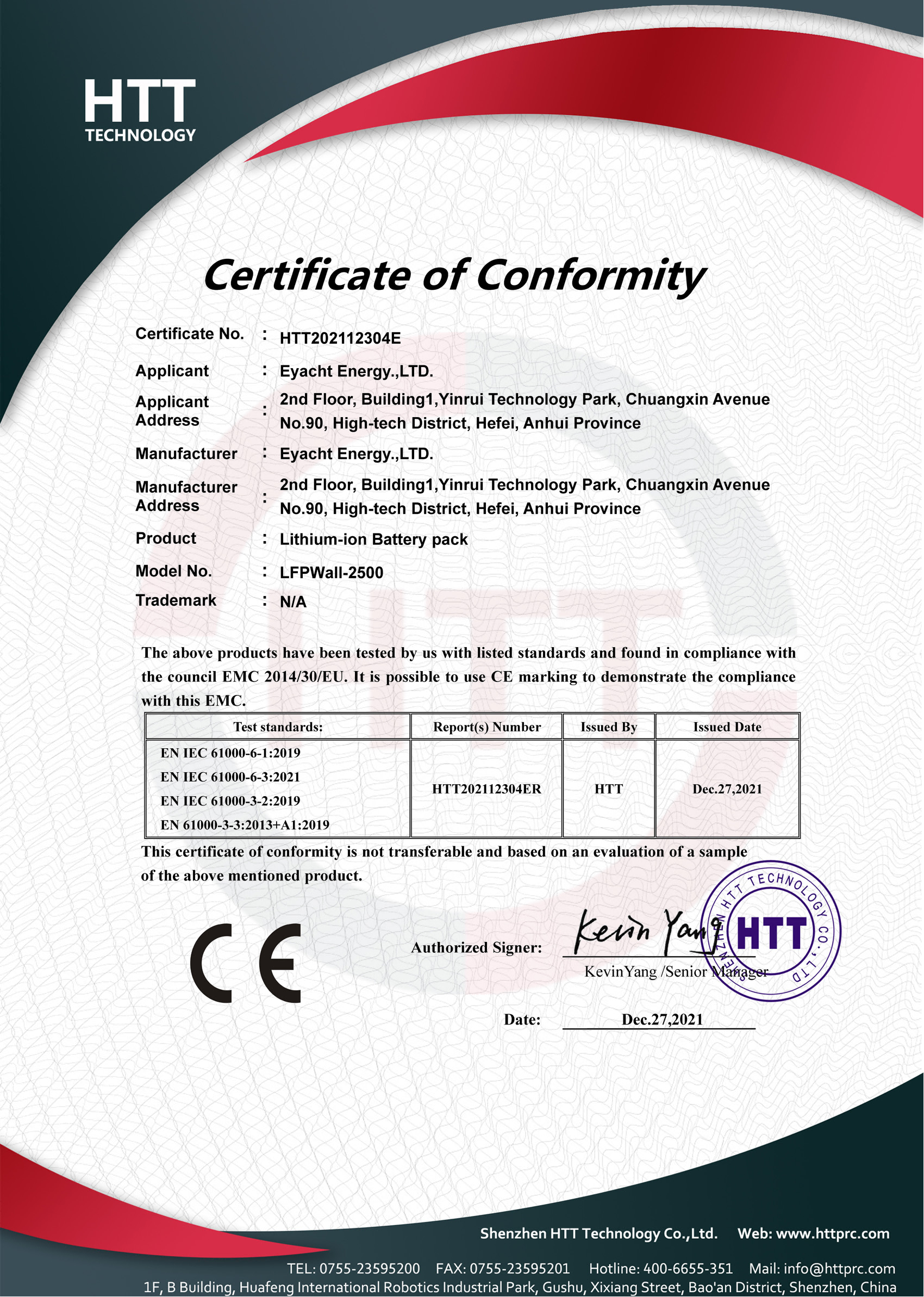

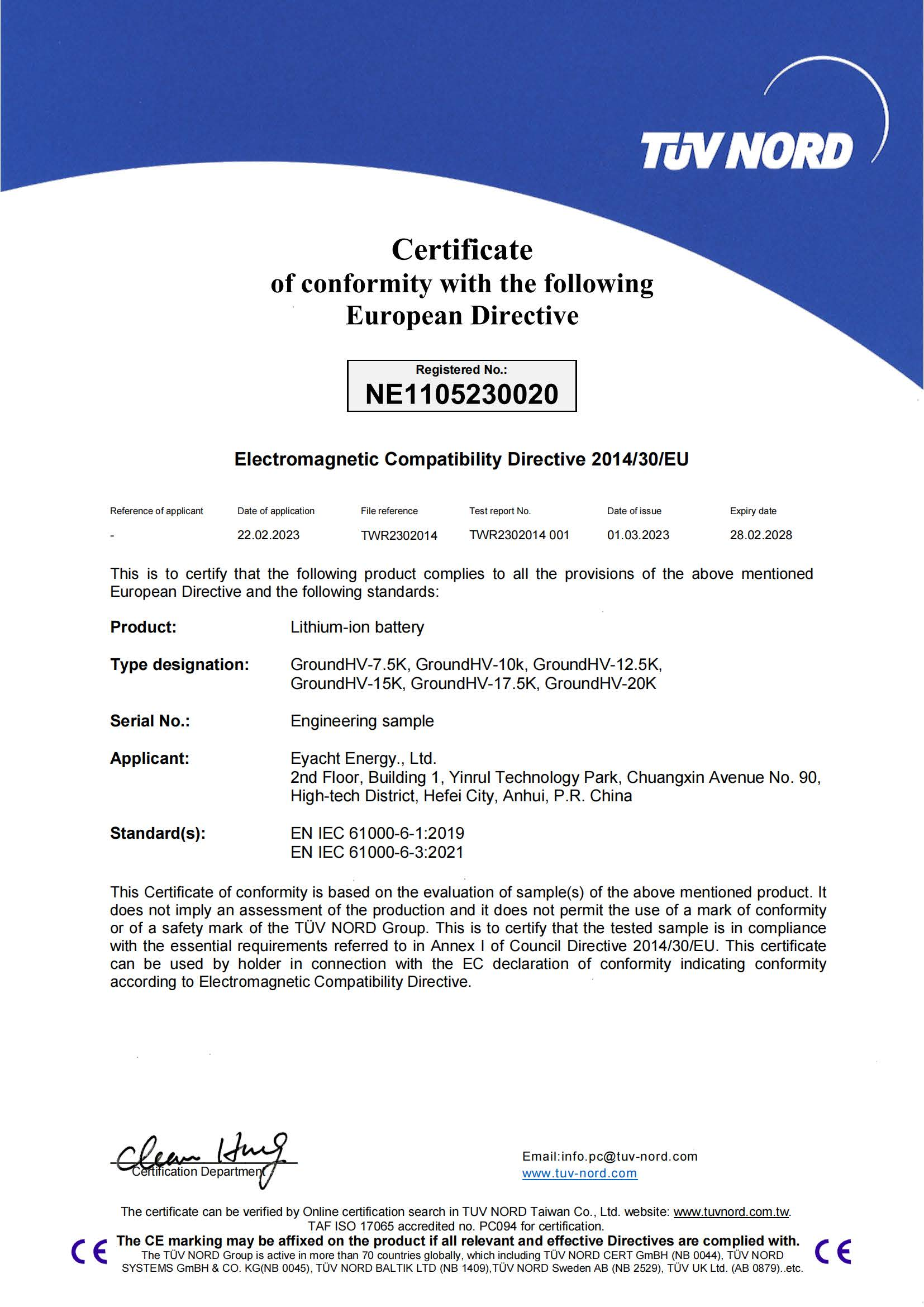

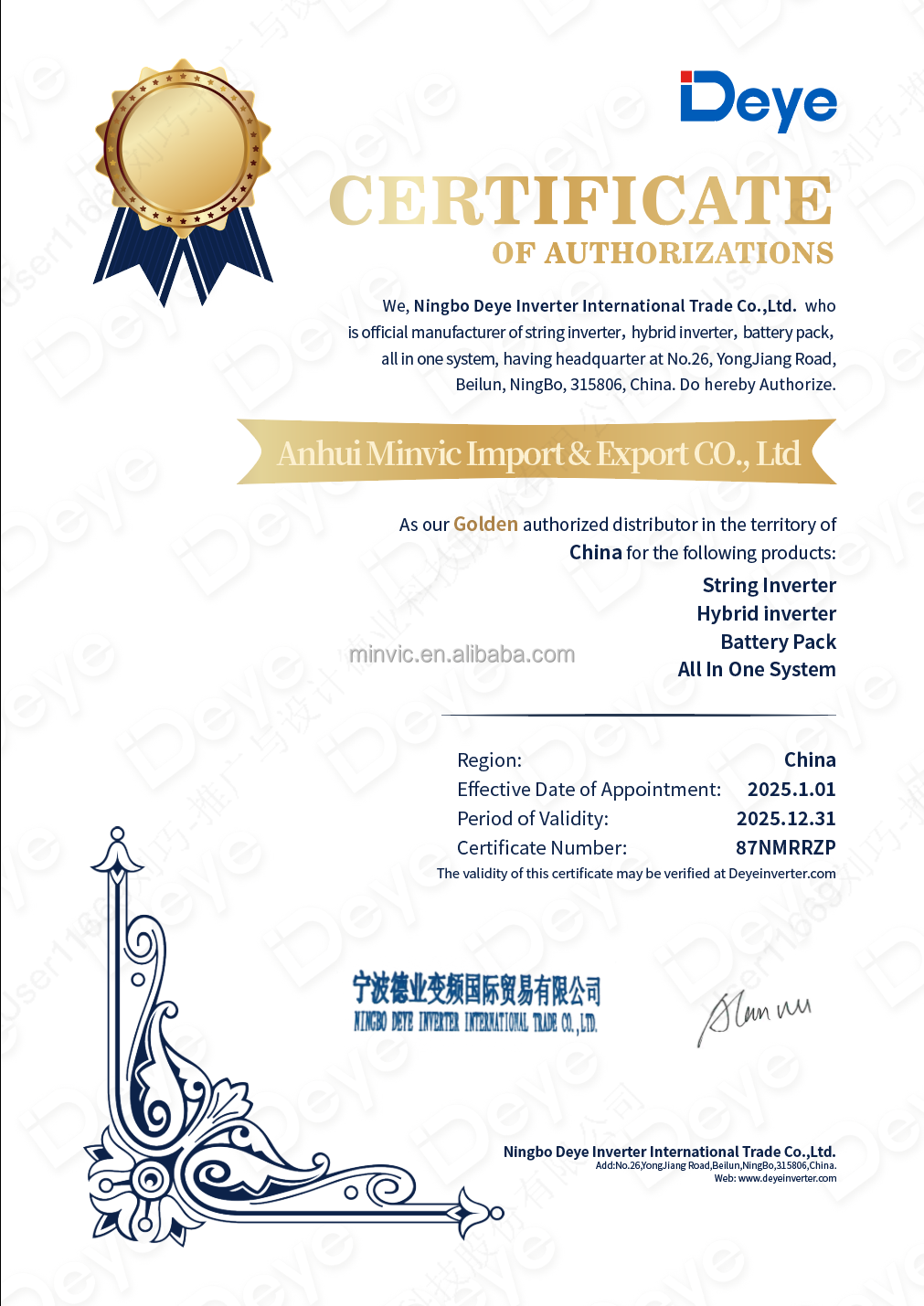

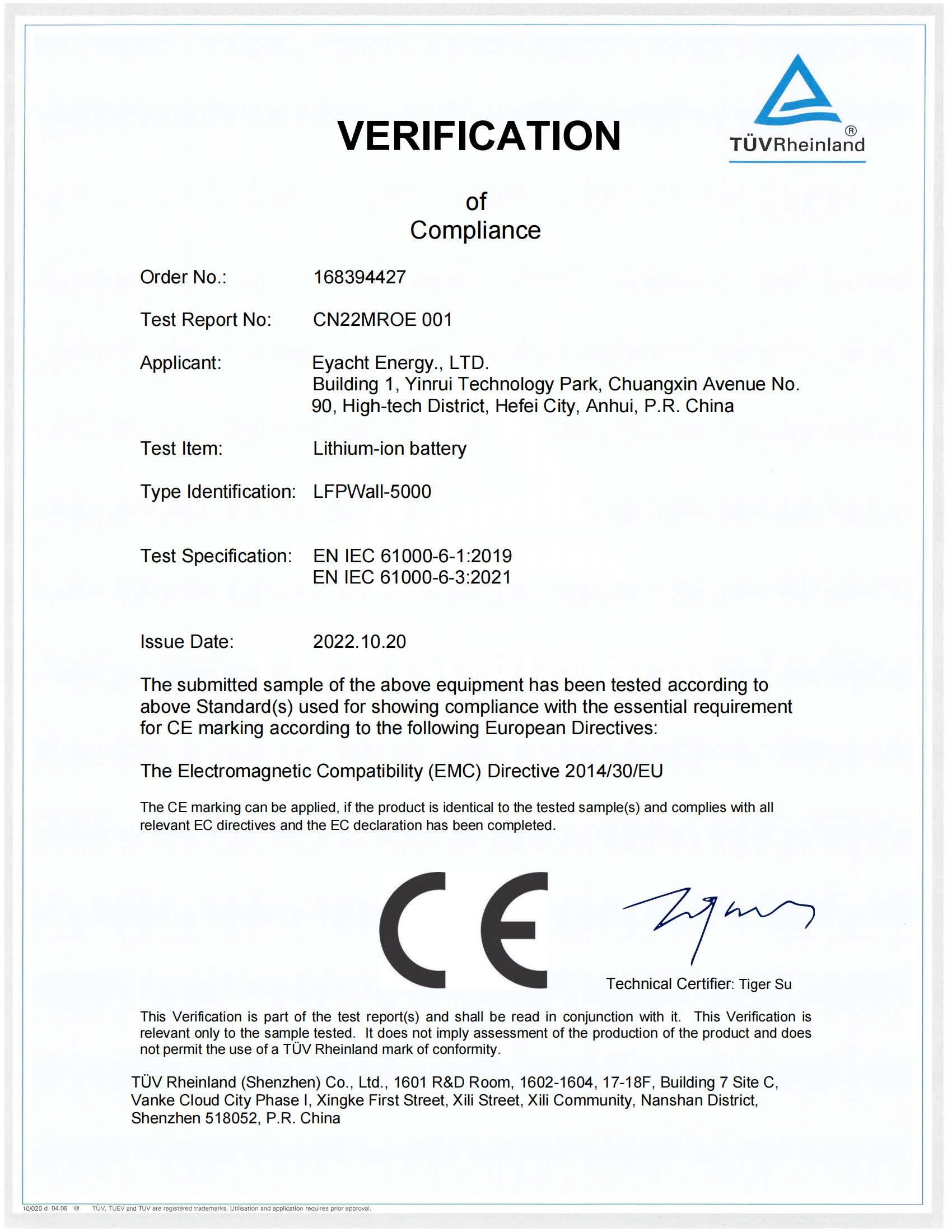

Certificate

Frequently Asked Questions

What types of batteries are compatible with this inverter?

The system supports both Lead-acid and Lithium-ion batteries with a voltage range of 40-60V.

Does this inverter support parallel operation?

Yes, it supports up to 16 units in parallel for both on-grid and off-grid operations, and it also supports multiple batteries in parallel.

What is the protection level of the device?

The device features an IP65 protection degree, making it suitable for various environmental conditions.

Can I use it with my existing solar system?

Absolutely. It features AC coupling capability, allowing you to retrofit and enhance existing solar power systems.

Does the system support charging from a generator?

Yes, the inverter is designed to support storing energy from diesel generators, ensuring power availability even during low solar output.

What are the available delivery and payment terms?

We offer flexible delivery terms including EXW, FOB, and CIF. Payment can be made via T/T, L/C, MoneyGram, PayPal, or Western Union.
