Product Description

Product Description

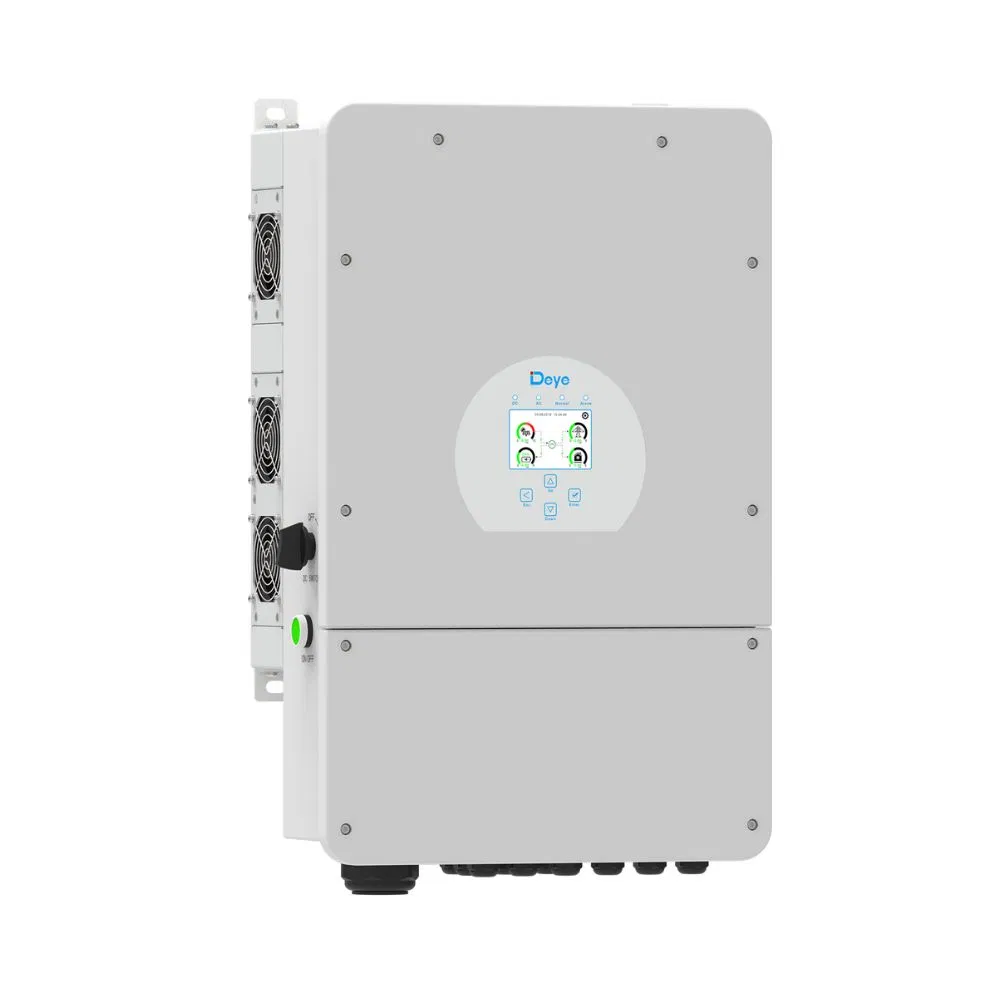

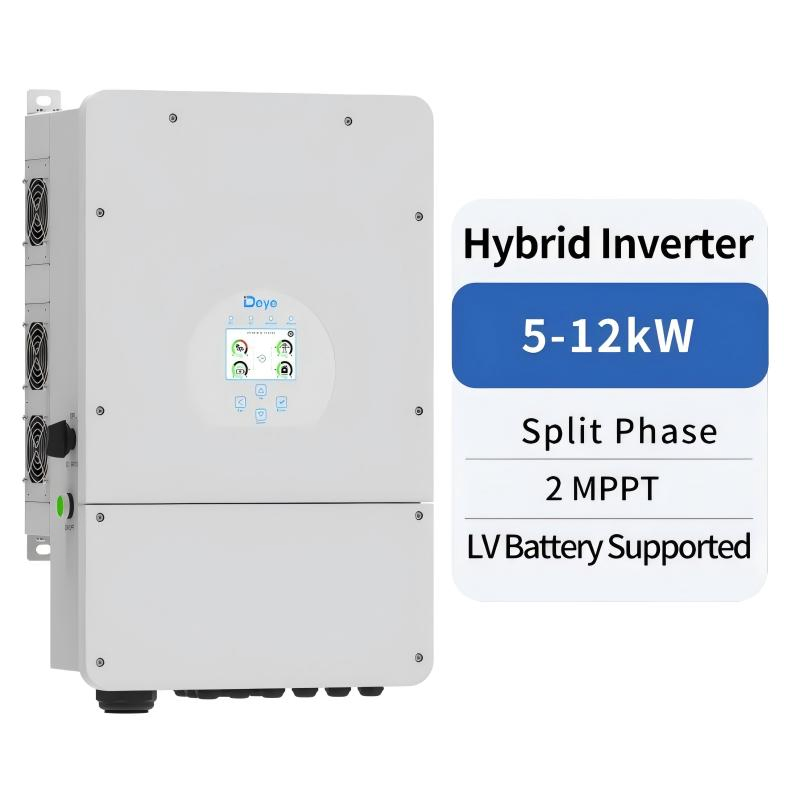

Deye SUN-5/6/7.6/8/10/12K-SG02LP2-US-AM2/AM3 Split Phase 120V/240V Hybrid Solar Inverter
Deye Hybrid Solar Inverter
Product Parameters
Model SUN-5K-SG02LP2-US-AM2 SUN-6K-SG02LP2-US-AM2 SUN-7.6K-SG02LP2-US-AM2 SUN-8K-SG02LP2-US-AM2 SUN-10K-SG02LP2-US-AM3 SUN-12K-SG02LP2-US-AM3
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Voltage Range(V) 40-60
Max. Charging Current(A) 120 135 190 190 220 250
PV String Input Data
Max DC Input Power(W) 7500 9000 11400 12000 15000 18000
MPPT Voltage Range(V) 150-425
No. of MPP Trackers 2/2+2 3/2+2+2
AC Input/Output Data
Rated Active Power(W) 5000 6000 7600 8000 10000 12000
Rated Output Voltage 120/240V Split Phase
General Data
Efficiency Max 97.6% / Euro 96.5%
Protection Rating TYPE 3R (IP65 equivalent)
Warranty 5 Years / 10 Years (Subject to installation site)
Packaging & Shipping
Packaging and Shipping Details
Project Case

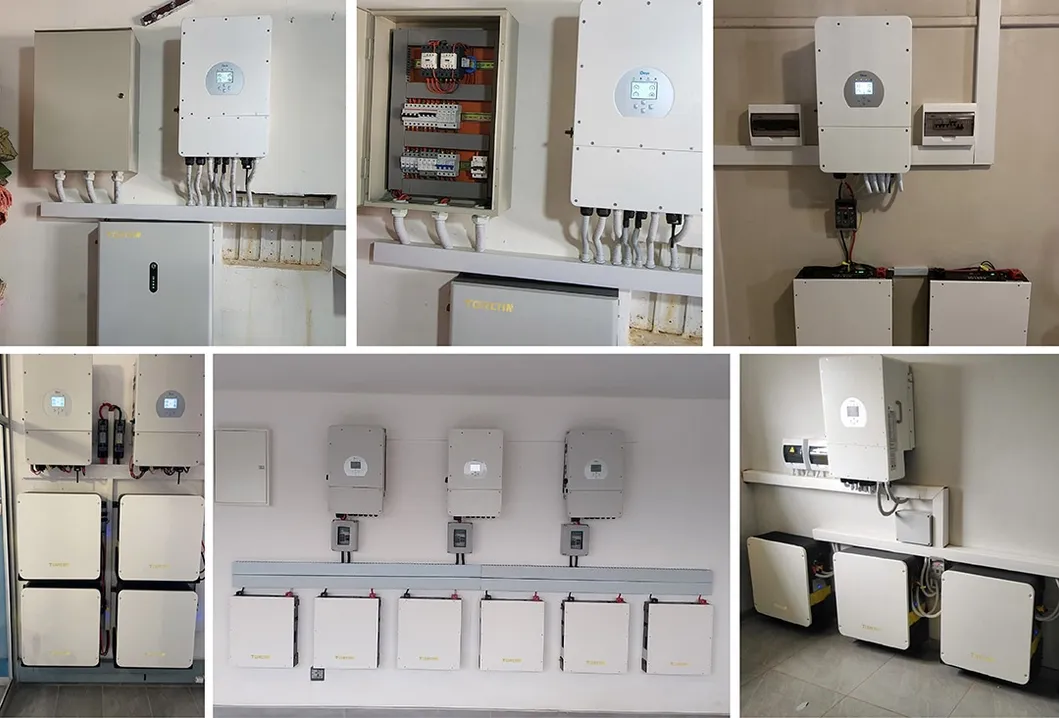

Inverter Project Case
Frequently Asked Questions
What type of batteries are compatible with the Deye Hybrid Inverter?
The Deye Hybrid series is compatible with both Lead-acid and Lithium-ion batteries, featuring self-adaptation to BMS for optimized performance.
Does this inverter support split phase output?
Yes, it supports 120V/240V split phase output, making it ideal for standard residential and commercial electrical systems in North America.
What is the maximum efficiency of these inverters?
The inverters achieve a maximum efficiency of 97.6% and an MPPT efficiency of over 99%.
Can the inverter be installed outdoors?
Yes, with a TYPE 3R protection rating and an operating temperature range of -40 to +60ºC, it is designed to withstand various environmental conditions.
How long is the product warranty?
The standard warranty ranges from 5 to 10 years, depending on the final installation site and local warranty policies.
What communication interfaces are available for monitoring?
The system supports RS485, RS232, and CAN communication, with monitoring options including WIFI, GPRS, Bluetooth, 4G, and LAN.
