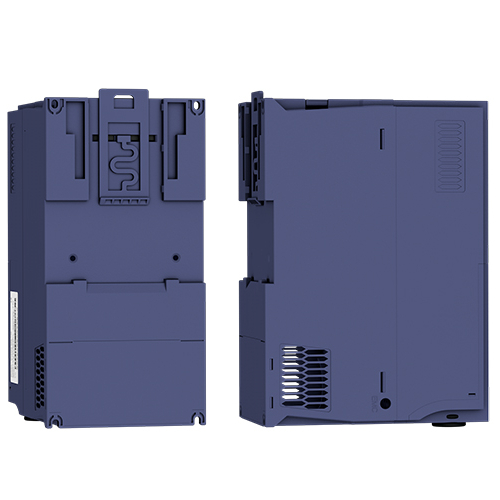

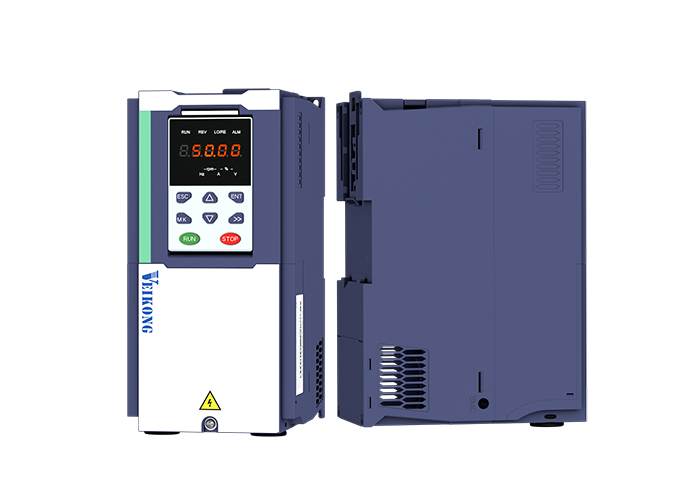

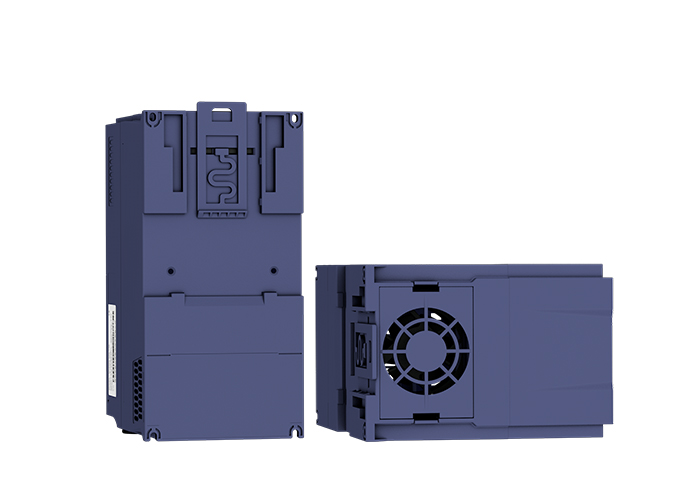

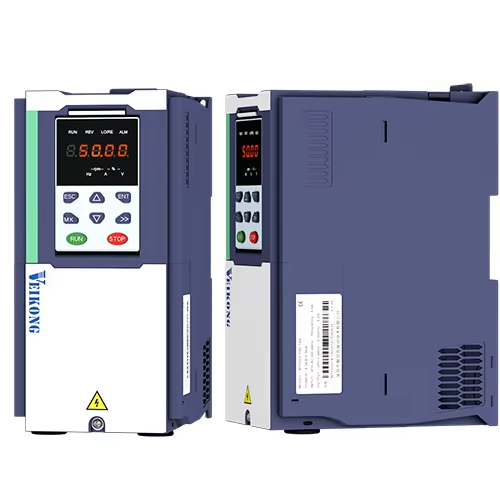

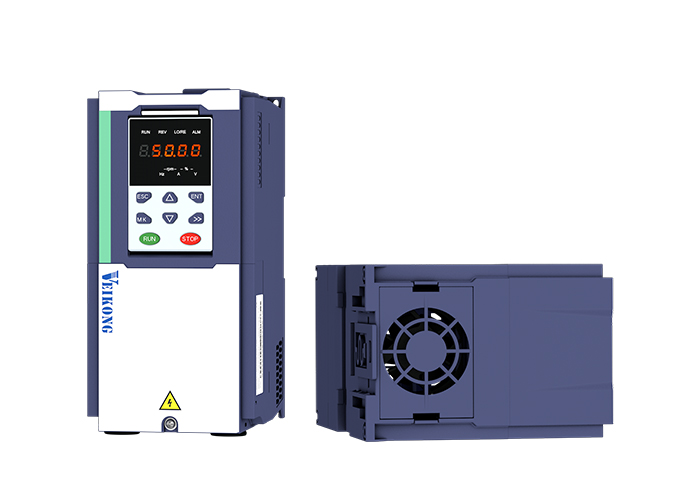

VEIKONG Solar Pump Inverter DC to AC Single Phase 220V Solar Water Pump Inverter High Efficient MPPT GPRS Function
VEIKONG Solar Pump Inverter DC to AC Single Phase 220V Solar Water Pump Inverter High Efficient MPPT GPRS Function
VEIKONG Solar Pump Inverter DC to AC Single Phase 220V Solar Water Pump Inverter High Efficient MPPT GPRS Function
VEIKONG Solar Pump Inverter DC to AC Single Phase 220V Solar Water Pump Inverter High Efficient MPPT GPRS Function
VEIKONG Solar Pump Inverter DC to AC Single Phase 220V Solar Water Pump Inverter High Efficient MPPT GPRS Function
1 / 5
VEIKONG Solar Pump Inverter DC to AC Single Phase 220V Solar Water Pump Inverter High Efficient MPPT GPRS Function
VEIKONG Solar Pump Inverter DC to AC Single Phase 220V Solar Water Pump Inverter High Efficient MPPT GPRS Function
VEIKONG Solar Pump Inverter DC to AC Single Phase 220V Solar Water Pump Inverter High Efficient MPPT GPRS Function
VEIKONG Solar Pump Inverter DC to AC Single Phase 220V Solar Water Pump Inverter High Efficient MPPT GPRS Function
VEIKONG Solar Pump Inverter DC to AC Single Phase 220V Solar Water Pump Inverter High Efficient MPPT GPRS Function

VEIKONG Solar Pump Inverter DC to AC Single Phase 220V Solar Water Pump Inverter High Efficient MPPT GPRS Function

Send Inquiry

Product Description

Product Specification
Specifications 220V System 380V System
Max input DC voltage 450V 800V
DC voltage range 160~450VDC 350~800VDC
Normal working DC voltage 250V-400V 450V-600V
Recommended input MPPT voltage 305V 530V
MPPT efficiency >99%
Rated output voltage 1/3-phase 220VAC 3-phase 380-480VAC
Output frequency range 50/60Hz
Max efficiency of the machine 99%
Ambient temperature range -10 °C~50 °C, derating if above 40 °C
Cooling method Air cooling
Protection degree IP20/IP21
Altitude Below 1000m; above 1% for every additional 100m.
Standard CE/ROHS
Product Features

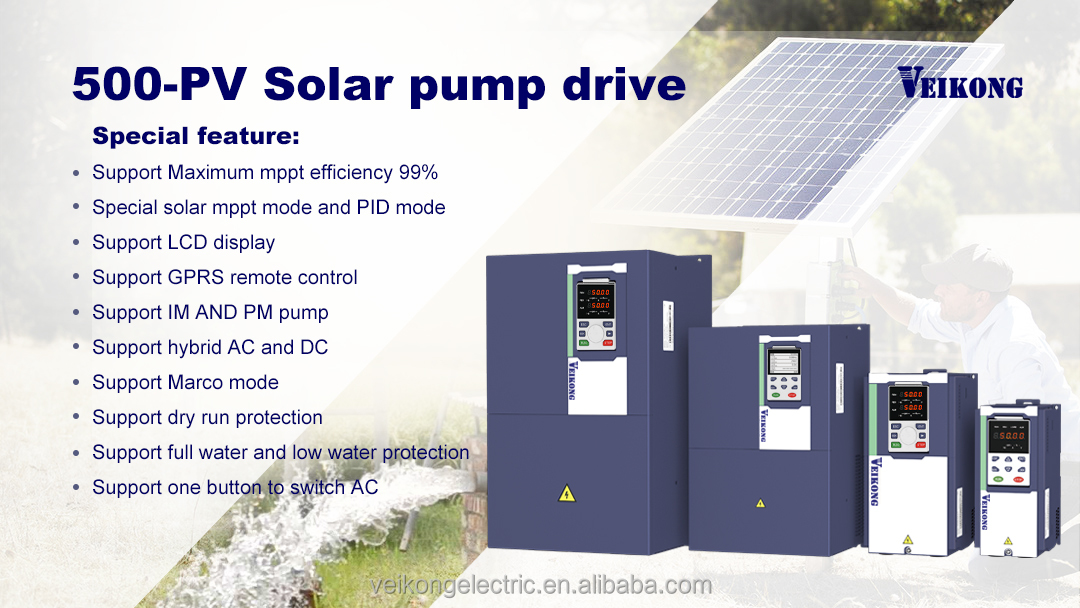

Solar Pump Inverter Features
✔ Cover voltage levels 220V AC and 380V AC.
✔ Support single-phase 220V and three-phase 220V/380V pumps, power from 0.4KW to 710KW.
✔ Easy to use: Automatically start or sleep after being connected to solar panels without parameter setting.
✔ Multiple protective measures including PV over-voltage and polarity reverse warning.
✔ Advanced MPPT algorithms ensuring tracking efficiency reaches 99%.
✔ Auto derating against over-temperature to extend product life.
✔ Boost module configuration for low-voltage work requirements (2.2kW or lower).
✔ Auto switch between solar and grid input for 24-hour unattended work.
✔ GPRS module support for remote monitoring and control via mobile APP.
✔ Cabinet solution available for IP54 protection level.
Product Applications

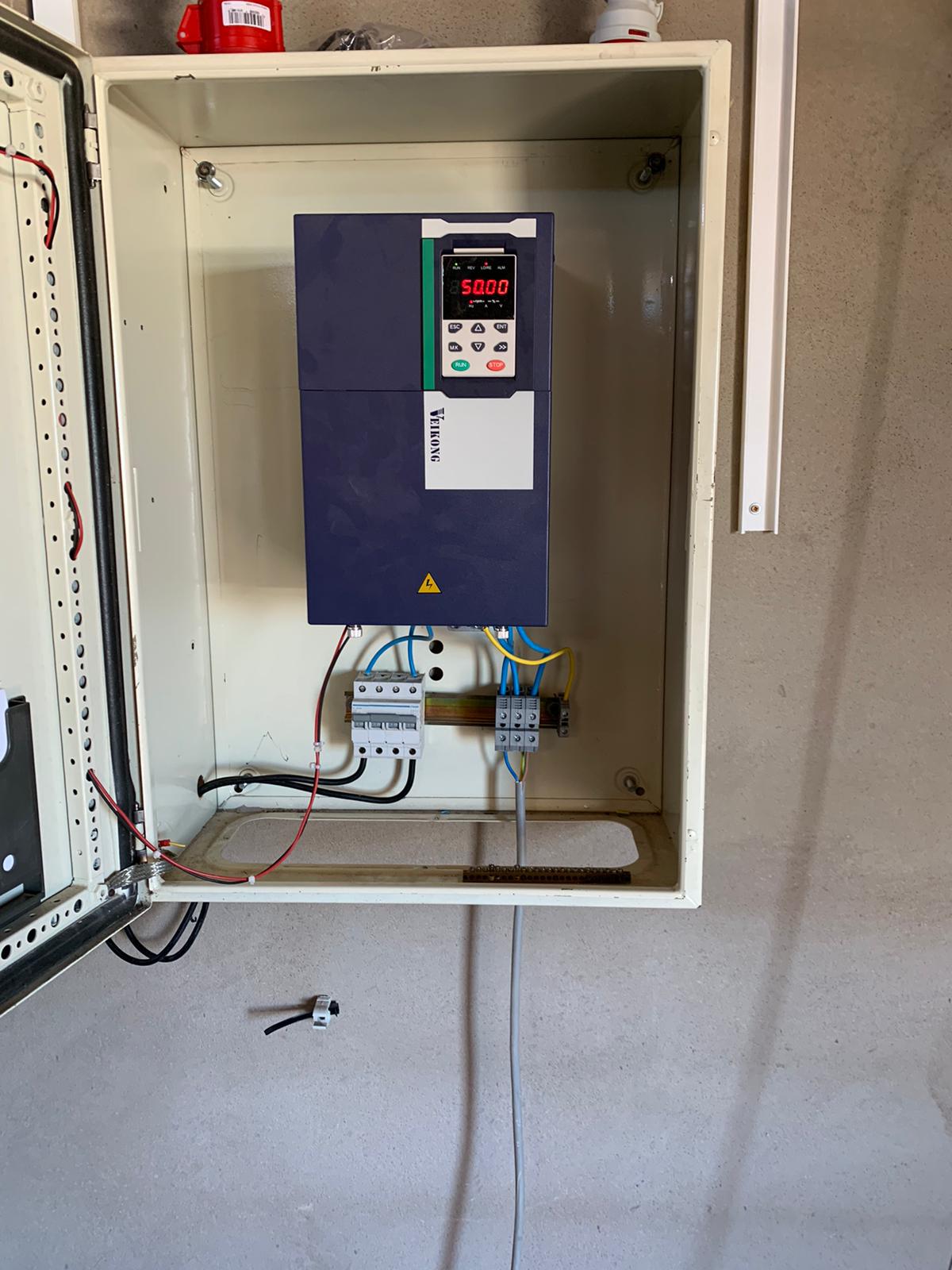

Application 1

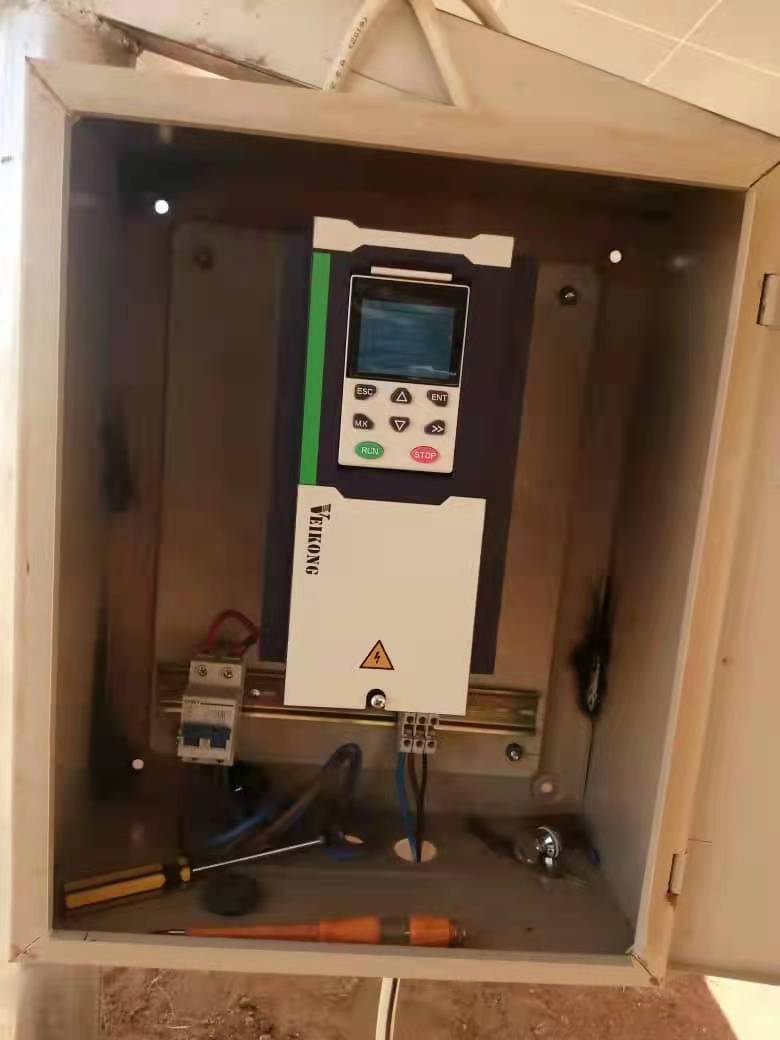

Application 2

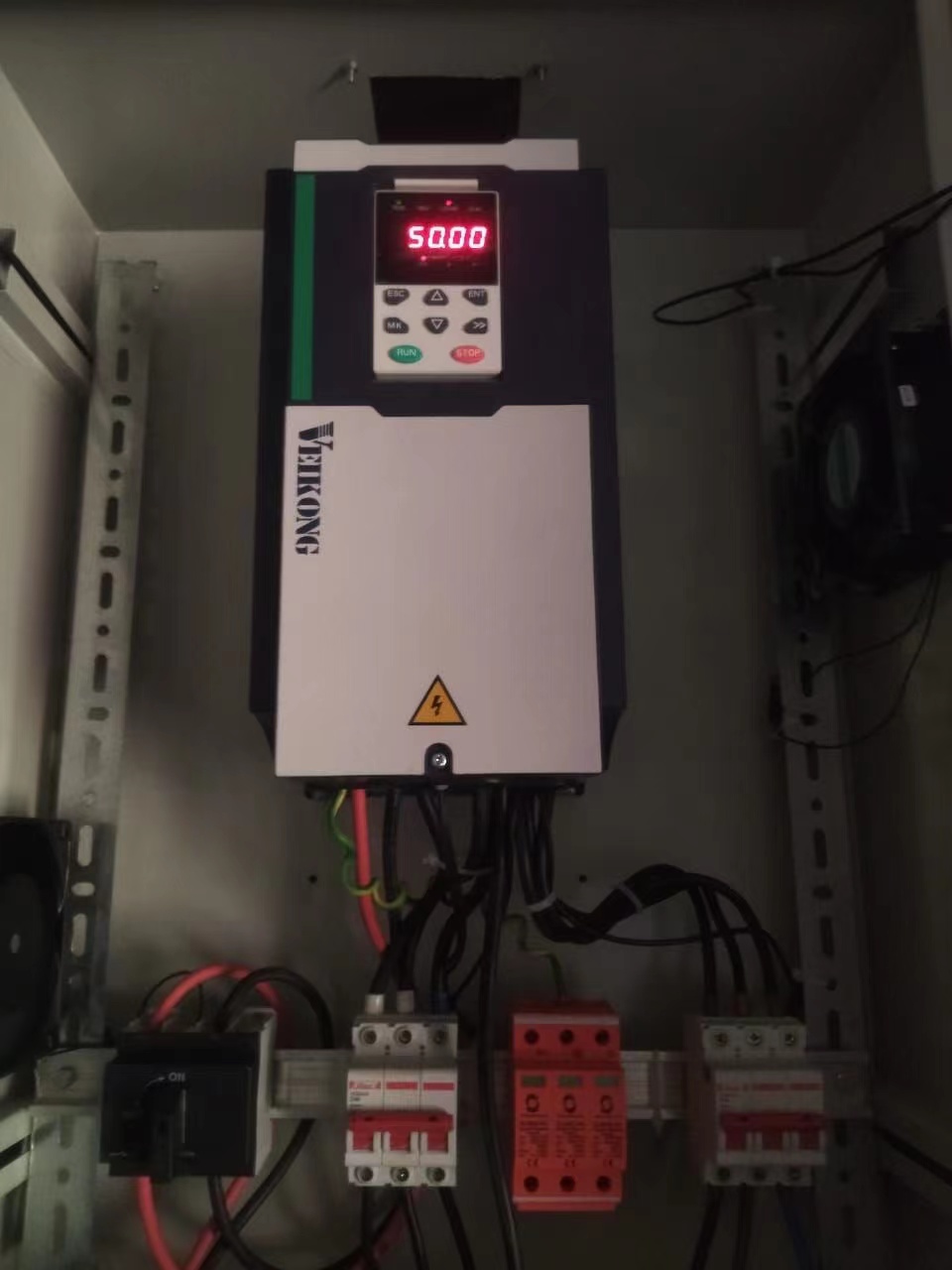

Application 3

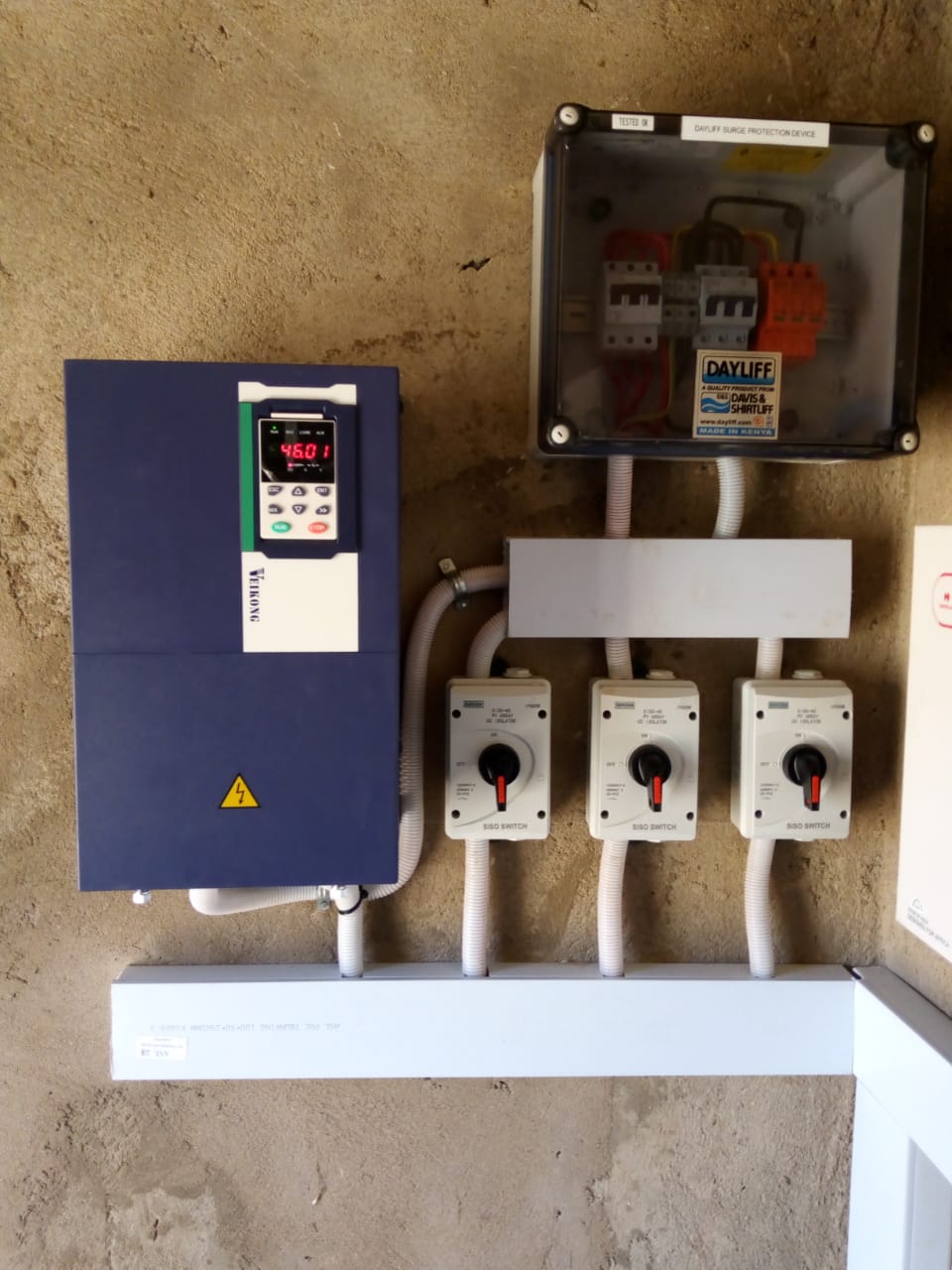

Application 4
Product Description

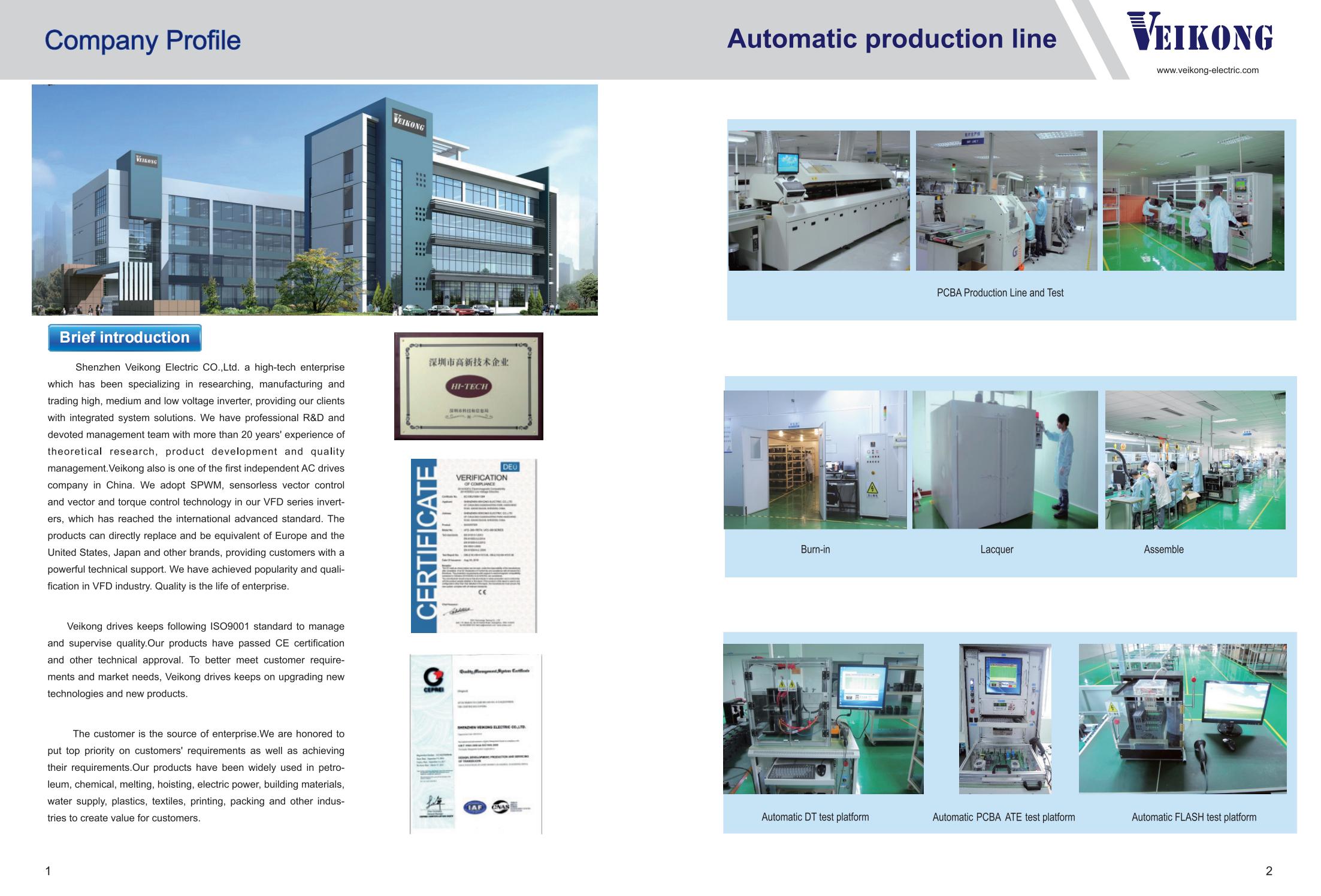

Detail 1

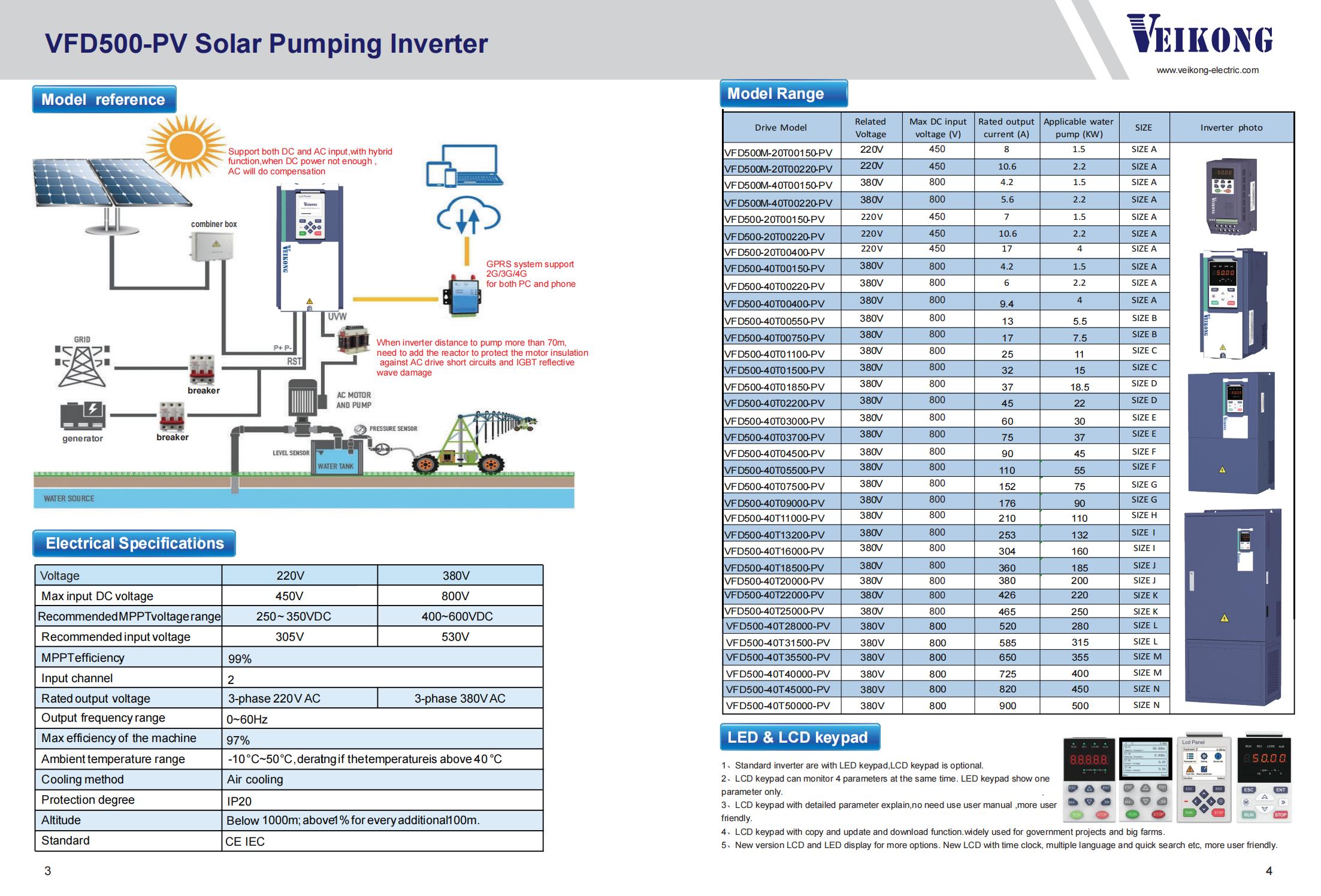

Detail 2

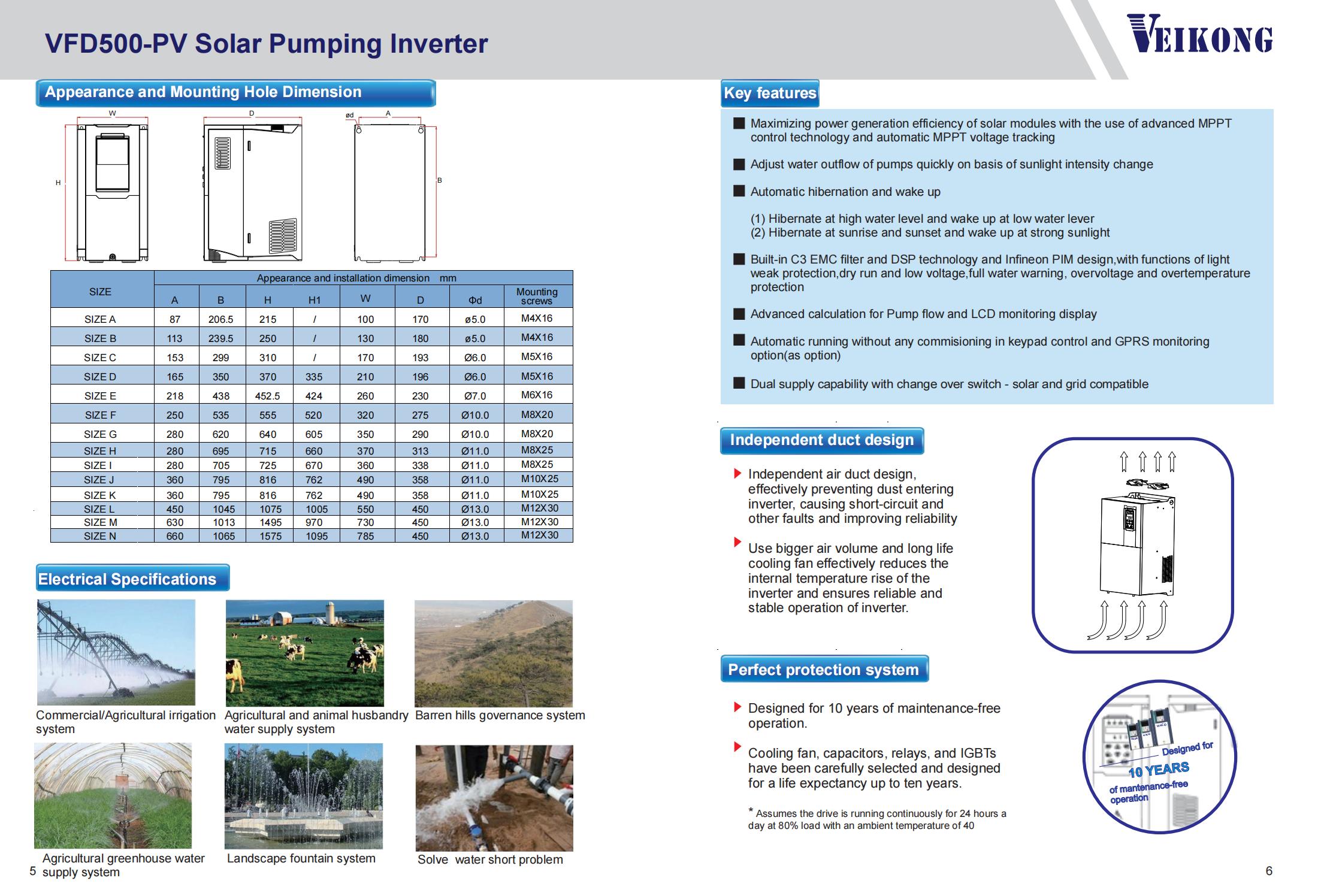

Detail 3

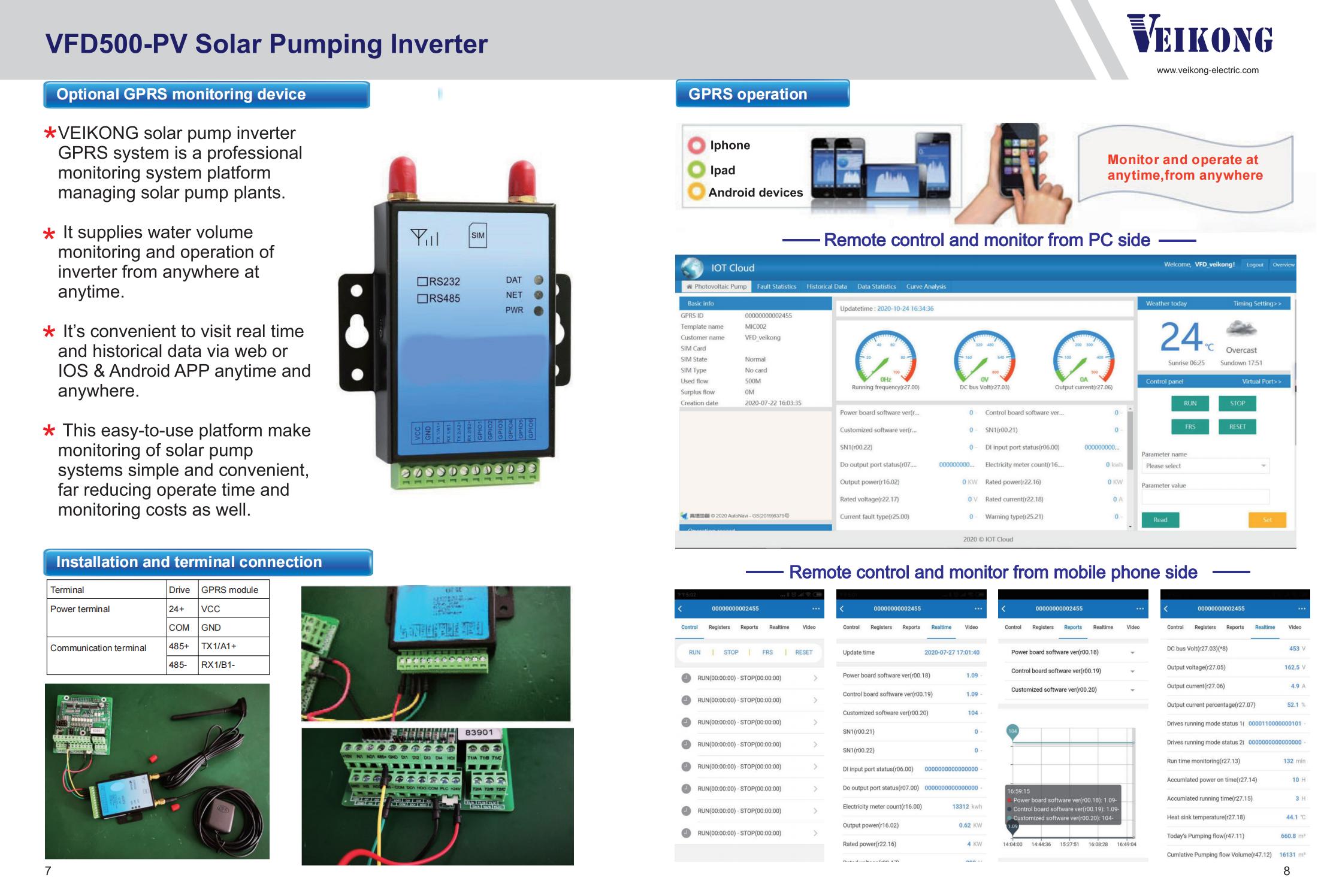

Detail 4

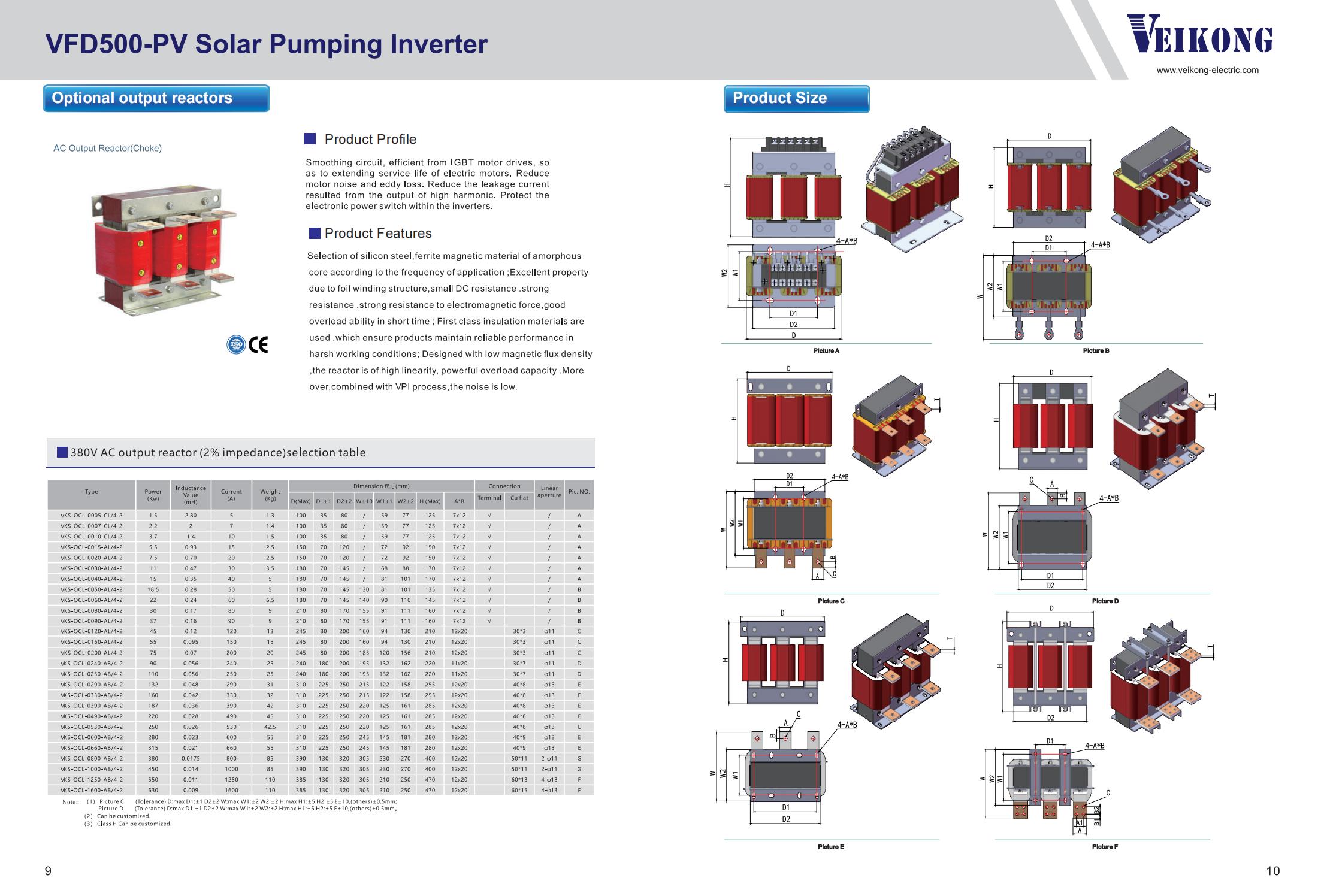

Detail 5
Certifications
Certification 1
Certification 2
Package Information

0.4KW - 37KW: Secure box package

Box Package

45KW - 710KW: Heavy-duty wooden package

Wooden Package
Our products are sold all over the world and have won praises from many customers
Customer Praise 1
Customer Praise 2
F & Q
What's the difference between a frequency inverter and a solar pump inverter?
A frequency inverter only accepts AC input and is used in automated machines. A solar pump inverter accepts both AC and DC input from solar panels, saving more power and specifically designed for solar pumping systems.
What should be noticed when installing the inverter?
Install the product in a well-ventilated, cool, dry, and waterproof location. Avoid placing foreign objects inside. Always turn on the inverter before starting the connected appliance.
Do we need to set parameters before using?
No, our preset AI intelligent parameters meet most normal use requirements. If needed, adjustments can be made easily in a few steps.
Does the inverter support remote monitoring?
Yes, it supports the configuration of a GPRS module, allowing you to view parameters and control the system via a mobile APP remotely.
What power range do these inverters support?
We offer a wide range of solutions supporting pumps from 0.4KW all the way up to 710KW.
Can it handle both single-phase and three-phase pumps?
Yes, the system is compatible with single-phase 220V pumps and three-phase 220V/380V pumps.
