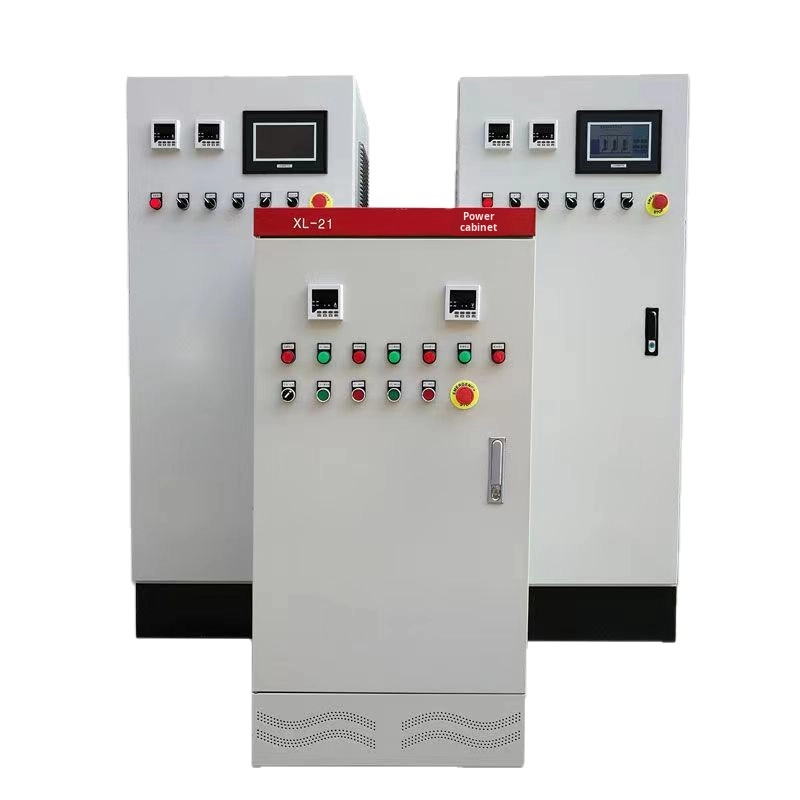

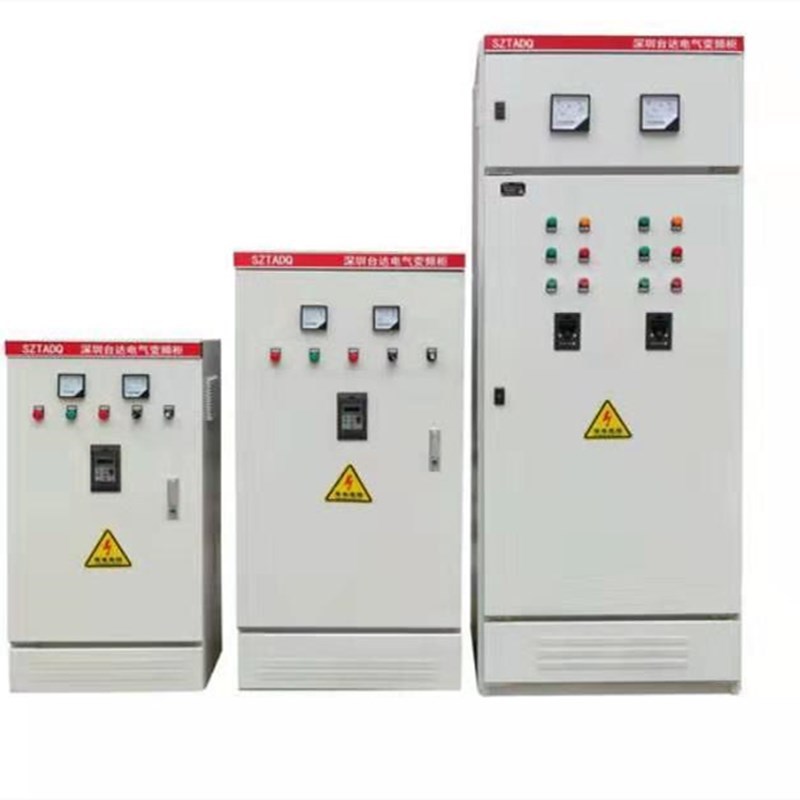

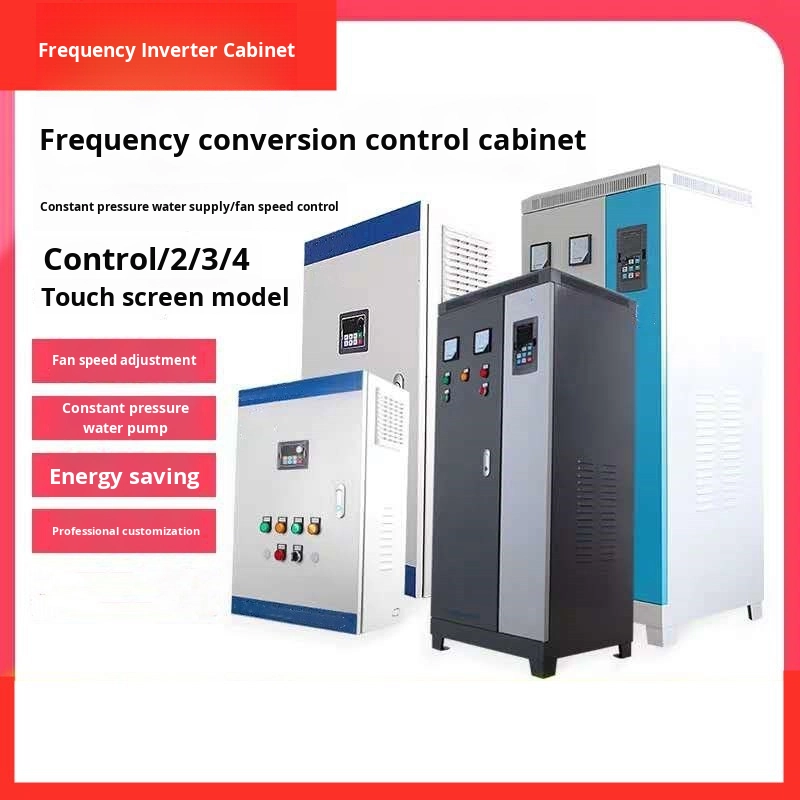

Variable frequency pump control cabinet
Variable frequency pump control cabinet
Variable frequency pump control cabinet
Variable frequency pump control cabinet
Variable frequency pump control cabinet
1 / 5
Variable frequency pump control cabinet
Variable frequency pump control cabinet
Variable frequency pump control cabinet
Variable frequency pump control cabinet
Variable frequency pump control cabinet

Variable frequency pump control cabinet

Send Inquiry

Product Description

Warm Reminder: All online prices are excluding tax. Additional tax points are required for invoicing. If you need to issue an invoice, please consult professional services before placing an order. Thank you for your cooperation.

Product Showcase

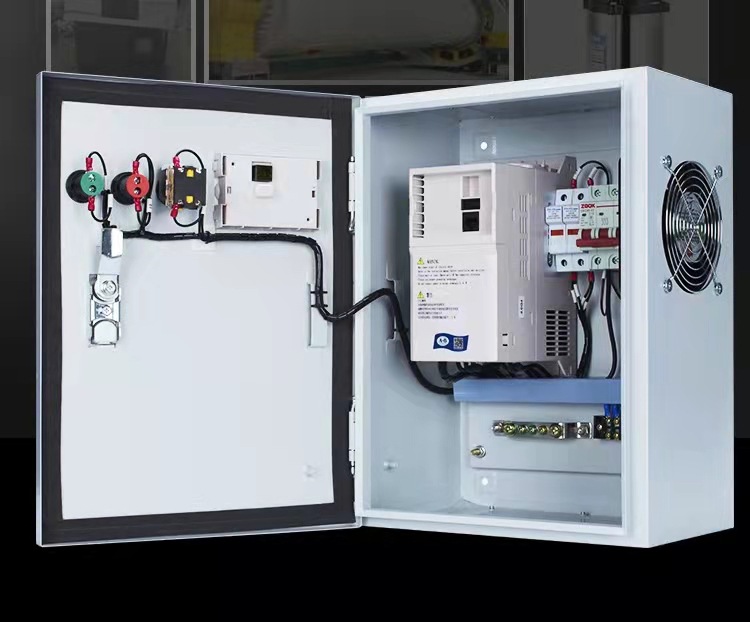

Variable frequency pump control cabinet front view

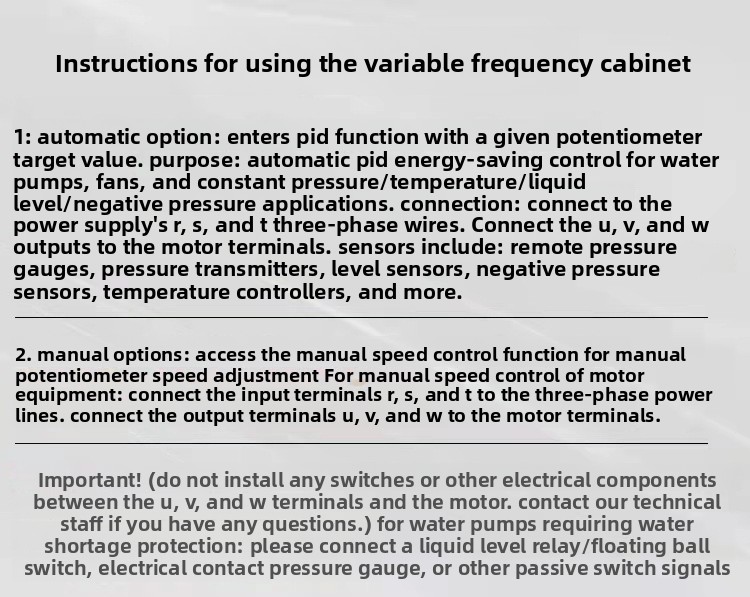

Variable frequency pump control cabinet side view

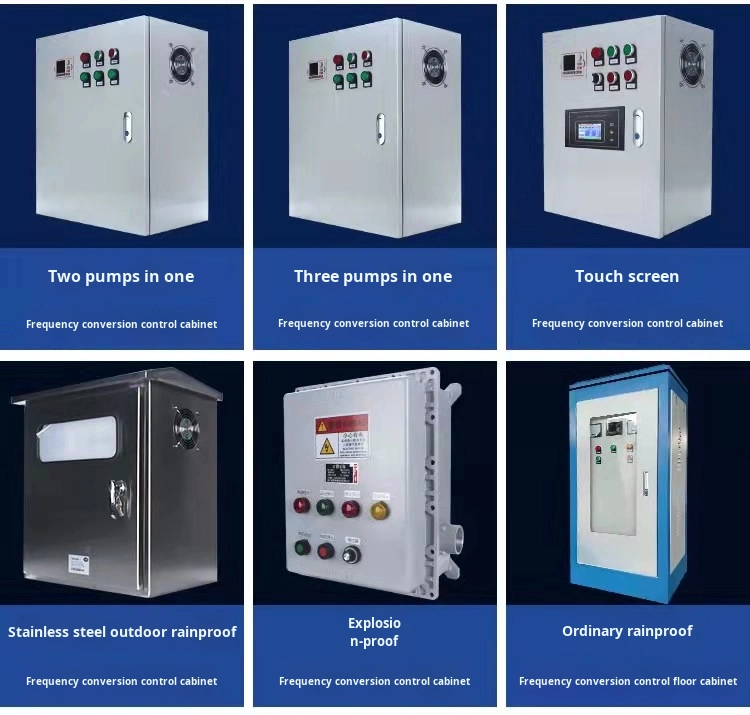

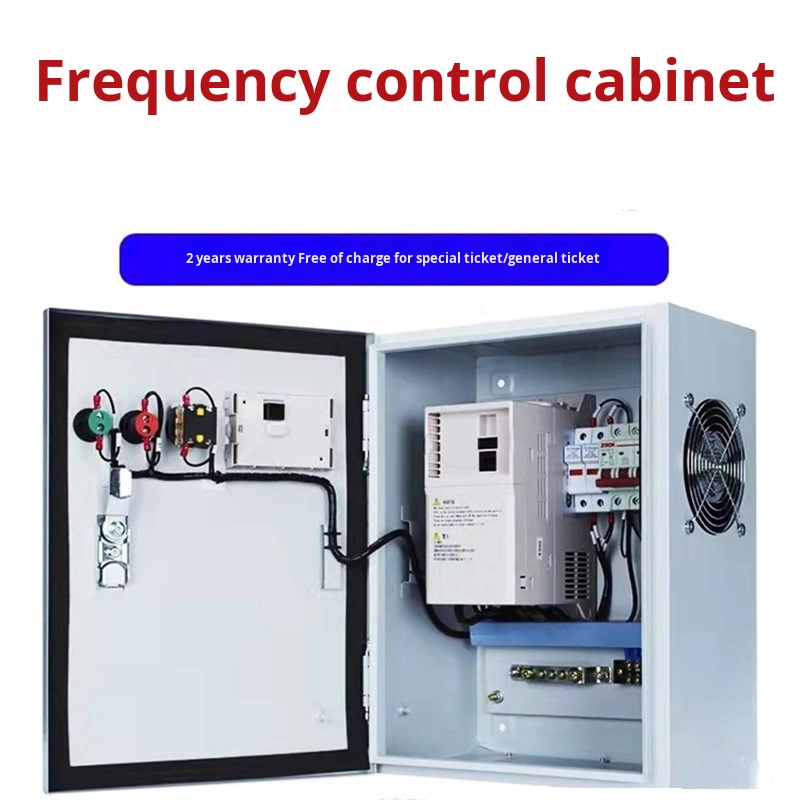

Variable frequency pump control cabinet details

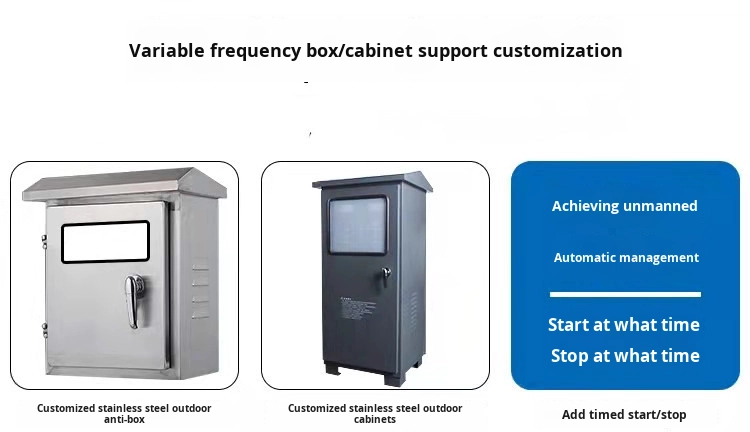

Control system interface

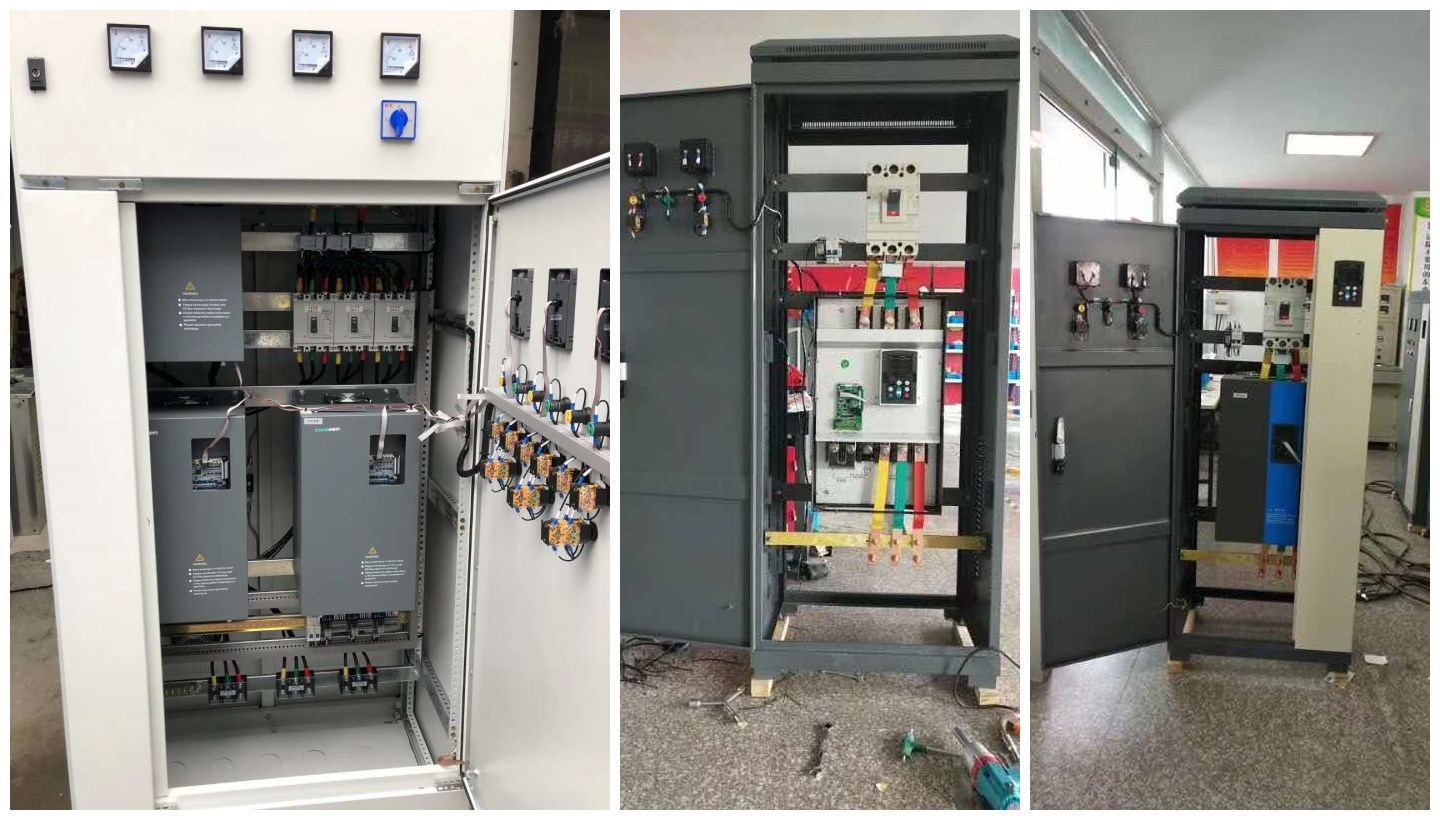

Internal wiring layout

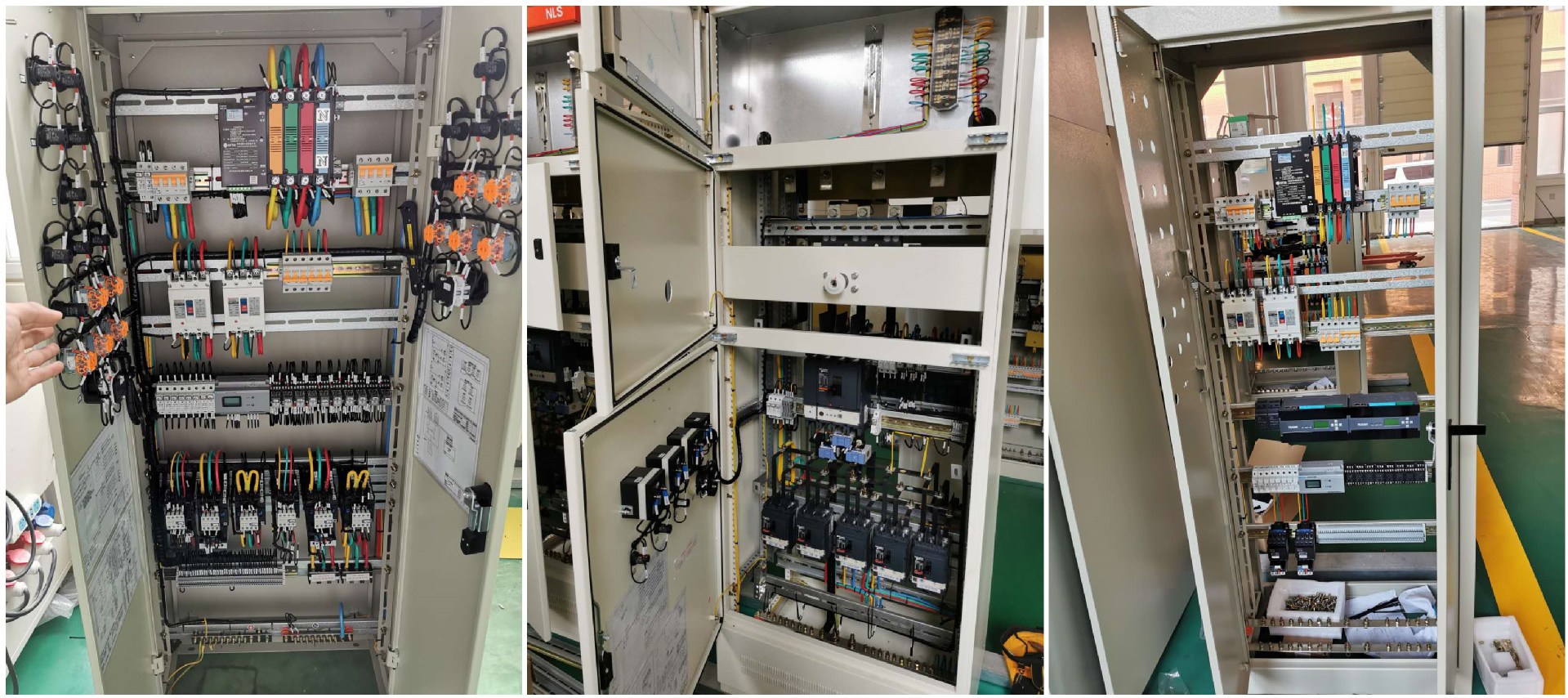

Component quality display

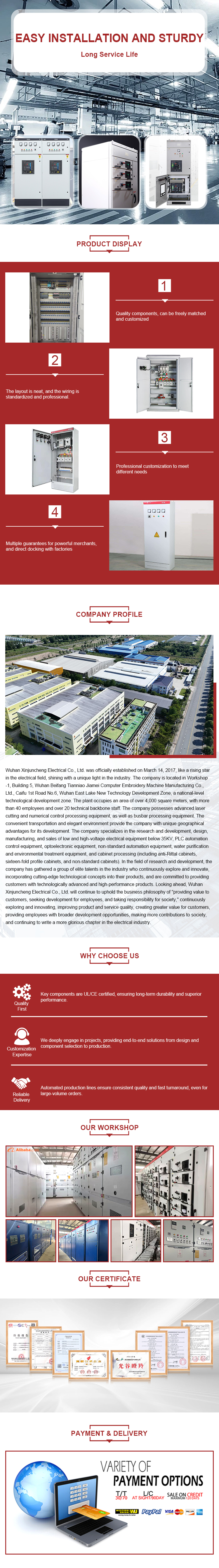

Comprehensive technical specifications
Technical Specifications
Item Value
Application Industrial
Rated Current 3150 A
Number of Sockets 1
Rated Voltage 380 V
Model Number ZYPDX001
IP Level IP65
Lock Type Industrial Grade Lock
Frequently Asked Questions
What is the primary function of the variable frequency pump control cabinet?
It is designed to control the speed and output of industrial pumps by adjusting the power frequency, ensuring stable pressure and significant energy savings.
What does the IP65 rating signify for this cabinet?
The IP65 rating ensures that the cabinet is "dust-tight" and protected against water jets from any angle, making it suitable for harsh industrial environments.
Can this control cabinet handle high-power applications?
Yes, with a rated current of up to 3150A and a rated voltage of 380V, it is built to handle heavy-duty industrial power requirements.
How does variable frequency control benefit pump operations?
It reduces mechanical wear through soft starts and stops, minimizes water hammer effects, and optimizes electricity consumption based on real-time demand.
Is the cabinet equipped for security?
Yes, the cabinet features professional-grade locking mechanisms to prevent unauthorized access to the internal control systems.
What kind of quality assurance is provided?
Every unit undergoes strict inspection before shipment, including a pre-production sample evaluation and a final functional test to guarantee performance.
