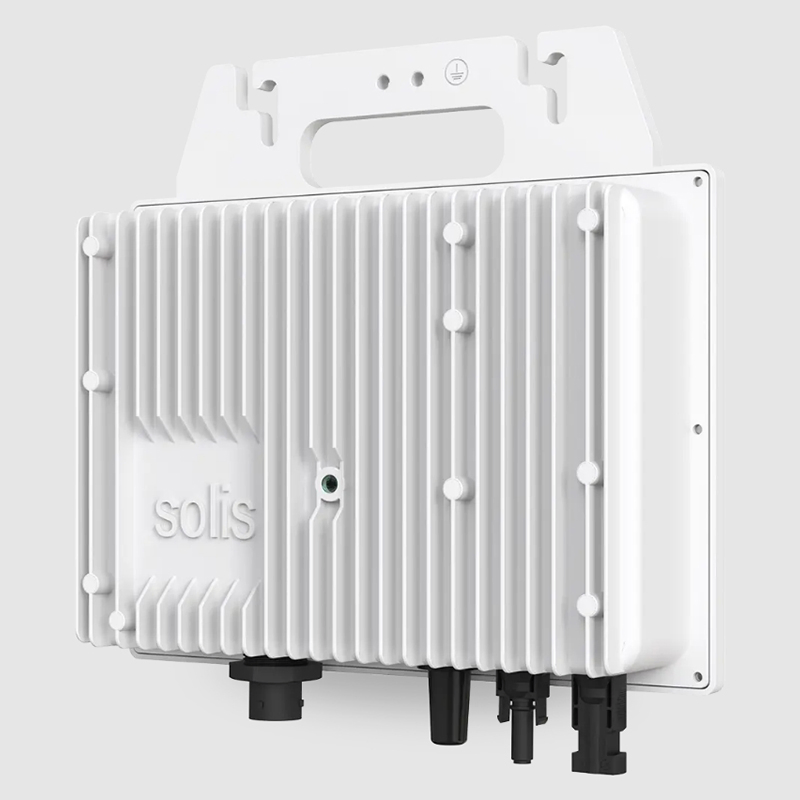

The S6-GR1P0.8K-UM series inverter is designed to meet various PV project needs, including balconies, terraces, garages, and outdoor installations. Featuring low-voltage starting, a wide MPPT voltage range, and a 16A input current, it is highly compatible with a variety of modern PV modules.
Equipped with built-in Bluetooth and WiFi communication modules, the system supports remote monitoring, making it a convenient and intelligent solution for a sustainable, green lifestyle.
| Parameter | Details (0.8K Model) |
|---|---|
| Input DC | |
| Recommended max. PV power | 1.2 kW |
| Max. input voltage | 500 V |
| Rated voltage | 60 V |
| Start-up voltage | 40 V |
| MPPT voltage range | 30 - 500 V |
| Max. input current | 16 A |
| Output AC | |
| Rated output power | 0.8 kW |
| Rated grid voltage | 1/N/PE, 230 V |
| Rated grid frequency | 50 Hz |
| Max. output current | 3.5 A |
| THDi | < 3% |
| Efficiency & Protection | |
| Max. efficiency | 96.6% |
| MPPT efficiency | 99.5% |
| Safety Protections | Short circuit, Over current, Surge, Anti-islanding, Temperature |
| General Data | |
| Dimensions | 265 × 255 × 64 mm |
| Ingress protection | IP65 |
| Noise emission | < 20 dB(A) |
