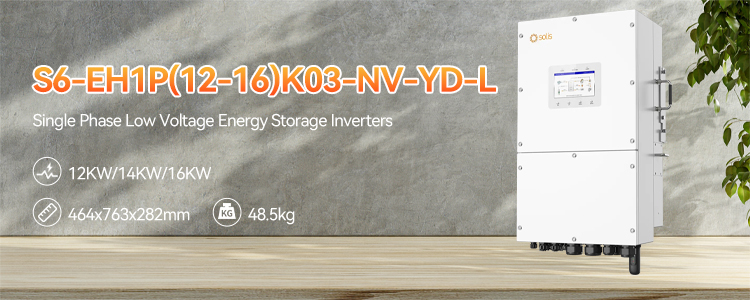

| Models | 12K | 14K | 16K |
|---|---|---|---|
| Input DC (PV side) | |||
| Recommended max. PV array size | 24 kW | 28 kW | 32 kW |
| Max. usable PV input power | 19.2 kW | 22.4 kW | 22.4 kW |
| Max. input voltage | 550 V | ||
| Rated voltage | 380 V | ||
| Start-up voltage | 100 V | ||
| MPPT voltage range | 80-520 V | ||
| Max. input current | 40 A / 40 A / 40 A | ||
| Max. short circuit current | 50 A / 50 A / 50 A | ||
| MPPT number/Max. input strings | 3/6 | ||
| Battery | |||
| Battery type | Li-ion / Lead-acid | ||
| Battery voltage range | 40 - 60 V | ||
| Max. charge / discharge power | 12 kW | 14 kW | 16 kW |
| Output AC (Grid side) | |||
| Rated output power | 12 kW | 14 kW | 16 kW |
| Rated grid voltage | 220 V / 230 V | ||
| Rated grid output current | 54.5 A / 52.2 A | 63.6 A / 60.9 A | 72.7 A / 69.6 A |
| Efficiency | |||
| Max. efficiency | 97.6% | ||
| EU efficiency | 97.2% | ||
| General Data | |||
| Dimensions (W*H*D) | 464*763*282 mm | ||
| Weight | 48.5 kg | ||
| Ingress protection | IP66 | ||
