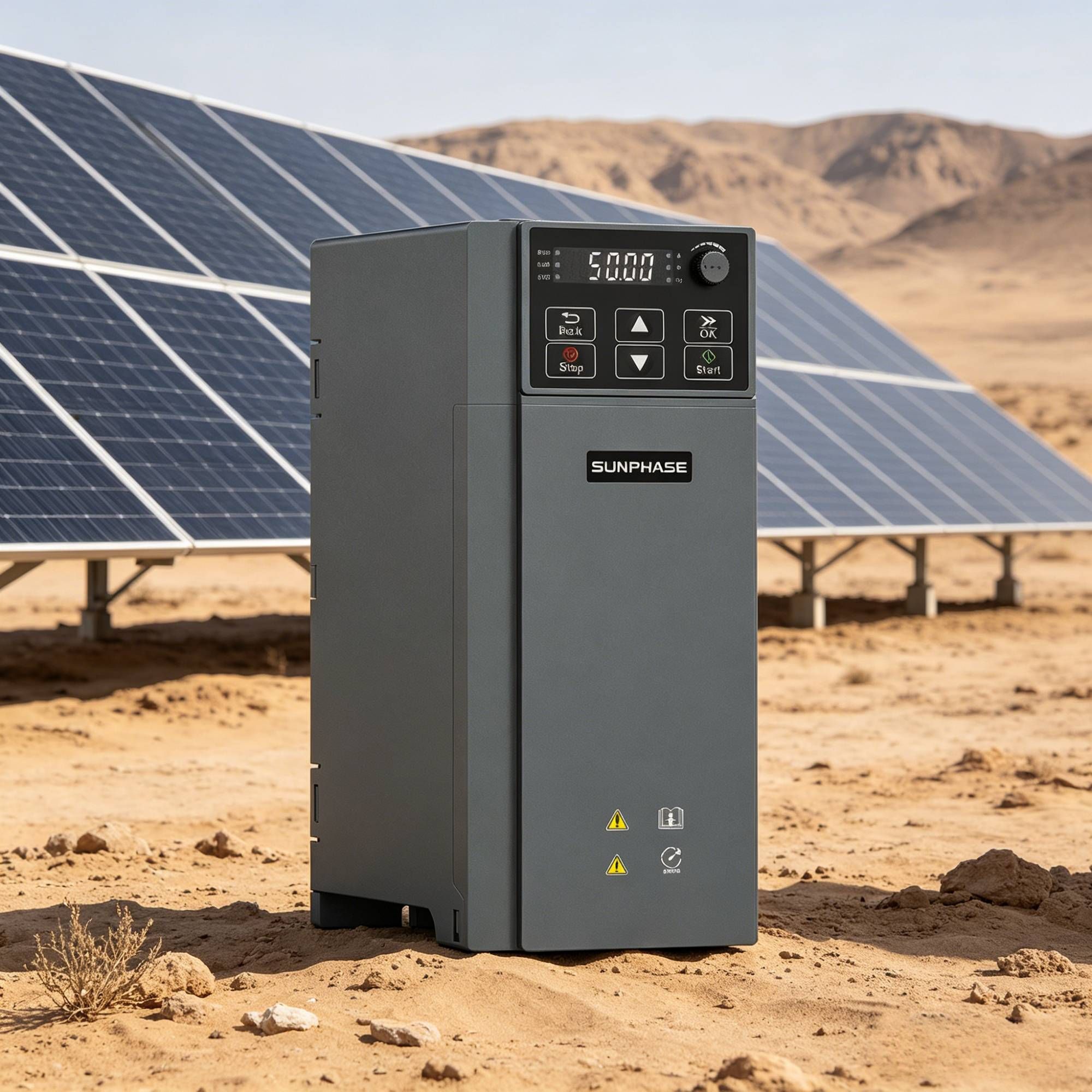

S10 Series: solar pump inverters receive DC power from solar panel and output AC power for pumping control. It is widely used in applications such as agricultural irrigation, desert management, water supply in areas with unstable power sources and etc.
| Parameter | Details |
|---|---|
| AC Input Voltage | 1PH 220V |
| Max. DC Input Voltage (V) | 450 |
| Min. Operating Voltage (V) | 140 |
| Recommended Voc Range (V) | 360-430 |
| Output Voltage | 3PH 220V 50/60Hz |
| Output Frequency | 0-600HZ |
| Control Mode | V/F control, SVC |
| MPPT Efficiency | 99% |
| Overload Capability | 150% 60s / 180% 10s / 200% 1s |
| Common Protection | Over current, voltage, load, heat, phase loss, short circuit |
| Dedicated Protection | Pump dry run, water full, lighting & surge protection |
| Altitude/Temp | 0-2000m / -10°C-50°C |
| Protection Grade | IP20 / Forced air cooling |
The S10 series offers a variety of models with rated output power ranging from 0.4kw to 4kw and rated output current from 2.5A to 17A.
| Model | Rec. Solar Power (kw) | Max Input DC (A) | Rated Output (A) | Adaptor Motor (kw) |
|---|---|---|---|---|
| S10-0R4G-S1B | 0.6 | 15 | 4.2 | 0.4 |
| S10-0R7G-S1B | 1.0 | 15 | 7.5 | 0.75 |
| S10-1R5G-S1B | 2.0 | 15 | 10.5 | 1.5 |
| S10-2R2G-S1B | 2.9 | 30 | 17.0 | 2.2 |
| S10-0R7G-S2B | 1.0 | 15 | 4.2 | 0.75 |
| S10-1R5G-S2B | 2.0 | 15 | 7.5 | 1.5 |
| S10-4R0G-4B | 5.2 | 15 | 9.5 | 4.0 |

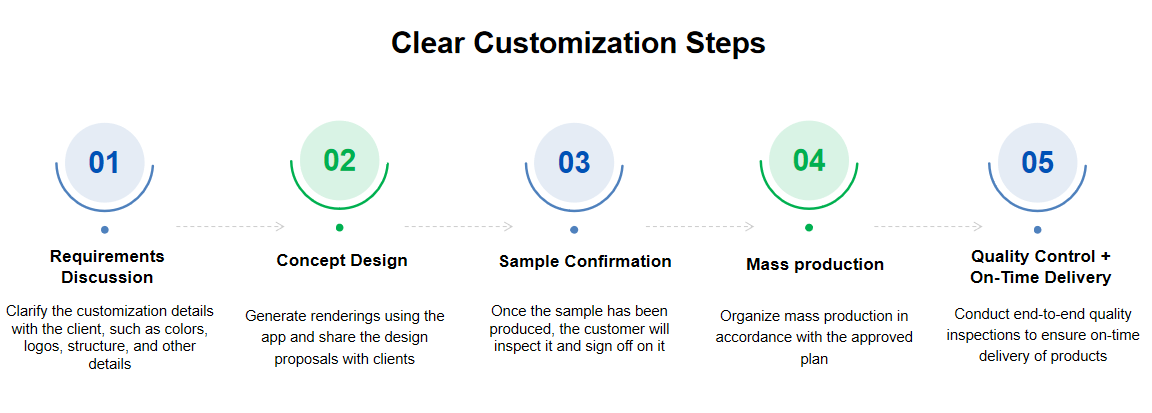

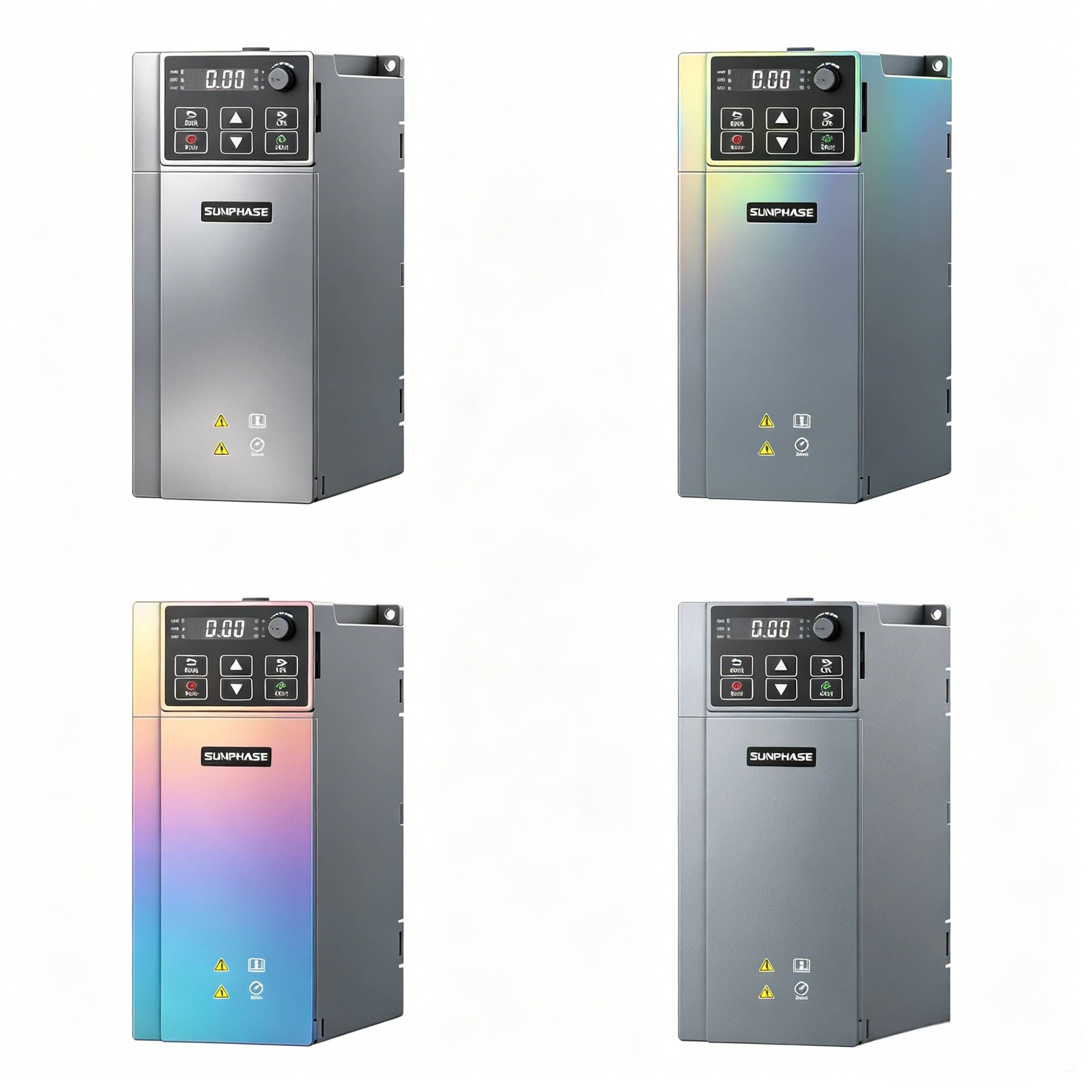

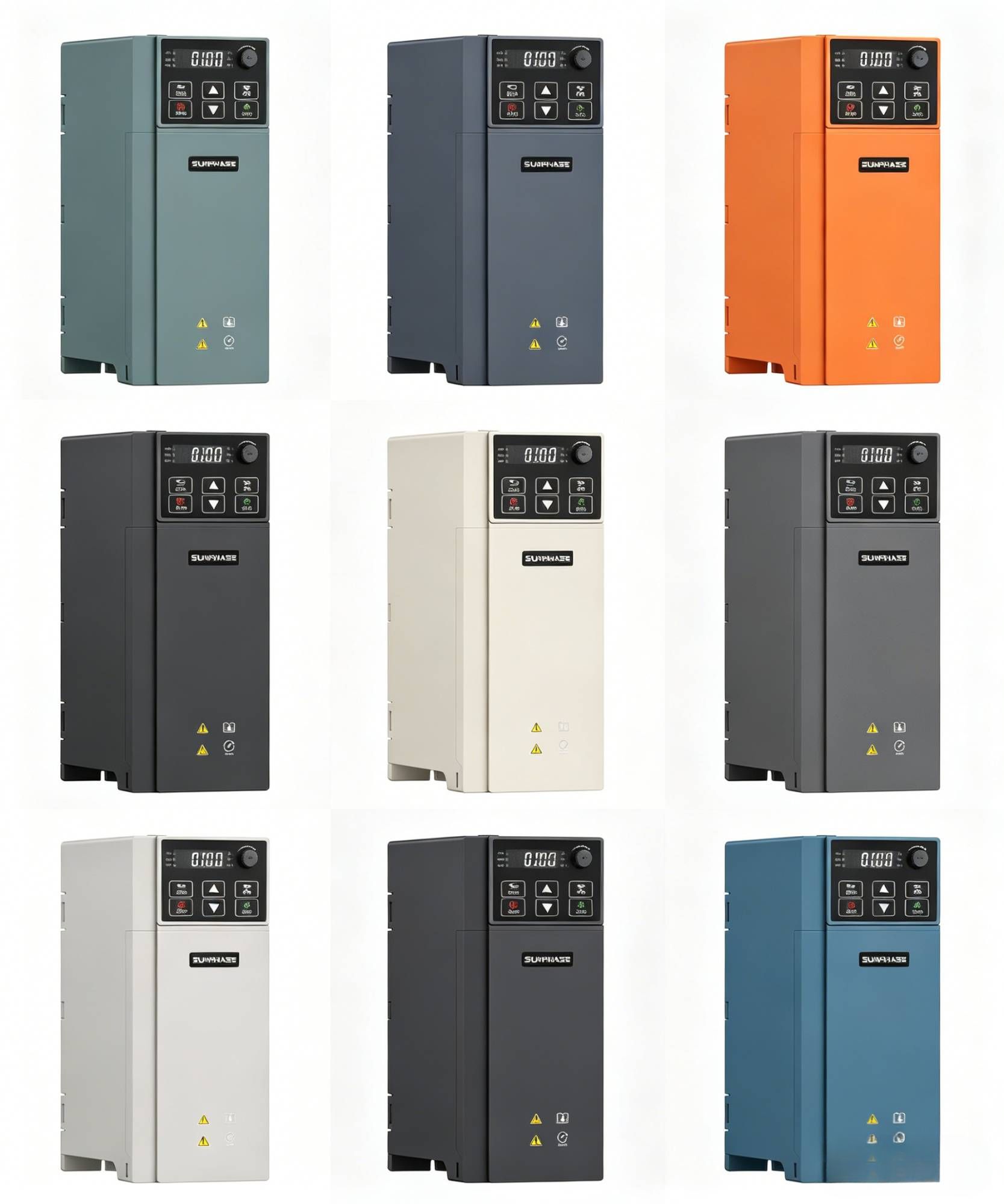

● Support OEM: Basic appearance, color, and logo customization.
● AC/DC Mixed Input: Seamless transition between solar and grid power.
● Versatility: Compatible with multiple pump types; Inverter and VFD exchangeable.
● Bulk Discount: Significant savings for large volume orders.

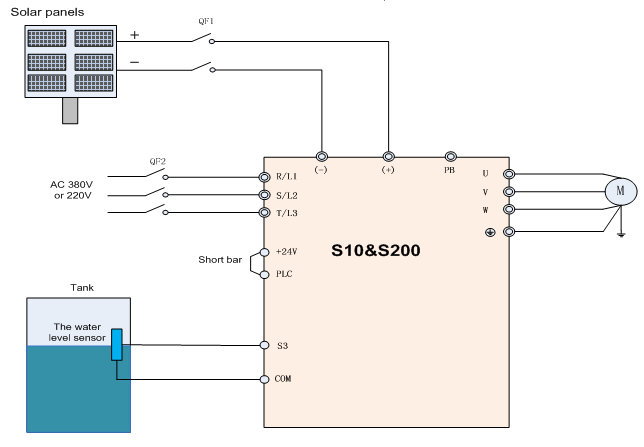

Principle: When DC voltage drops below the threshold (540V for 380V models / 310V for 220V models), the inverter switches to grid AC power to maintain 50Hz operation.
As a comprehensive export enterprise specializing in new energy products, we integrate R&D, supply, and foreign trade. Our main products include solar pump inverters, frequency converters, and energy storage batteries, targeting the global market with high standards of quality control and international regulations.
