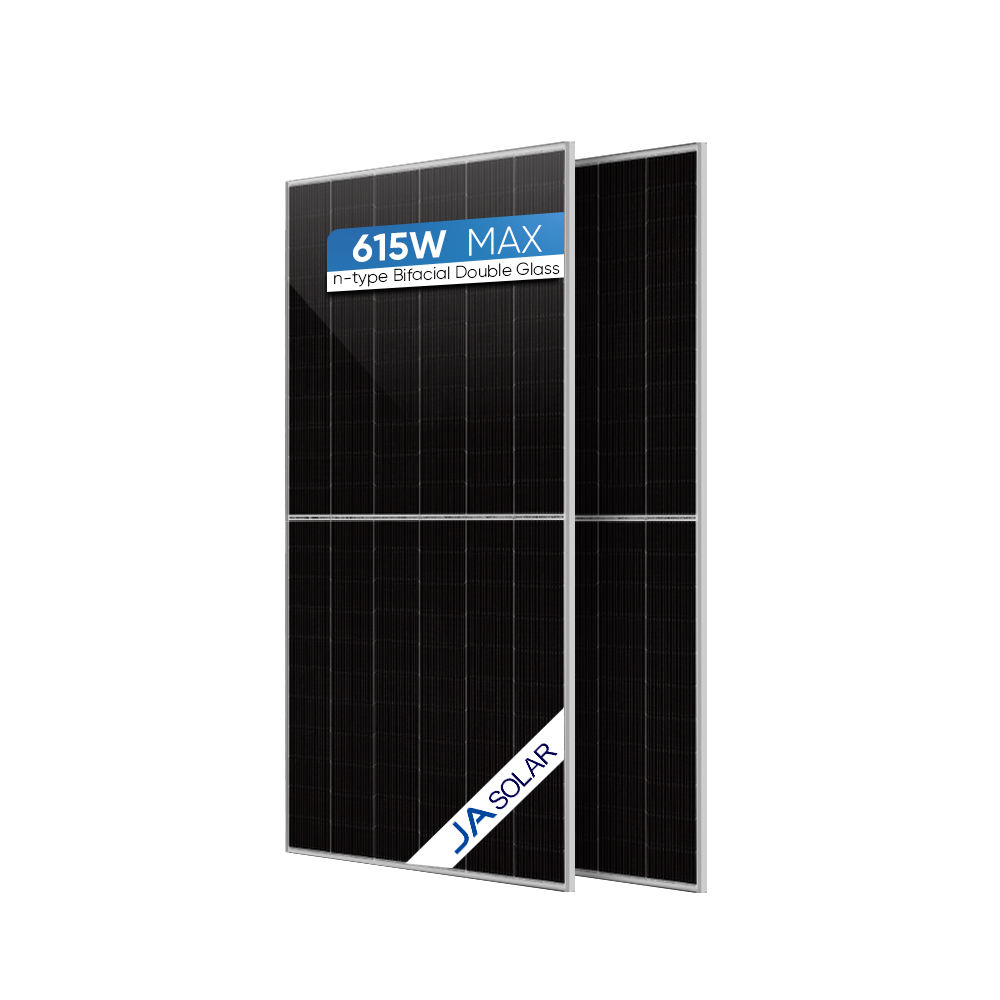

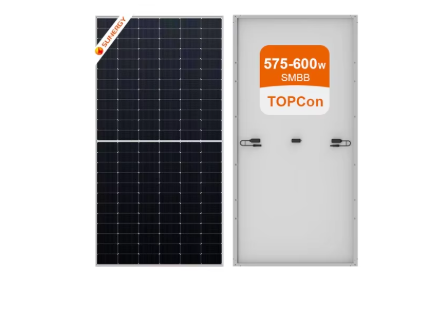

N-type TopCon
Peak Power Watt: 580W
Maximum Power Voltage: 42.78V
Maximum Power Current: 13.56A
Open Circuit Voltage: 51.32V
Short Circuit Current: 14.33A
Dimensions: 2278*1134*35mm
Weight: 27.0kg

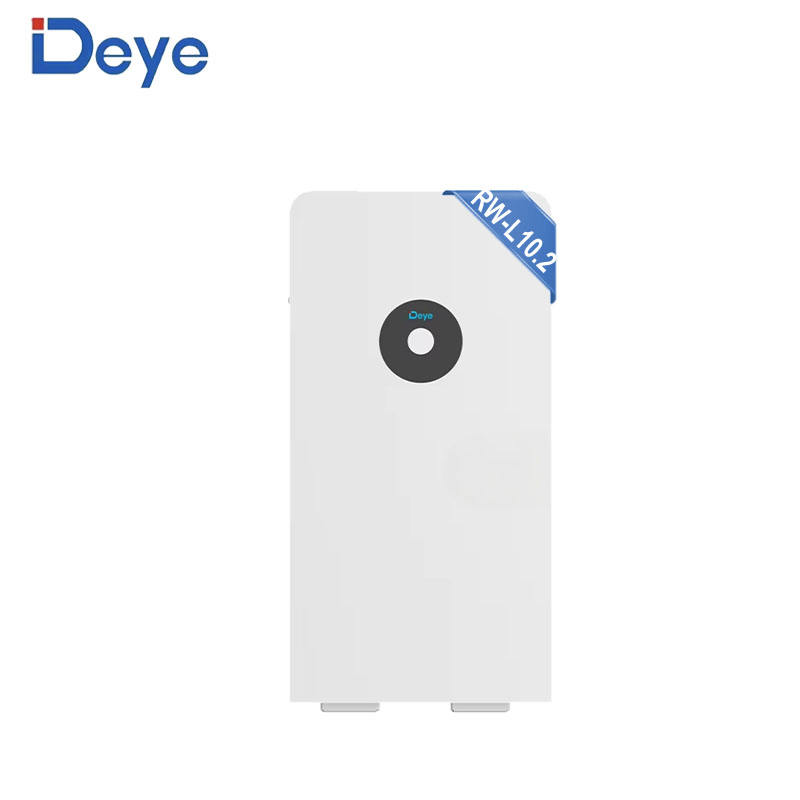

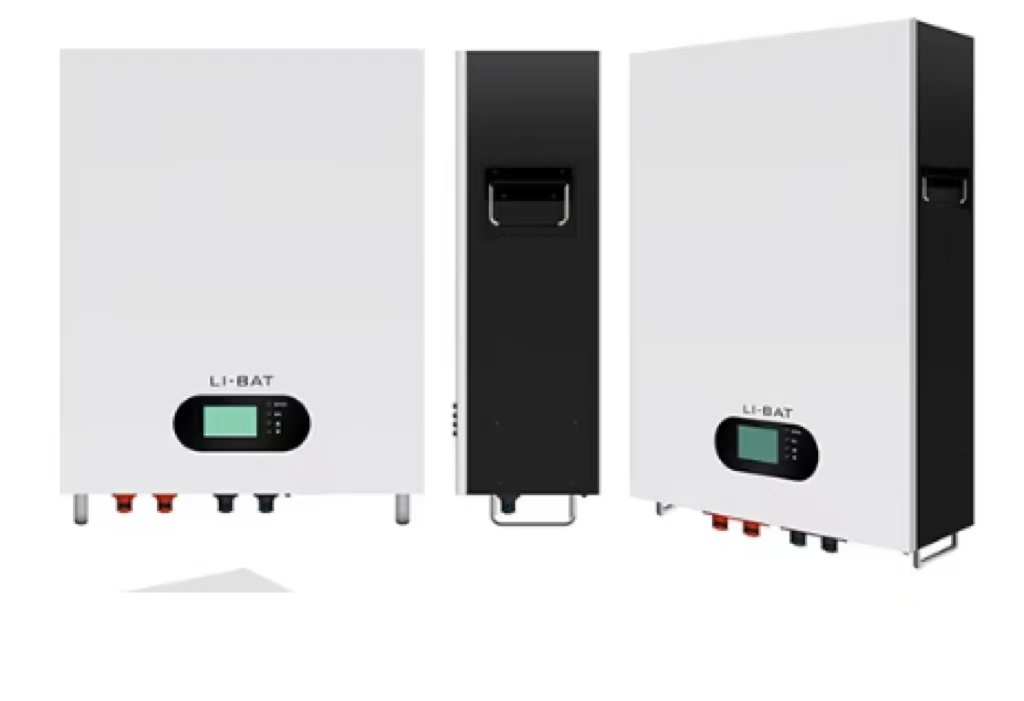

Rated Voltage: 48V/51.2V (Optional)
Rated Capacity: 100Ah/200Ah (Optional)
Cycle Life: 5000 cycles @ 80% DOD 0.5C
Material System: LiFePO4

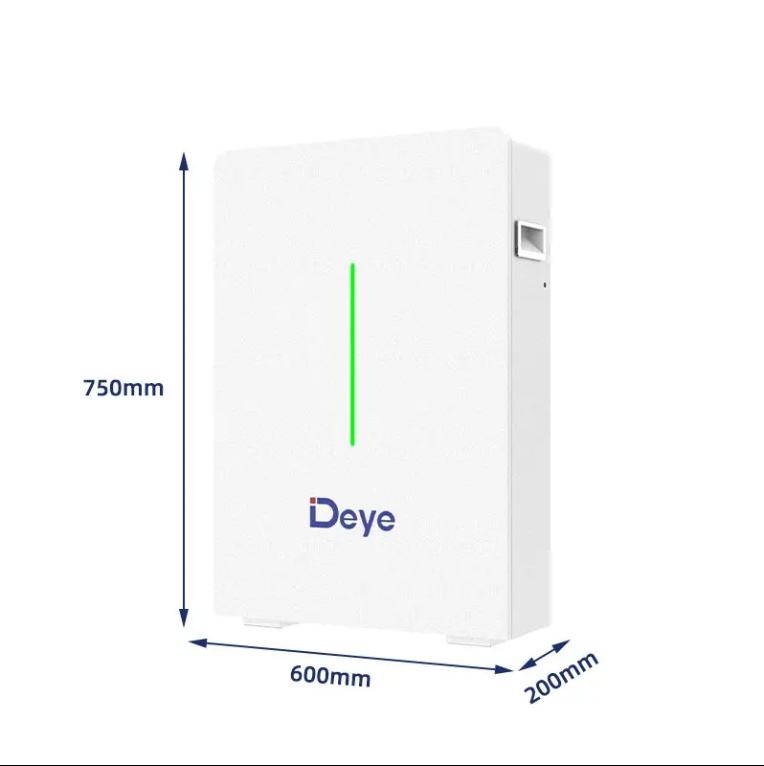

Case Type: Wall Mounted

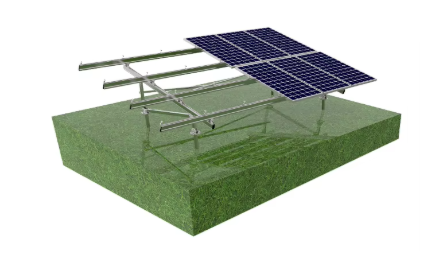

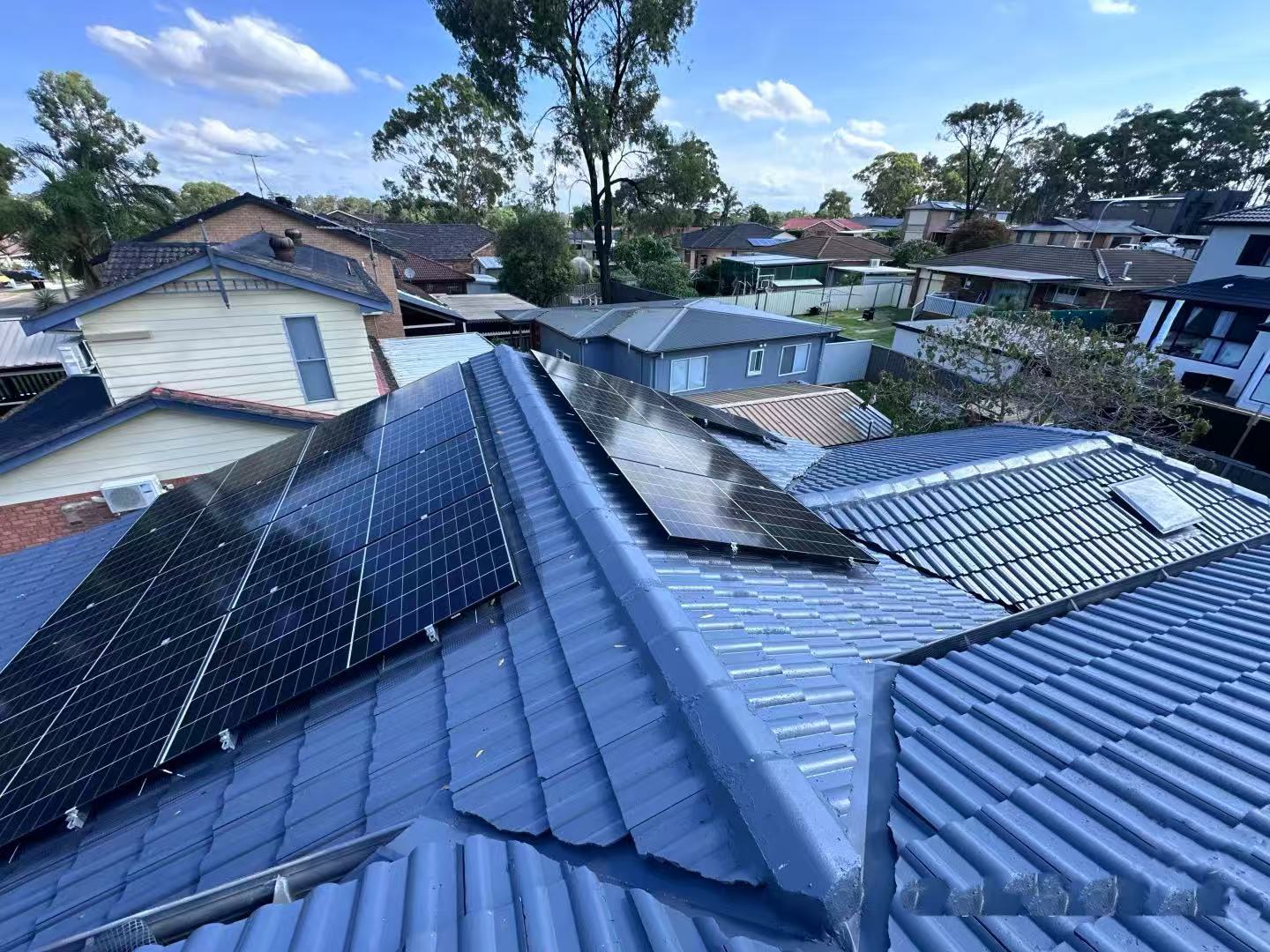

Pitched/Flat Rooftop/Ground Brackets
10 Years Warranty
Aluminum Alloy/Galvanized Steel
Provide Free Brackets Installation Design

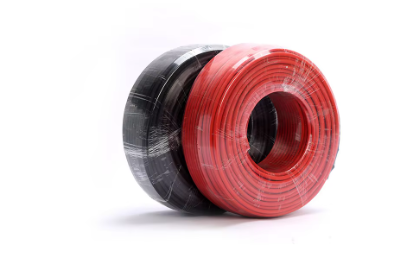

Cross Section: 4mm²/6mm² (Optional)
Rated Voltage: 600VDC(UL)/1000VDC(TUV)
Rated Current: 55A/70A
Colors: Black For STD, Red (Optional)
Lifetime: ≤ 25 Years

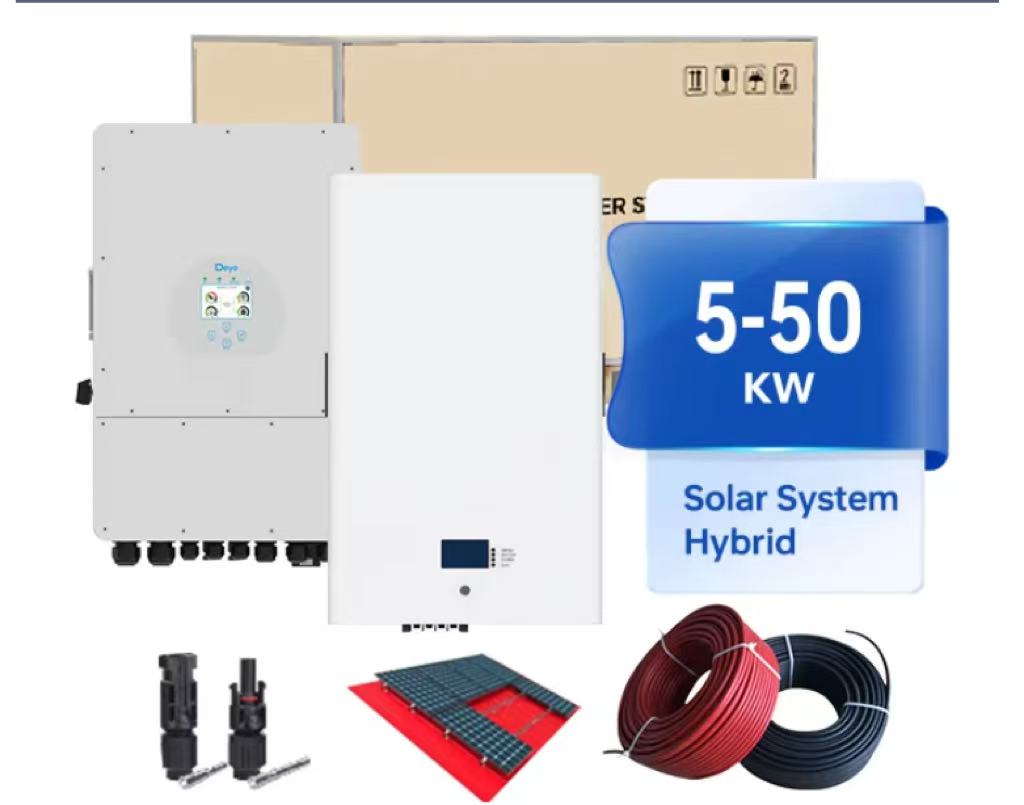

| System Model | TY5KW-HY | TY8KW-HY | TY10KW-HY | TY12KW-HY |
| PV MODULE SPECIFICATIONS | ||||
| Power (W) | 440-700 | |||
| Vmp (V) | 36.33-41.96 | |||
| Certifications | CE / TUV (IEC 61215 & IEC 61730) | |||

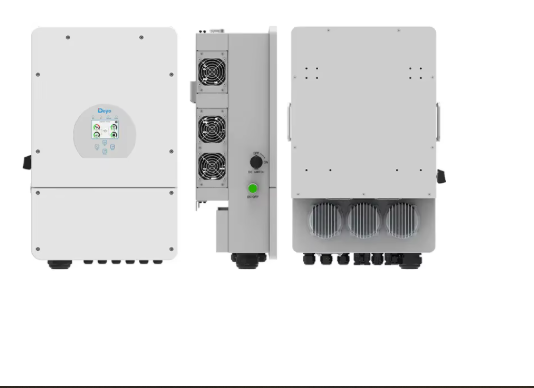

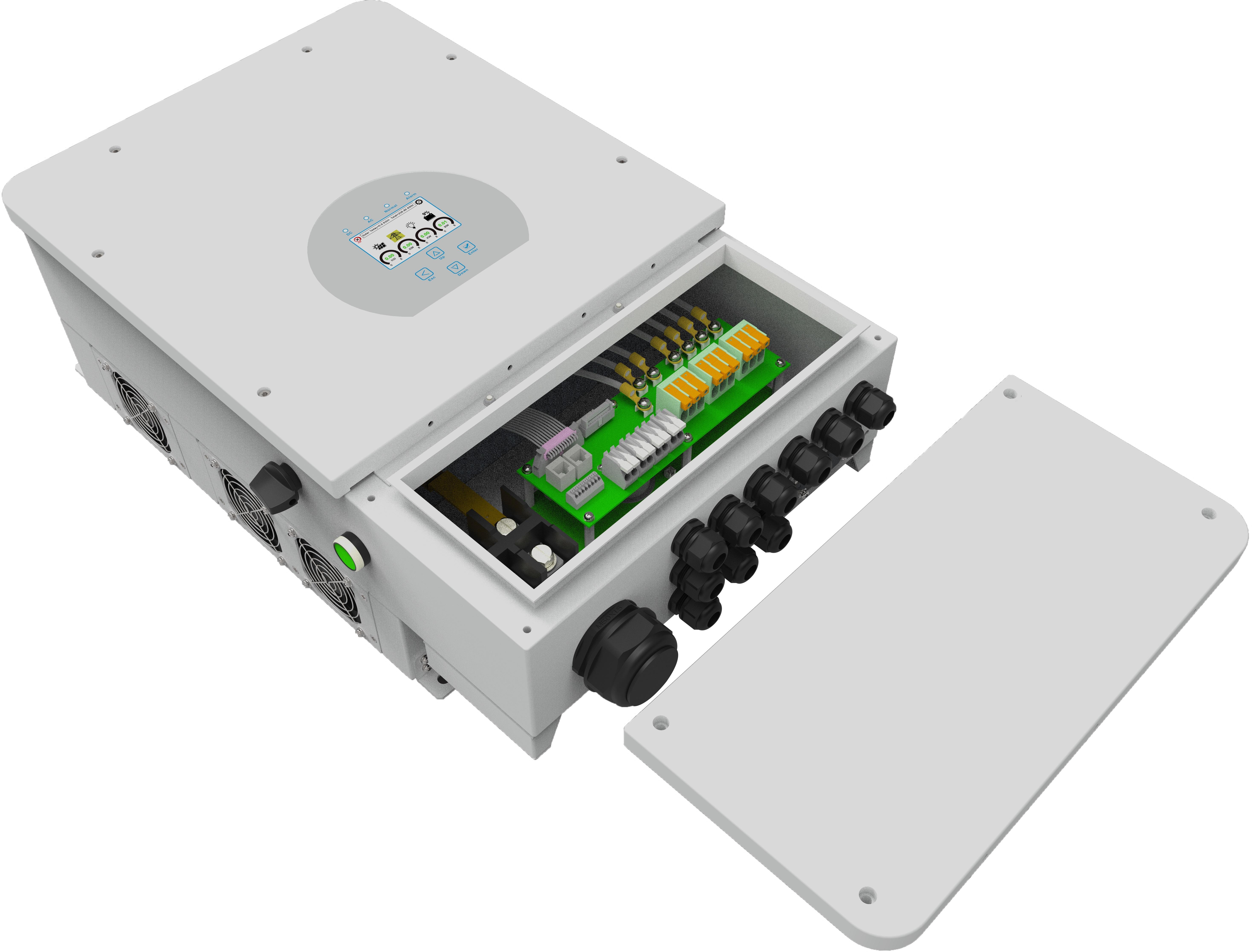

| INVERTER SPECIFICATIONS | ||||
| Rated Power (KW) | 5 | 8 | 10 | 12 |
| Max DC Power (W) | 6000 | 10400 | 13000 | 15600 |
| Output Voltage (Vac) | 220/230 | 220/380, 230/400 | ||
| BATTERY BANK SPECIFICATIONS | ||||
| Battery Bank Power (kWh) | 4.8 | 9.6 | 14.4 | 19.2 |
| Number Of PV Modules | 10 | 16 | 20 | 24 |
