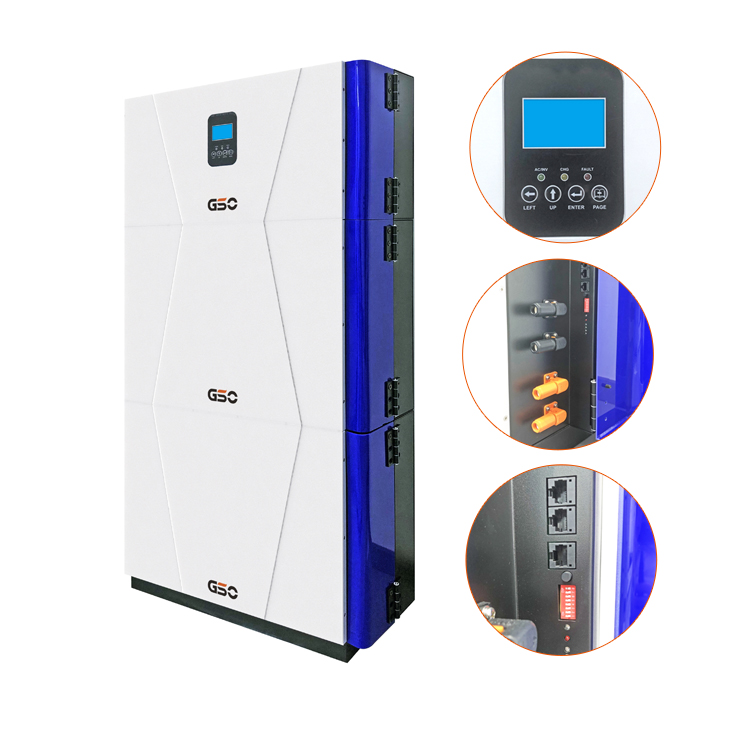

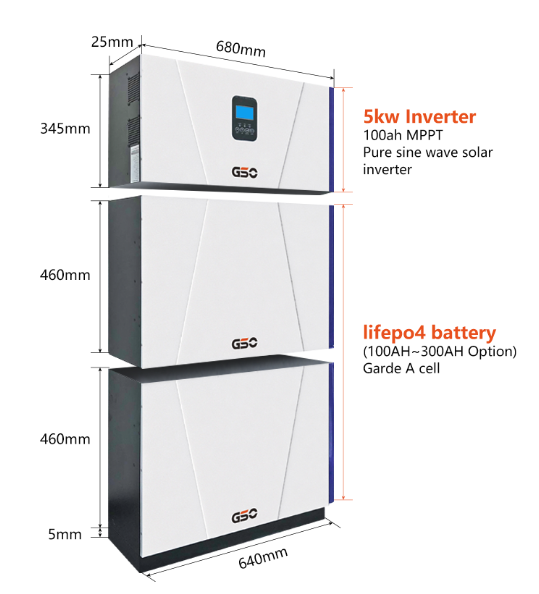

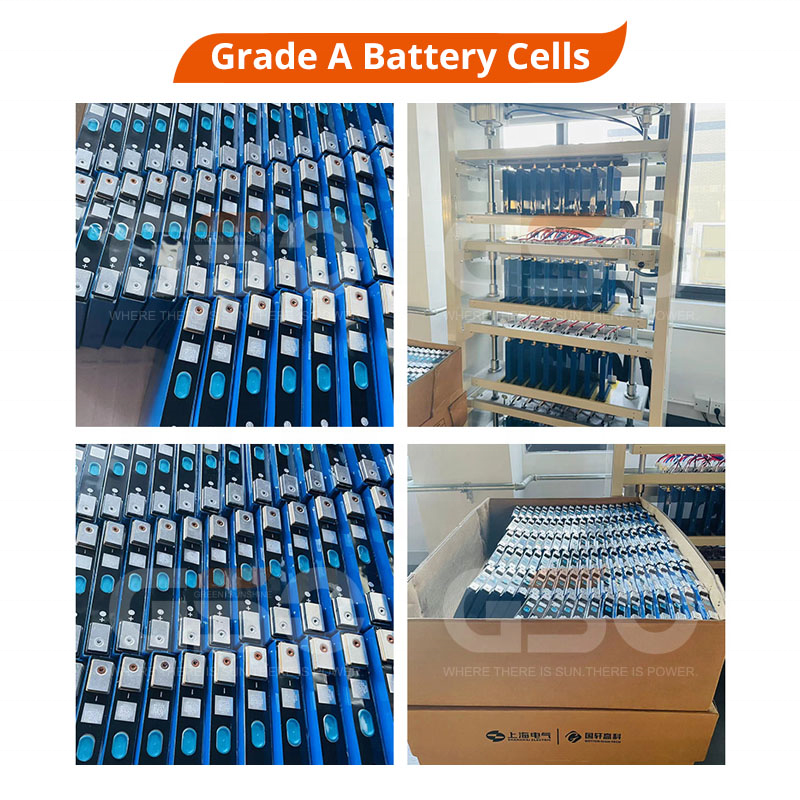

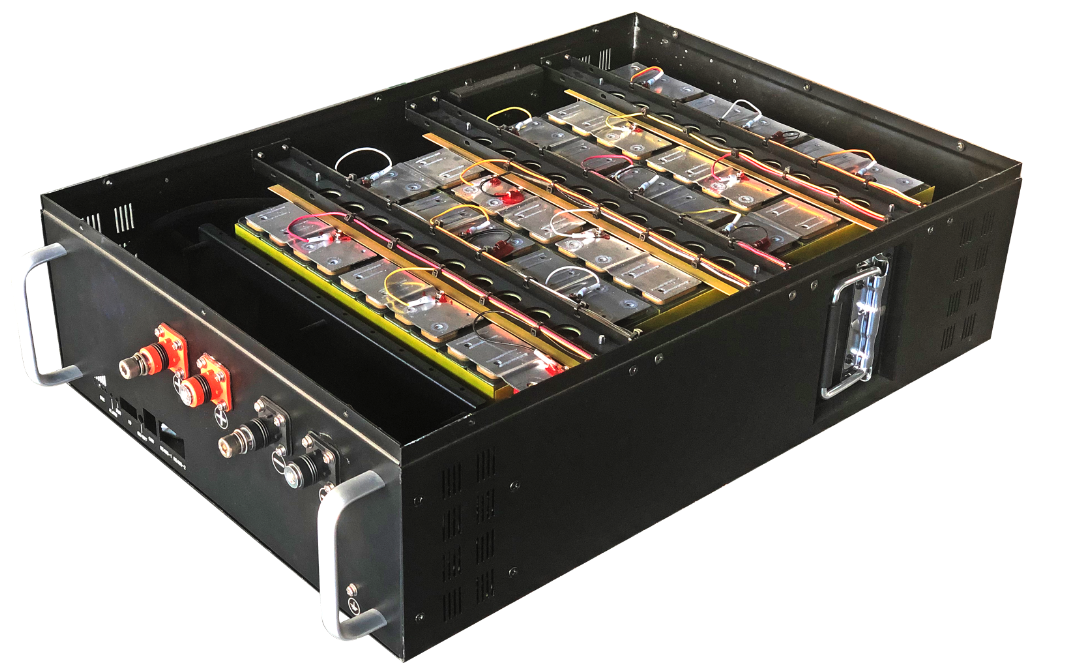

The product utilizes Top grade A cell, designed to last over 10 years.
| Input | |
| Nominal input volt | 230 VAC single phase |
| Option input volt range | 170-280 VAC (computer) ; 90-280 VAC (home appliance) |
| Input frequency range | 50 Hz/60 Hz |
| Output | |
| Nominal output volt | 230VAC ± 5% single phase |
| Surge power | 10000VA |
| Max. efficiency | 90%~93% |
| Output waveform | Pure sine wave |
| Switch time | 10 ms (Computer) ; 20 ms (Home appliance) |
| Peak | 3:1 |
| Battery | |

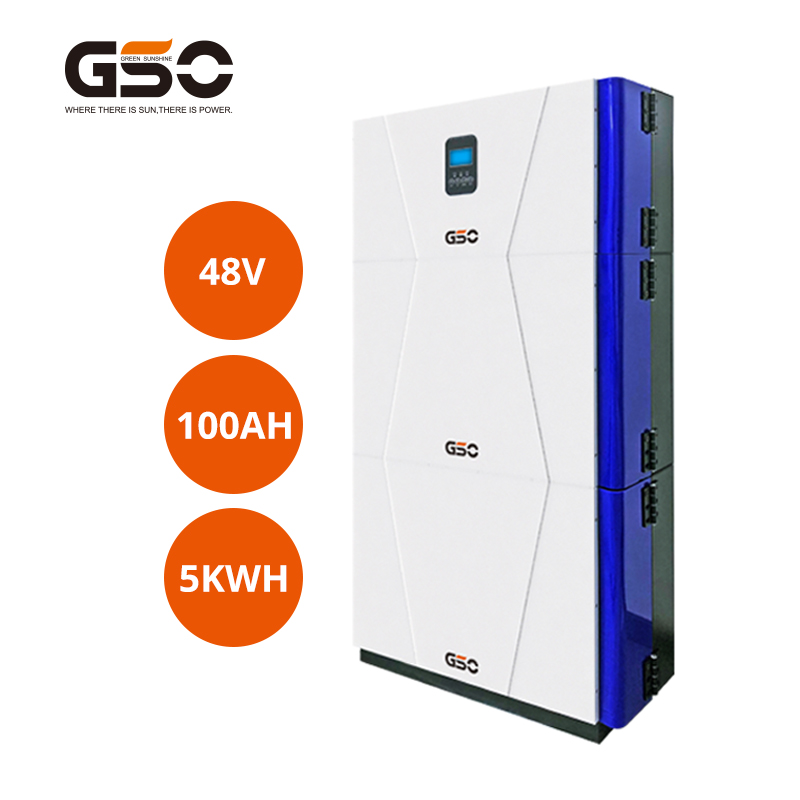

| Lithium type | LiFePO4 |
| Battery capacity | Standard 100~200AH (100AH~300AH Option) |
| Nominal bat volt | 48VDC |
| Charging volt | 52.5VDC |
| AC Charging + PV Charging | |
| Charging type | MPPT |
| Max. PV power | 3KW |
| MPPT range | 60-115VDC |
| Max. PV open circuit volt | 150V |
| Max. PV charging current | 60A |
| Max. AC charging current | 10A |
| Ambient | |
| Humidity | 0～95% No condensation |
| Working temperature | -10℃ ~ 50℃ |
| Storage temperature | -15℃ ~ 60℃ |

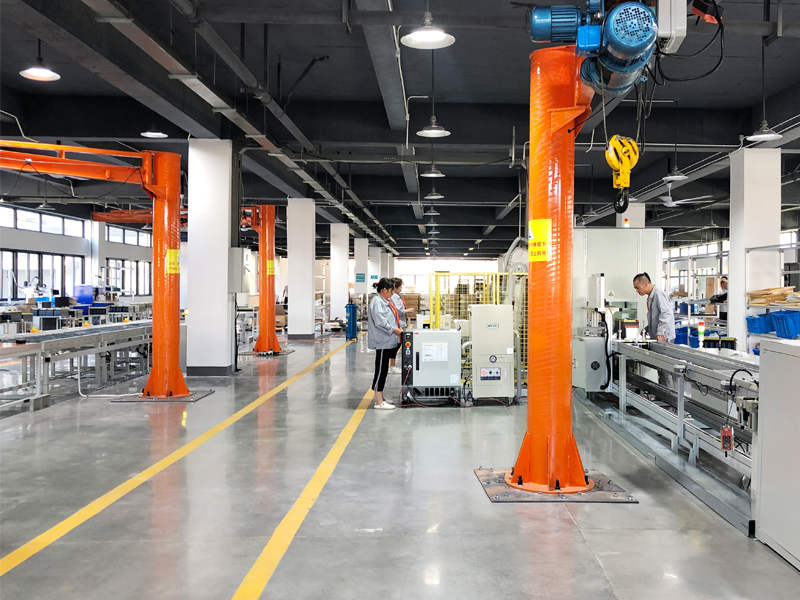

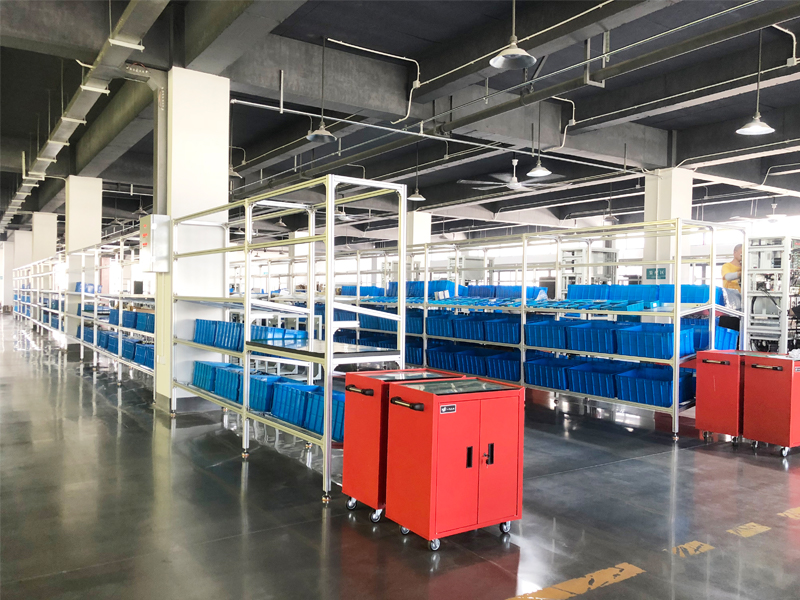

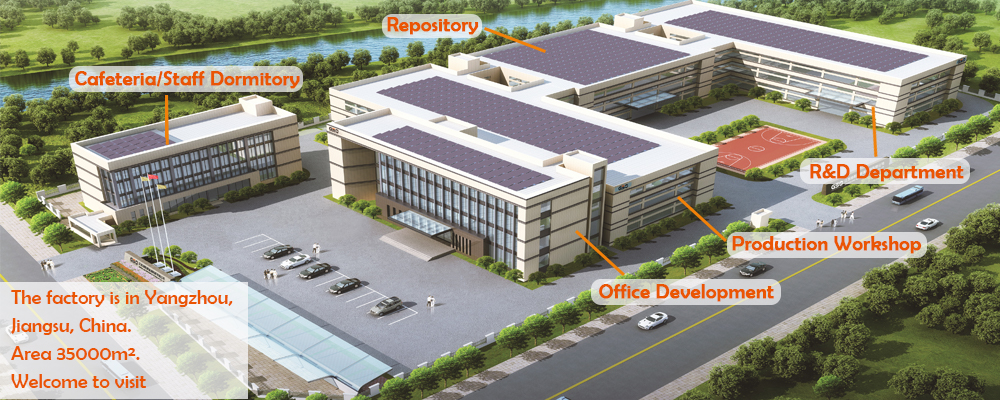

We are a high-tech enterprise dedicated to photovoltaic, energy storage and related products. Our company specializes in the integration of lithium battery PACK, household energy storage and energy saving products.
