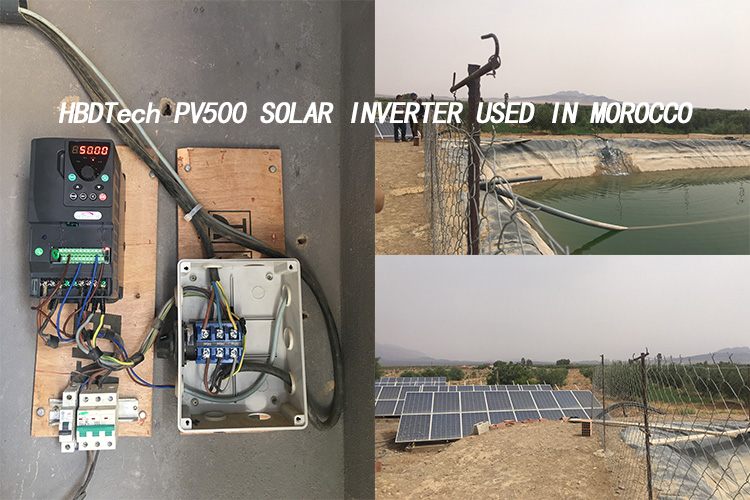

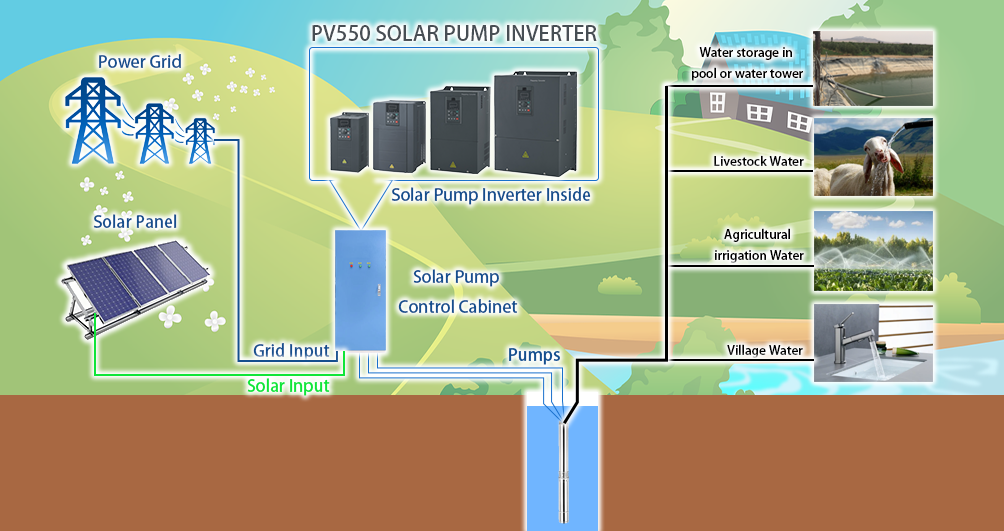

• Agricultural Irrigation
• Fountain Systems
• Industrial Applications
• Greenhouse Planting
• Aquaculture Water Tank
• Pool Water Supply

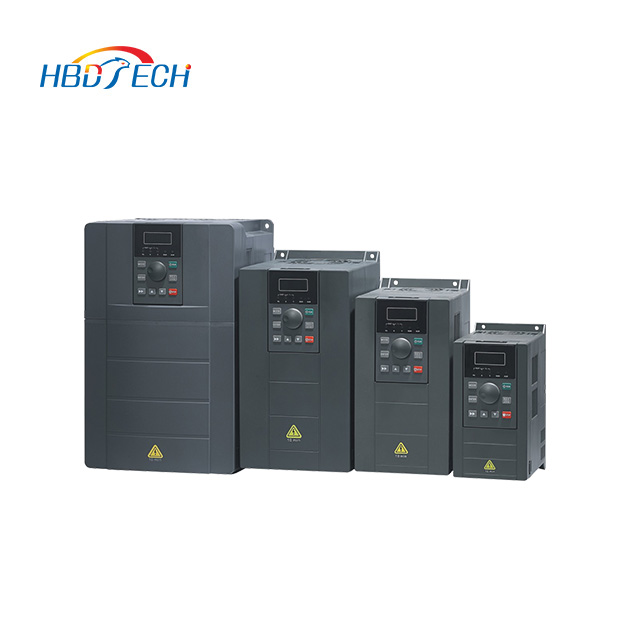

PV550 series solar pump inverter, as a special current vector frequency converter with high performance, can control solar pump and its functions are powerful. It can also be used as a universal frequency converter for spinning, papermaking, wire drawing, machine tool, package, food, fan, and various automation production equipments.
| Inverter Main Parts | Brand/Source |
|---|---|
| CPU | TI |
| IC | TI/ON |
| MODULE | INFINEON-Germany |
| Capacitor | TEAPO/JIANGHAI |
| MOS | RENESAS |
| Fans | RUNDA |
| Optocoupler | TOSHIBA/AVAGO |
| Terminals | TML |
| Snubber capacitor | CDE |

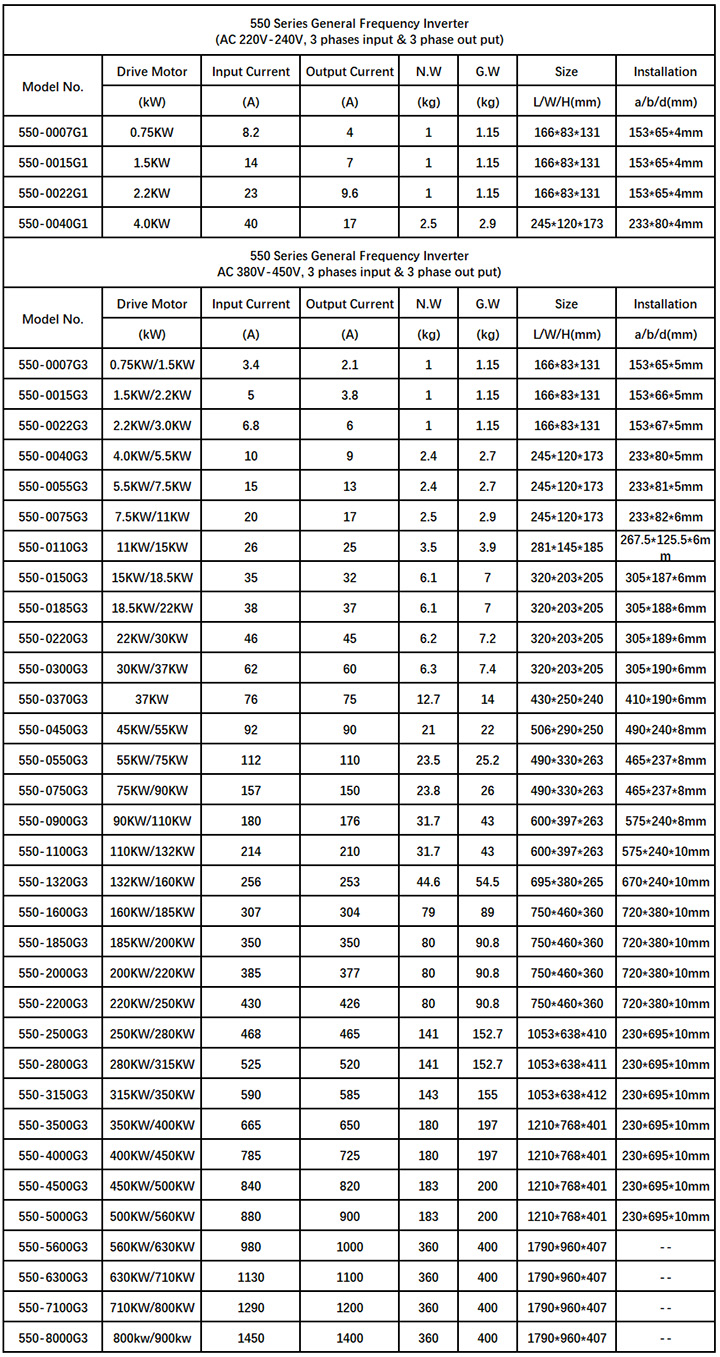

Power Range: 0.4kw/220v - 200kw/220v | 0.75kw/380v - 500kw/380v/440v
Output Frequency: 0Hz - 300Hz

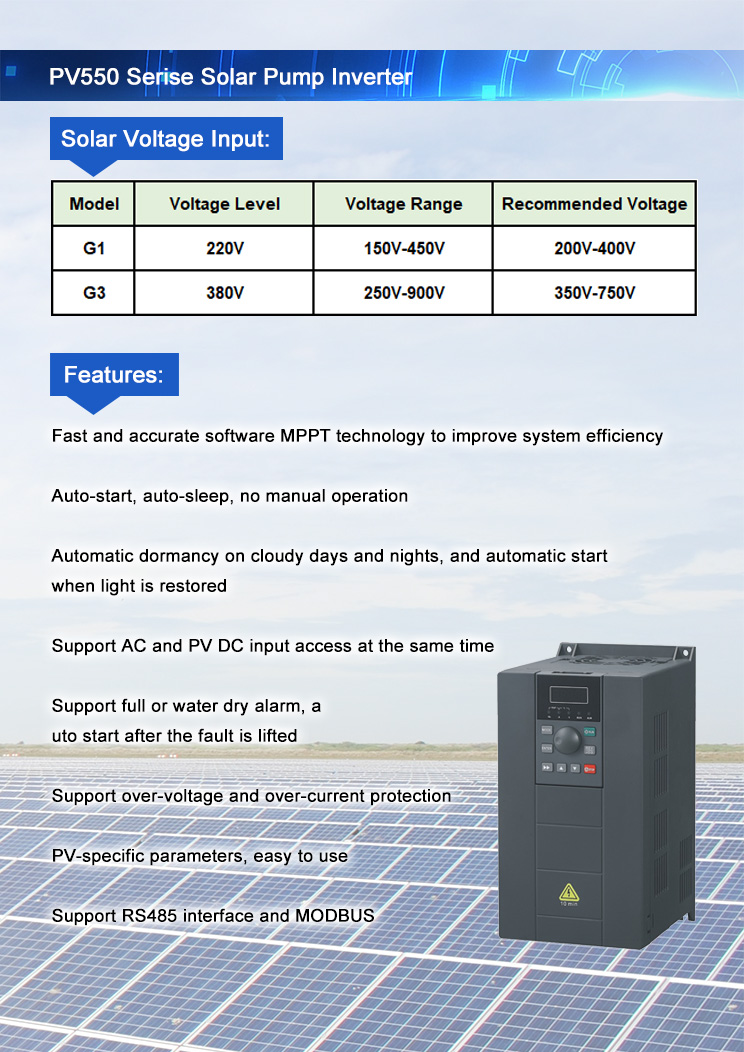

| Input Specification | |
|---|---|
| PV Input Max DC Voltage | 400VDC |
| Recommended MPPT Voltage | 250V-350VDC |
| Grid/Backup Generator Input | Three phase 220V (-15%~30%) |
| Output Specification | |
| Rated Output Voltage | 3PH 220V |
| Output Frequency | 0~500.00Hz (Default 0~50.00Hz) |
| Protection | |
| Built-in Protections | Lighting, over-current, overvoltage, output phase-lose, under-load, under-voltage, short circuit, overheating, water pump run dry, etc. |
| General Parameters | |
| Environment Temperature | -10℃~40℃ (Derated use up to 50℃) |
| Efficiency | Rated Power Run ≥ 93% |
| Protection Grade | IP20 |
