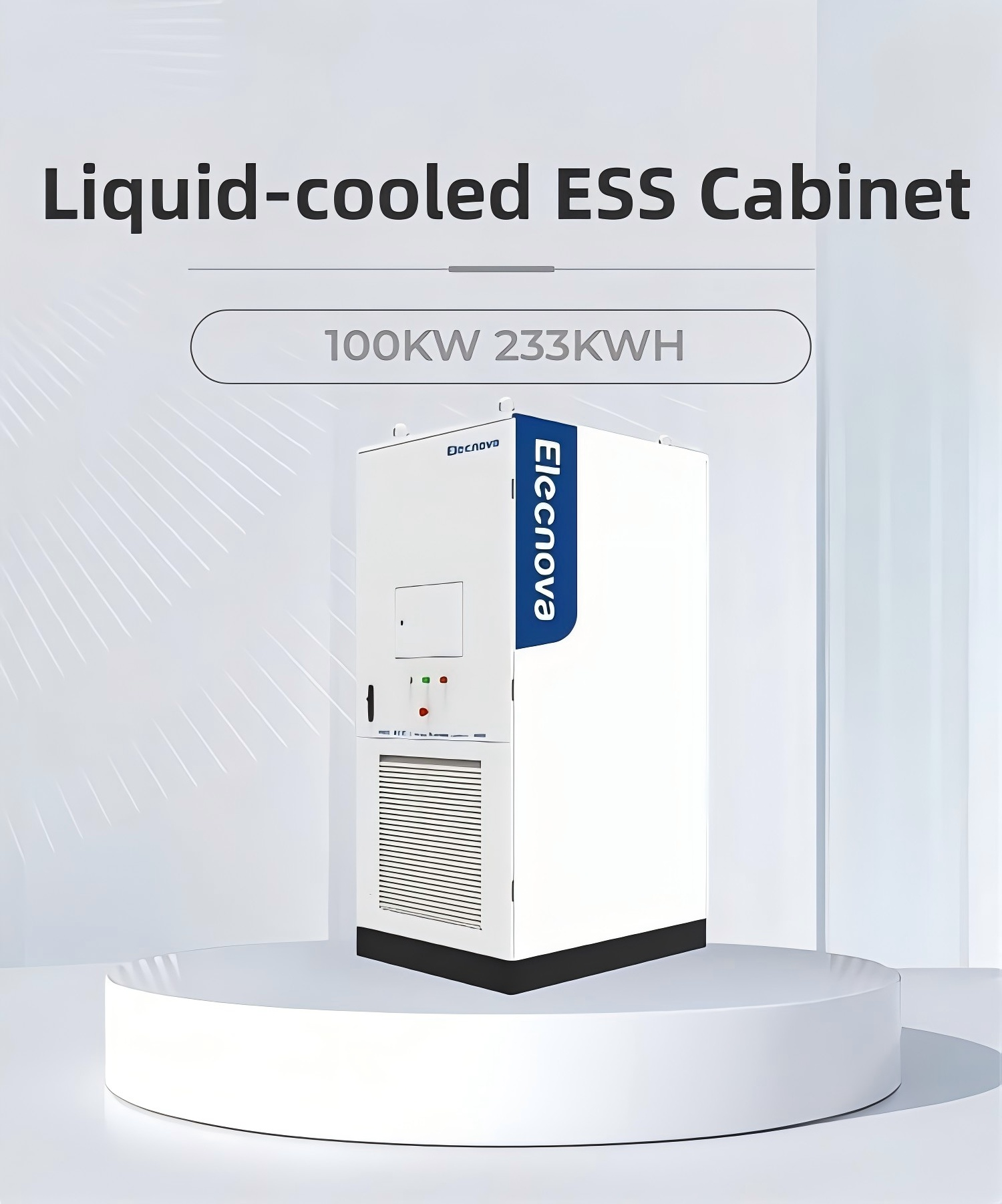

| Technical Specifications | |
|---|---|
| DC Side | |

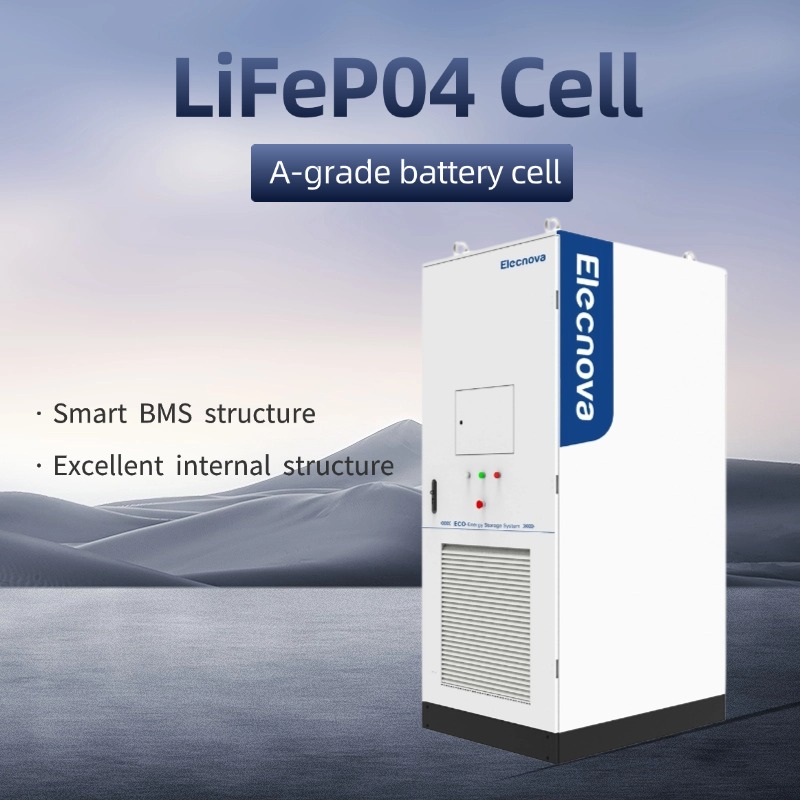

| Cell Type | LFP280Ah |
| PACK | 46.592kWh/1P52S |
| Battery System | 232.96kWh/1P260S |
| Voltage Range | 728~936Vdc |
| PACK Ingress Rating | IP65 |
| AC Side | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| THDi | <3% |
| DC Ratio | <0.5%Ip |
| Nominal Voltage | 400Vac/3P+N+PE |
| Nominal Frequency | 50/60 Hz |
| General | |

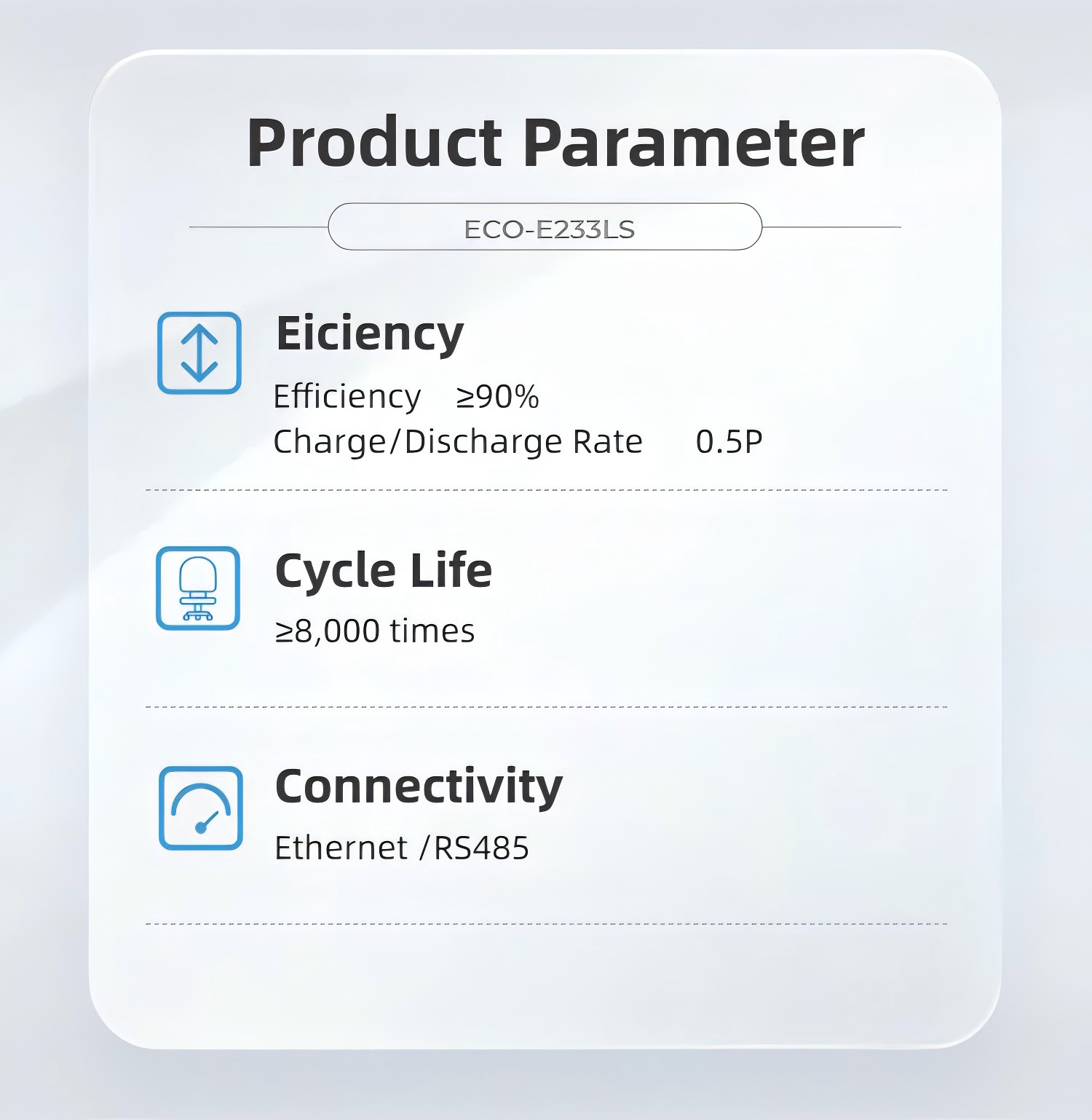

| System Efficiency | ≥90% |
| Charge/Discharge Rate | 0.5P |
| DoD | 95% |
| SOC Accuracy | <3% |
| Cycle Life | ≥8,000 times |
| Switching Time | <100ms |
| Connectivity | Ethernet /RS485 |
| Ingress Rating | IP55 |

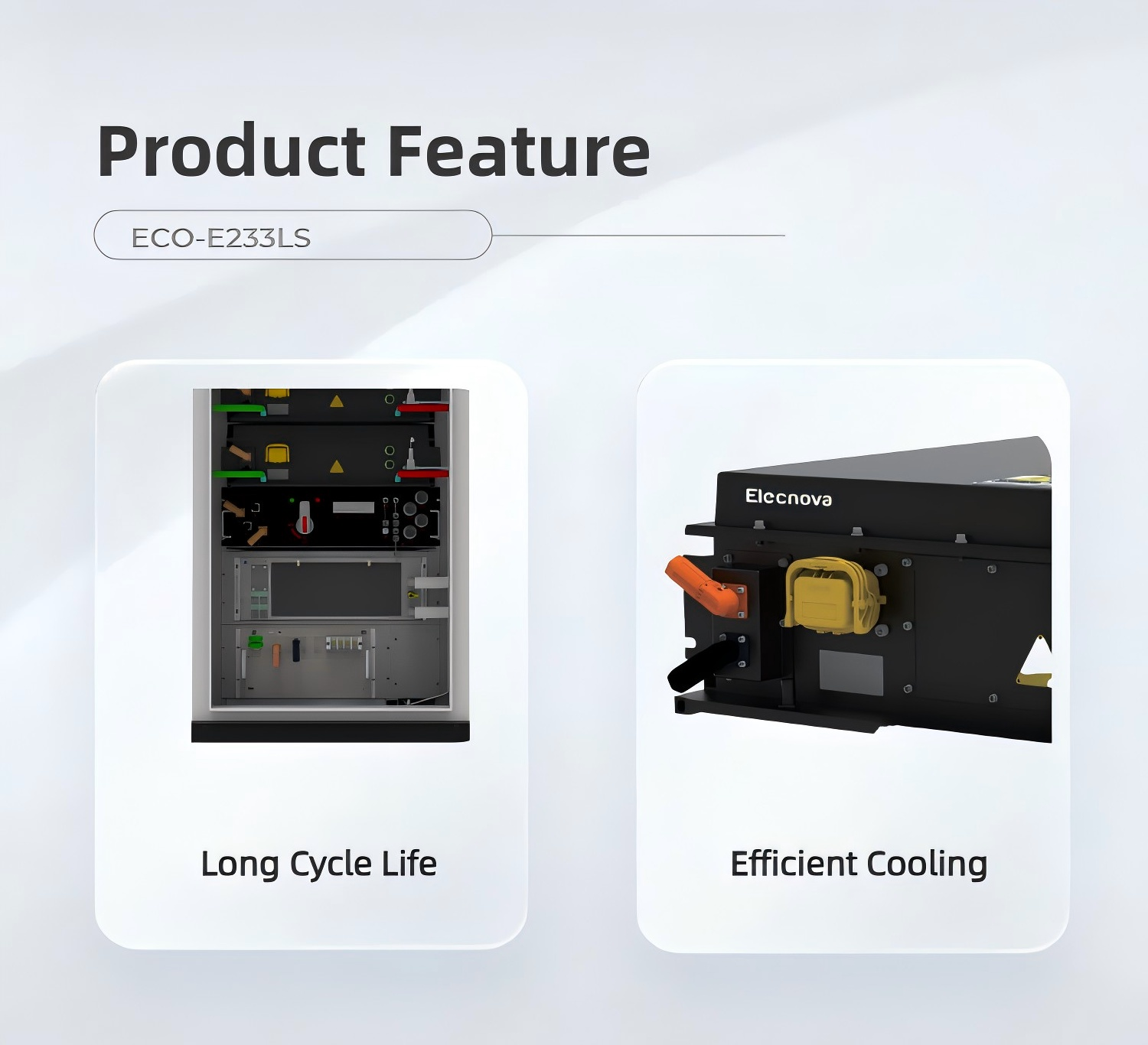

| Cooling | Active liquid cooling |
| Operating Temperature | -25℃~55℃ |
| Humidity | 5-95%RH, non-condensing |
| Noise | ≤75dB |
| Altitude | ≤2,000m (derating above 2,000m) |
| Fire Safety | Aerosol |

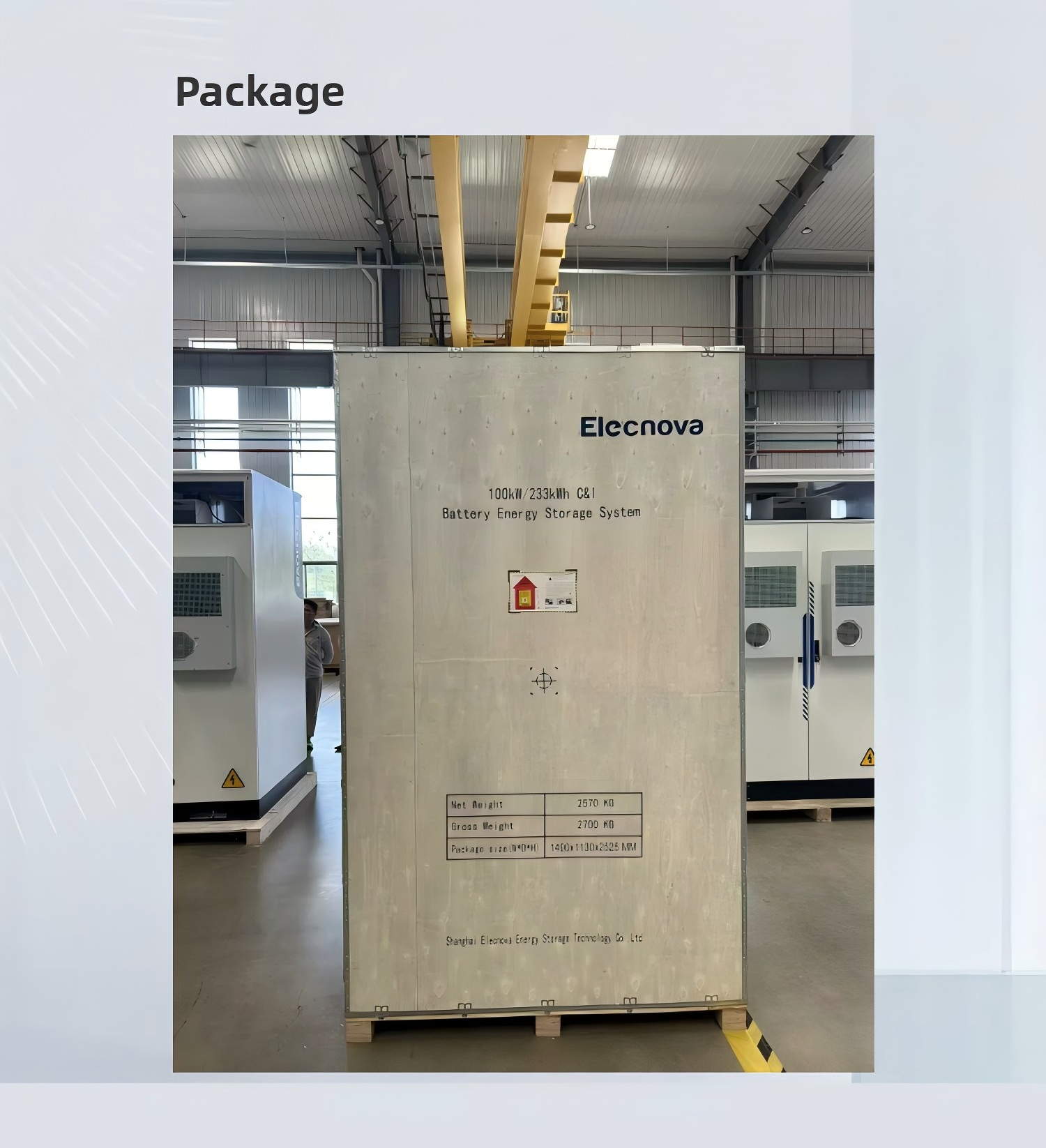

| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |
| Weight | 2,570kg |
| Compliance | UN38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL9540A, EN50549 |

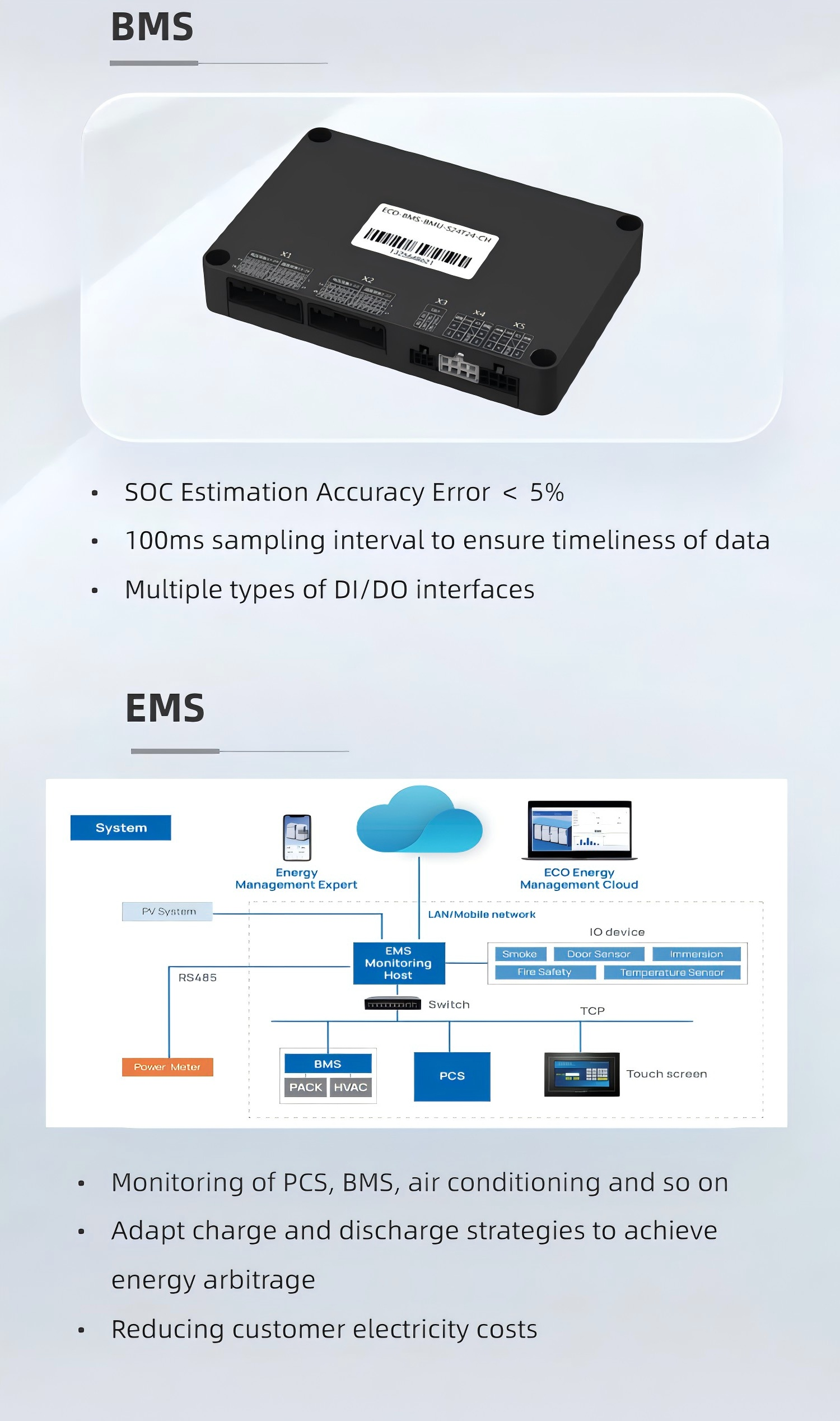

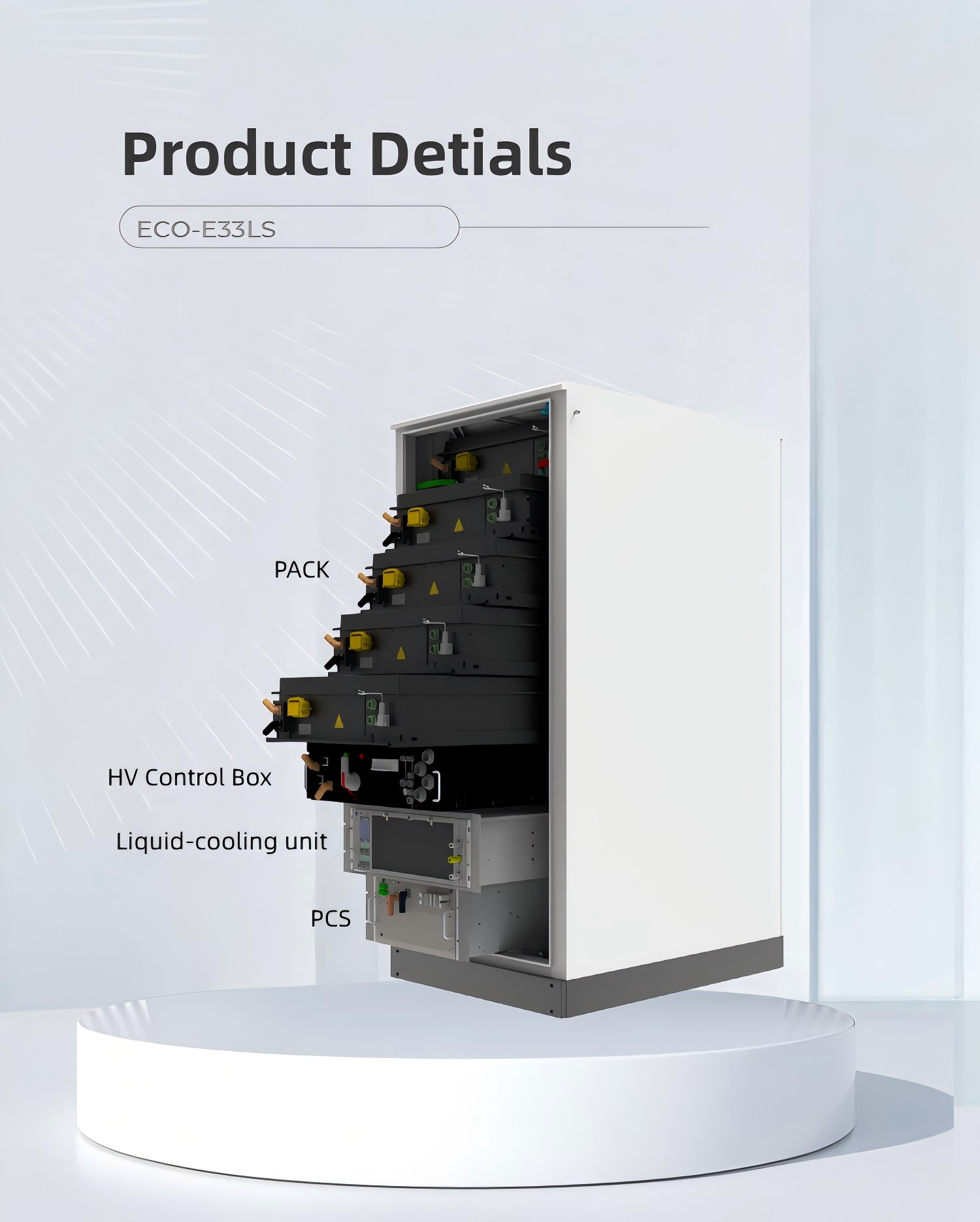

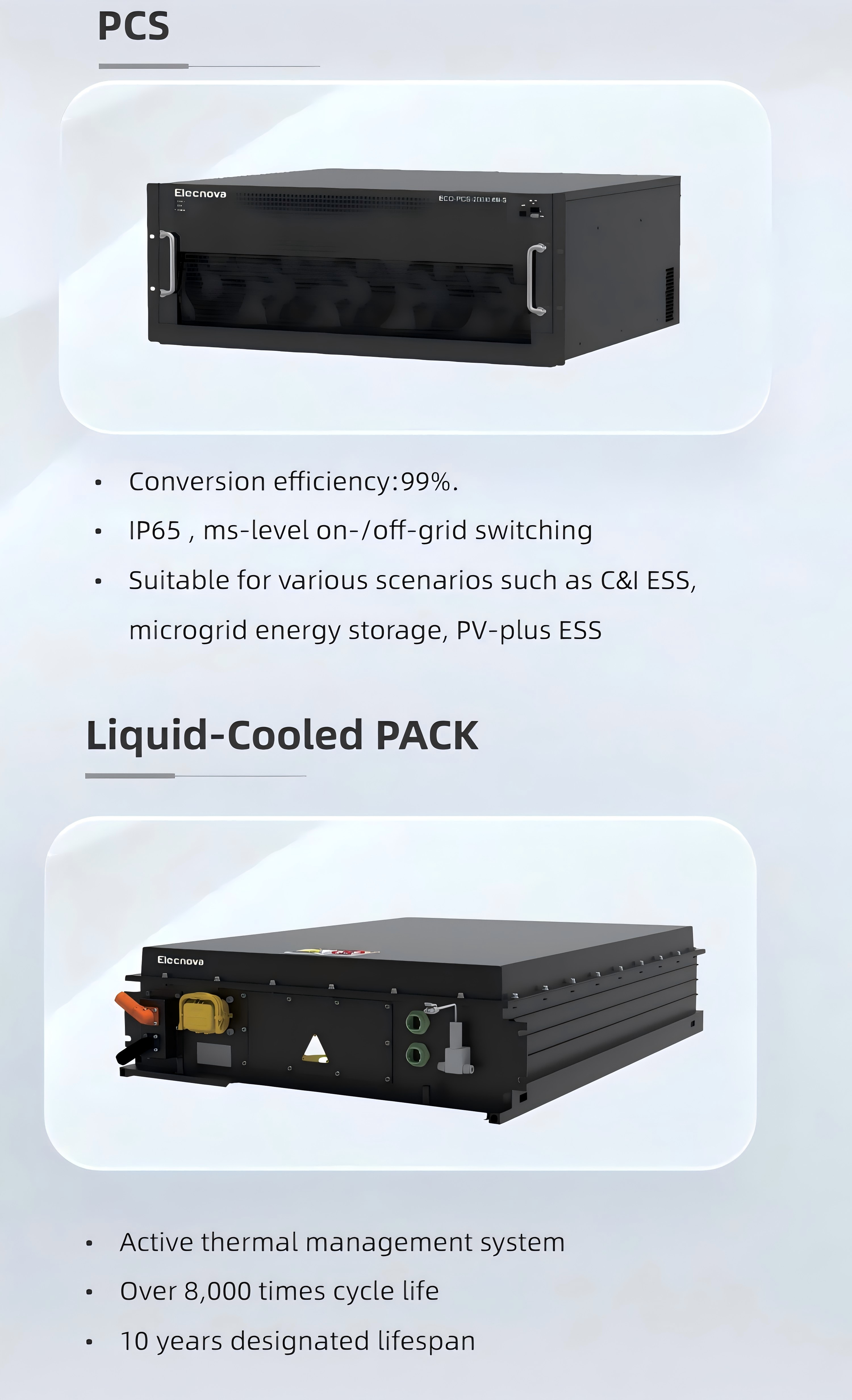

We are a technology-based enterprise focusing on overall solutions for energy storage systems. Our team possesses full supporting capabilities for system integration, including PACK, PCS, and BMS. We aim to meet diversified energy requirements across segmented markets and customers, with high-quality products as our core foundation.

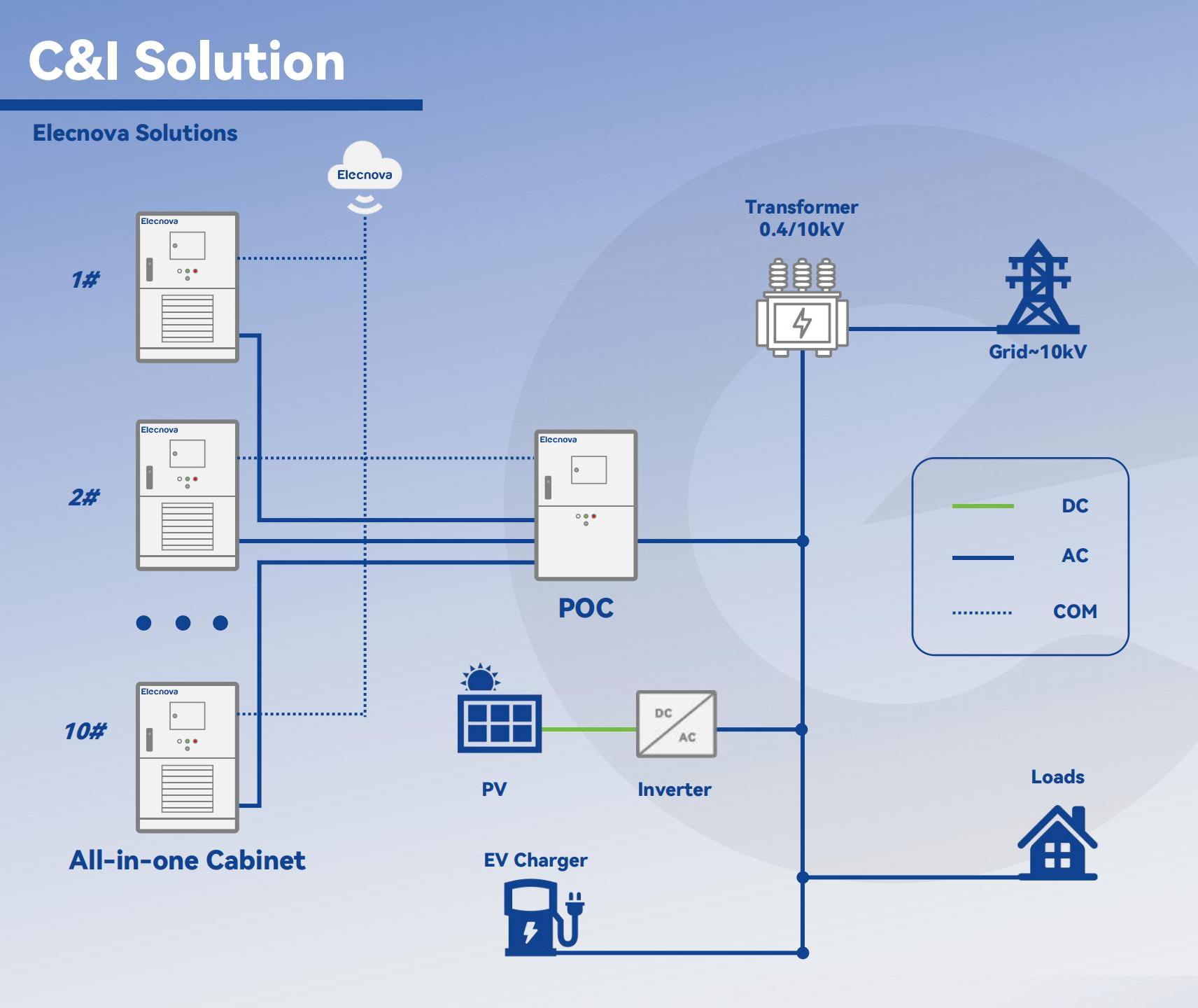

We are committed to providing customized products and services for various energy consumption scenarios on the power generation side, grid side, and user side.
