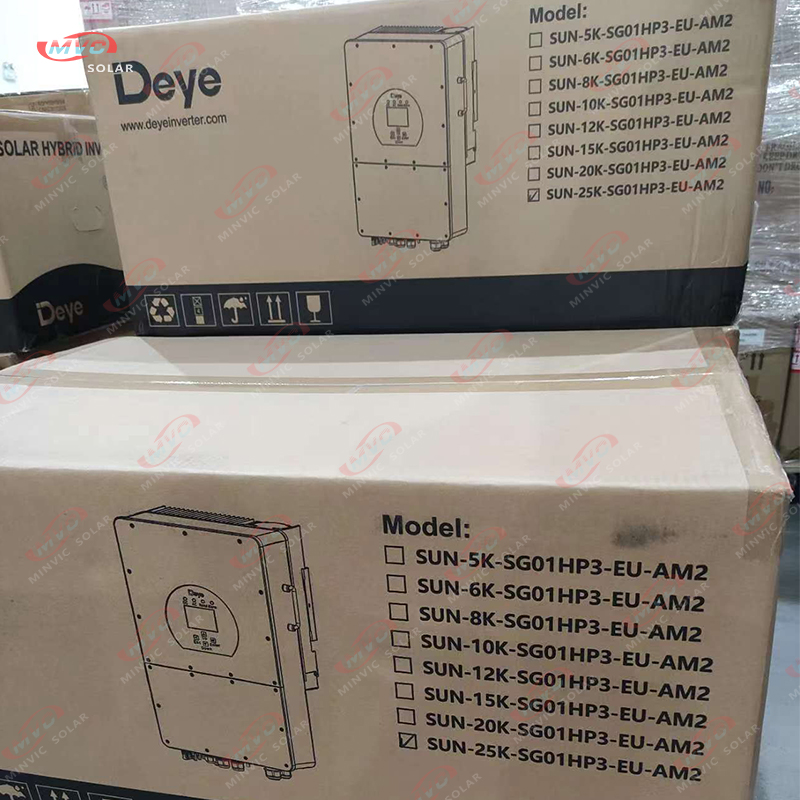

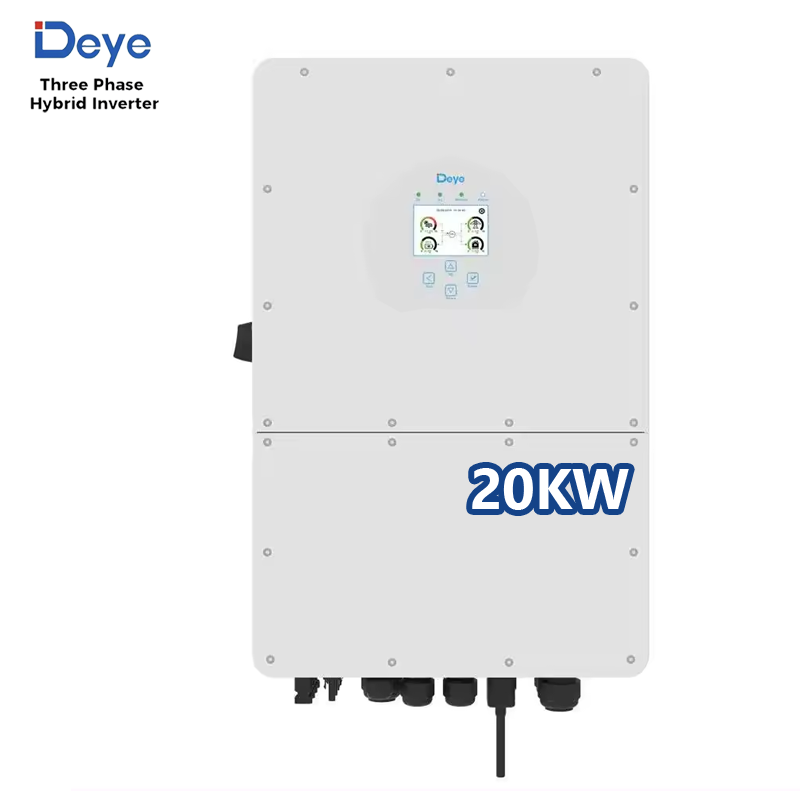

Deye Hybrid Solar Inverter SG01HP3-20KW High Voltage Three Phase Solar Inverter 5KW 8KW 15KW 20KW 25KW EU Version for Home Use
Deye Hybrid Solar Inverter SG01HP3-20KW High Voltage Three Phase Solar Inverter 5KW 8KW 15KW 20KW 25KW EU Version for Home Use
Deye Hybrid Solar Inverter SG01HP3-20KW High Voltage Three Phase Solar Inverter 5KW 8KW 15KW 20KW 25KW EU Version for Home Use
Deye Hybrid Solar Inverter SG01HP3-20KW High Voltage Three Phase Solar Inverter 5KW 8KW 15KW 20KW 25KW EU Version for Home Use
Deye Hybrid Solar Inverter SG01HP3-20KW High Voltage Three Phase Solar Inverter 5KW 8KW 15KW 20KW 25KW EU Version for Home Use
1 / 5
Deye Hybrid Solar Inverter SG01HP3-20KW High Voltage Three Phase Solar Inverter 5KW 8KW 15KW 20KW 25KW EU Version for Home Use
Deye Hybrid Solar Inverter SG01HP3-20KW High Voltage Three Phase Solar Inverter 5KW 8KW 15KW 20KW 25KW EU Version for Home Use
Deye Hybrid Solar Inverter SG01HP3-20KW High Voltage Three Phase Solar Inverter 5KW 8KW 15KW 20KW 25KW EU Version for Home Use
Deye Hybrid Solar Inverter SG01HP3-20KW High Voltage Three Phase Solar Inverter 5KW 8KW 15KW 20KW 25KW EU Version for Home Use
Deye Hybrid Solar Inverter SG01HP3-20KW High Voltage Three Phase Solar Inverter 5KW 8KW 15KW 20KW 25KW EU Version for Home Use

Deye Hybrid Solar Inverter SG01HP3-20KW High Voltage Three Phase Solar Inverter 5KW 8KW 15KW 20KW 25KW EU Version for Home Use

Send Inquiry

Product Description

✓ Ready stock! Abundant inventory!
Product Description

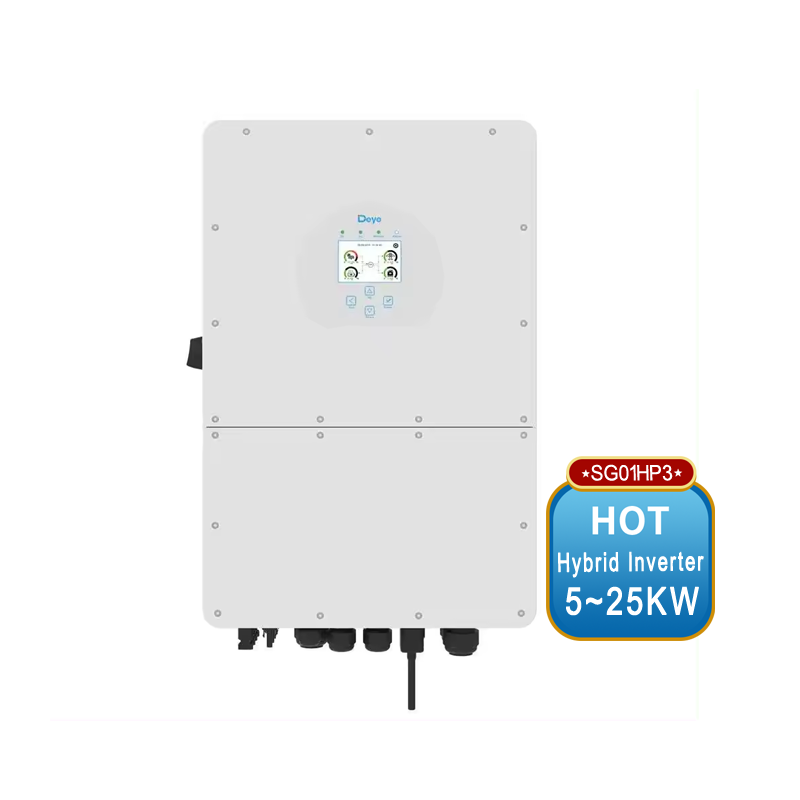

Hybrid Inverter

SUN-SG01HP3-EU-AM2

Power Range: 5/6/8/10/12/15/20/25KW

⚙ 100% unbalanced output, each phase
⚙ AC couple to retrofit existing solar system
⚙ Max. 10 pcs parallel for on-grid and off-grid operation
⚙ Support multiple batteries parallel
⚙ Max. charging/discharging current of 50A
⚙ High voltage battery, higher efficiency
⚙ 6 time periods for battery charging/discharging
⚙ Support storing energy from diesel generator

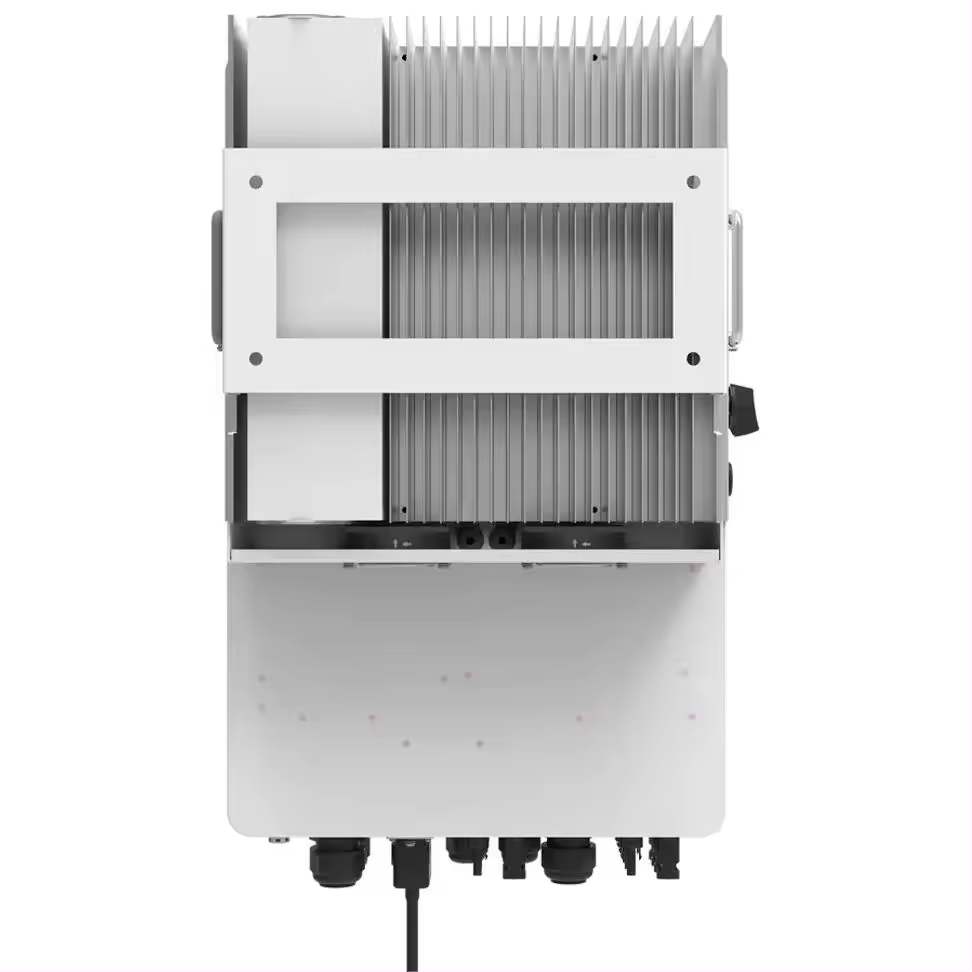

Inverter View 1

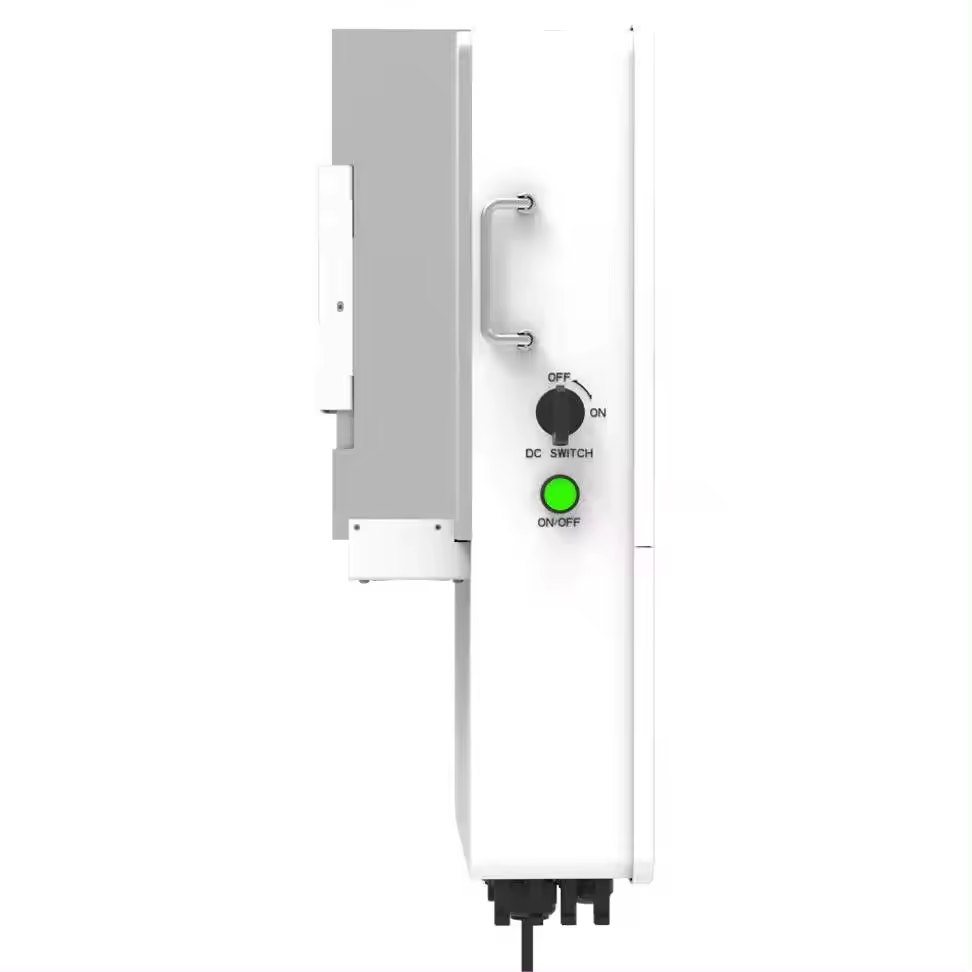

Inverter View 2

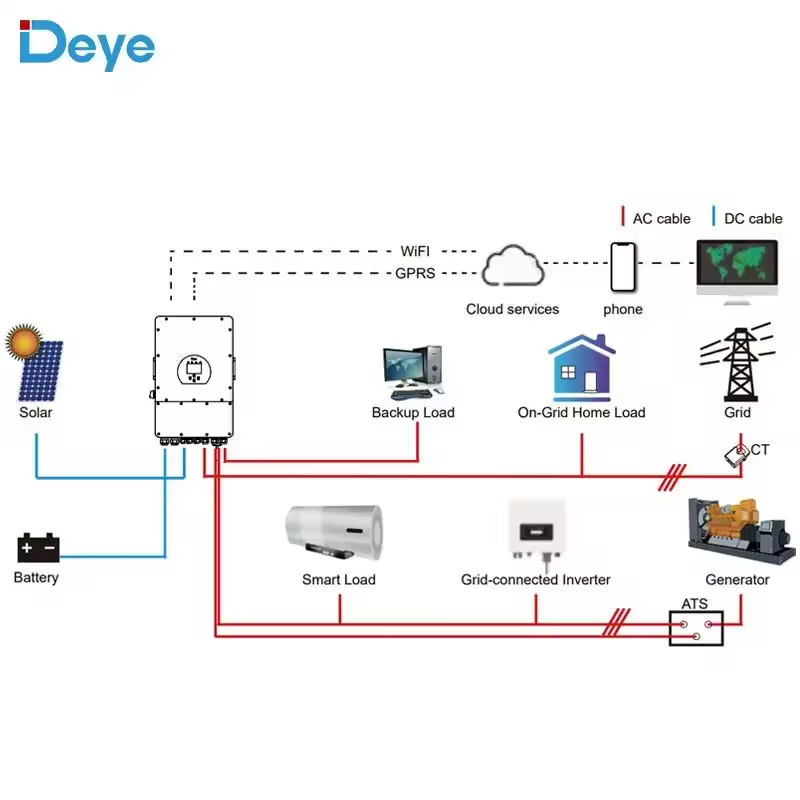

Inverter View 3

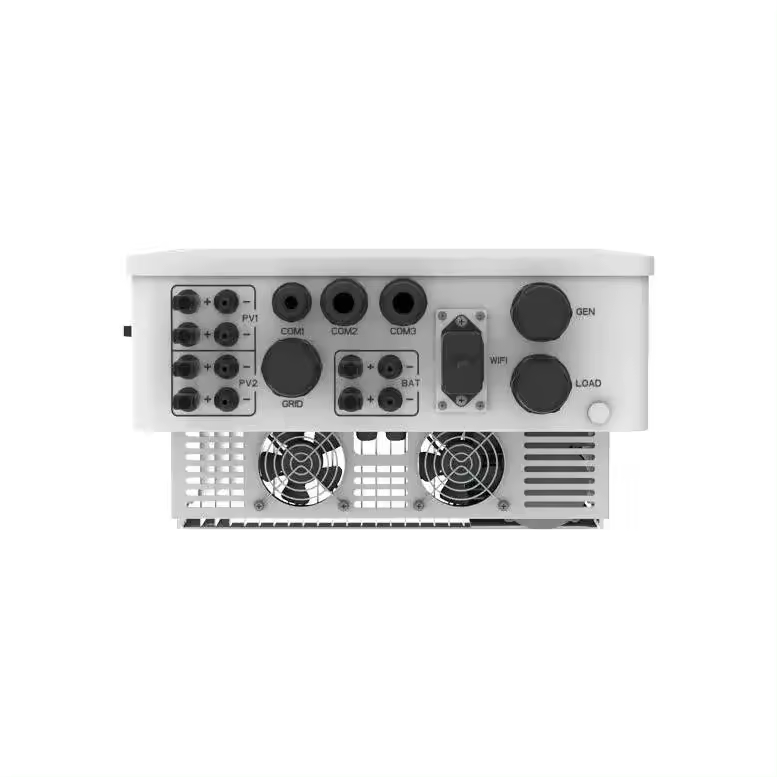

Inverter View 4
Technical Specification
Model SUN-15K-SG01HP3-EU-AM2 SUN-20K-SG01HP3-EU-AM2 SUN-25K-SG01HP3-EU-AM2
Battery Input Data
Battery TypeLithium-ion
Battery Voltage Range (V)160~700V
Charging/Discharging Current37A/37A37A/37A50A/50A
PV String Input Data
Max. DC Input Power (W)19500W26000W32500W
PV Input Voltage (V)600V (150V~850V)
Start-up Voltage (V)180V
PV Input Current (A)39A+39A
No.of MPPT / Strings2 / 2+12 / 2+12 / 2+2
AC Output Data
Rated AC Output Power15000W20000W25000W
Max. AC Output Power16500W22000W27500W
Max. AC Current (A)30A45A41A
Output Voltage/Freq50/60Hz; 220/380V, 230/400V (Three Phase)
General Data
Operating Temp.-40 to +60℃ (>45℃ Derating)
CommunicationRS485; CAN
Weight / Size30.5KG / 408W*638H*237D mm
Protection DegreeIP65
Packing & Delivery

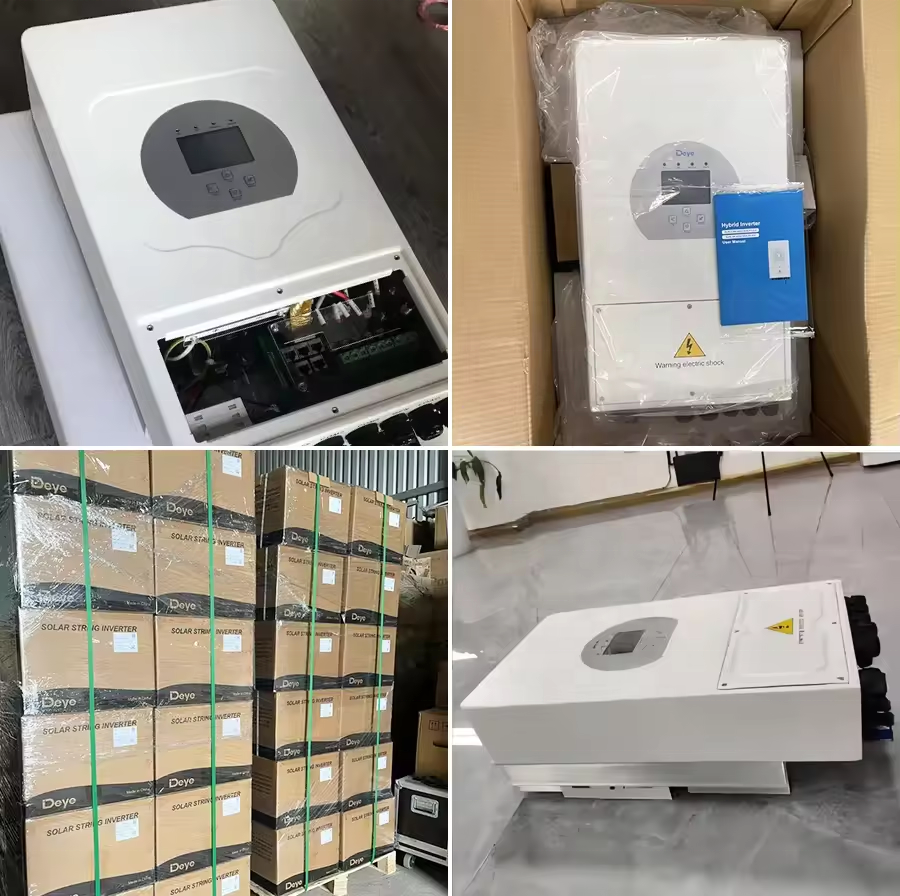

Packing 1
Packing 2

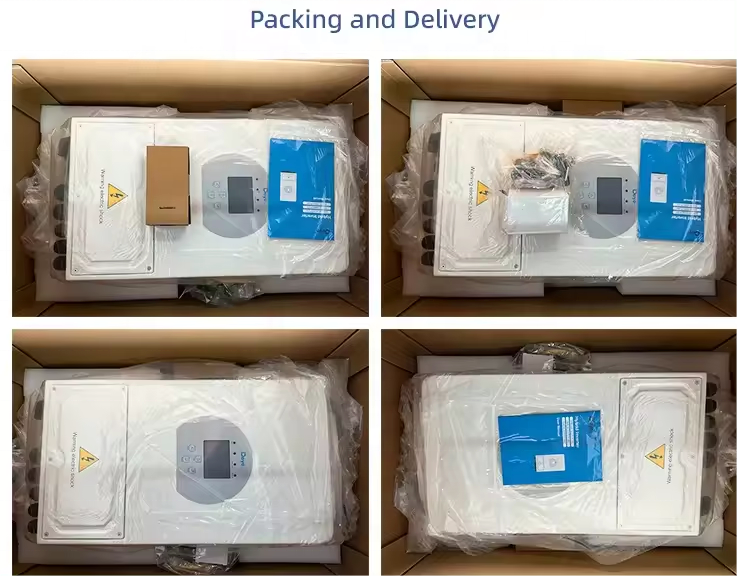

Packing 3
Delivery 1

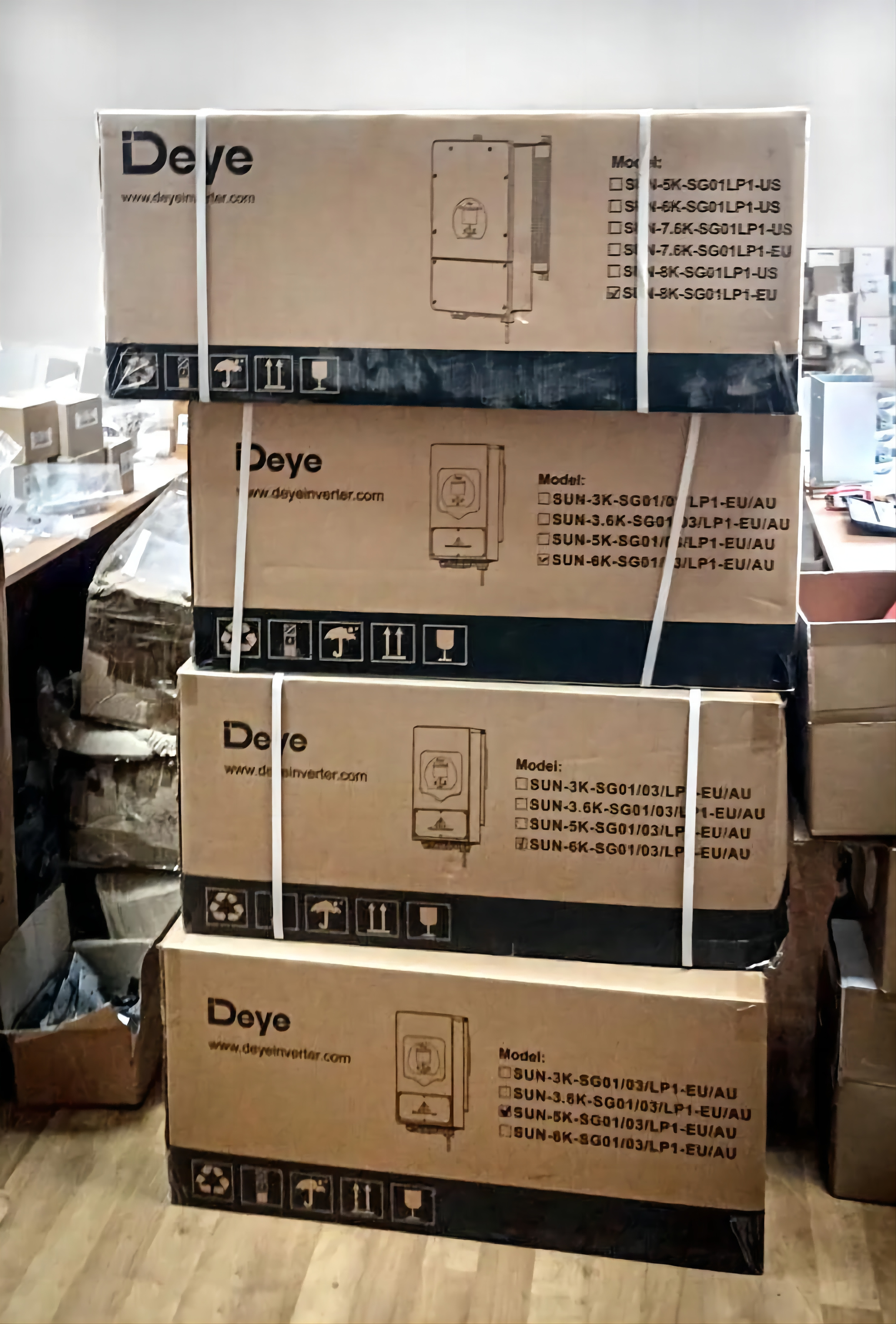

Delivery 2

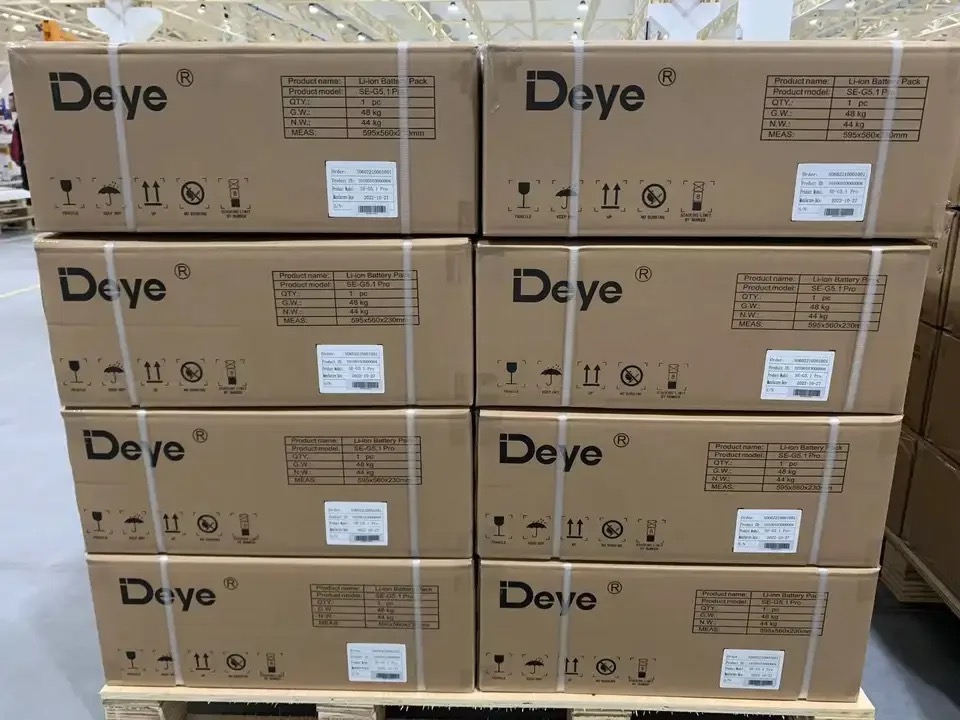

Delivery 3
Exhibition
Exhibition 1
Exhibition 2
Exhibition 3
Exhibition 4
Exhibition 5
Exhibition 6
Certificates
Cert 1
Cert 2
Cert 3

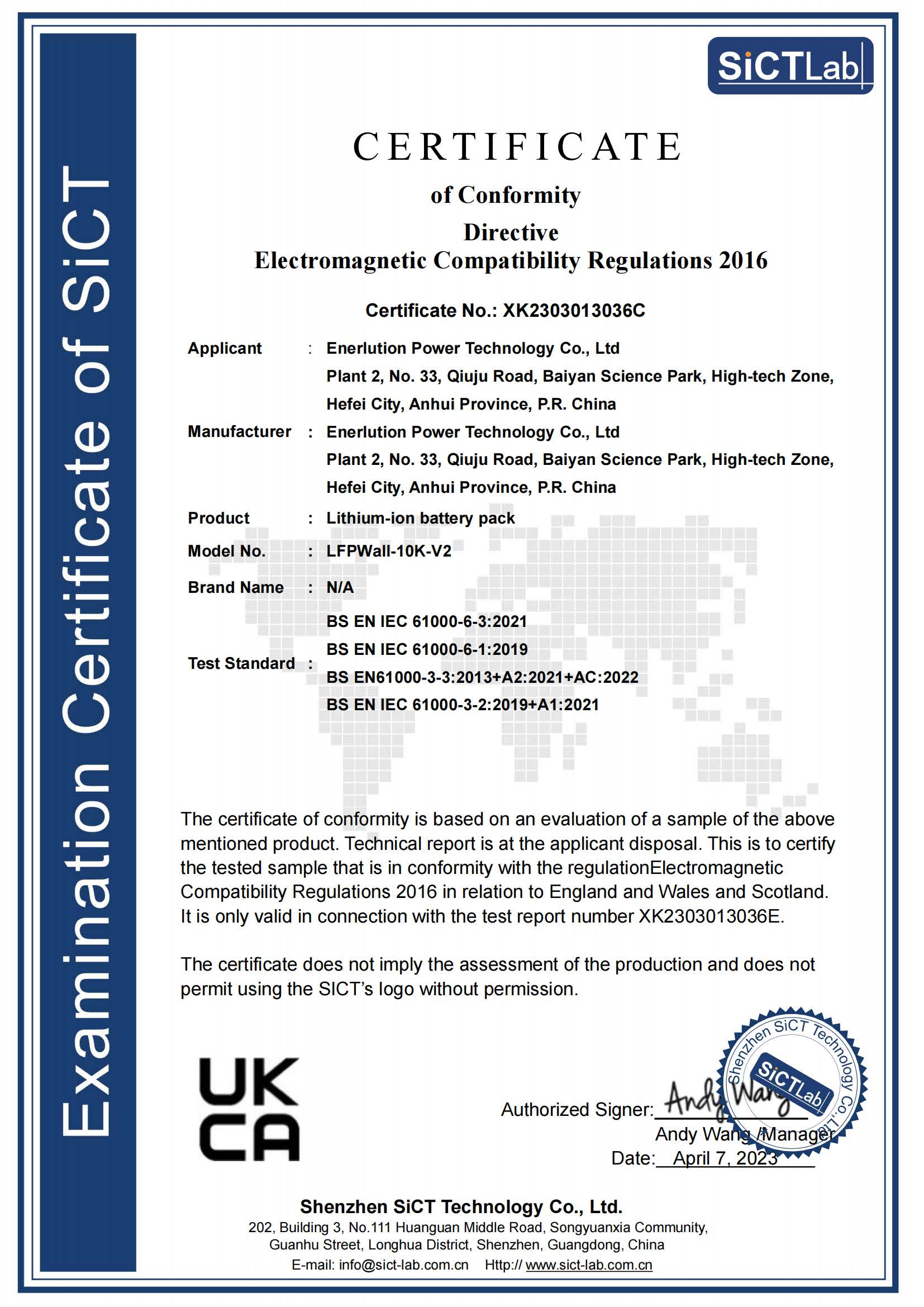

Cert 4
Cert 5
Cert 6
Frequently Asked Questions
●   What solar products do you provide?
We offer a full range of PV products including top-brand solar panels, on-grid/off-grid inverters, hybrid inverters, and complete solar energy storage systems featuring batteries and integrated BMS platforms.
●   How is the product quality guaranteed?
Our professional technical team conducts rigorous product testing and provides technical training. We also support sample orders for quality verification before proceeding with mass production.
●   Do you offer customized services?
Yes, with our own manufacturing facility and a complete PV supply chain, we can provide OEM services tailored to specific customer requirements.
●   What are your technical advantages?
With over 10 years of experience in the PV industry, our technical team provides comprehensive support and after-sales service, ensuring successful implementation of solar projects worldwide.
●   What are your delivery and payment terms?
We support multiple delivery terms including EXW, FOB, and CIF. Payment can be made via T/T, L/C, MoneyGram, PayPal, Western Union, or Cash.
●   Which ports do you export from?
Our primary export hubs include major ports such as Ningbo, Shanghai, Shenzhen, and Hong Kong.
