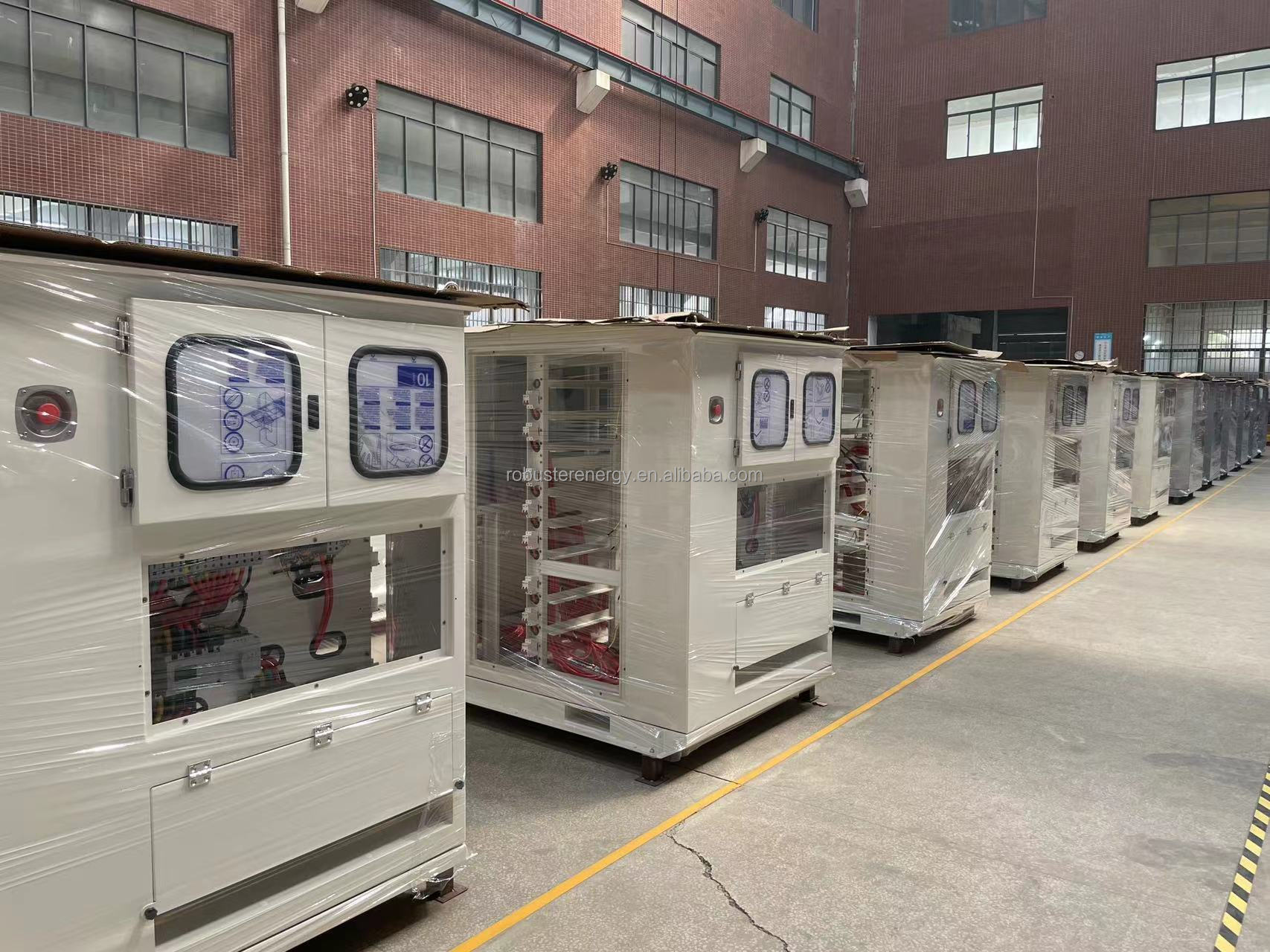

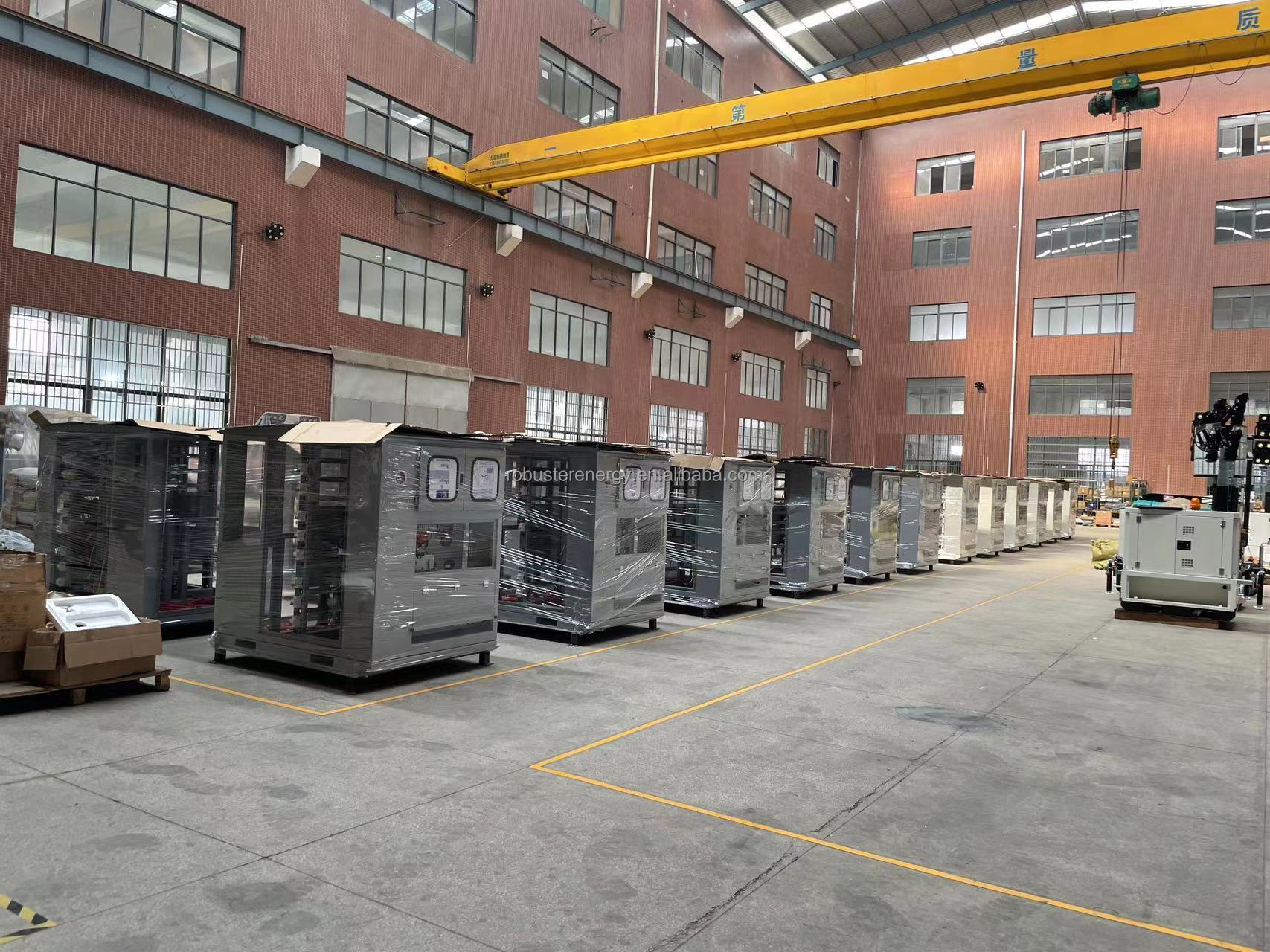

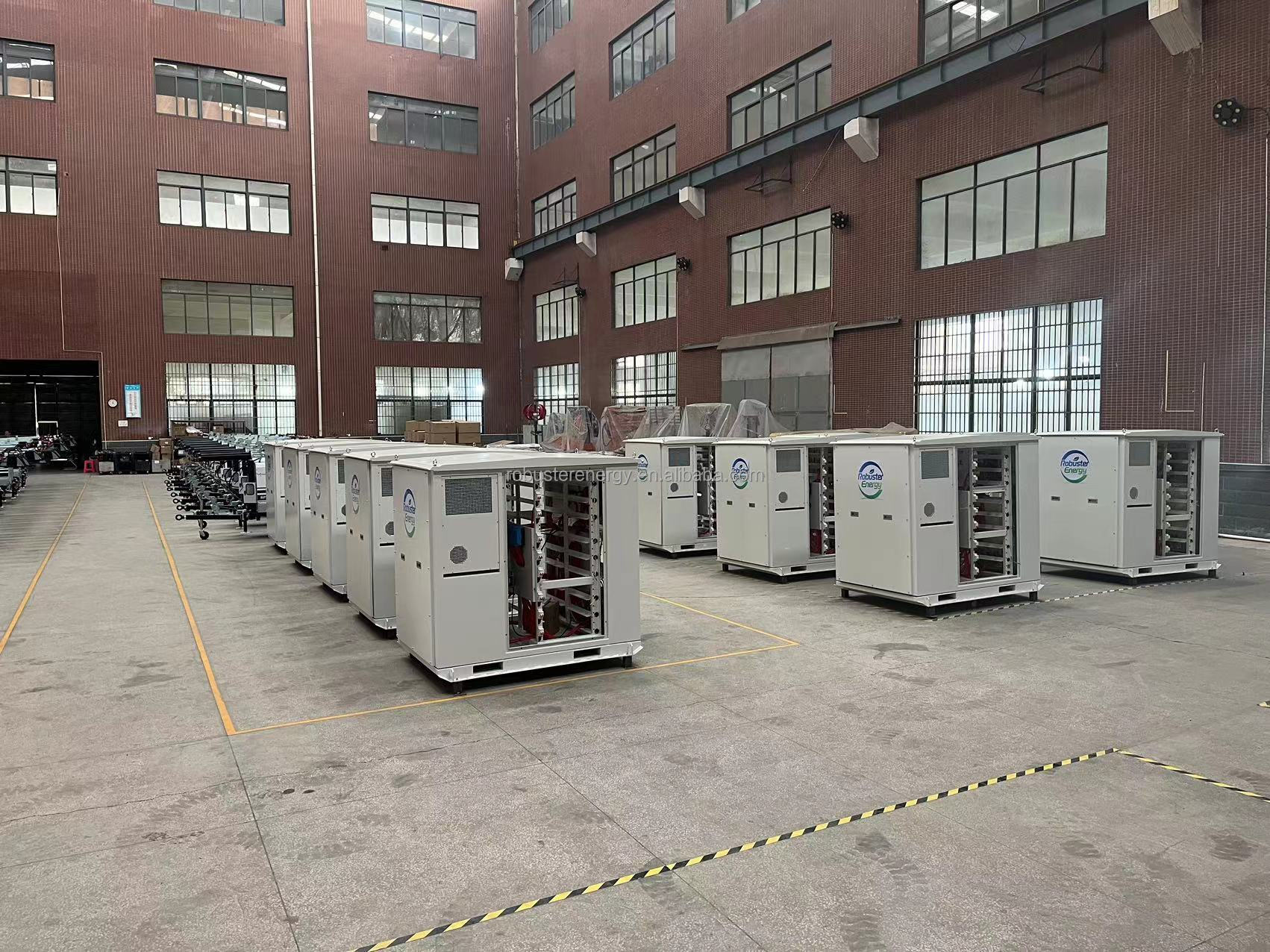

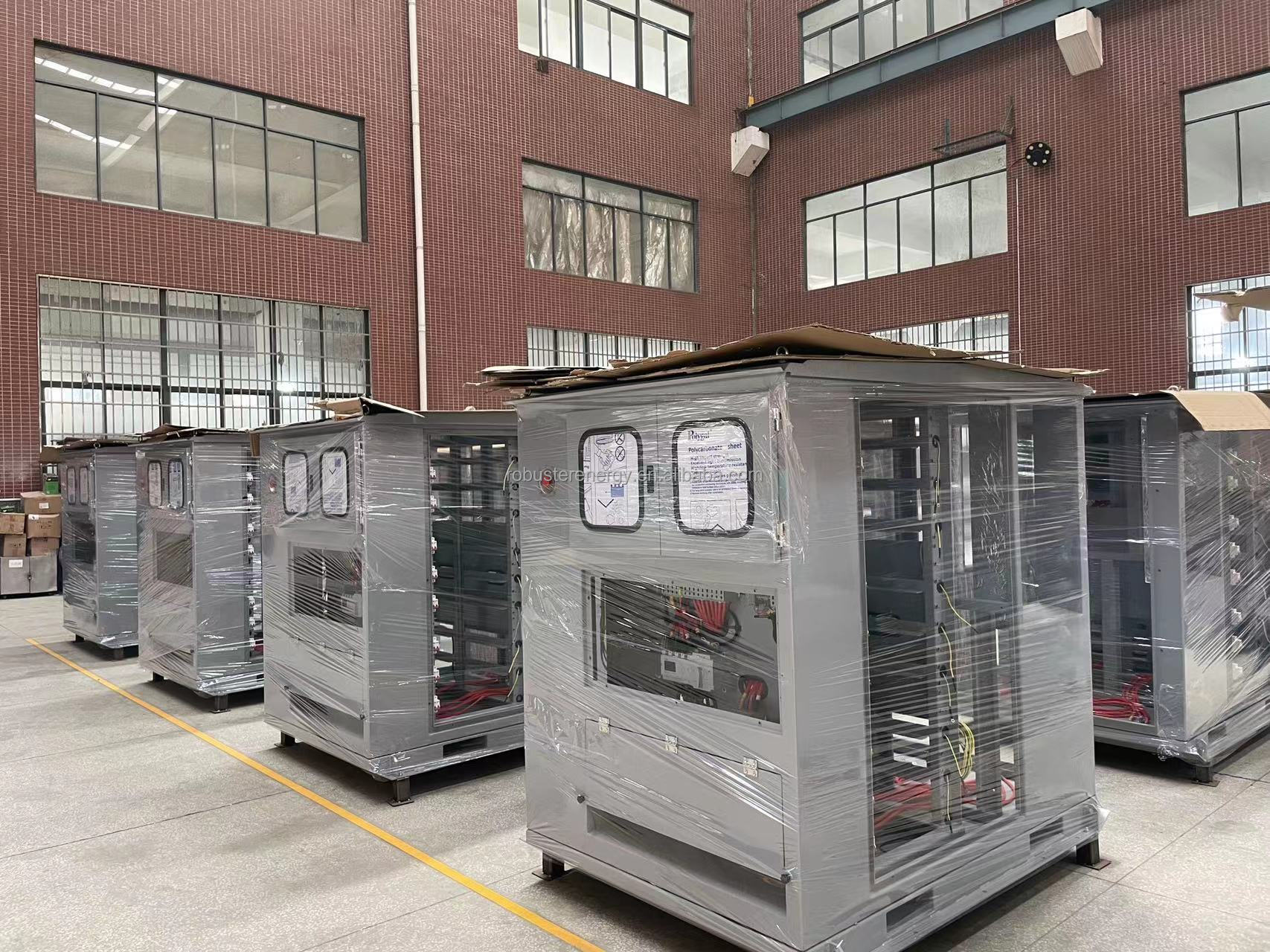

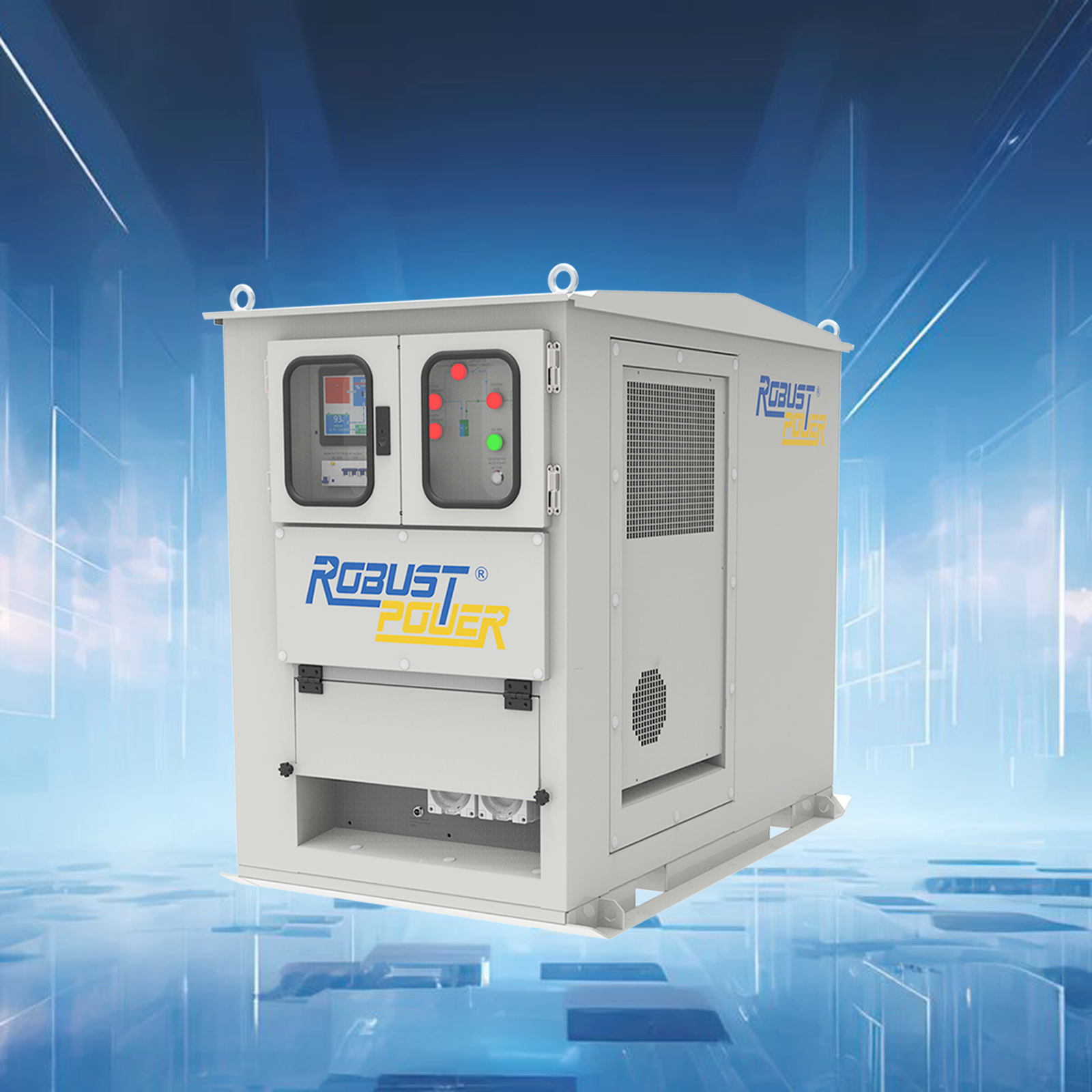

80kwh Energy Storage System ESS Hybrid Inverter Solar Power All in One System Lithium Battery
80kwh Energy Storage System ESS Hybrid Inverter Solar Power All in One System Lithium Battery
80kwh Energy Storage System ESS Hybrid Inverter Solar Power All in One System Lithium Battery
80kwh Energy Storage System ESS Hybrid Inverter Solar Power All in One System Lithium Battery
80kwh Energy Storage System ESS Hybrid Inverter Solar Power All in One System Lithium Battery
1 / 5
80kwh Energy Storage System ESS Hybrid Inverter Solar Power All in One System Lithium Battery
80kwh Energy Storage System ESS Hybrid Inverter Solar Power All in One System Lithium Battery
80kwh Energy Storage System ESS Hybrid Inverter Solar Power All in One System Lithium Battery
80kwh Energy Storage System ESS Hybrid Inverter Solar Power All in One System Lithium Battery
80kwh Energy Storage System ESS Hybrid Inverter Solar Power All in One System Lithium Battery

80kwh Energy Storage System ESS Hybrid Inverter Solar Power All in One System Lithium Battery

Send Inquiry

Product Description

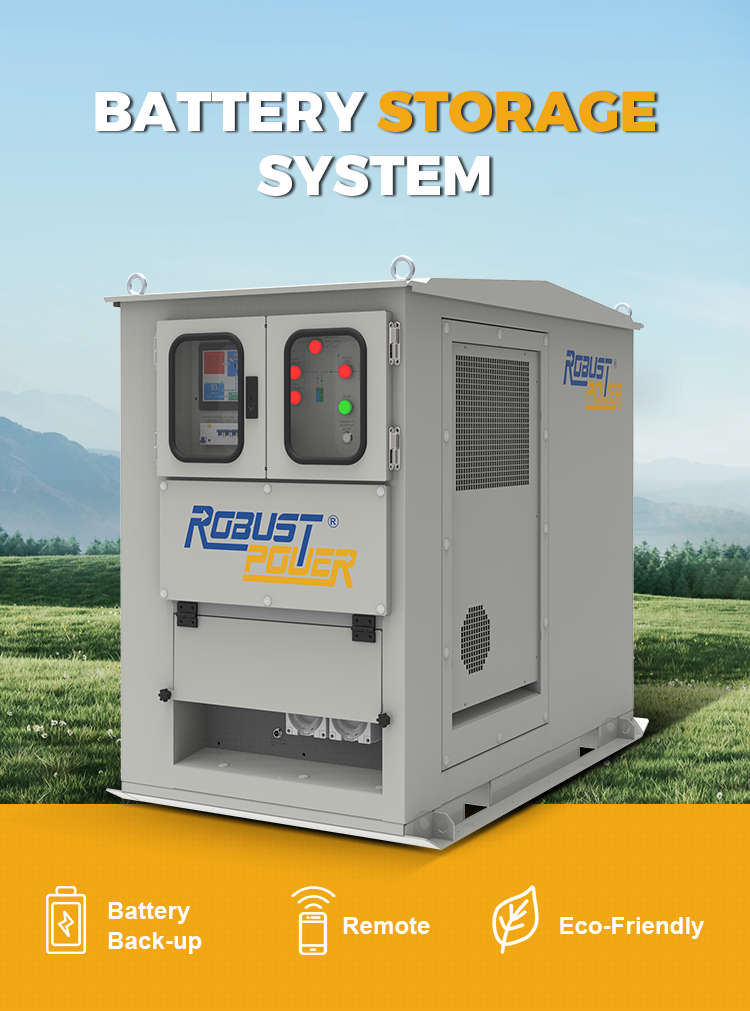

Product Image 1
Product Image 2
⚡
Product Overview: High-capacity LFP Battery System Integrated with Victron Energy Inverters.
RPCN-80KWH-36KW Technical Specifications
Battery System
Total Battery Capacity 80kWh (1600Ah)
Cell Type Lithium Battery (LFP)
Nominal Voltage 48V DC
Inverter & Charger
Inverter Brand Victron Energy
Inverter Model Quattro 48/ 15000/ 200-100/ 100
Inverter Power 12KW
MPPT Controller
Maximum PV Open Circuit Voltage 150V
Rated Charge Current 100 + 100 + 100A
Nominal PV Power (48V) 17400W
Solar Configuration (Optional)
Solar Panel Quantity Recommend 30pcs x 550W
Connectors 12x MC4 Pair
AC Input Specs
AC Input Voltage Range 230V / 415V
Rated Frequency Range 50Hz / 60Hz
Rated Cont. Input Power 36KW
AC Output Specs
Rated Output Voltage 230V / 415V AC
Rated AC Output & Inverter Power 36KW
Communication Port RS485; CAN
📷
Visual Gallery: Product details and system components.
System Component
What is the expected lifespan of the LFP battery?
The Lithium Iron Phosphate (LFP) battery technology typically offers over 6,000 cycles at 80% depth of discharge, ensuring long-term reliability for many years.
Can this system be used with three-phase power?
Yes, the system supports both 230V and 415V AC input/output configurations, making it suitable for single-phase and three-phase industrial or residential setups.
Is the system compatible with remote monitoring?
The system includes RS485 and CAN communication ports, allowing for seamless integration with monitoring software and energy management systems.
Does it support solar expansion?
The built-in MPPT controller supports up to 17400W of PV power. We recommend using 30 units of 550W solar panels for optimal performance.
Why use Victron Energy inverters?
Victron Energy is a world leader in power electronics, providing superior efficiency, professional-grade reliability, and advanced features like the Quattro parallel capability.
What are the safety protections included?
The system is equipped with advanced Battery Management Systems (BMS) and MPPT protections against over-voltage, short circuits, and extreme temperatures.
