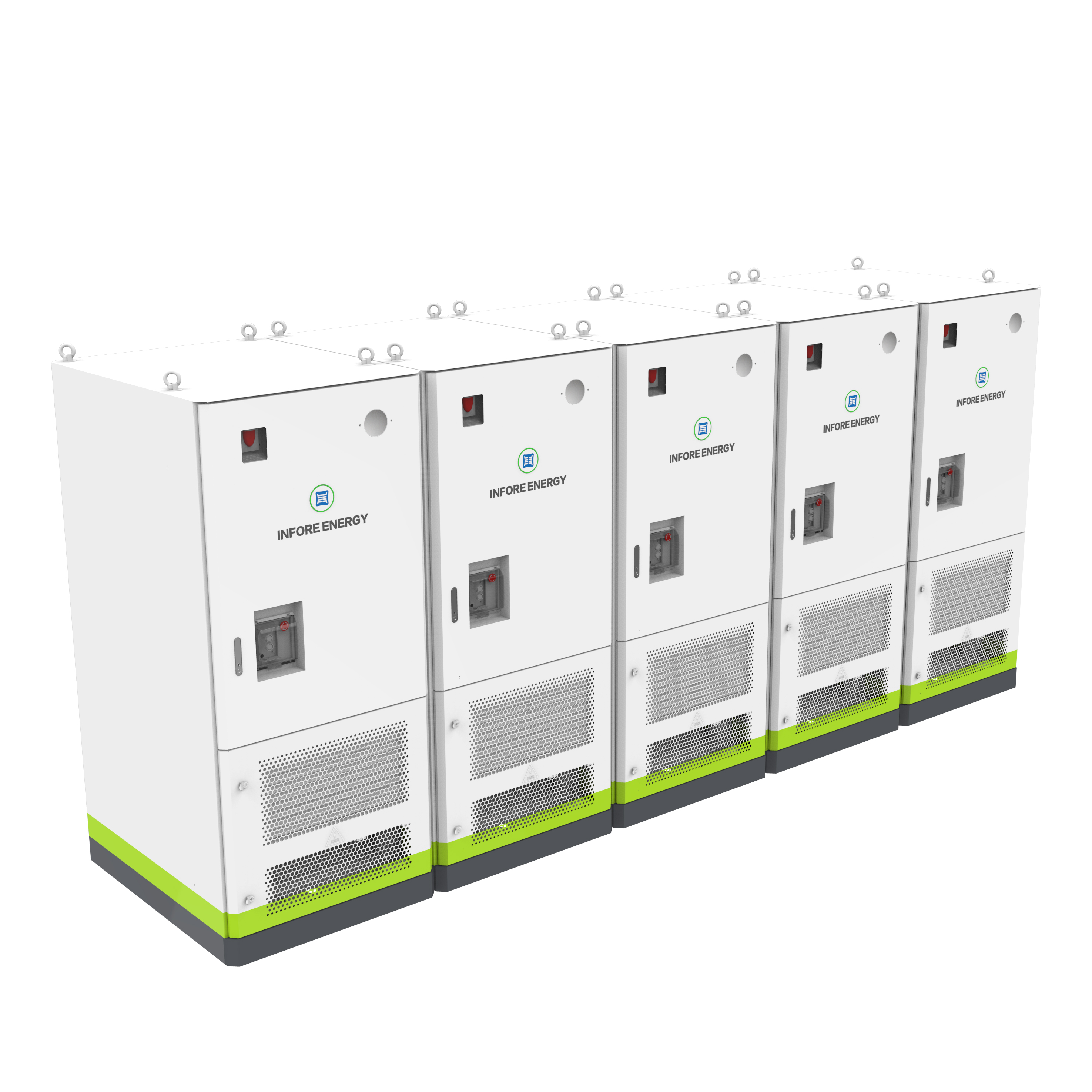

233kWh Commercial Solar Energy Storage Cabinet Battery with Liquid Cooling All-in-one Solution Lithium Battery Inverter

1 / 5

233kWh Commercial Solar Energy Storage Cabinet Battery with Liquid Cooling All-in-one Solution Lithium Battery Inverter

Send Inquiry

Product Description

🔋 233/261kWh Lithium Ion BESS Battery Energy Storage System

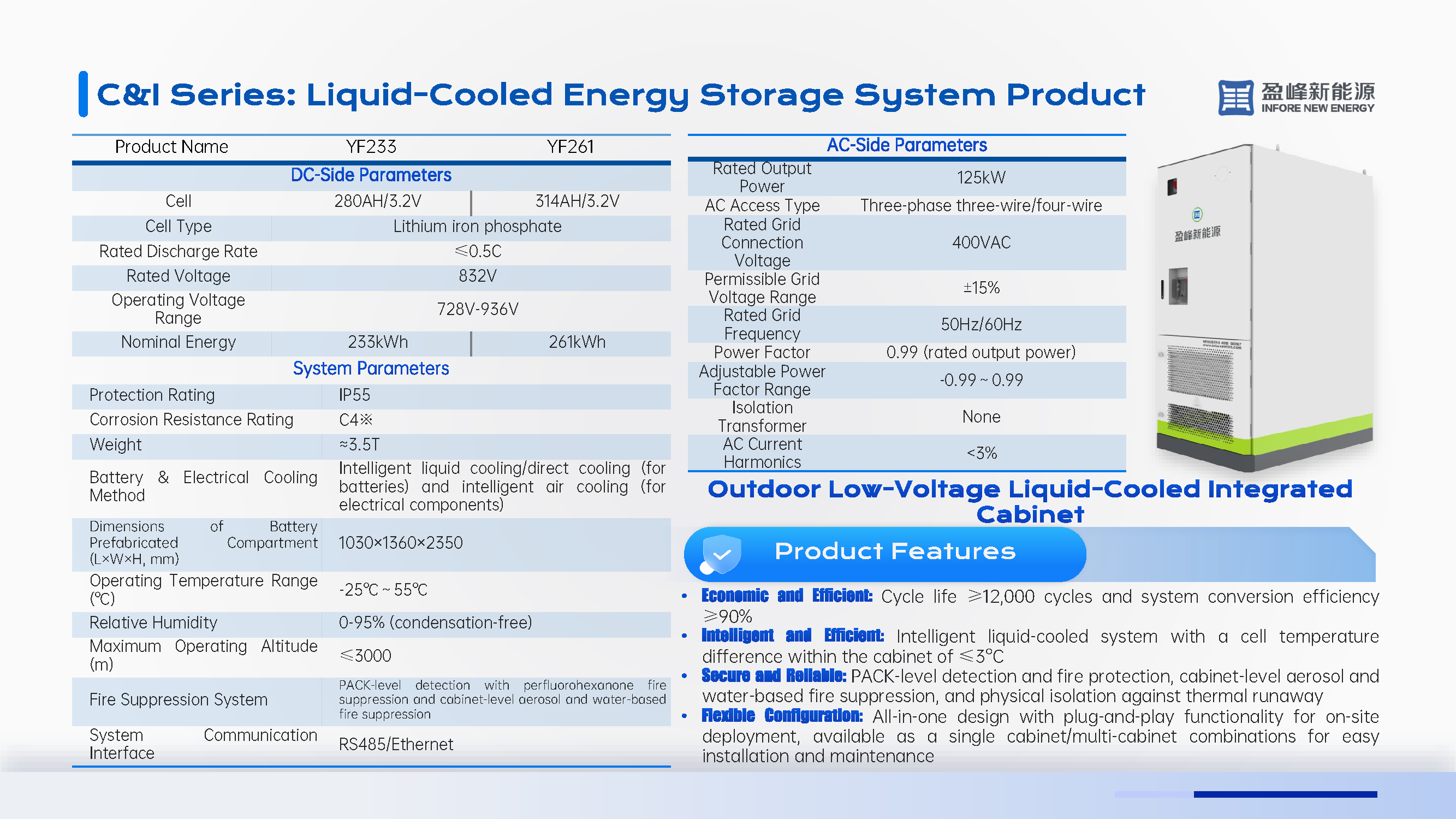

📋 Product Parameters

Item	YF-233 Specification	YF-261 Specification
Cell Model	280AH / 3.2V	314AH / 3.3V
Cell Type	Lithium Iron Phosphate (LiFePO4)	Lithium Iron Phosphate (LiFePO4)
Rated Discharge Rate	≤0.5C	≤0.5C
Rated Voltage	832V	832V
Operating Voltage Range	728V - 936V	728V - 936V
Nominal Energy	233kWh	261kWh
Protection Rating	IP55	IP55
Weight (kg)	2300	2600
Cooling Method	Liquid Cooling	Liquid Cooling
Dimensions (L×W×H, mm)	1030×1360×2350	1030×1360×2350
Operating Temperature Range	-25℃ ～ 55℃	-25℃ ～ 55℃
Relative Humidity	0-95% (condensation-free)	0-95% (condensation-free)
Maximum Operating Altitude	≤3000m	≤3000m
Communication Interface	RS485 / Ethernet	RS485 / Ethernet

💡 Products Description

🏢 Company Profile

📜 Certifications

🖼️ Exhibition

📅 2025.4.21 IE Expo 📅 2025.5 CICEE Expo 📅 2025.6.12 CAETE 2025

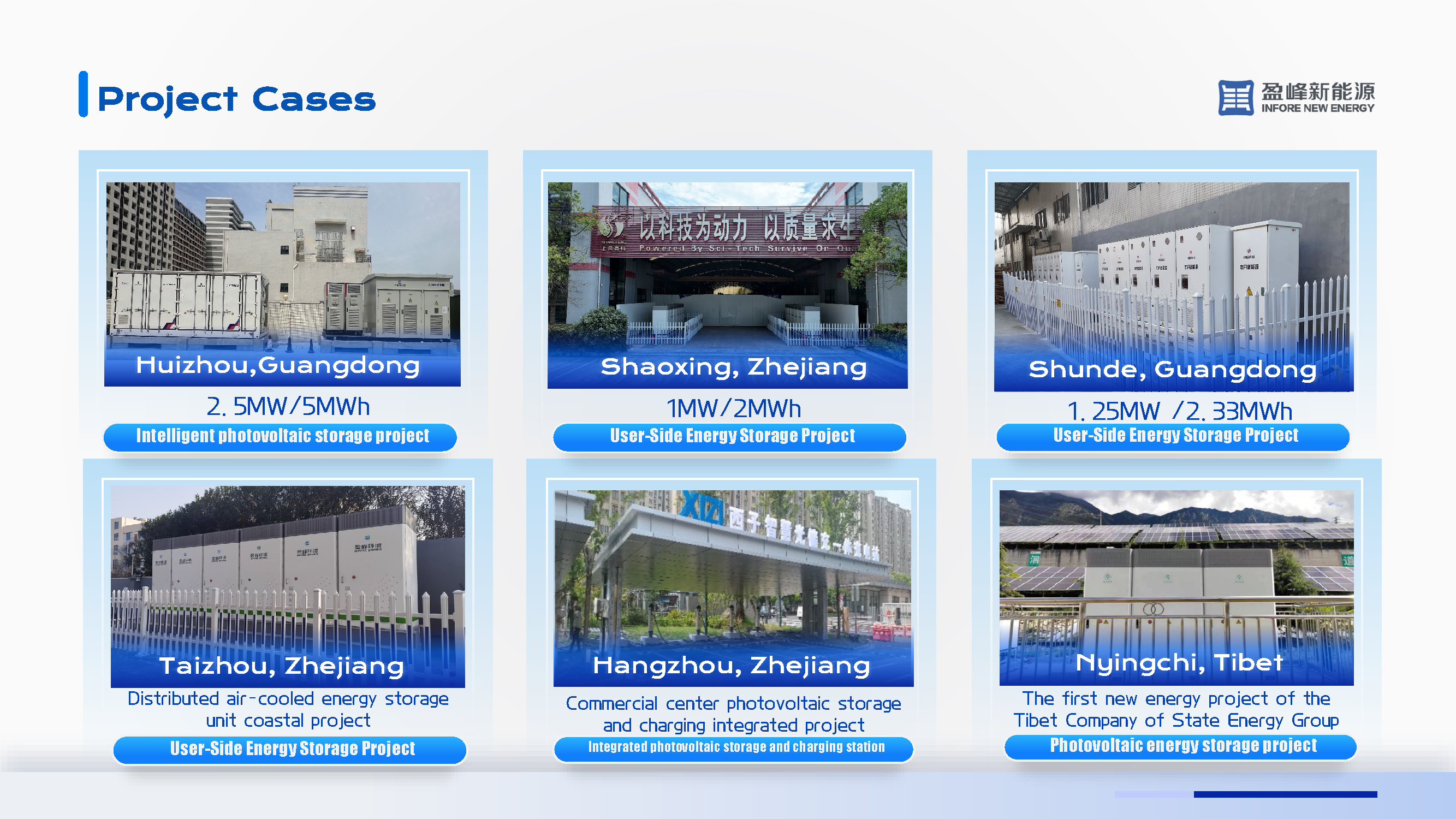

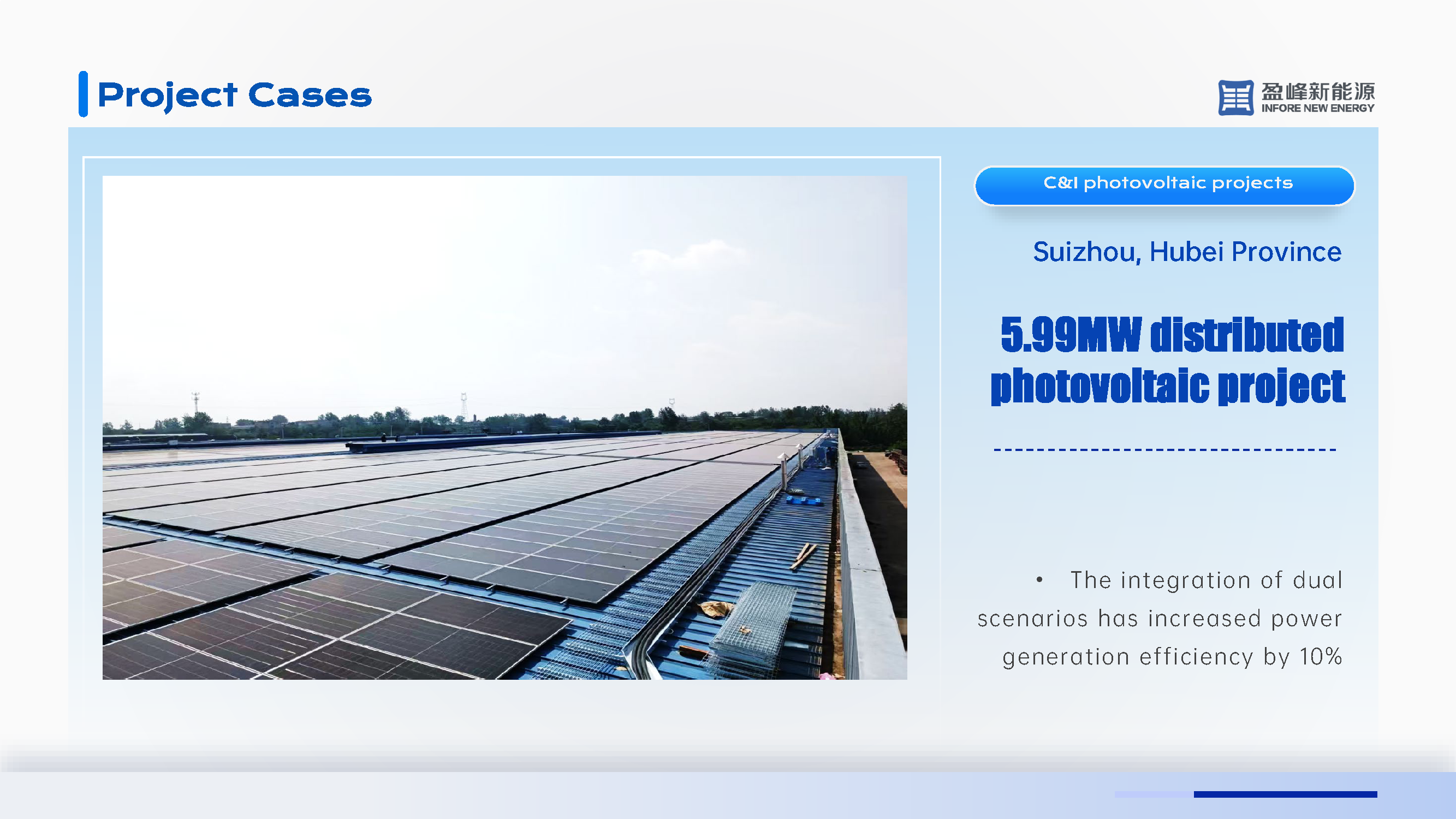

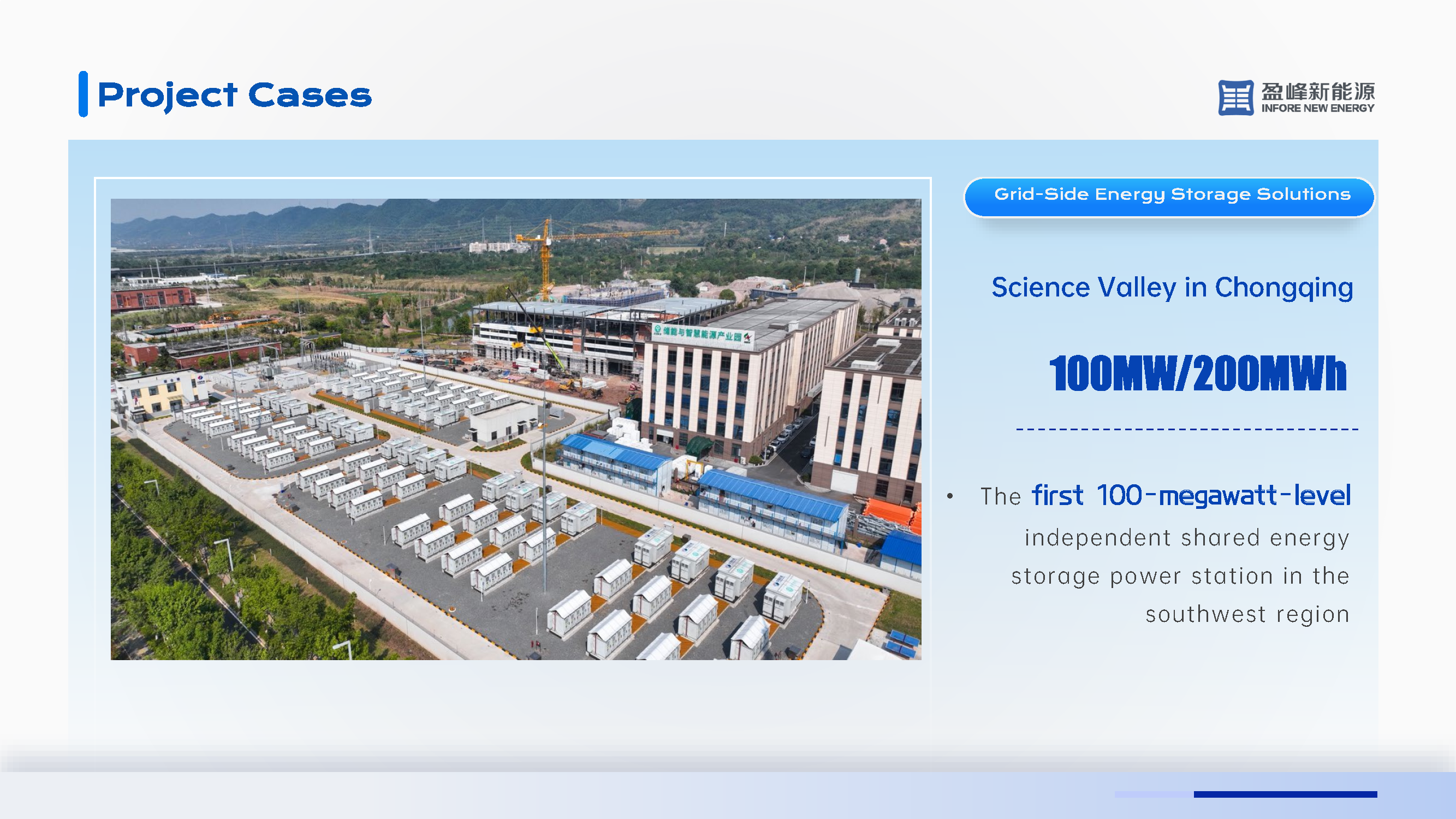

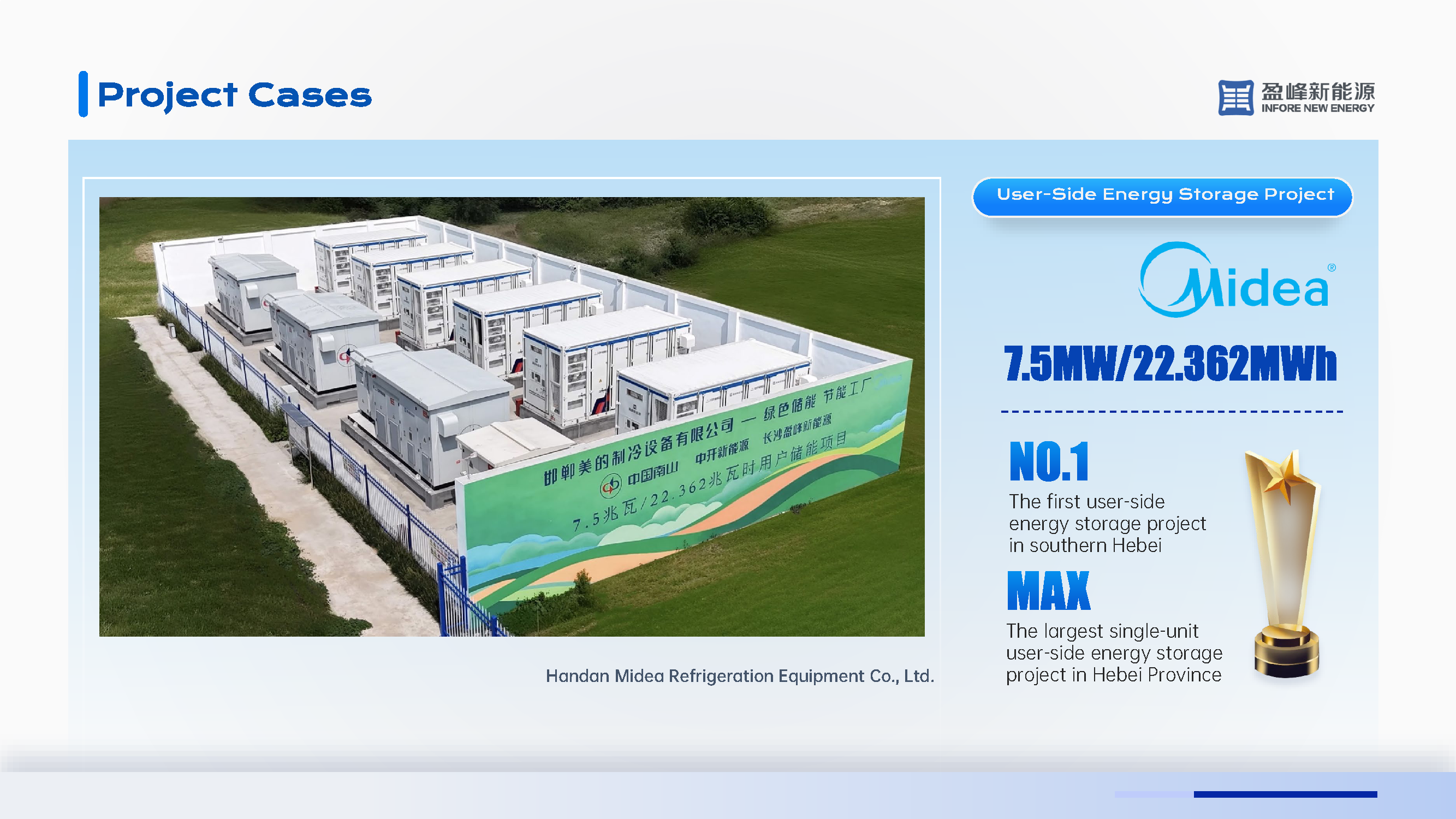

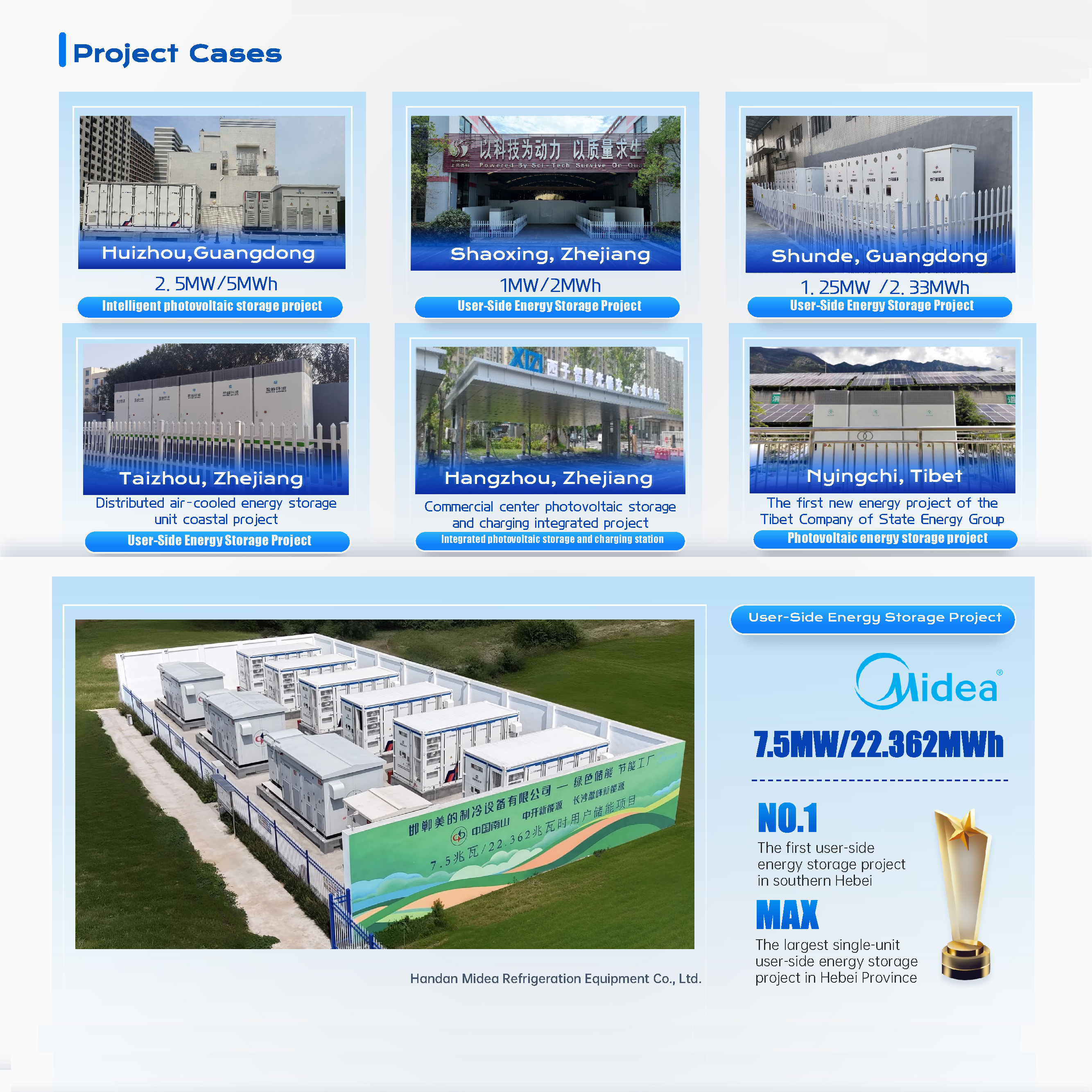

🏗️ Our Projects

❓ Frequently Asked Questions

What is the life expectancy of this BESS system?

Our Lithium Ion BESS utilizes high-quality LiFePO4 cells, typically offering over 6,000 cycles at 80% Depth of Discharge (DOD), ensuring long-term operational reliability for over 10-15 years depending on usage.

How does the liquid cooling system benefit the battery?

Liquid cooling provides superior thermal management compared to air cooling. It maintains a uniform temperature across all cells, which prevents hot spots, extends battery life, and allows for efficient operation in high-ambient temperature environments.

Is the system suitable for outdoor installation?

Yes, the system features an IP55 protection rating, making it highly resistant to dust and water. It is designed to withstand harsh outdoor conditions and operates reliably between -25℃ and 55℃.

Can multiple units be connected for larger capacity?

Absolutely. Our Battery Energy Storage Systems are modular and can be scaled in parallel to meet larger energy demands for industrial, commercial, or utility-scale projects.

What communication protocols does the system support?

The system is equipped with RS485 and Ethernet interfaces, supporting standard industrial communication protocols for seamless integration with local EMS (Energy Management Systems) or remote monitoring platforms.

What is the difference between the YF-233 and YF-261 models?

The primary difference lies in the cell capacity (280Ah vs 314Ah) and the resulting nominal energy (233kWh vs 261kWh). The YF-261 offers higher energy density within the same physical dimensions.
